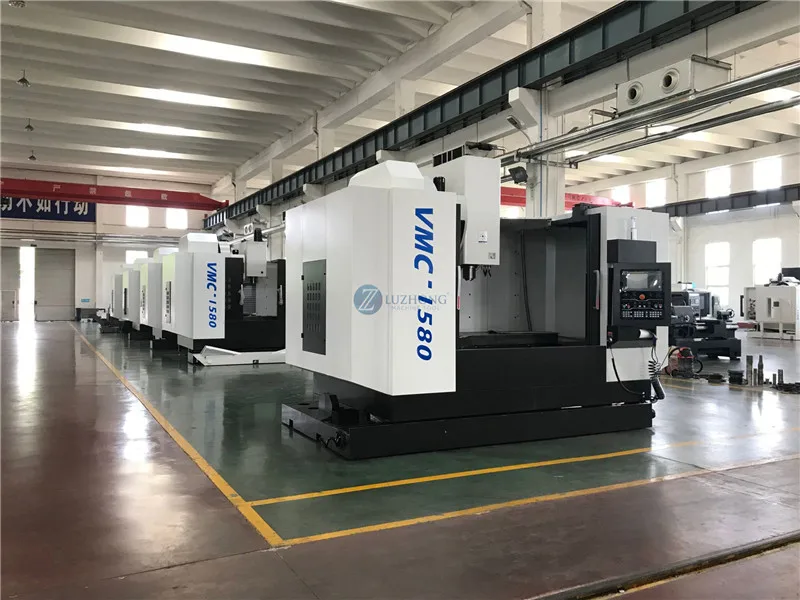

Вертикально фрезерный станок с ЧПУ, обрабатывающий центр VMC1890 VMC, фрезерный станок с ЧПУ
- Category: Machine Centre & Parts >>>
- Supplier: Shandong Luzhong Machine Tool Co. Ltd.
Share on (60355127632):
Product Overview
Description
Product Description
Standard configuration:
1.The CNC system: FANUC 0i mate MD
2.The high quality castings: Resin sand casting
3.The spindle: Taiwan famous high speed spindle
4.The screw: HIWIN
5.The knife: The famous Taiwan bamboo hat knife.
6.The unclamping cylinder: Taiwan Shang product
7.The weight: Wuxi co Qing nitrogen balance
8.The bearing: Japan NTN
9.The Internal protection: Total protection
Select the configuration:
1.M70B/M70A Mitsubishi/Siemens
2.The CNC dividing head
3.NC rotary table
4.The chip cleaner
5.The taiwan famous brand manipulator knife storehouse
6.The fourth axis
7.The fifth axis
The main performance characteristics:
1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for
long-term use.
2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of
machine on heavy cutting
3.The pre tension precision ball screw drive
4.The high speed, high precision, high rigidity spindle unit
5.The design of oil-water separation
6.The intermittent automatic lubrication
7.Automatic scraping knife system
Application:
The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, canadapt from
roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widelyused in
aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing,
oil, electronics and other industries.
1.The CNC system: FANUC 0i mate MD
2.The high quality castings: Resin sand casting
3.The spindle: Taiwan famous high speed spindle
4.The screw: HIWIN
5.The knife: The famous Taiwan bamboo hat knife.
6.The unclamping cylinder: Taiwan Shang product
7.The weight: Wuxi co Qing nitrogen balance
8.The bearing: Japan NTN
9.The Internal protection: Total protection
Select the configuration:
1.M70B/M70A Mitsubishi/Siemens
2.The CNC dividing head
3.NC rotary table
4.The chip cleaner
5.The taiwan famous brand manipulator knife storehouse
6.The fourth axis
7.The fifth axis
The main performance characteristics:
1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for
long-term use.
2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of
machine on heavy cutting
3.The pre tension precision ball screw drive
4.The high speed, high precision, high rigidity spindle unit
5.The design of oil-water separation
6.The intermittent automatic lubrication
7.Automatic scraping knife system
Application:
The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, canadapt from
roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widelyused in
aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing,
oil, electronics and other industries.
Specification
Specifications | Units | VMC1890 |
X-axis travel | mm | 1800 |
Y-axis travel | mm | 900 |
Z-axis travel | mm | 800 |
Table size | mm | 2000×900 |
Maximum table load | kg | 1600 |
T-slot (slot number×width×pitch) | mm | 5-22-165 |
Spindle taper | BT50/190 | |
Spindle power | kw | 18.5/23 |
Maximum spindle speed | rpm | 8000 |
Rapid traverse (X/Y) | mm/min | 15000 |
Rapid traverse (Z) | mm/min | 12000 |
Cutting feed | mm/min | 1-5000 |
Feed motor | mm | 27/30/30 |
Spindle nose to table | mm | 160-960 |
Spindle center to column surface distance rail | mm | 950 |
Maximum tool diameter | mm | Φ127/Φ200 |
Maximum tool length | mm | 350 |
Maximum tool weight | kg | 15 |
Positioning accuracy | mm | ±0.01 |
Repeat accuracy | mm | ±0.0075 |
Machine weight | kg | 16000 |

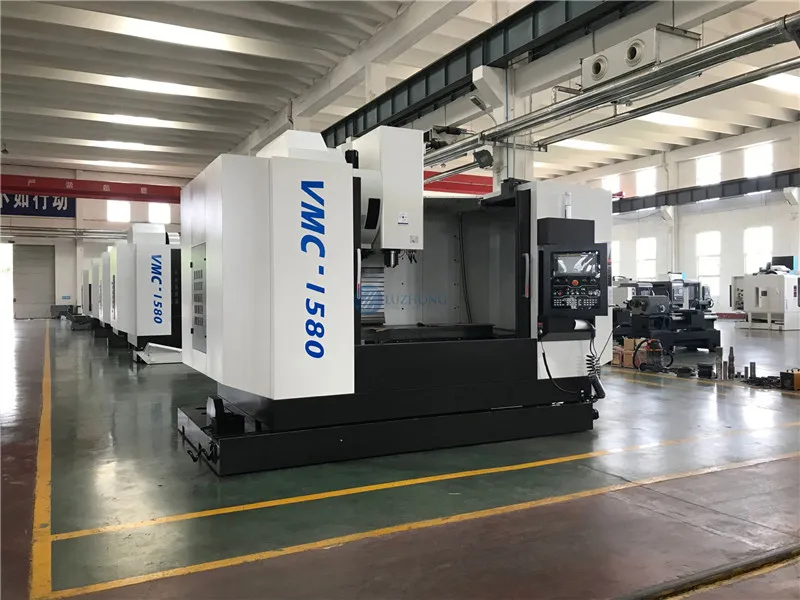

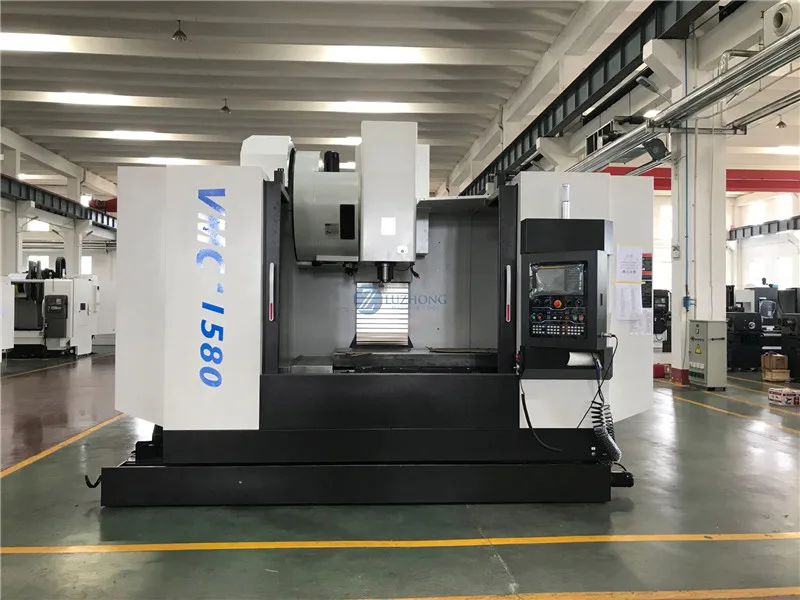

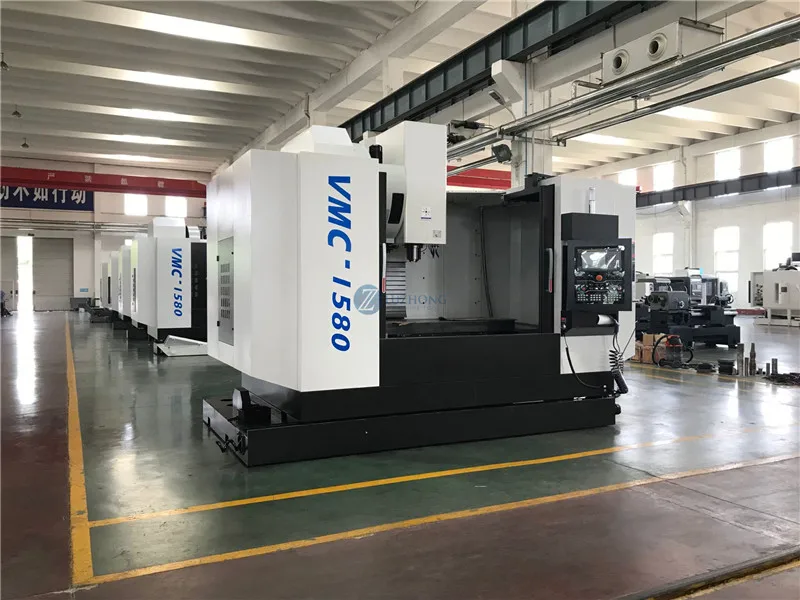

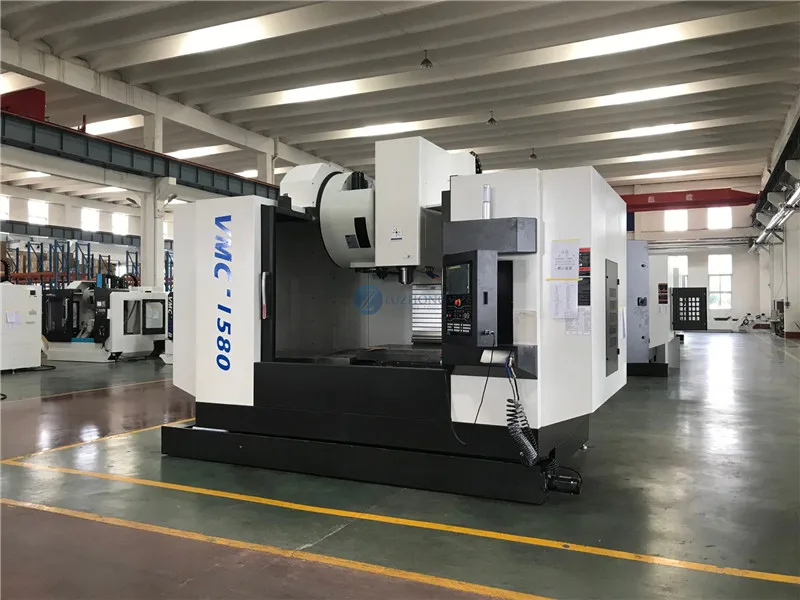

Details Display
Recommend Products
Company Profie
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
