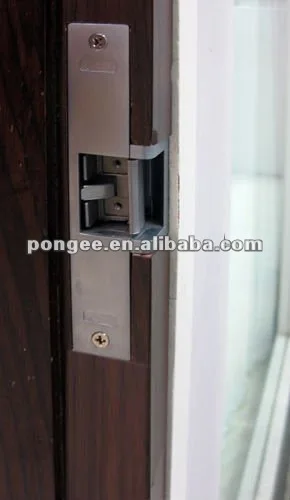

DC12V 24V Fail Secured Type Electric Strike Pair with latch bolt mechanical lock

Product Overview

Description

Product Description

•Fail secured type.(Released as energized).

•Operation pair with latch bolt mechanical lock.

•Could be continuously energized.

•For heavy duty door.

•Without decoration cover.

•PGS-705NS/SWA with door monitoring switch.

•Application for aluminum or wooden door.


Specifications

•Lock size (mm): 153(L) x 25(W) x 30(H)

•Approx. weight: 310g±1%

•Nominal voltage: DC12V / DC24V

•Standby current: 0mA

•Working current: 200mA(12V) / 100mA(24V)

•Temp. range: -10℃  ~60℃

•Power consumption: 2.4W

•Depth of lock slot: 8mm

•Material:Zinc alloy(Lock body/Latch)  / Stainless steel(Faceplate)

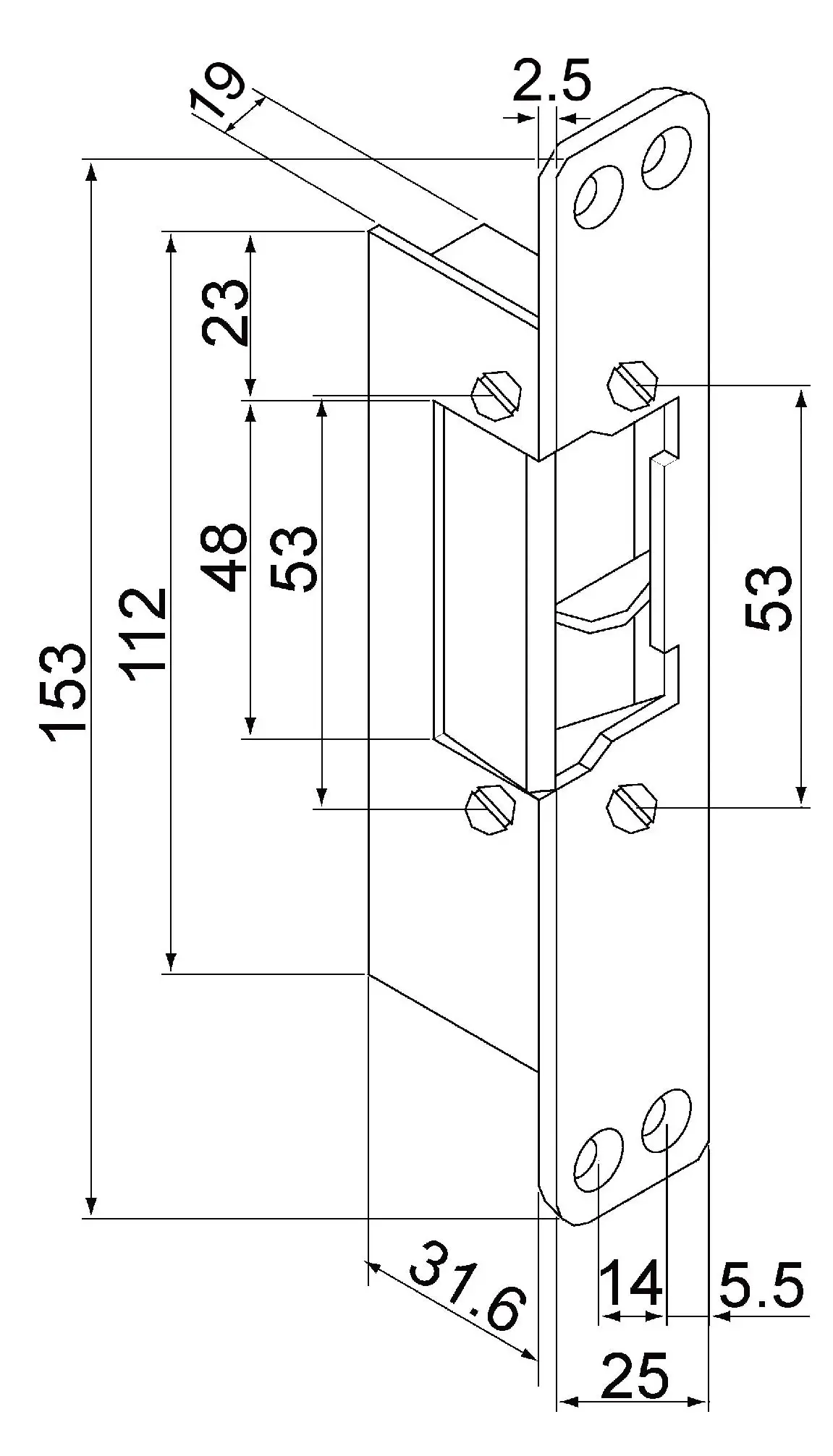

Dimension:
Unit: mm













We reserve the right to change the specification without prior notice or obligation!
