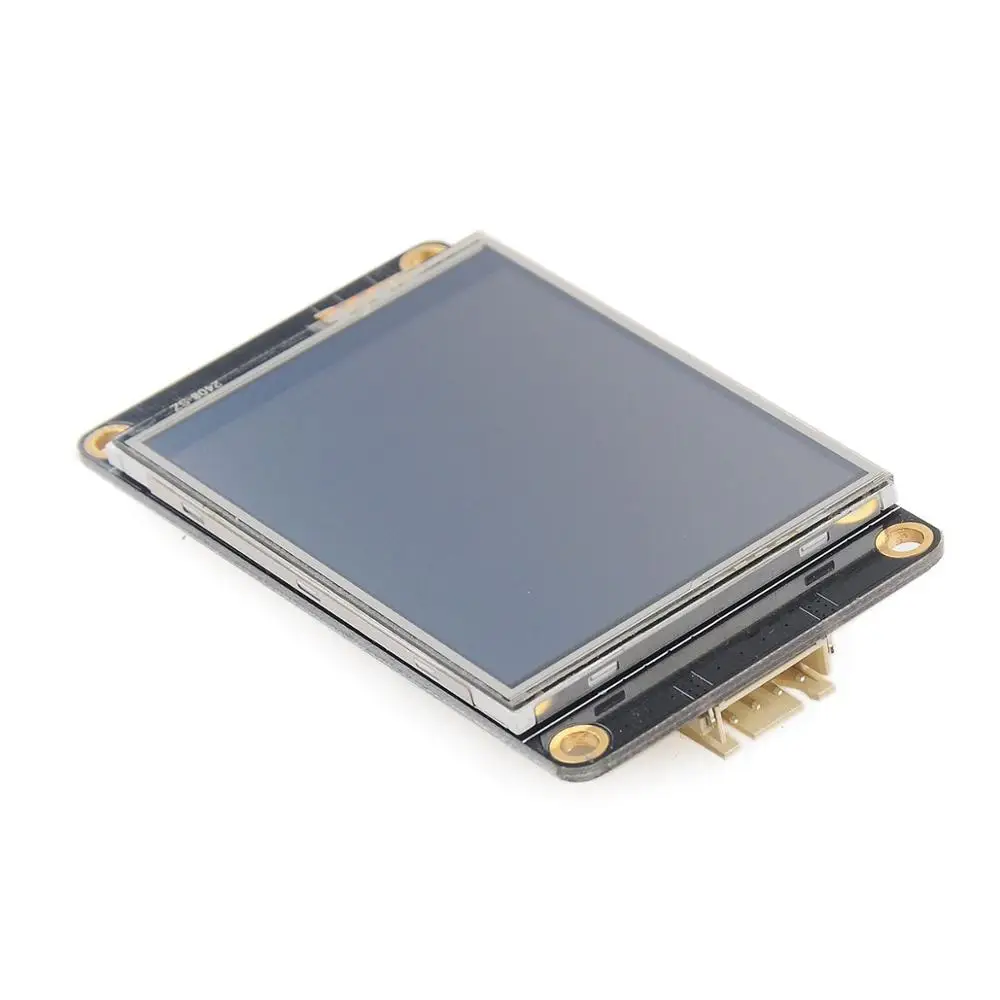

Улучшенная версия интерфейса человека машины HMI ядро Nextion NX3224K024 2,4 дюймовый сенсорный ЖК дисплей

Nextion NX8048K032 Touch Display Enhanced Versions 2.4 Inch HMI LCD
Description:
Display Resolution:480 * 240 Display Interface:Serial Display Controller:No
TFT display interface:N/A
Display Size:2.4"
Board Size: 95mm*47.6mm
Expand: SD Card Socket , Touch Screen
Support built-in RTC . Support GPIO
SD Card interface: support max max 32G Micro TF/SD card (FAT32 file format)
Flash data storage space: 16MB
EEPROM: 1024 byte
RAM: 3584 byte
Instruction buffer: 1024 byte
Color:65K (65536) colors
Resolution:320×240 pixel
Adjustable Brightness:0~180 nit, the interval of adjustment is 1%
Visual Area:69.60mm(L)×41.76mm(W)
Layout size:95(L)×47.6(W)×5.55(H)
Touch type: Resistive
Backlight:LED
Backlight lifetime (Average): >30,000 Hours
Recommended power supply: 5V 500mA DC
Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance.
We notice that most engineers spend much time in application development but get unsatisfactory results. In this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich your interface design. And the drag-and-drop function ensures that you spend less time in programming, which will reduce 99% of your development workloads.

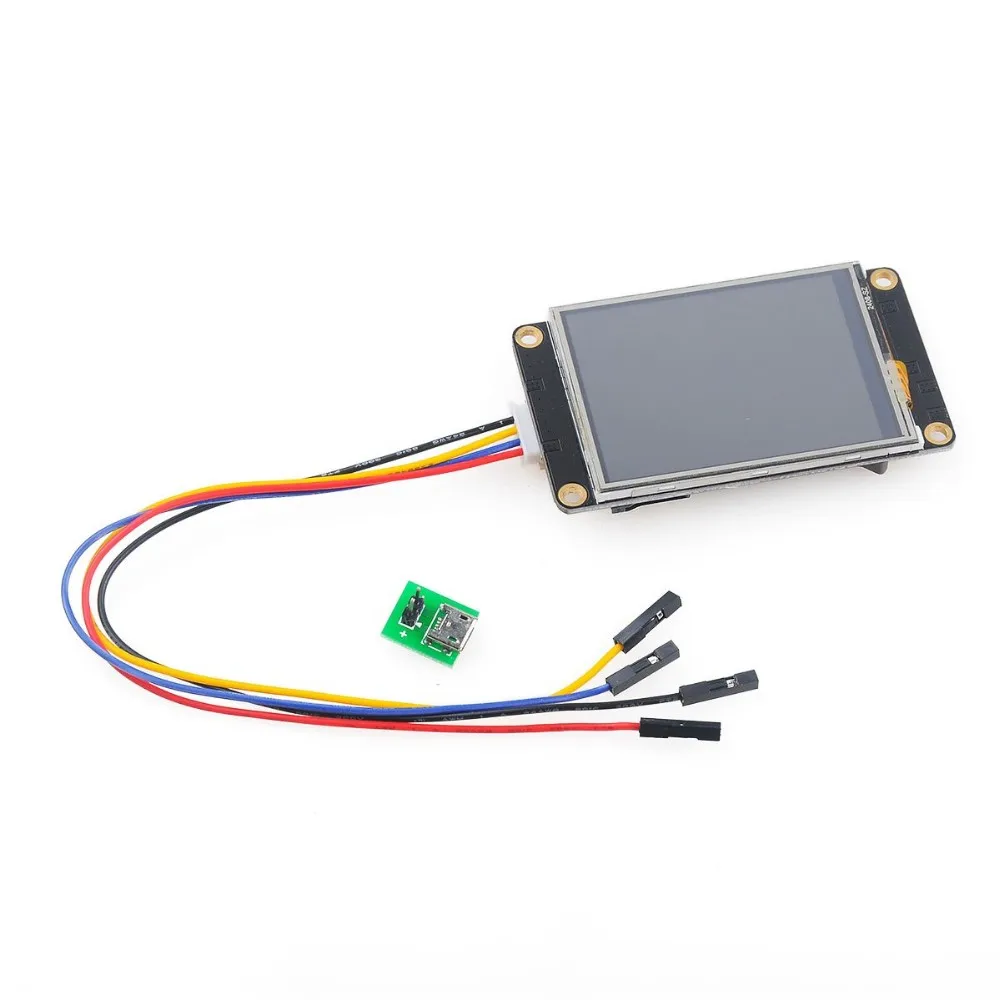

Note: there's a small power supply test board and a wire for you to test if the electricity supply is enough or not. Please see below image how to use it.

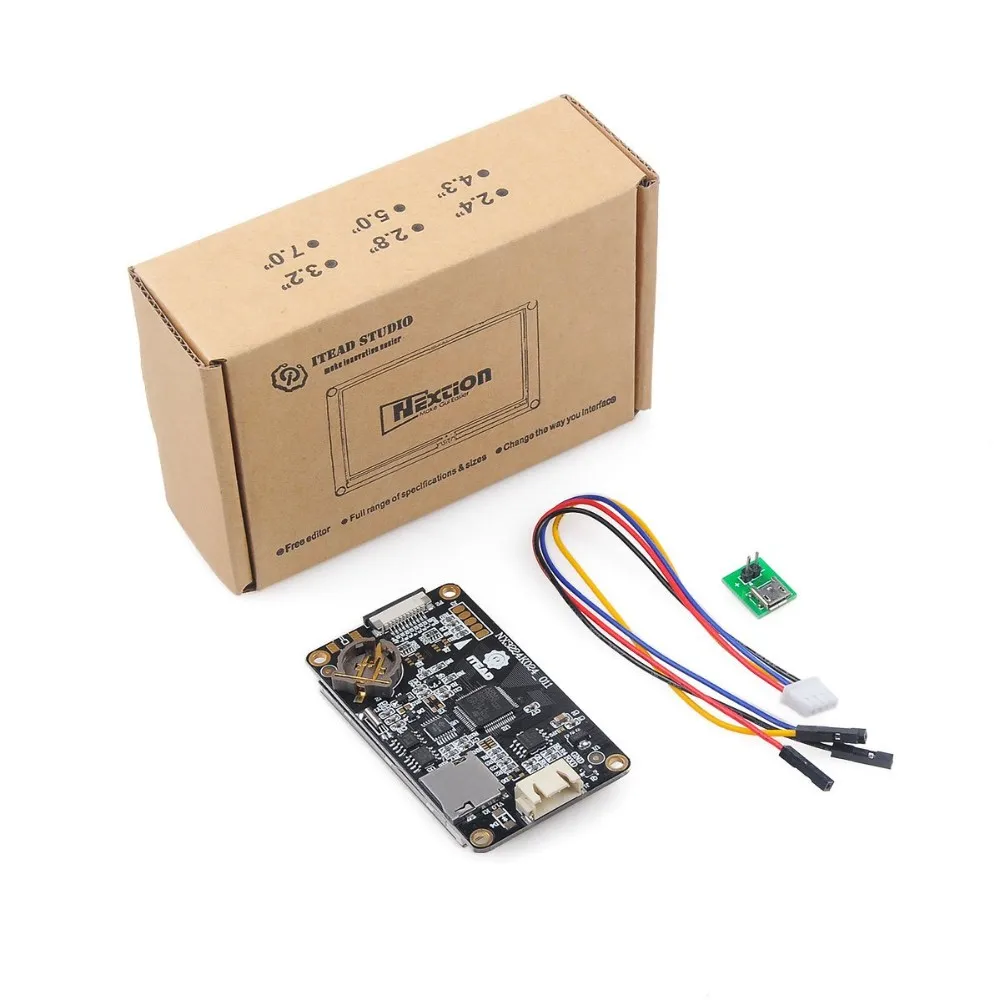

Package Including
1 * 2.4" Nextion Enhanced HMI Display
1 * power supply test board
1 * 4-pin grove cable
