Spectra Precision SP60 data processing rtk gnss rover station system

SP60GNSS Receiver

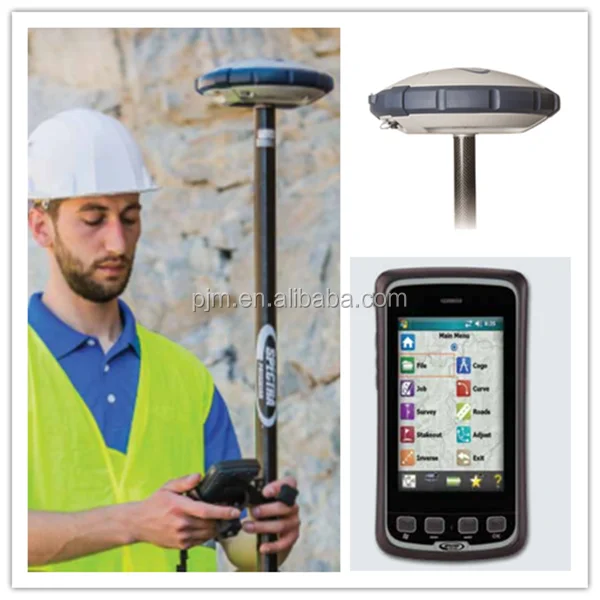

The Spectra Precision SP60 is a new generation GNSS receiver offering a high level of flexibility to cover any
survey demand from simple postprocessing, through standard UHF or unique Long Range Bluetooth base
and rover systems to sophisticated RTK and CenterPoint RTX capable rover solutions.
Combining the unique all-signalstracking and processing Z-Blade GNSScentric technology and L-band capability
for satellite-delivered CenterPoint® RTX service, the SP60 receiver provides the most reliable measurements and the highest possible accuracy under any conditions anywhere in the world.

Key features
  Extended survey scalability
  New 240-channel 6G ASIC
  Z-Blade GNSS-centric
  CenterPoint RTX capable rover
  Internal TRx UHF radio
   Long Range Bluetooth
  Anti-theft protection

Truly scalable and versatile
Extremely scalable and versatile, SP60 can respond to any type of surveying job, starting with a simple L1 GPS only post-processing solution up to dual-frequency GNSS network RTK rover. Also, the L-band capable GNSS antenna delivers CenterPoint RTX positioning in those places where an RTK network is not available. Finally, optional UHF transmit radio or embedded Long Range Bluetooth enable SP60 receivers to be used as a base and rover system. This extended flexibility allows surveyors to start with a simple solution, and through hardware and firmware upgrades, adapt the SP60 to more complex survey jobs.

Unique 6G GNSS-centric technology
Exclusive Z-Blade processing technology running on a next-generation Spectra Precision 240-channel 6G ASIC fully utilizes all 6 GNSS systems: GPS, GLONASS, BeiDou, Galileo, QZSS and SBAS. The unique GNSS-centric capability optimally combines GNSS signals without dependency on any specific GNSS system; this allows SP60 to operate in GPS-only, GLONASS-only or BeiDou-only mode if needed. Thanks to this unique GNSS technology, SP60 is optimized for tracking and processing signals even in very challenging environments.

CenterPoint RTX capable
CenterPoint RTX service delivered via satellite is the most accurate satellite-delivered correction service available. It doesn’t require an RTK base station or cellular coverage. SP60, empowered with an L-band GNSS antenna, is CenterPoint RTX capable, which is ideal for operating in areas where there is no network available and a local base and rover set-up is not possible. Enabled to receive satellitedelivered CenterPoint RTX corrections, SP60 can provide less than 4 cm positions within 30 minutes or less initialization. Thanks to the CenterPoint RTX technology and satellite coverage, SP60 GNSS receiver can deliver high accuracy positioning anywhere in the world.

Built-in Long Range Bluetooth
SP60 integrates powerful Long Range Bluetooth capabilities opening new operating modes for surveyors. Now, the Bluetooth wireless communication can be used as an alternative radio link between base and rover over a few hundred meters range making this solution very attractive for small site surveys. Easier and simpler than UHF radio,
and without any need for a license, this can be a very efficient way to quickly setup a short range base rover solution.

Anti-theft protection
A unique anti-theft technology secures SP60 when installed as a field base station in remote or public places and can detect if the product is disturbed, moved or stolen. This technology allows the surveyor to lock the device to a specific location and make it unusable if the device is moved elsewhere. In this case, SP60 will generate an audio alert and block the device from further use. SP60’s anti-theft technology provides surveyors with remote security and peace of mind.

Advanced design
In addition to the cutting-edge L-band capable GNSS antenna, and unique Long Range Bluetooth module, the SP60 GNSS receiver design incorporates a number of innovative ideas and enhancements. It features a rugged, impact-resistant housing, easily withstanding 2m pole drops. Waterproof to IP67 standard, it can handle the
toughest outdoor conditions. The patented UHF antenna, set inside the fiberglass rod, extends the range of RTK radio performance and provides protection at the same time. All of these enhancements make the design of SP60 GNSS receiver truly unique and powerful.

The Spectra Precision experience

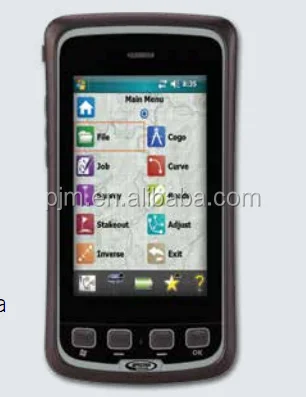

Spectra Precision Survey Pro or FAST Survey field software provides easy-to-use, yet powerful GNSS workflows, letting the surveyor concentrate on getting the job done. Spectra Precision Survey Office Software provides a complete office suite for data processing and Spectra Precision Central cloud computing solution offers a simple to use pathway to data exchange and management. When combined with the most advanced and rugged field data collectors from Spectra Precision, SP60 is a very powerful and complete solution.

WARRANTY: 12 MONTH
FAST DELIVERY: 3-5 DAYS
EASIER PAYMENT TRANSFER: HSBC BANK IN HONGKONG
OFFICE IN SHENZHEN, WHICH CLOSE TO HONGKONG;

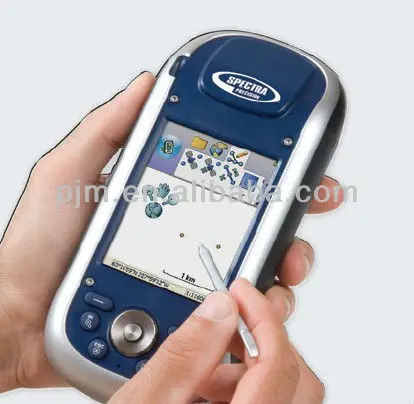

SIMILAR PROMOTING MODEL: SPECTRA PRECISION MOBILEMAPPER 20
