RH AUDIO RH 2813AM 16 Zone Speaker Selector With Monitor Speaker
- Category: >>>
- Supplier: Guangzhou Xinghongde Electronics Technology Co. Ltd.
Share on (60355395141):
Product Overview
Description
Product Description

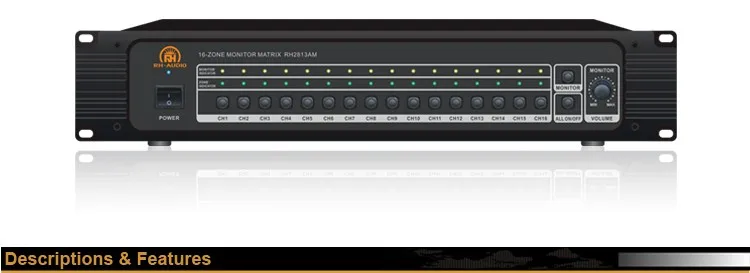

RH-AUDIO RH-2813AM 16 Zone Speaker Selector With Monitor Speaker
The RH-2813AM is a 16 zone speaker selector switch that allows the user to distribute an amplified speaker signal to multiple listening zones that can be turned on or off.
Allows up to 16 zone outputs (CH1 - CH16) for paging and BGM distribution, with 4 channel inputs (A1,A2,A3,A4) of amplified signal for BGM,
with 4 channel inputs (B1,B2,B3,B4) of amplified signal for paging.
Paging signal has priority overriding BGM signal.
Built-in monitor speaker with volume control on front panel offers cost effective
solution without needing to add separate monitor device in the pa system.
1. Supports 16 zones for BGM and paging.
2. Built-in monitor speaker with volume control on front panel.
3. Separate input for BGM and paging.
4. 70V/100V amplifiered signal input and 16 zone outputs for speakers.
5. Each zone has LED indicator.
6. 25-pin activation bus.
7. Power Handling: maximum 8kW total capacity, maximum 2000W per zone.
Model | RH-2813AM |
A Group Input | 70V/100V, audio signal 'CH1~ CH8' |
B Group Input | 70V/100V audio signal 'CH9~ CH160' |
Power Handling | total capacity A, B 8kW, per channel 2000W |
Power Requirements | 110/220V±10%,50/60Hz |
Power Consumption | 10 ~ 15W |
Dimension | 89(H)×483(W)×366(D)mm |
Net Weight | 5 Kg |
