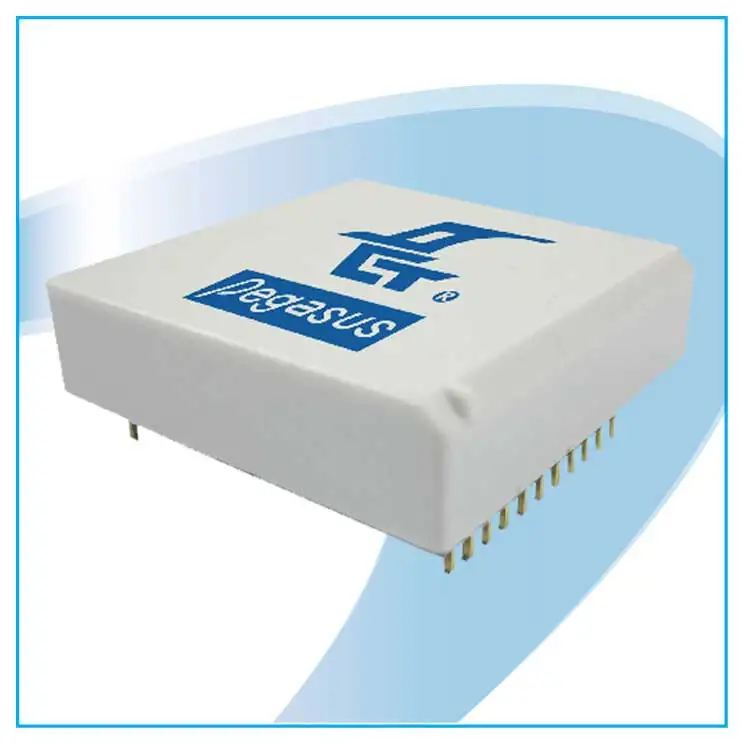

LF 125KHz EM RFID reader module with antenna EM4100, EM4102, EM4200, TK4100, T5567

Product Overview

Description

Features
•AM 125KHz contactless proximity reading module specially for EM cards.
•Either Wiegand 26, Wiegand 34 bits/44 bits(optional), ABA or ASCII format output selected by pin connection.
•Read only for EM cards, and the data are sent by Data 0 and Data 1.
•Lower cost with effective performance.
•Compact size.
•ID-20 compatible.
•SDK simplifies various RFID product developments.
•Supply flexible ODM/OEM.
•Including antenna.

Specifications
•Dimensions:40 (L) x 40(W) x 10(H) mm
•Transmitting frequency:AM 125 KHz
•Card forma:EM4001, EM4100, EM4102, EM4200, EM4305, TEMIC 5557(ISO1785) , TK4100, T5567, ATA5577
•Read range:16cm(Depend on card type)
•Voltage supply range:+3.3V through +5.4V
•Power consumption:5VDC @ 30mA nominal
•Standard encoding:Manchester 64-bit
•Operating temperature:-10℃ ~ 75℃
•Storage temperature:-20℃ ~ 85℃
•Storage humidity:5 ~ 95% RH

Application field


How How to order
PIEM-CW: RFID 125KHz EM read module, Wiegand 26 bit
PIEM-CWA: RFID 125KHz EM read module, Wiegand 26 bit, ABA
PIEM-CWS: RFID 125KHz EM read module, Wiegand 26 bit, ASCII
PIEM-CWAS: RFID 125KHz EM read module, Wiegand 26 bit, ABA, ASCII










We reserve the right to change the specification without prior notice or obligation!
