Mp3 usb sd card yatour digital music changer for toyota
US $35.00-$60.00
yt m06 usb mp3 cd changer yatour NIS
- Category: Car CD Player >>>
- Supplier: Guangzhou Yatour Electronics Technology Co. Ltd.
Share on (60355719592):
Product Overview
Description

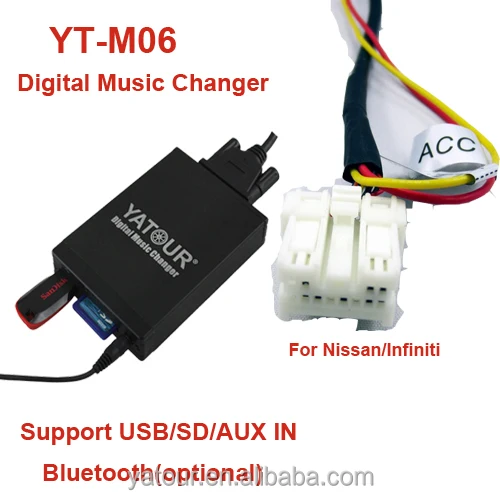

yt-m06 usb mp3 cd changer yatour nissan
1. Features:
* Support USB / SD / AUX IN;
* Deliver Original CD quality sound through CD Changer port ;
* Plug and Play ;
* Direct controls from car radio panel ;
* Supports last position memory(LPM) ;
* Able to work together with original Mechanical Disc Box, arbitrary switch playing allowed;
* Optional Bluetooth function support.
2. Specifications :
| Voltage input:11v~14.6v DC | Operational current: 200mA |
| Standby current : 3mA | Operating Temperature : -35 °C~+85 °C |
| DAC resolution : 20bit | Total harmonic distortion : 0.05% |
| SN ratio : 90dB | Frequency response : 20Hz-20KHZ |
3. Compatible car :
YTM06-NIS | Includes: l Module unit for Nissan l Nissan plug l AUX cable | ||
Compatible Models | Nissan/ Infiniti | 2003 – 2011 350Z , 1995 – 2011 Almera(non Mexico Panasonic) , 2000 -2011 Almera Tino , Maxima 2000-2006, 2003 – 2011 Murano(non Blaupunkt) , 2004 -2011 Navara , 2006 – 2011 Note , 2005 – 2011 Pathfinder , 2008 – 2011 Patrol , 2007 – 2008 Qashqai , 2008-2011 Qashqai 2 , 2001- 2011 Xtrail , 1995 – 2006 Primera(non Blaupunkt) , 2003-2008 Teana(Asia version), 2007-2010 Tiida etc. | |
|
| FX35/FX45 04-10 , G35 03-07 , G37 08-09 , M35/M45 06-10 , QX56 04-06 , EX35 08-10 | |
Compatible Head Units | Nissan/ Infiniti | BA010(PN-2646F), BP6350, BP9345, BP9349, CK106, CK926, CK936,CN688, CNA48, CT00A, CT008(PN1675D),CT020,CT078,CT098,CT138,CY100, CY13C(HY00E without 6CD ),CY21B, CY460 (Primera P12), PN2598A(Almera Tino), PN-2708N,PN-2848N,PN-2530H,PN-2530H-2, PY-060,RM-V53GAEA(Teana), Qashqai-1disc | |
Not work with | Nissan Infiniti | CY06D(PM-2874F),CY14C,CY450(PN-2424M), CR07A(PP-2609H),CT058(PN-1629M), CY11C(PP-2804T) 6 Disc, CH340(PP-2609T),CY138(PN-2316V),PN-2837D(Maxima 2007-2008), HY00E (6-cd) | |
| Nissan | (Qashqai, X-Trail, Tiida, Note ) with 6-disc CD changer | |
Notice | 1.Fits OEM radios by BOSE/Clarion/Panasonic 2. Required to connect ACC and 12V electric wire to proper position of car. 3.Nissan Y cable(YT-NSY) is optional when original CD Changer port is occupied by NAV,AUX device,CAT/SAT . 4.Not compatible with North American Nissan/Infiniti models except 2003-2008 Nissan Murano | ||
4. Installation Diagram :
This device is only suitable for vehicles whose Head Unit (either Original or Refitting) is with CD Changer Port.
Note : Mp3 / CDC Swith cable is optional , available for some vehicles only.
5. How to save music into folders :
1. Name folders as CD01 ,CD02 ,CD03...etc
2. The naming of songs is unrestricted .
3. Don't save music files in the folders of the sub directory , otherwise , can't recognized .
4. Support mp3 / wma .
Below is showing example .
6. Accessories:
1 pc Module , 1pc wireless harness , 1pc 3.5mm aux cable , 1 pc user manual
7. Package:
• Standard packing box : 210 x 150 x 60 mm
• Half-size packing box : 150 x 105 x 60 mm
• Module weight : 90g
• Gross weight : 220g~400g .
