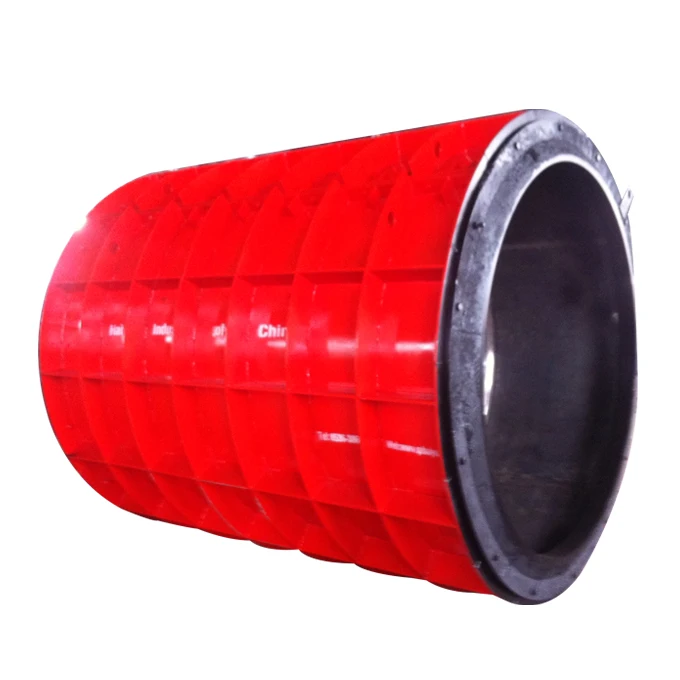

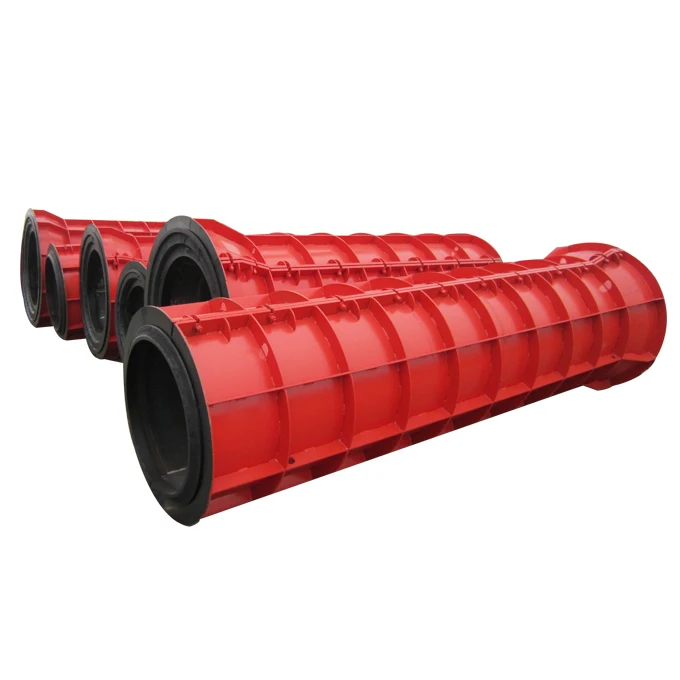

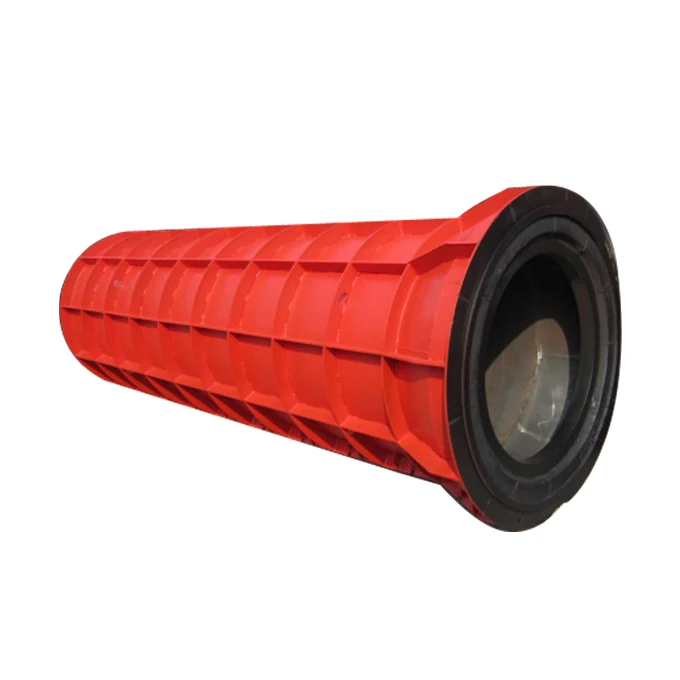

Diameter from 300mm to 2500mm hanging roller concrete pipe mould machine

Product Overview

Description

Diameter from 300mm to 2500mm hanging roller concrete pipe mould machine



Product Description:

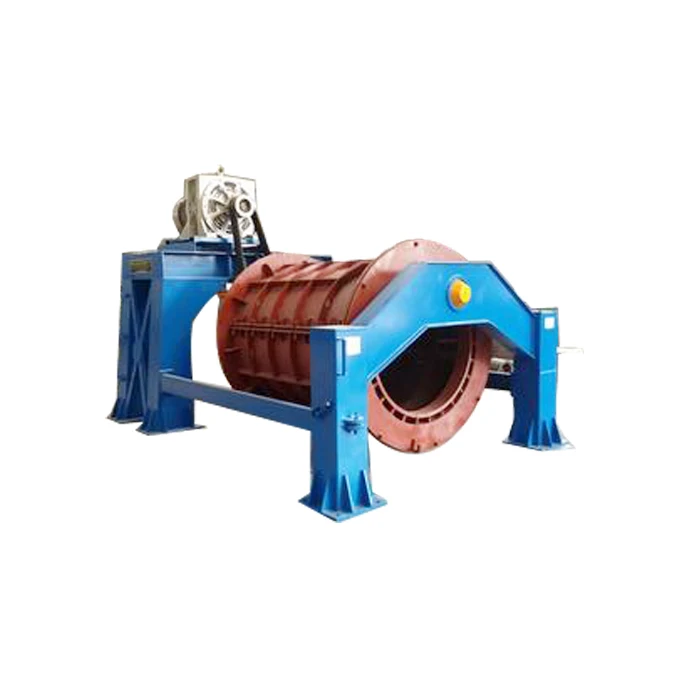

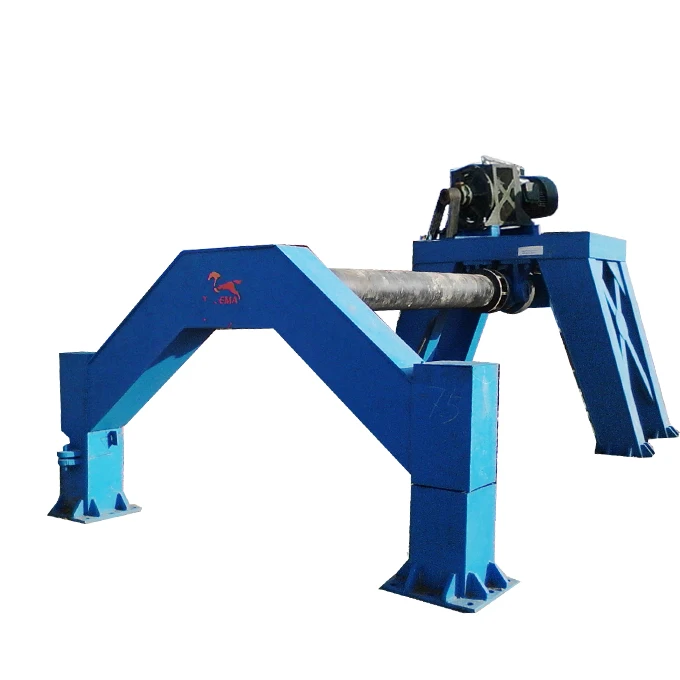

         Suspension roller type concrete pipe machine is a kind of perfect machine and equipment to produce reinforced concrete pipes and pre-stressed concrete pipe. This machine is capable to make pipes with diameter from 300-2000mm and with length from2-4meters. We can design many kinds of the pipe joint, including flush joint, socket & spigot joint And all the concrete pipes are widely used in administrative drainage, agricultural field irrigation, road culvert and deep water well.



Machine type:   Suspension roller

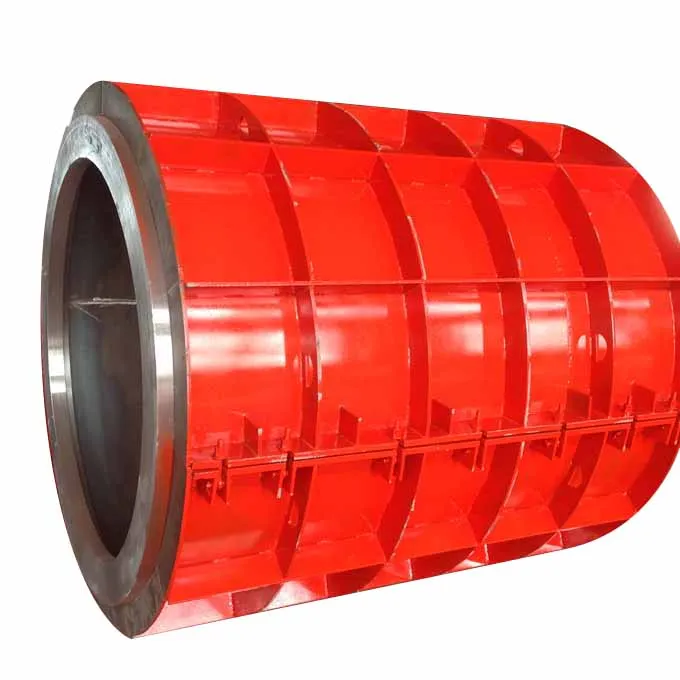

Moulds type:     Plain joint  , socket and spigot joint, tongue and groove.



     Length:      100--4000mm



Motor power:   15--90 kw



Advantage:  high quality, high efficiency, good price and best service



Application:  sewer tunnel, administrative drainage, highway and so on.





Technical of culvert pipe machine



	XG 200-600	XG 800-1200	XG 1000-1500	XG 4M
Diameter	200-600mm	800-1200mm	1000-1500mm	300-2000mm
Length	2000mm	2000mm	2000mm	1000-4000mm
Power of Motor	15KW	45KW	90KW	110KW
Capacity	10-15Pc/h	8-12Pc/h	6-10Pc/h	6-8Pc/h
Labor demand without feeding machine	4-5	4-5	4-5	4-5
Labor demand with feeding machine	3-4	3-4	3-4	3-4
Joint	Plain,socket and spigot,male and female	Plain,socket and spigot,male and female	Plain,socket and spigot, tongue and groove	Plain,socket and spigot,tongue and groove

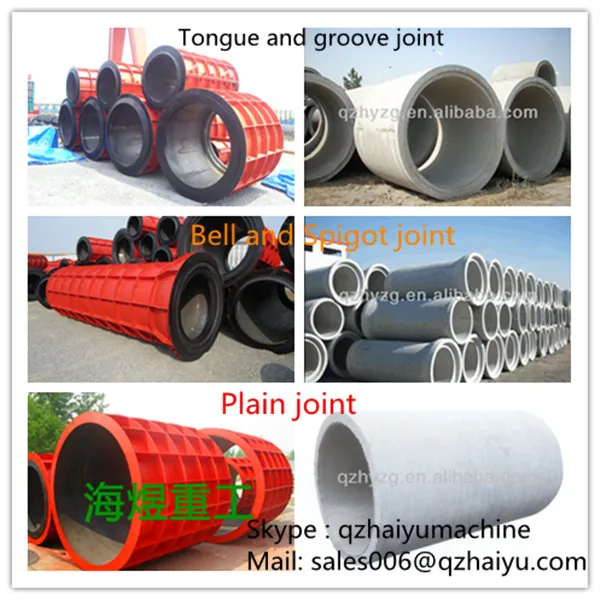

Pipe Joint( pls check which type joint is you need? ):

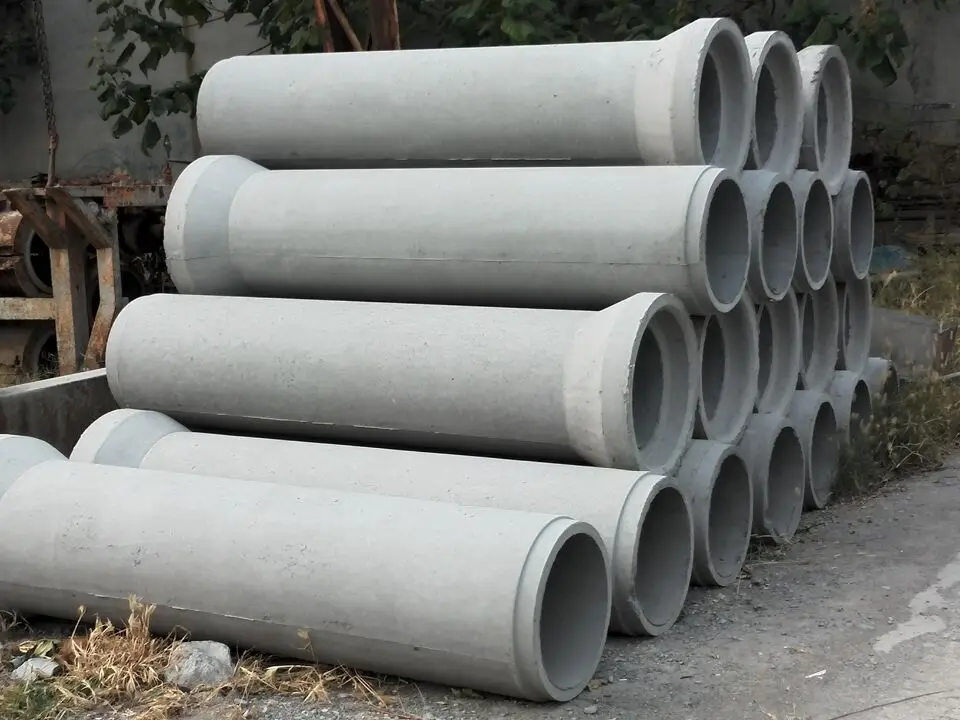

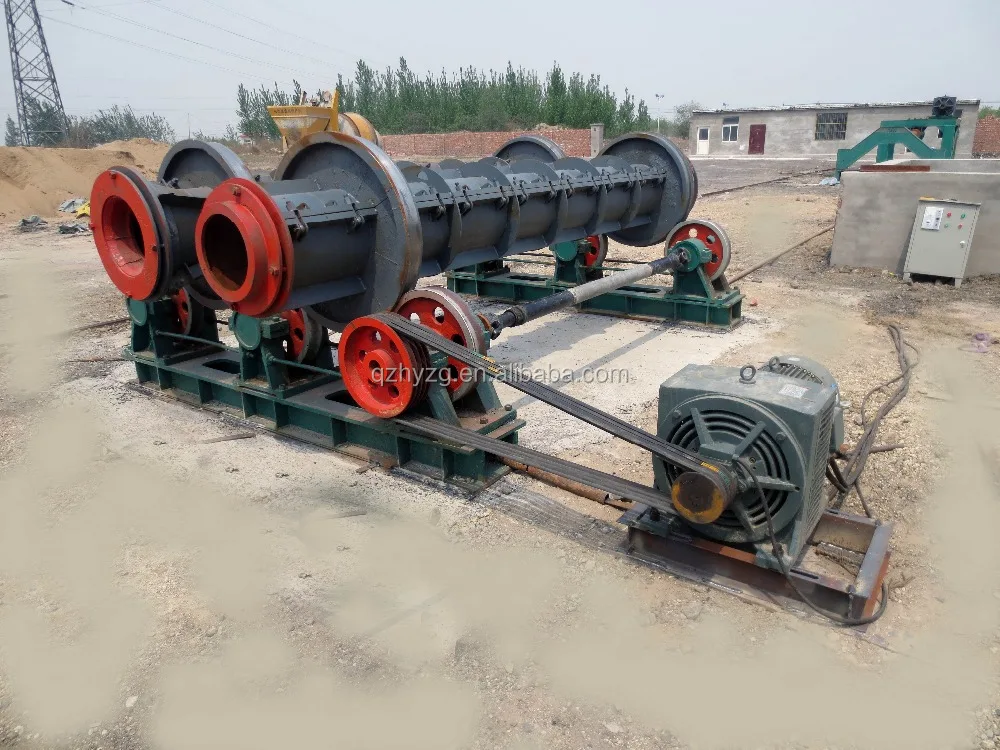

Introduction of Centrifugal concrete culvert pipe machine

         The machine takes sands, stones and cement as raw materials to produce many kinds of

reinforced concrete drainage pipe with the length of 1000-4000mm, internal diameter of 200-

4000mm with the mouth shapes of flat, tongue and groove and socket and spigot. All mechanical indexes have meet the national standards. They have been used widely in deep well, municipal drainage, expressway and other water supply and sewerage works with higher level required. The production efficiency can reach 4-5 piece/hour.



Company Information:

Shandong Haiyu Industry Co., Ltd. is a Chinese supplier and manufacturer producing concrete polemachines/concrete pipe machines. The equipment and moulds meet national standards and can be customized according to the standards of the world. We have been in this line for more than 20 years. Our products spread all over Africa, Middle Asia and Southeast Asia and so on.





The Information we need to know from you:



1. Specifications of Concrete Pipe :Length, Diameter and Joint ways



2. Type of concrete Pipe joint: Spigot and bell, Tongue and groove. Plain joint



3. Daily or Annual Productivity.



Certificate:





Packaging:



Different Machines with Different Package,  Plastic and Thick Paper,  Wooden Box or as the suctomer's request

Our services:

1.Complete production line supporting machines and all necessary accessories with high performance and good quality;
2. Free Service of plant structure design and layout plan drawings and other necessary construction drawings and guidance of construction work,office, warehouse etc and related drawings according to customers’ requirements.
3.Installation and commissioning of all production machines as well as the workers training.



Payment:

Payment Terms : T/T 30% in advance, 70% before the shippment . L/C100% at sight.

Delivery Time: 35 days after receipt of deposit.

Shipping Methods: ocean freight or air transportation.

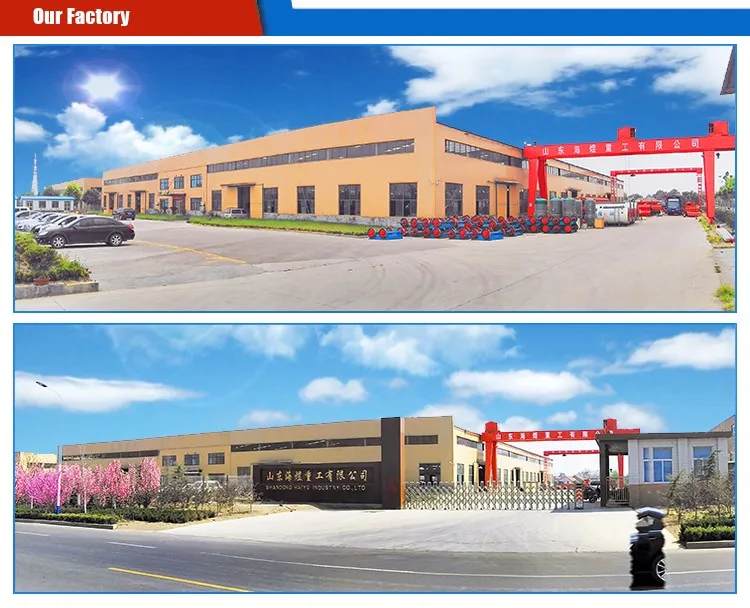

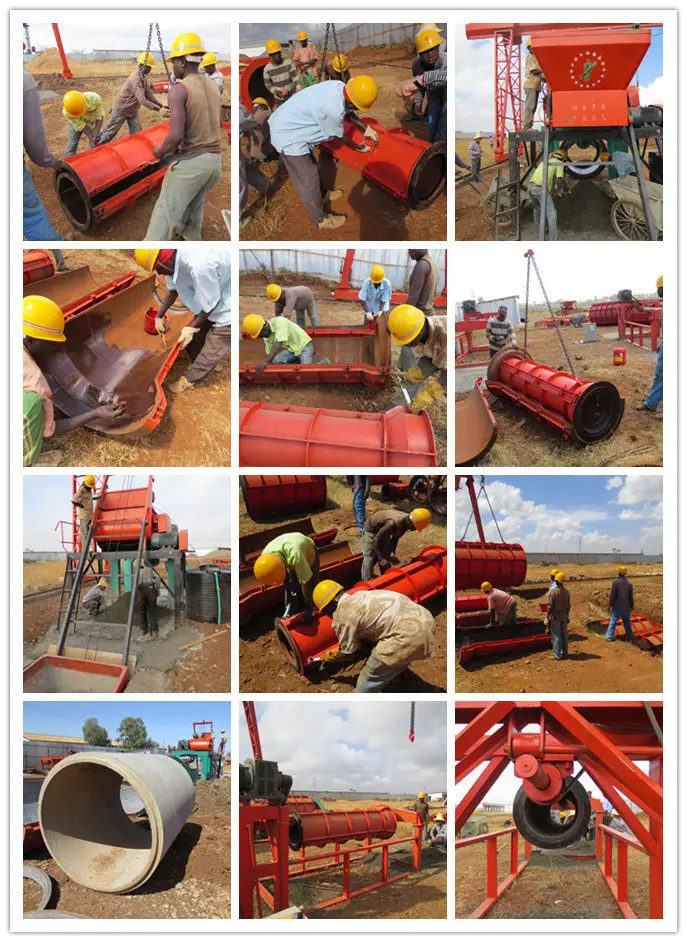

Warmly Welcome To Visit Our Factory
