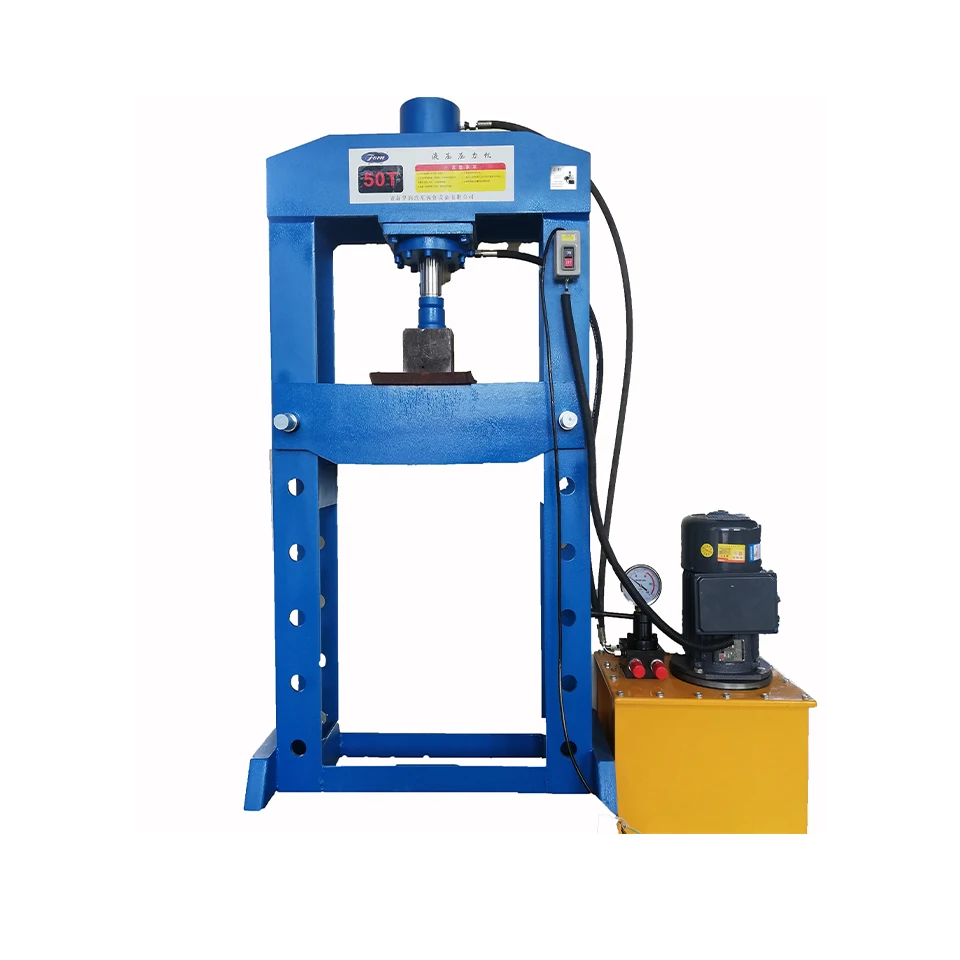

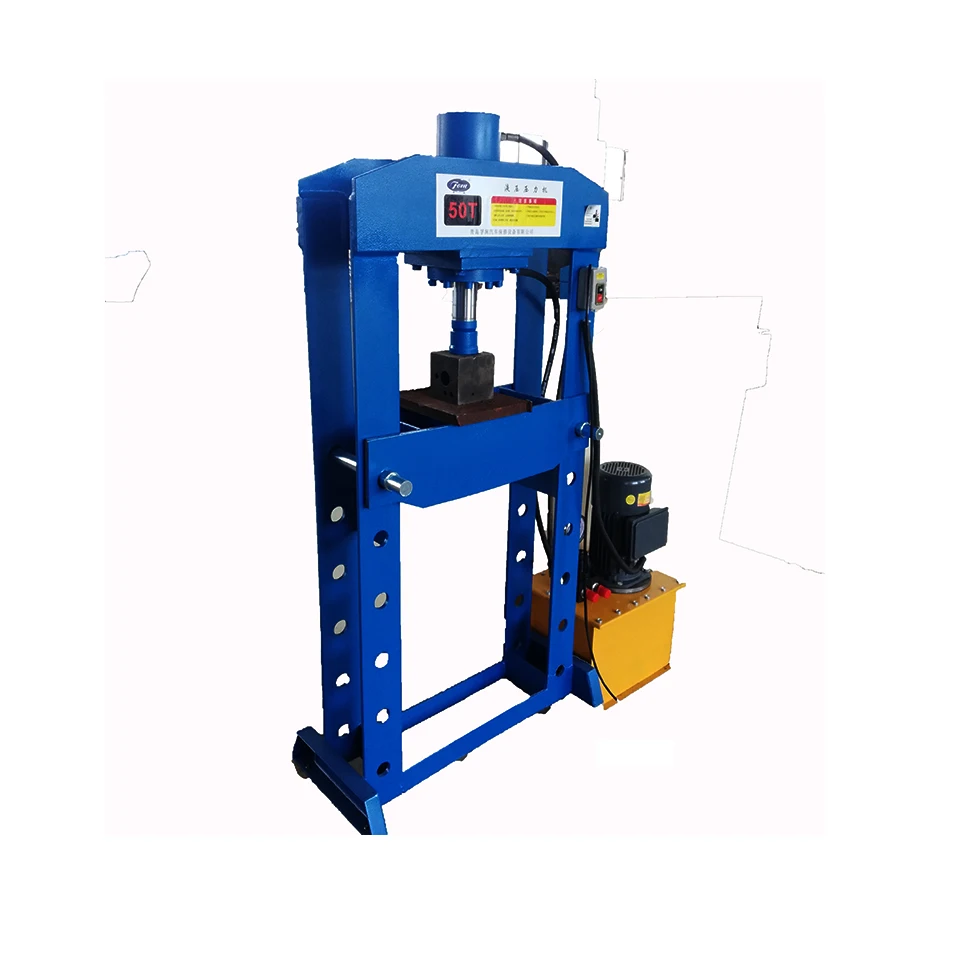

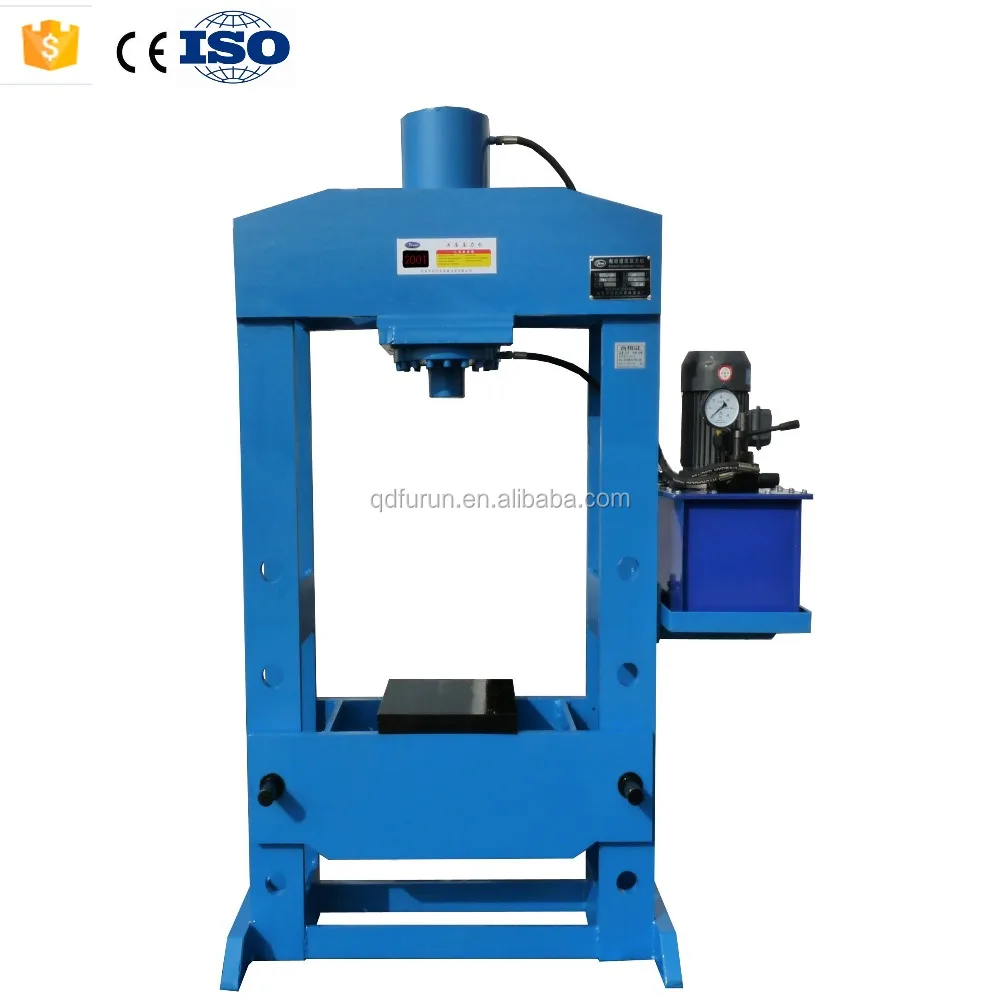

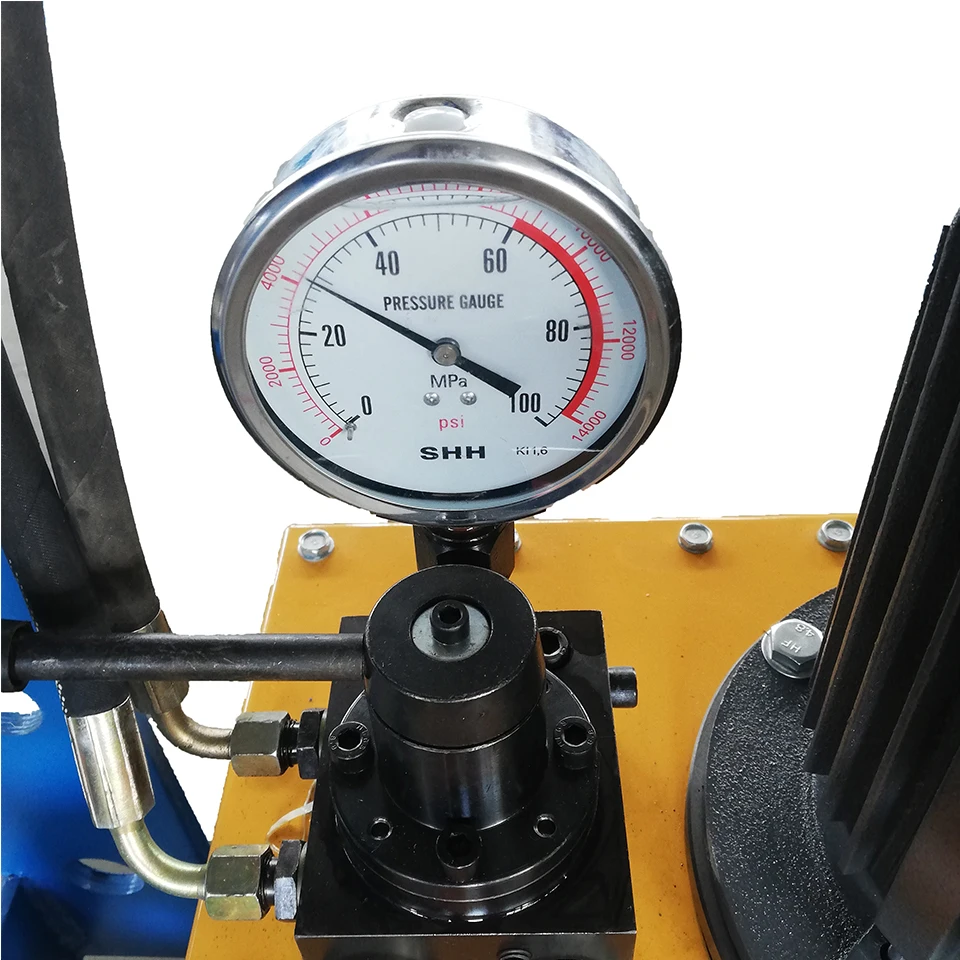

CE Approved 30 Ton Hydraulic Shop Press with Gauge
- Category: >>>
- Supplier: Qingdao Furun Automobile Repair Equipment Factory
Share on (60356054867):
Product Overview
Description
CE Approved 30 Ton Hydraulic Shop Press with Gauge
Product Description
1.Electric Hydraulic Press
2.ISO9001
1.Function Introduction
- After absorbing advantages of similar products from home and abroad on the basis of keeping improving, electric oil press is upgraded product which adopts door type steel structure and one piston and double oil cylinders.

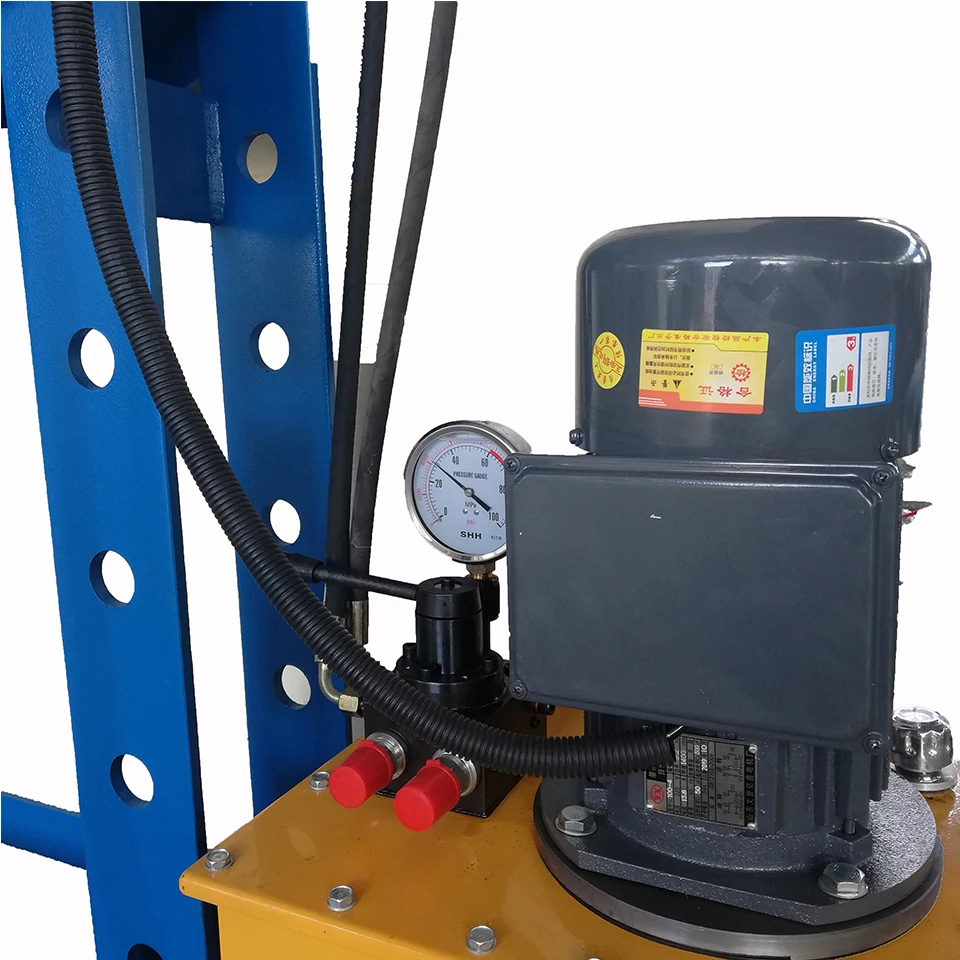

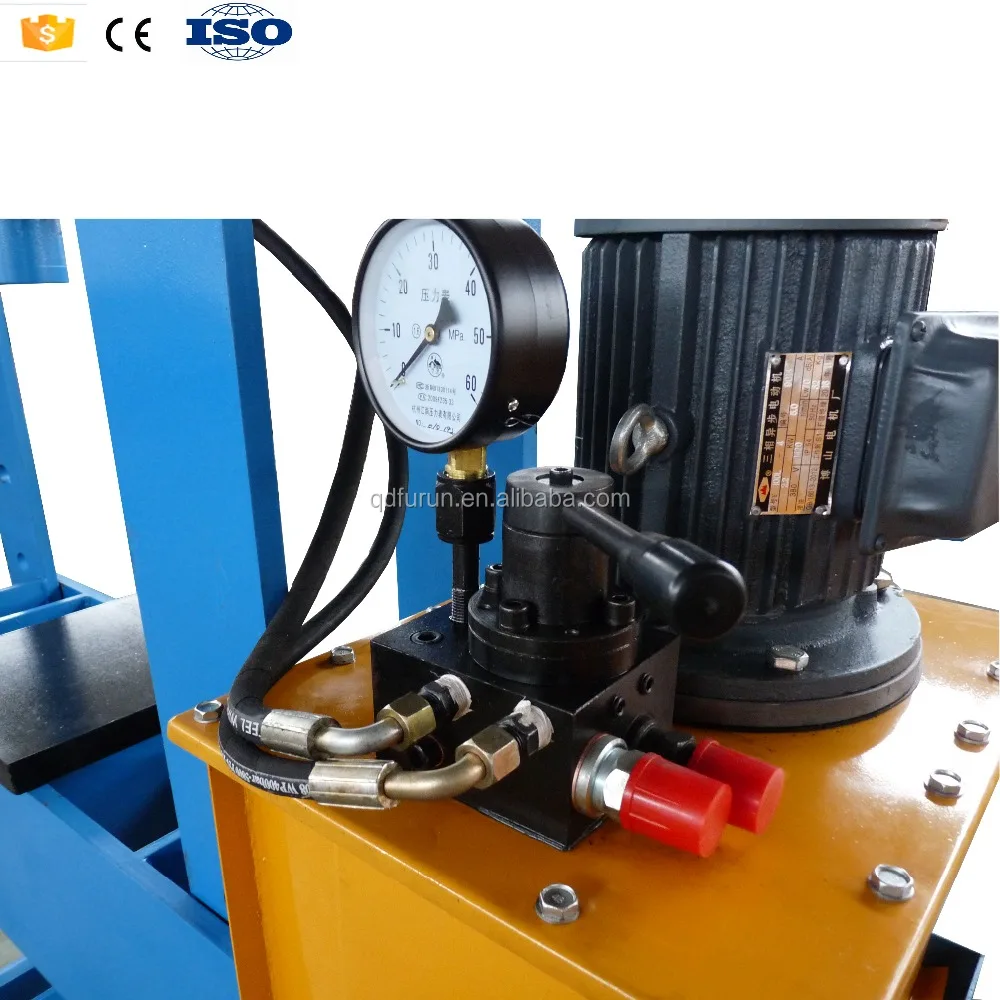

- High-low pressure pump with parallel connection, high-low pressure is available when it is low pressure in order to enhance the speed. Only high pressure pump can provide oil with low flux when it is high pressure, it is newly developed ultra high pressure piston pump of our company. Manual direction changing to control stroke of piston rod, hydraulic pressure can drive workbench to lift. DYYL-A type oil cylinder can be adjusted manually
- It has elegant appearance, easy and safe operation, stable performance and reliable performance. Fit for dismantling, installing, moulding, straightening, drawing and moulding for machinery industry, as well as once cold riveting and moulding of pot-angle tooth, thus it is necessary press for auto repair industry in modern society.
2. Technical Parameter
| A Mm | B mm | C mm | D mm | E mm | stroke mm | ton T | voltage V | power KW |
620 | 300 | 620 | 1290 | 450 | 140 | 20 | 380/220 | 1.5/2.2 | |
DYYL-30 | 620 | 300 | 620 | 1290 | 450 | 140 | 30 | 380/220 | 1.5/2.2 |
DYYL-50P | 700 | 350 | 930 | 1550 | 550 | 180 | 50 | 380/220 | 1.5/2.2 |
DYYL-50H | 1000 | 500 | 960 | 1850 | 760 | 350 | 50 | 380/220 | 1.5/2.2 |
DYYL-100 | 1100 | 580 | 1050 | 1930 | 820 | 350 | 100 | 380/220 | 3/3 |
DYYL-150 | 1100 | 580 | 1050 | 1930 | 820 | 350 | 150 | 380/220 | 3/3 |
DYYL-200 | 1100 | 580 | 1050 | 1970 | 820 | 350 | 200 | 380 | 4 |
DYYL-300 | 1060 | 580 | 950 | 1970 | 760 | 350 | 300 | 380 | 4 |
Production Flow
Company profile
Certifications
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as engine stand Hydraulic press riveting machine test bench brake riveting
machine and so on .
3: Where is our factory located? How can I visit there?
A : Add: 100m south of Xiatuan Village, Bei'an Sub-district Office, Jimo District, Qingdao, Shandong, China
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
