Hotel doorplate system with big size 350*139mm nice crystal tempered glass panel and special Arabic words printed

Product Overview

Description

Hotel doorplate system with big size 350*139mm nice crystal tempered glass panel and special Arabic words printed

Diagram(220V for example)

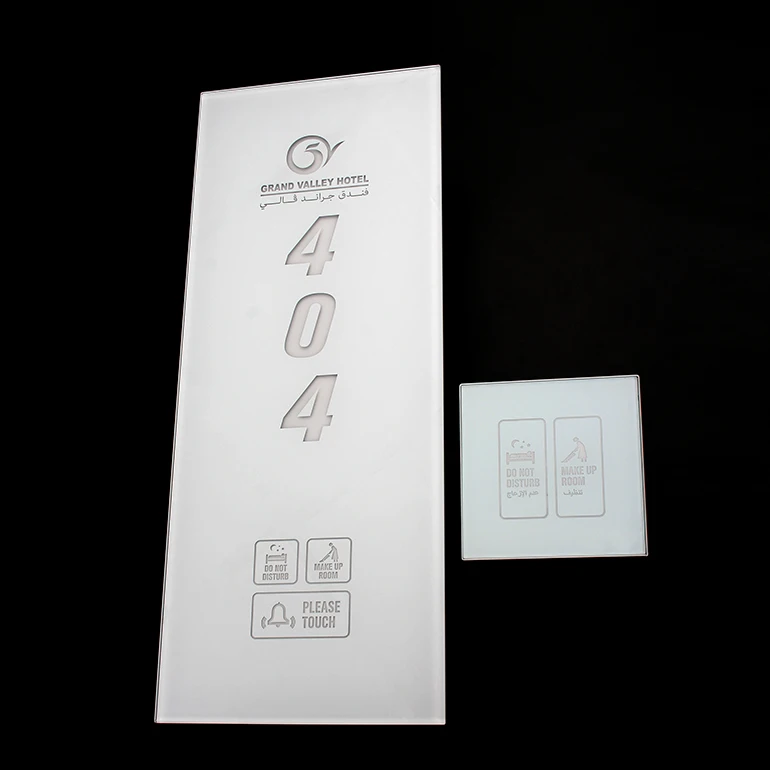

Whole set is including: Outdoor display panel + indoor control panel + bell(option)+ key card switch(option) + install mounting box(option)



• Frame white tempered glass panel with room number
• Newest Wire Technology

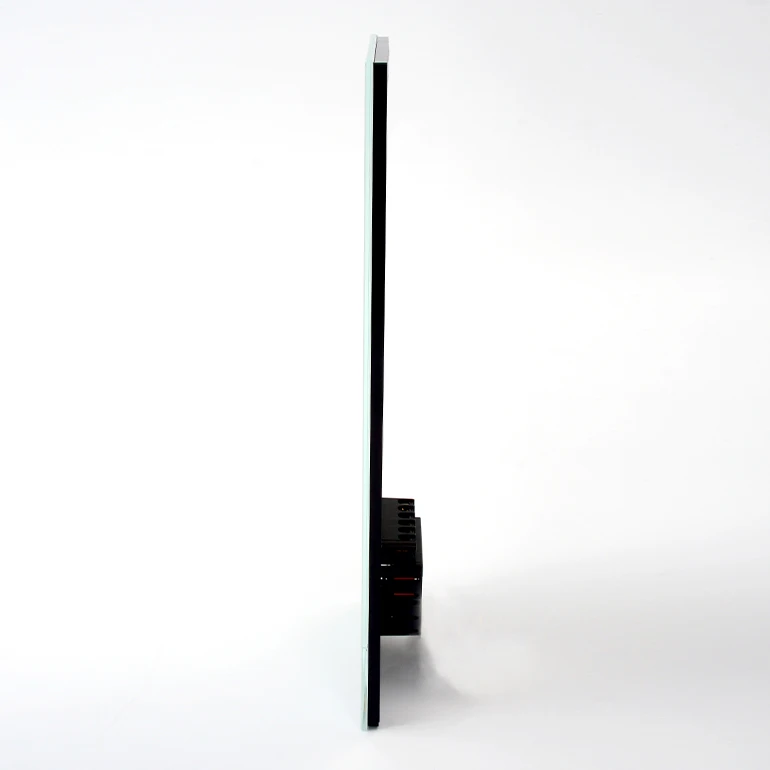

• Size : 350*139*44mm big luxury size

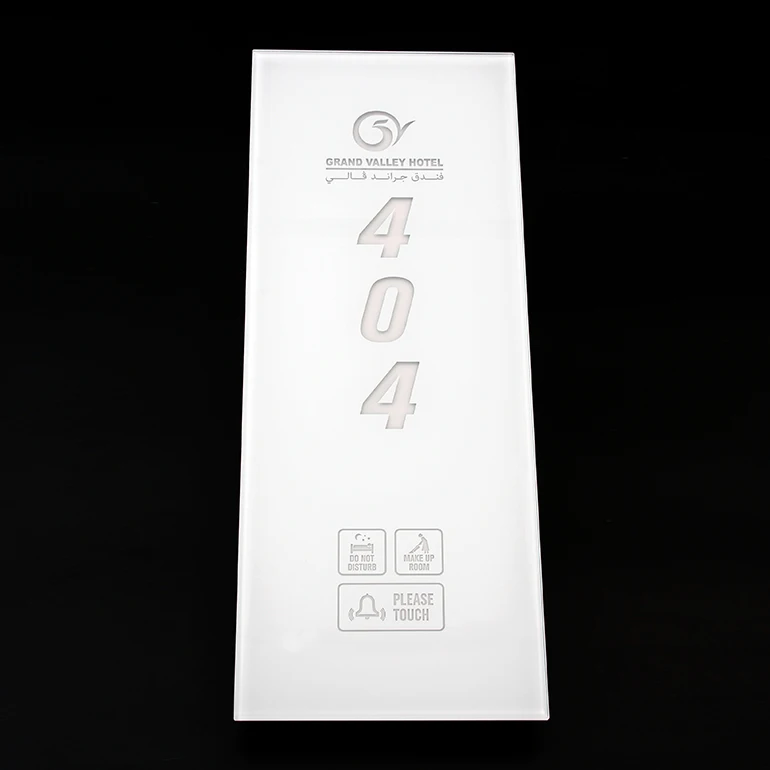

• Display Panel :

- ROOM NUMBER
- DOORBELL (Add or remove)
- DO NOT DISTURB
- MAKE UP ROOM
- “Please Wait” (Option) added or remove

• LED Backlit touch-design, very convenient for night using.
• EEPROM design keeps the parameter forever.
• Power Source : Plug, DC or AC
• Operating Voltage :
50/60Hz, 180-260V AC, 110V AC, 12V DC, 24V DC
• Consumed Power : less than 1 Watt
• Operating temperature : -10 up to 60
• Operating humidity : 0 - 95%

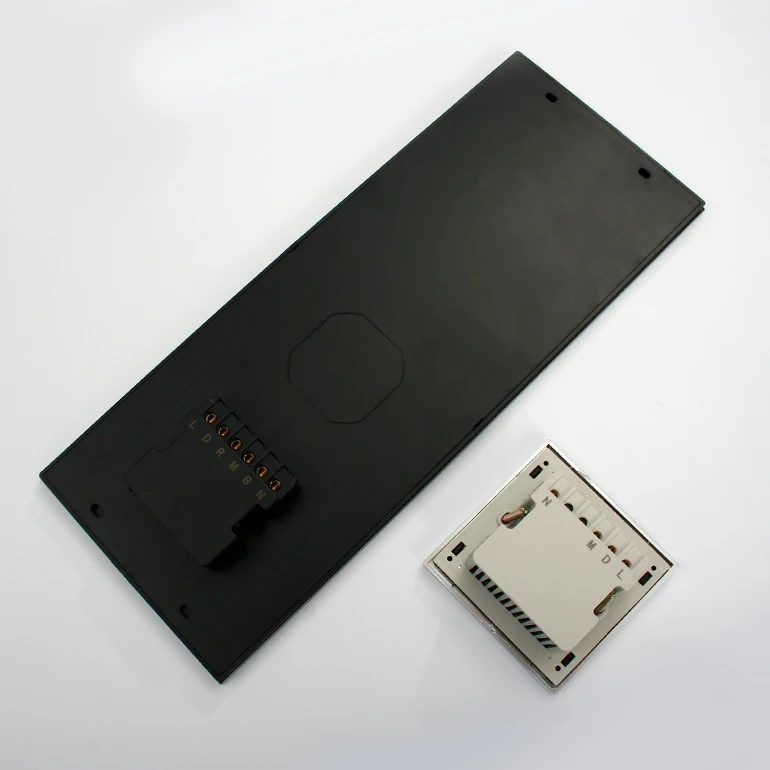

• Screw fixed center distance : 60mm (application of 86 bottom case)
• Service life : press touch-screen button 1 million times, relay contacts 100,000 times
• The product is based on the international requirements GB16915.2-2003 to design and production, and its performance indicators are all in line with CE, FCC certification.

• Operation & use :
- In normal conditions, press button “DOORBELL” of touch screen to open the bell, and the guest will know there are visitors at the door when hear the euphonious ring.

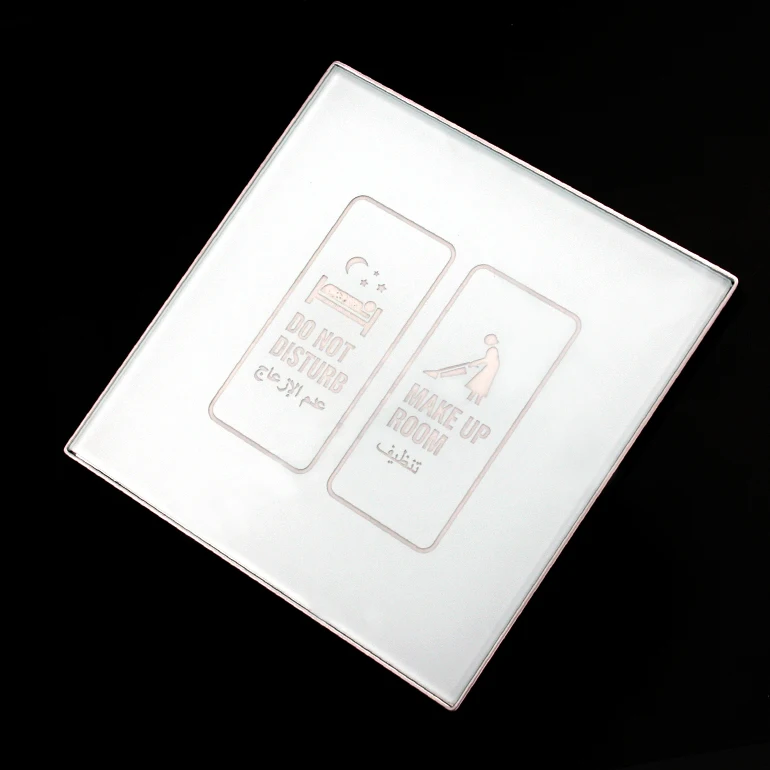

- The guests press the button “DO NOT DISTURB” switch in door, control panel touch screen’s “do not disturb” sign backlight was lit.
The display outdoor prompts “Don’t disturb” also night on.
At the time being, the outdoor panel doorbell button does not work
- The guest press the control panel button “MAKE UP ROOM” switch, control panel “make up room” sign backlight was lit, and “don’t disturb” backlight will off automatically.
The outdoor display panel “make up room” will on, and “don’t disturb” off, and the “please touch” backlight on and work.

- It is also with room status function version option.
When guest in the room, card insert to the key card switch, outdoor panel bell will be light on, and when guest leave room, pushed out card, the outdoor panel bell will be light off.
So the hotel workers can see if guest is in the room.



--You can choose with or without bell function

--The indoor control panel and key card switch can be done 2 connected panels as left pictures.

--The outdoor panel, you can choose this big size with room number, or the small 86*86mm size only don’t disturb and make up room.



OEM and samples testing is available, including panel color, content printed, led back-light color, logo printed, room number made, etc. We will apply best price for you in real order quantity accordingly.
