110mm 250mm 315mm PLASTIC HDPE/PP PIPE MAKING MACHINE FOR WATER SUPPLY

Configuration:

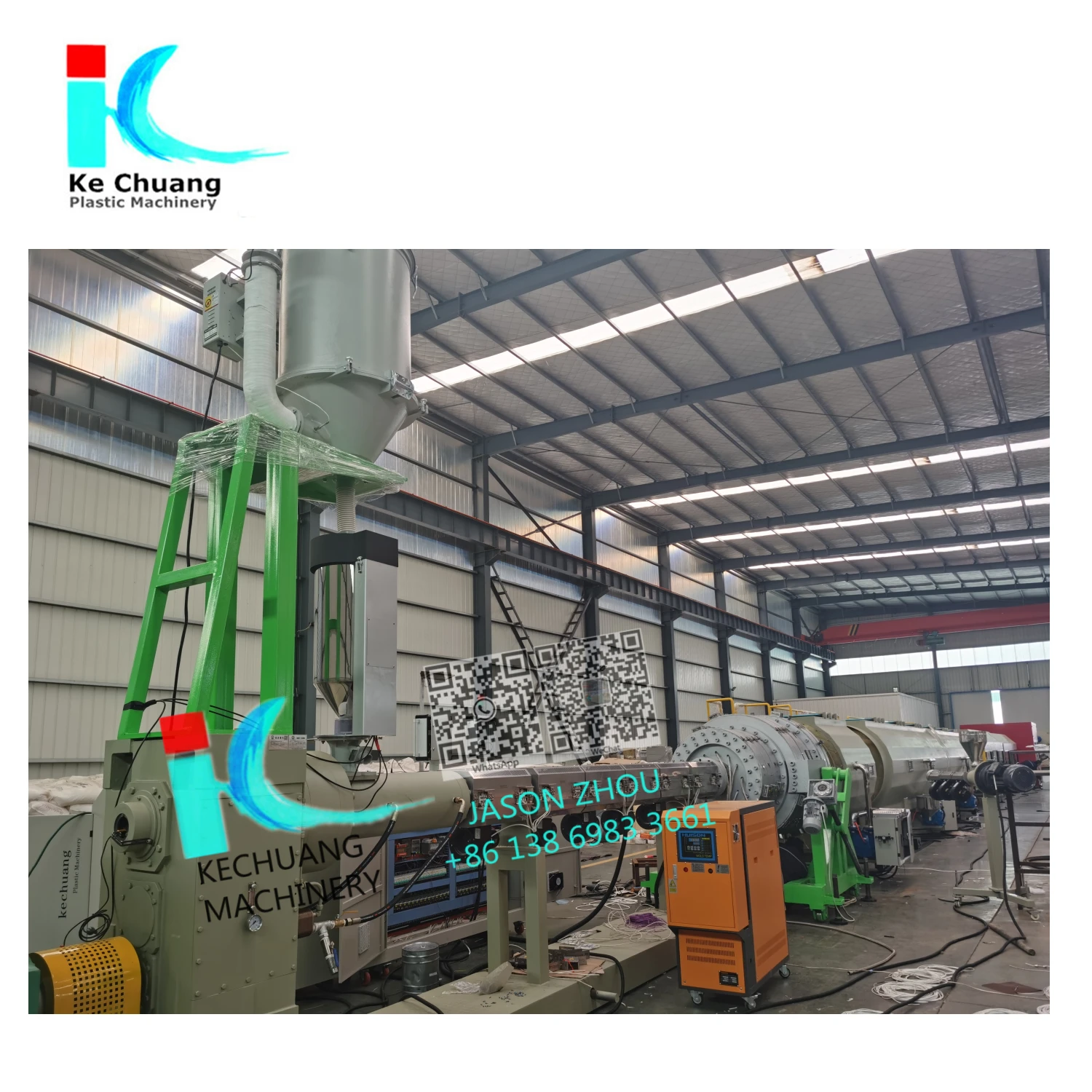

  Plastic automatic loader →Hopper plastic dryer→ Single screw extruder (Mark line extruder)→ Mould and calibrator → Vacuum forming machine → Water cooling tank → Haul off machine → Cutting machine → stacker

  III. MAIN FEATURES:

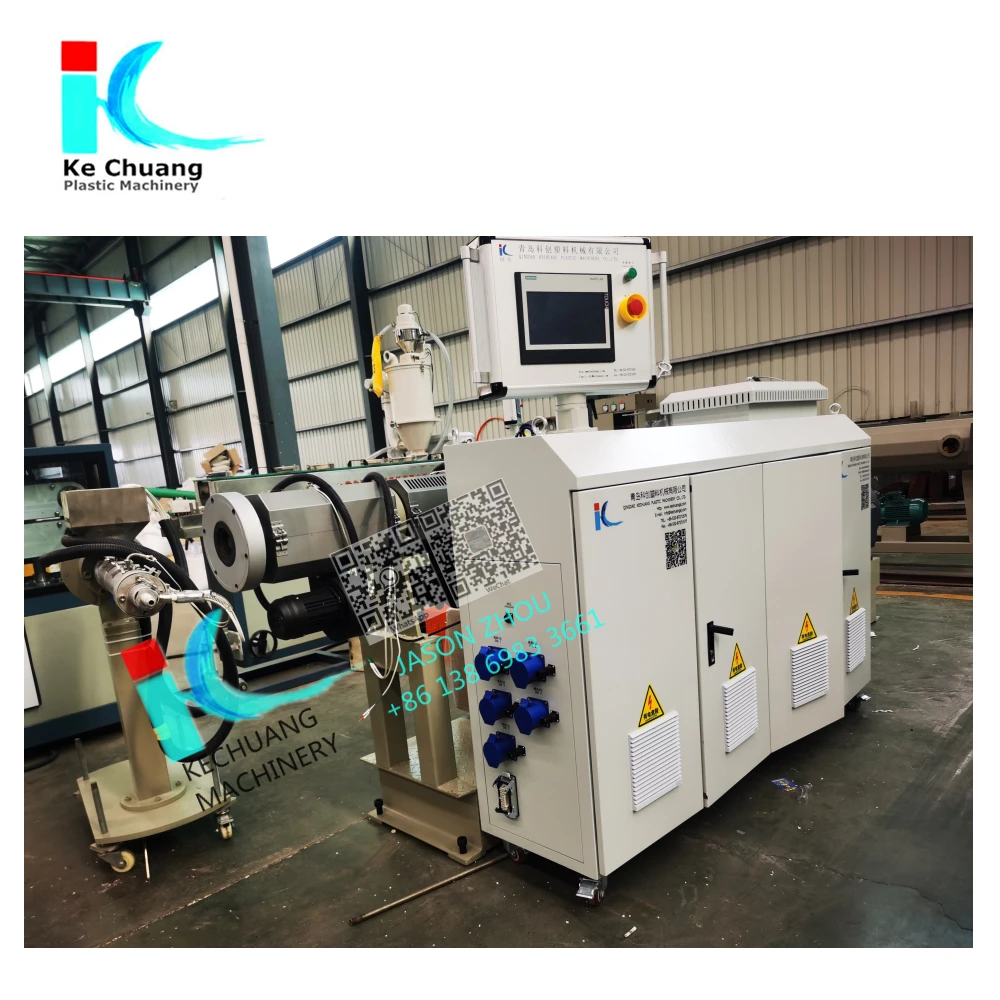

• extruder: adopting conical twin-screw extruder, unique designed screw, realizing shorting plasticizing time, good compounding and excellent plasticization.


• gearbox: adopting super quality gear box and reducer, with nice  outline, stable running, low noise and long service time.


• extruding barrel temperature controlling system: adopting cast aluminum heaters with stainless steel covers, wind cooling system, ensuring good features of cooling and heating, precision temperature controlling.

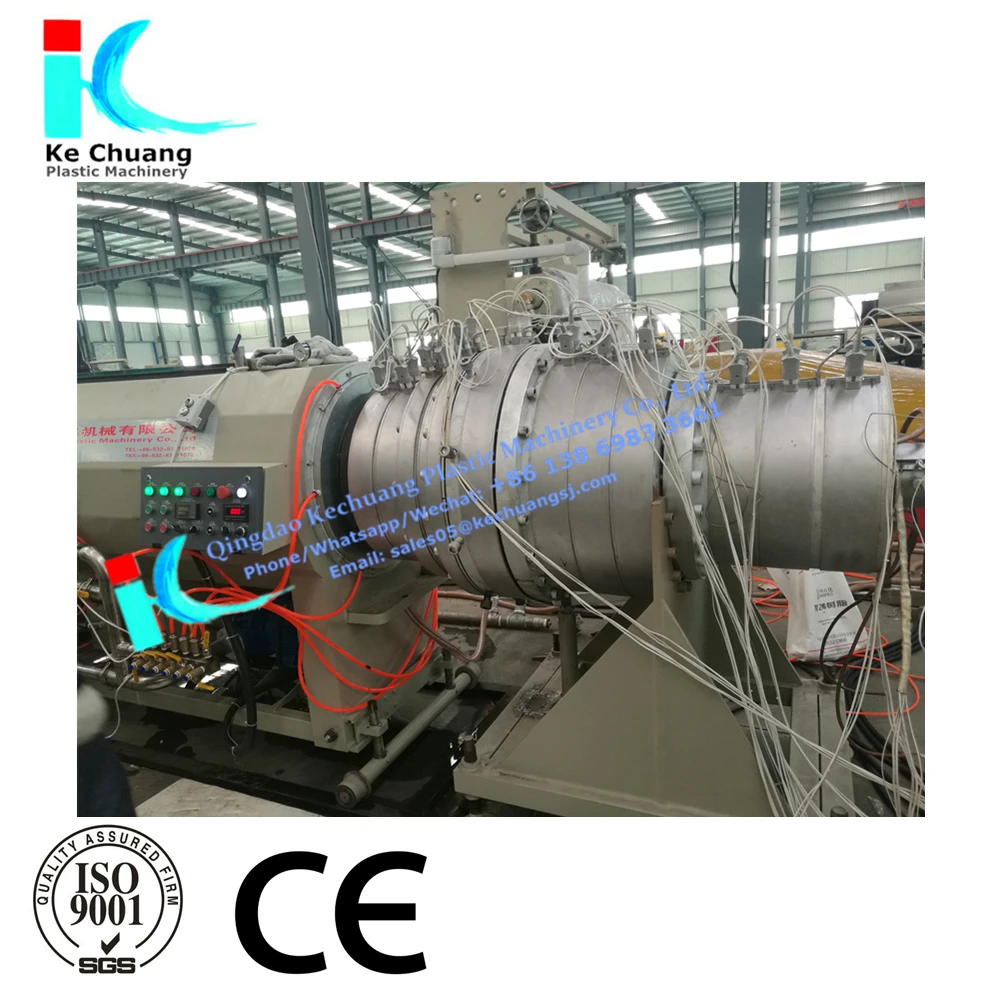

• screw and barrel: screw-core installing with internal temperature controlling system, barrel equipped with vacuum degassing system, can get rid of the waste gas from the raw material which can guarantee super quality of the products.


• driving system: adopting A.C motor, using FUJI or ABB inverters which provide stable torque output and various speed.

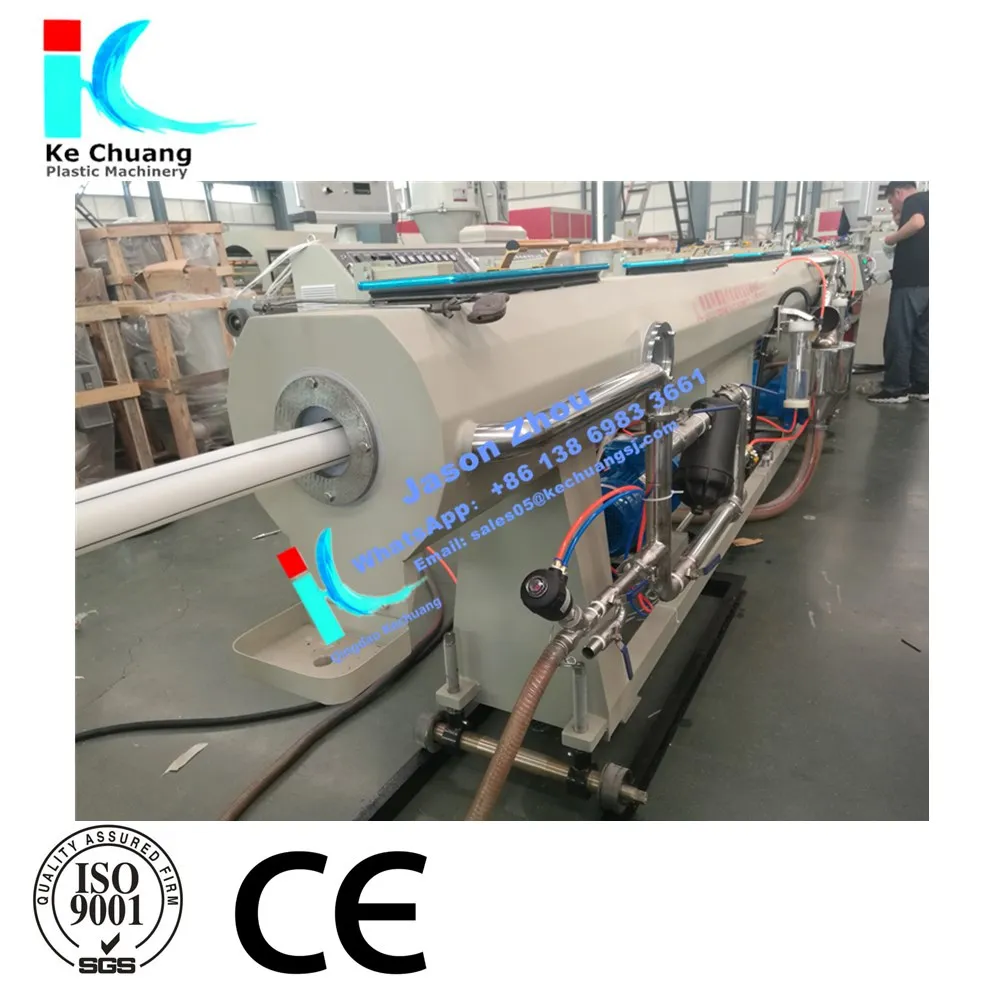

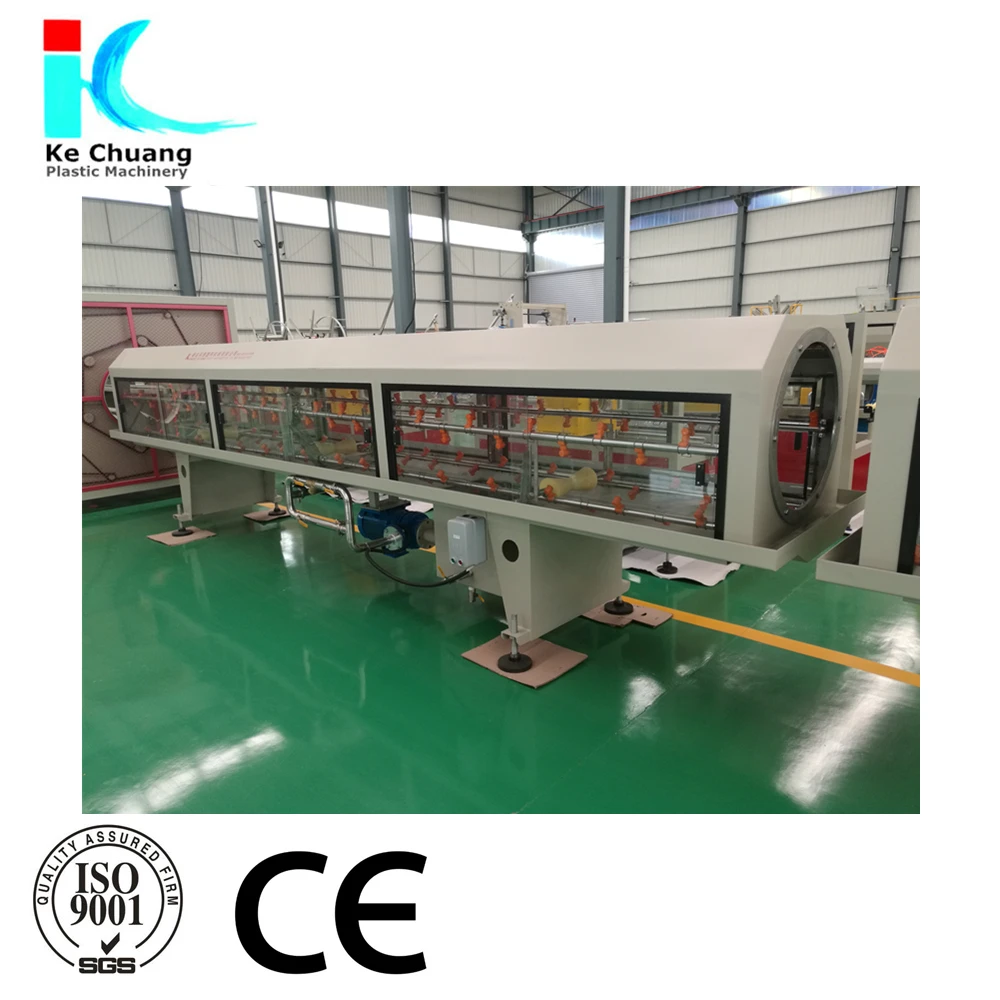

• vacuum calibrating tank: with two vacuum chambers which can make sure the perfect roundness of the pipe, spraying water cooling, equipped with temperature controller, realizing automatic discharging the water, the main body of the tank make of stainless steel, long service time.

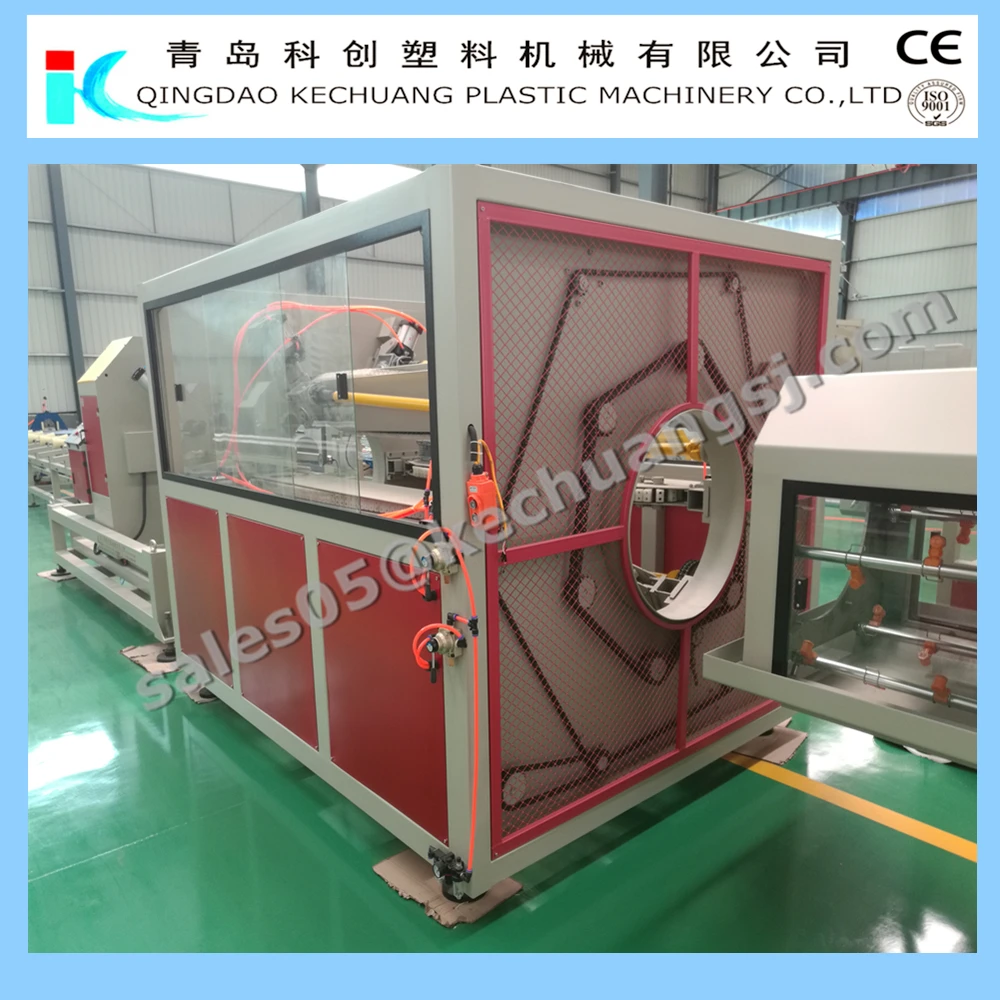

• haul-off machines: 2 laws, 3 claws, 4 claws, 6 claws and 8 claws are provided to manufacture various pipes, haul-off speed governed by the FUJI or ABB inverter.

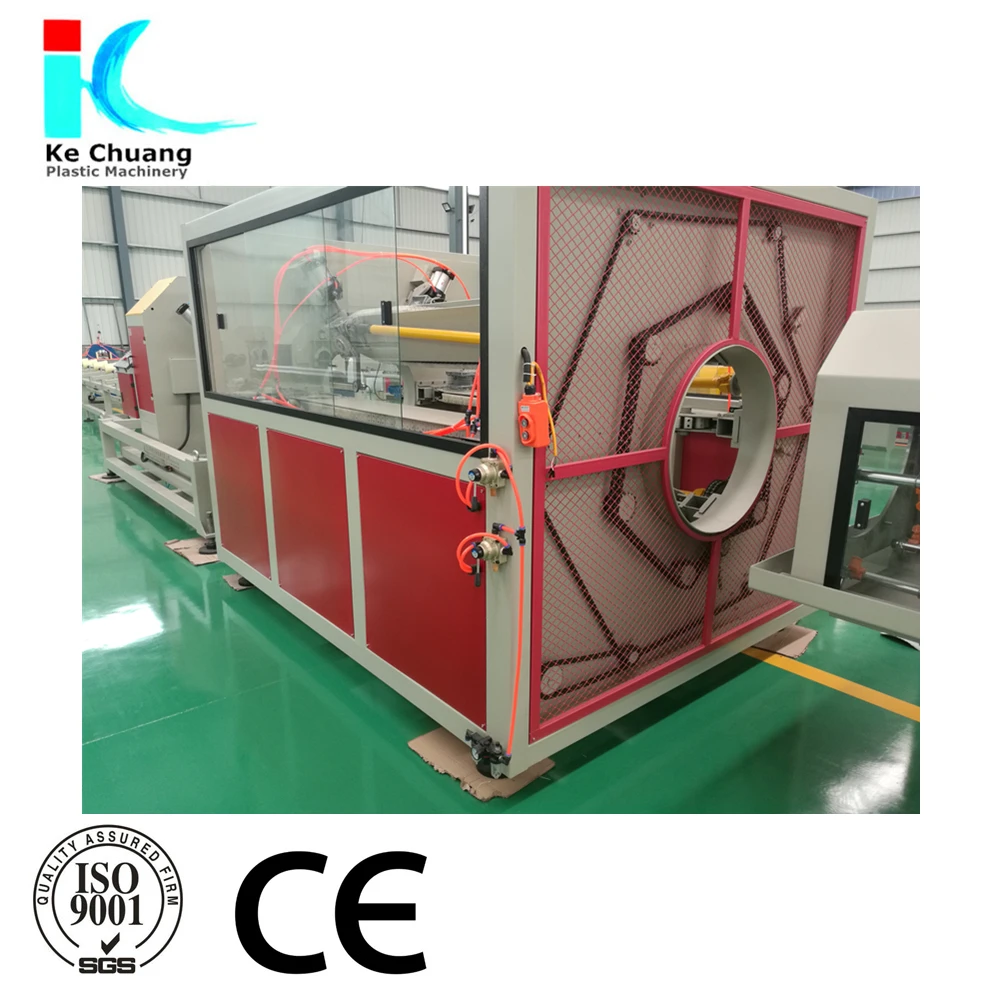

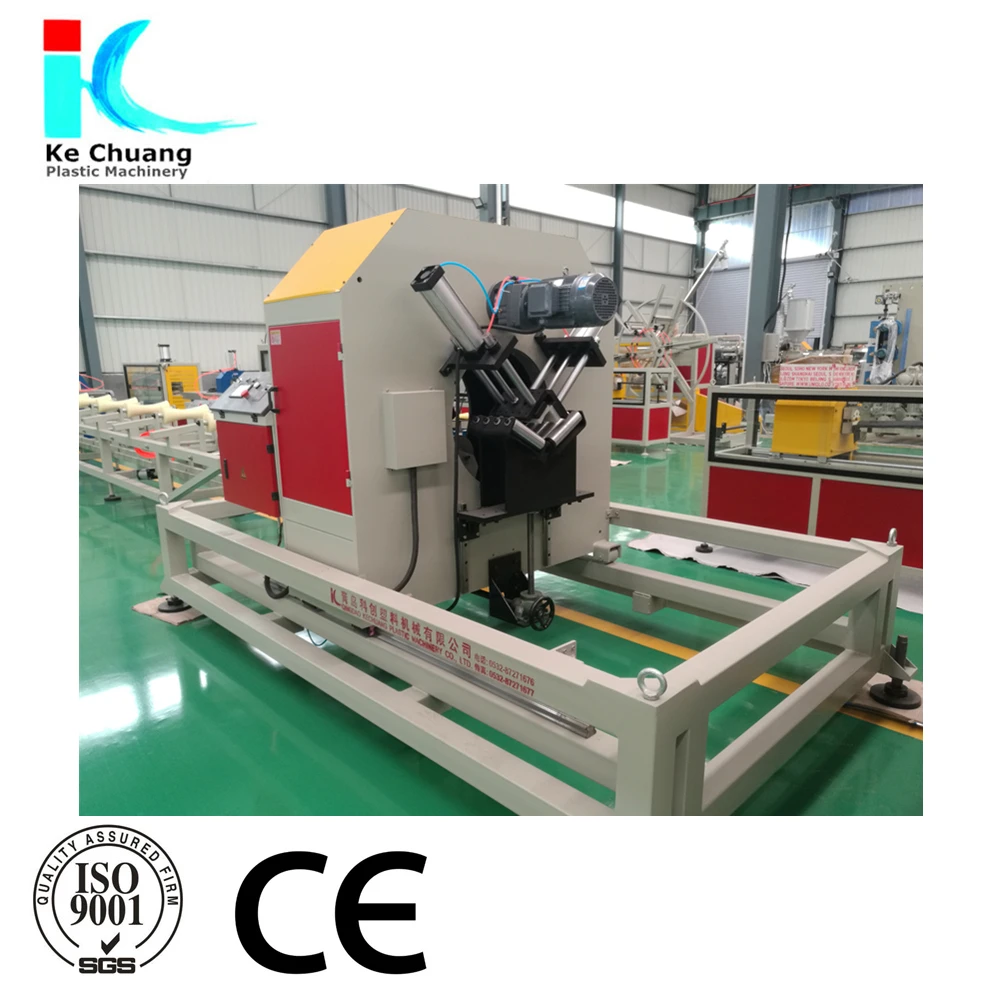

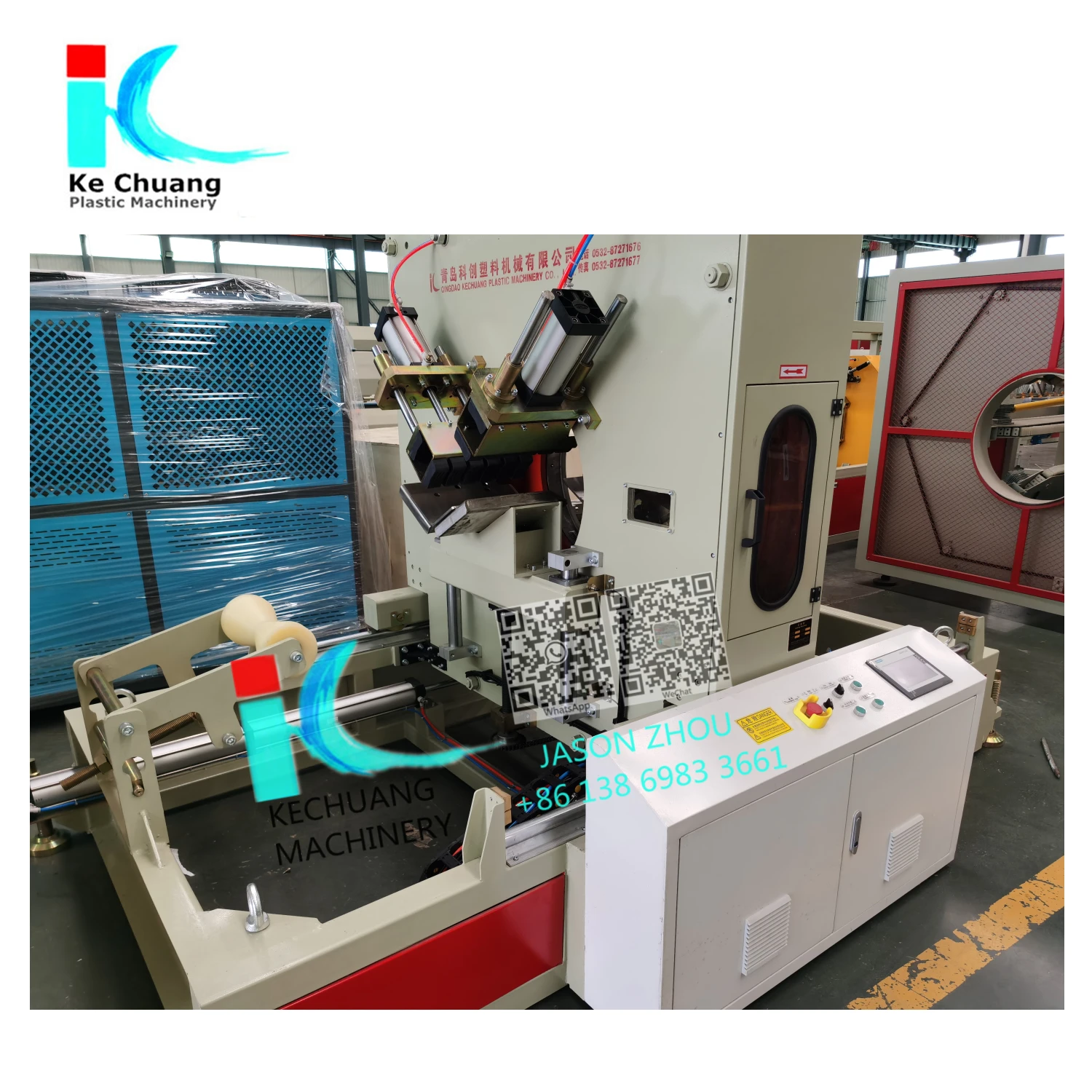

• cutting unit: saw cutting and planet saw cutting, with dust collection system.

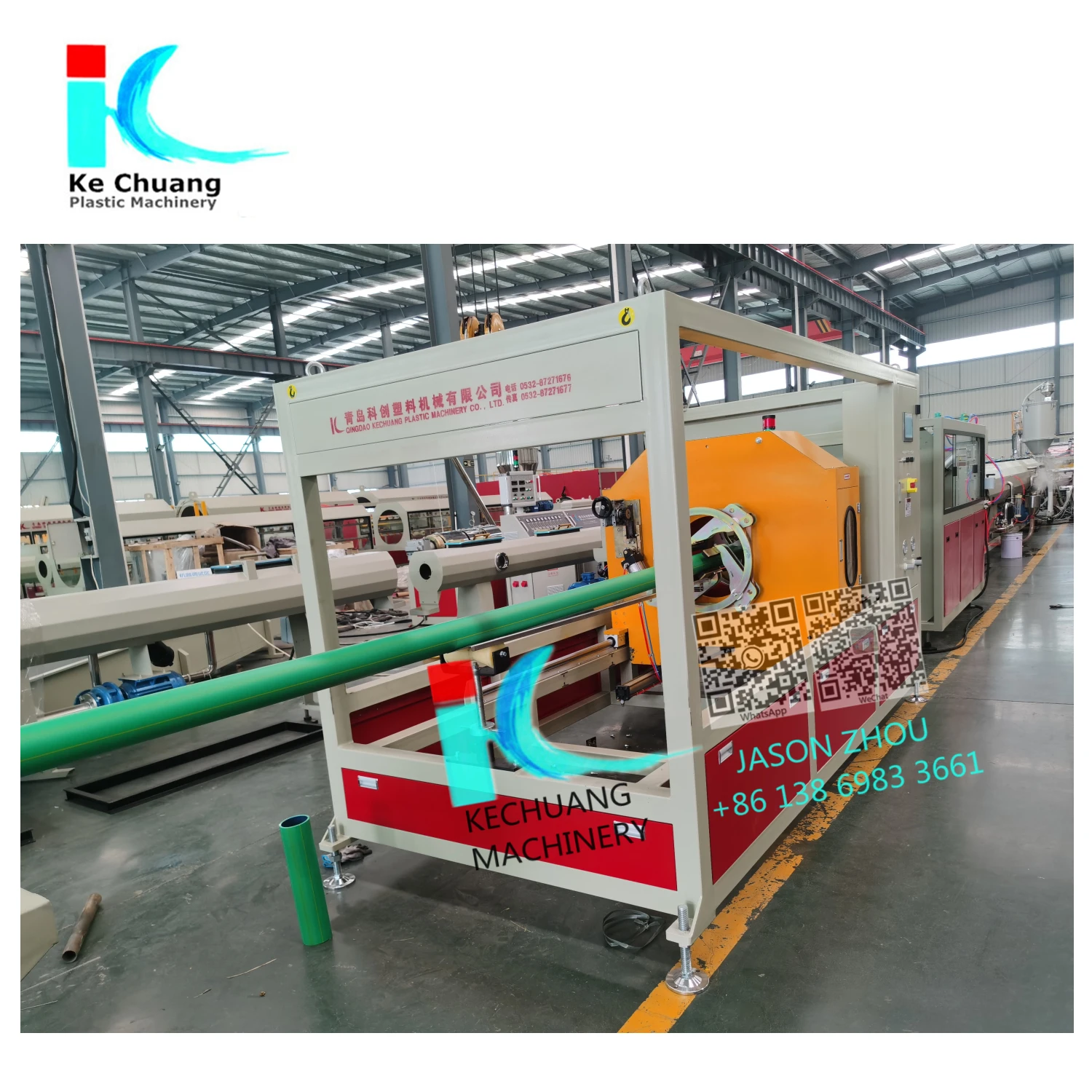

• stacking unit: automatic overturning system, can freely fix the length of the pipe.


• controlling system: manual controlling cabinet or SIEMENS PLC touch screen controlling

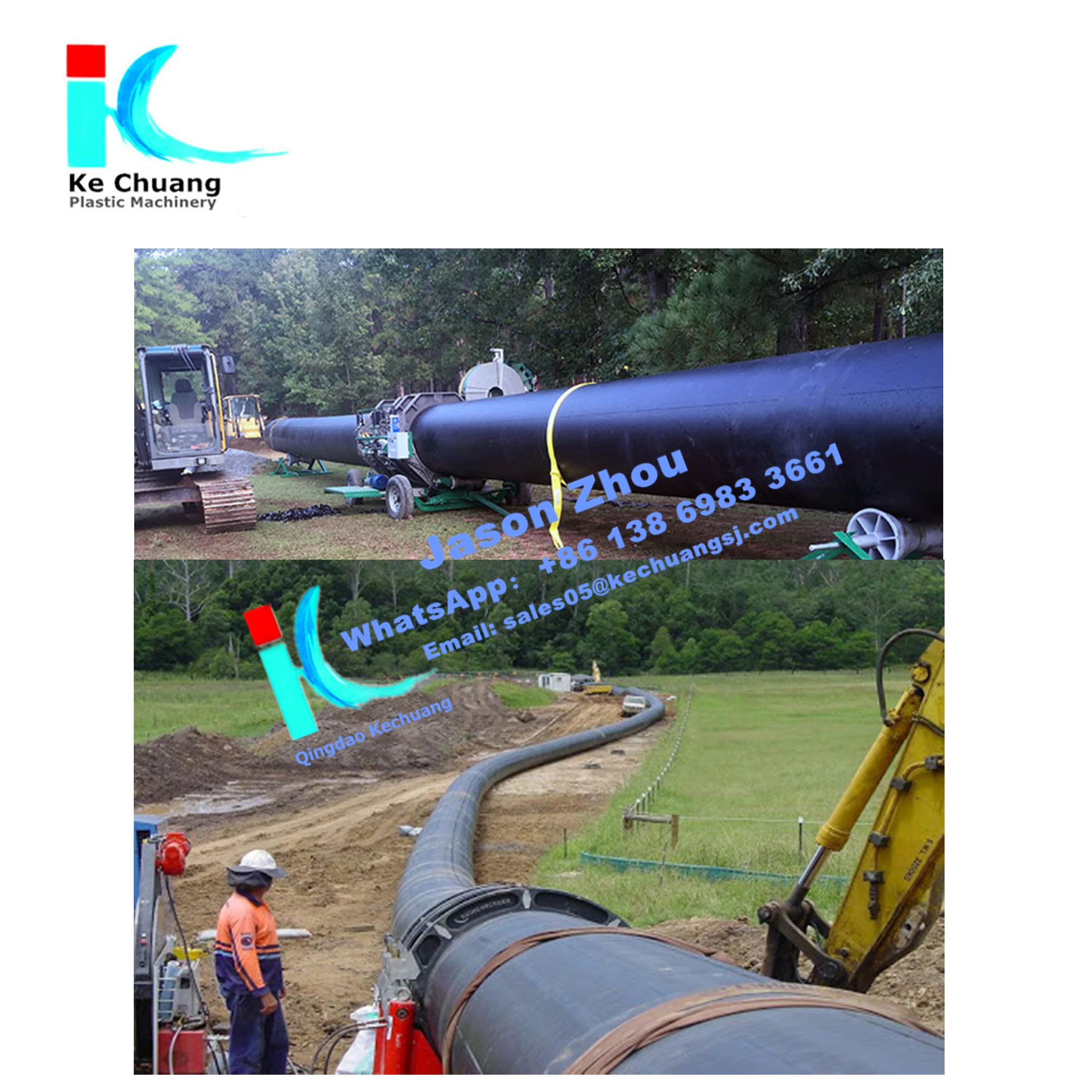

  IV. MAIN APPLICATION:

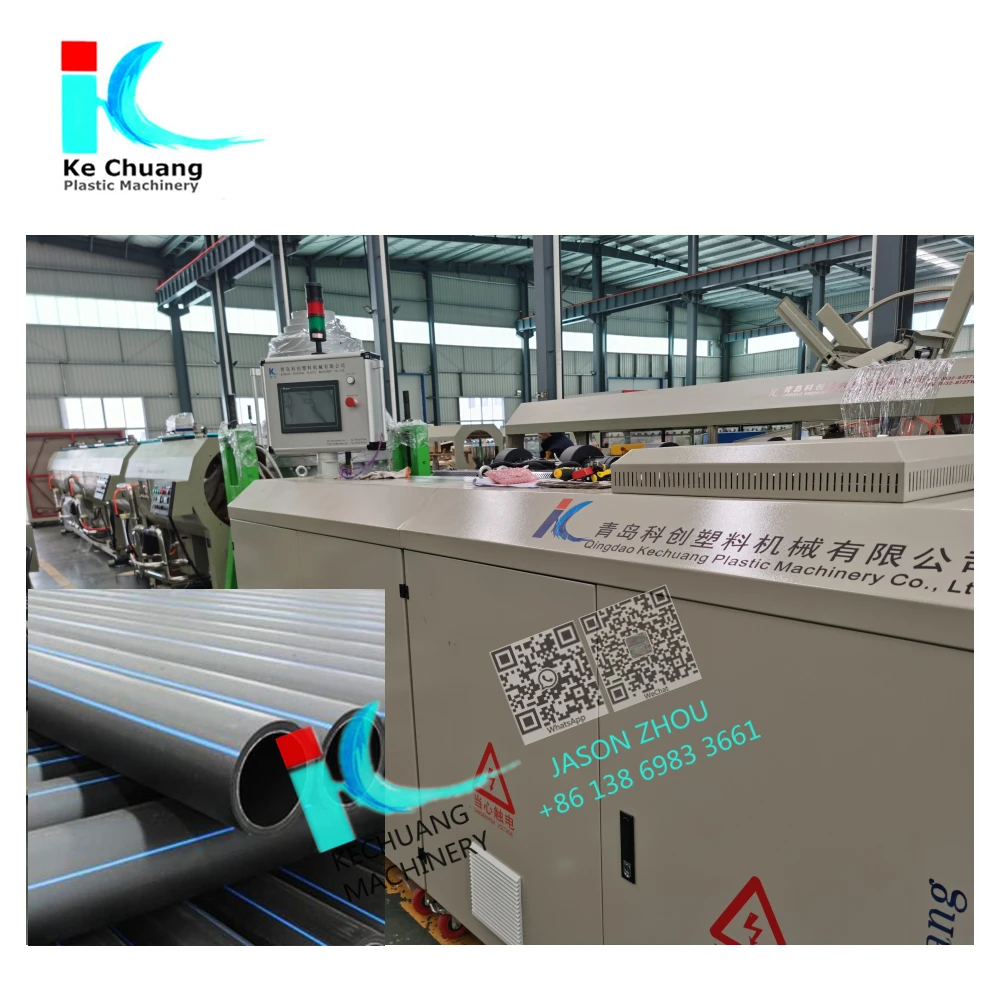

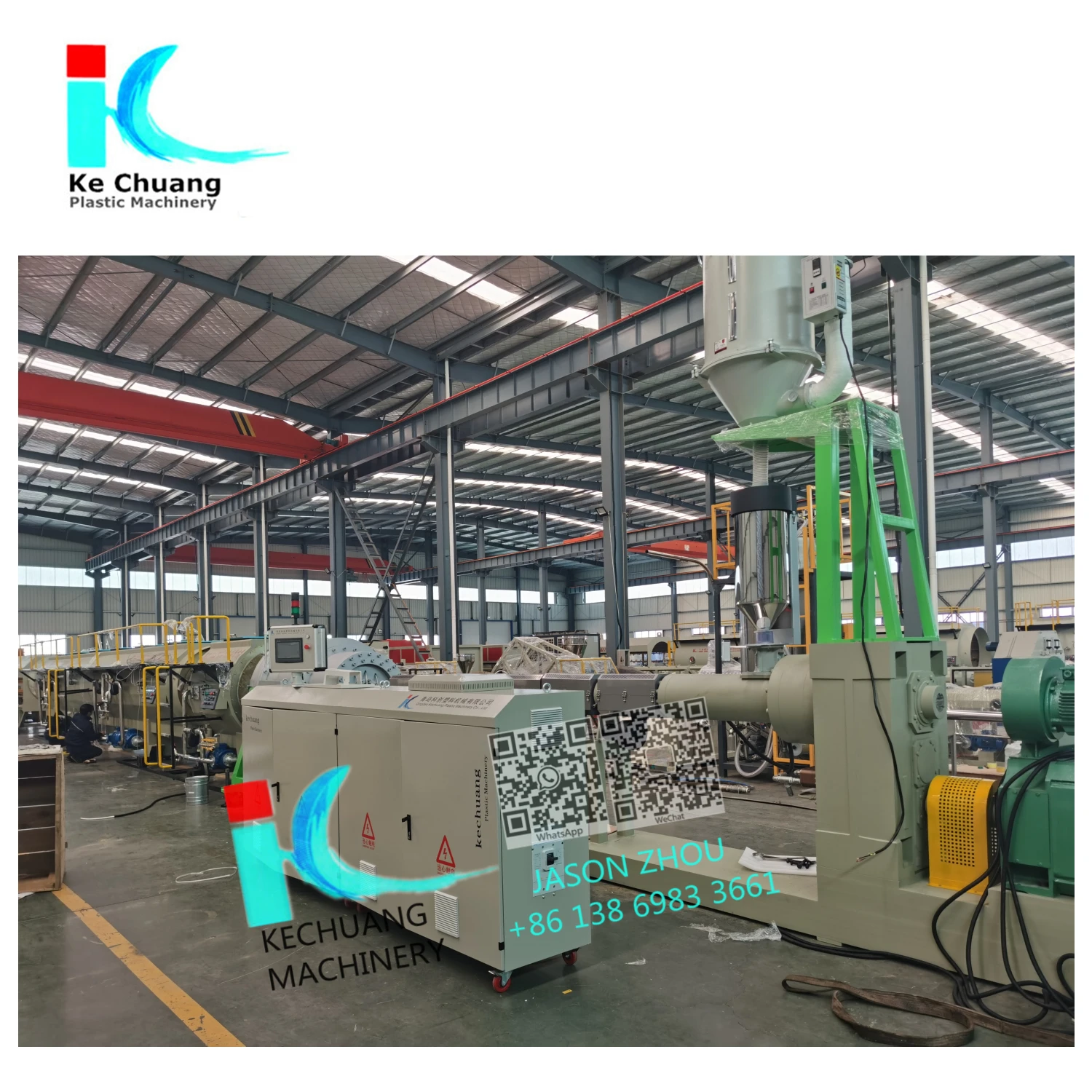

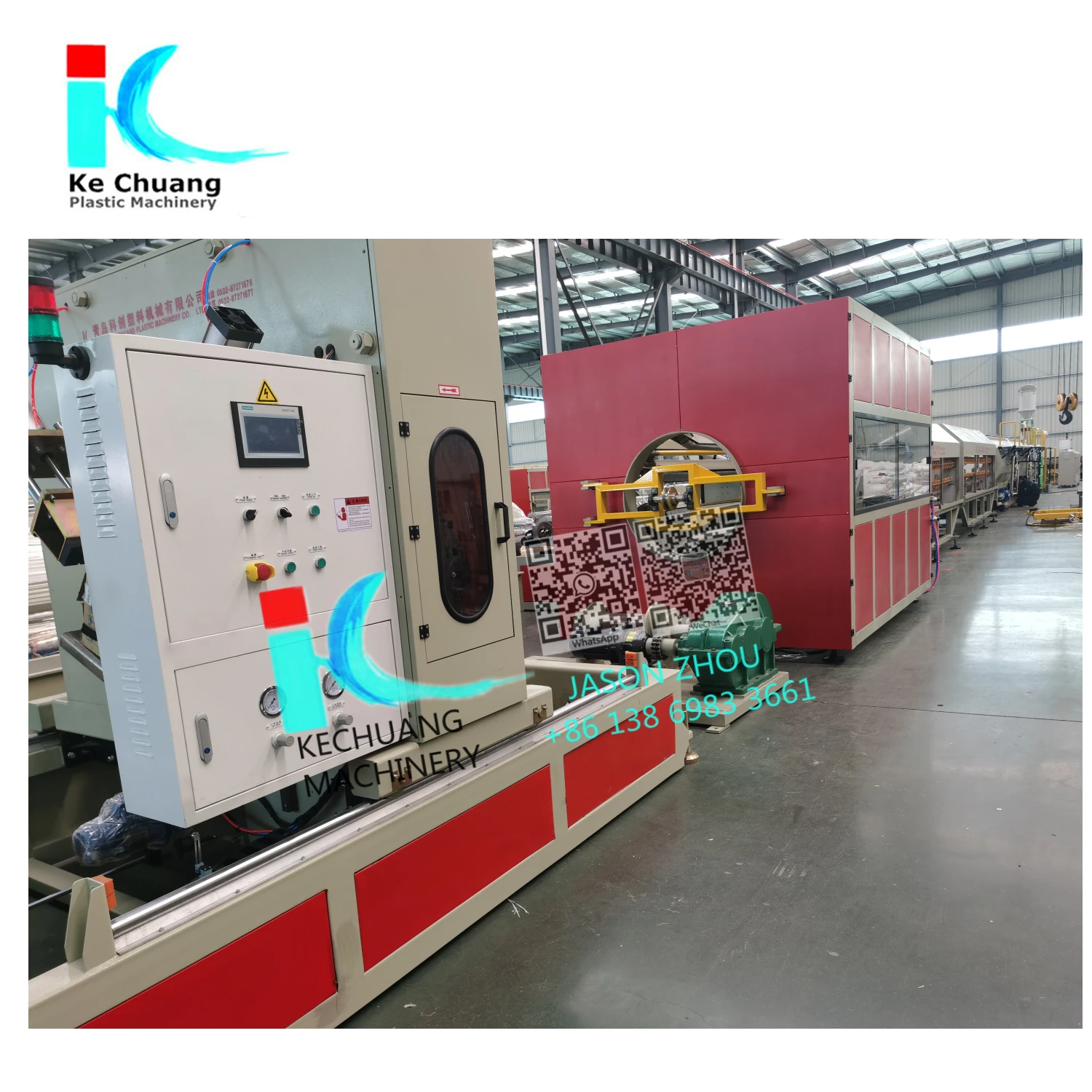

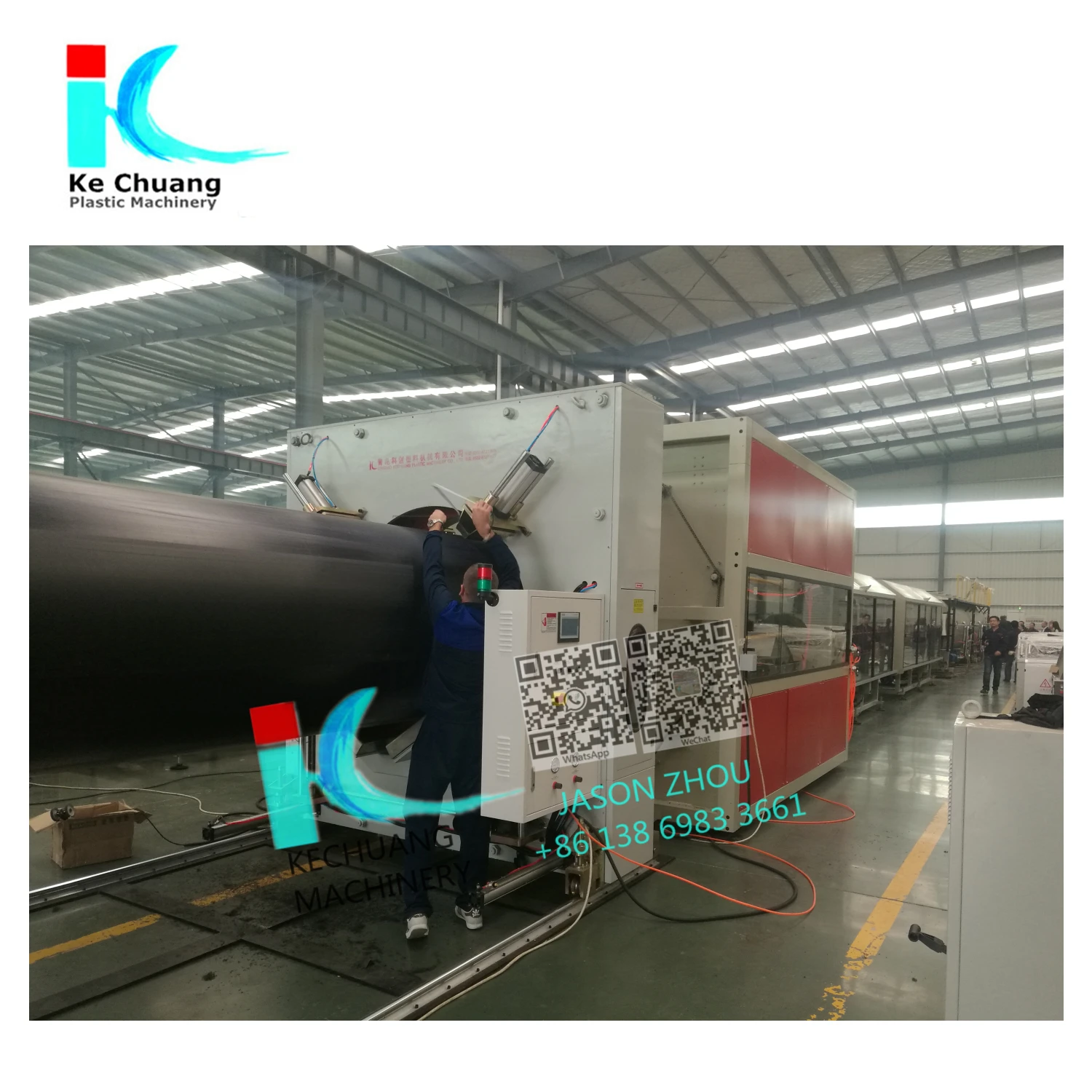

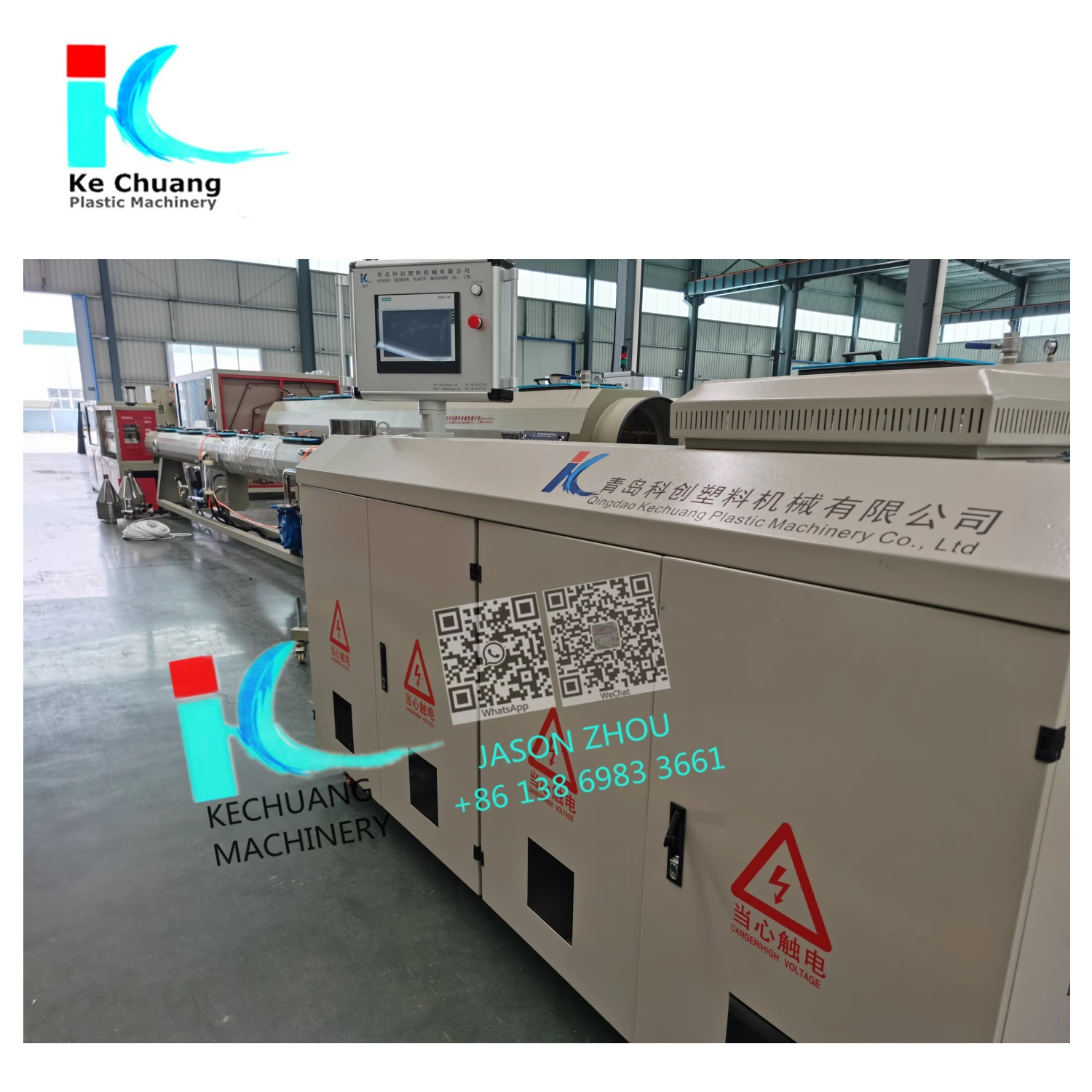

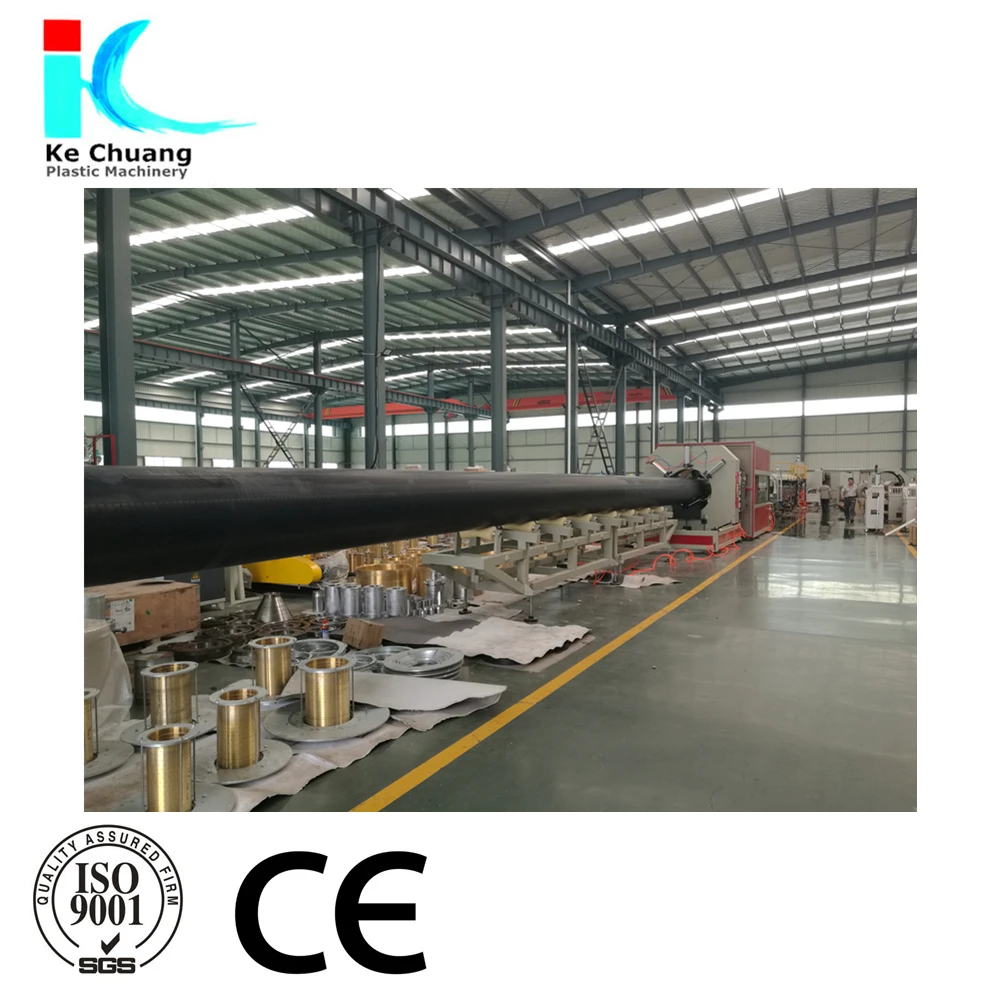

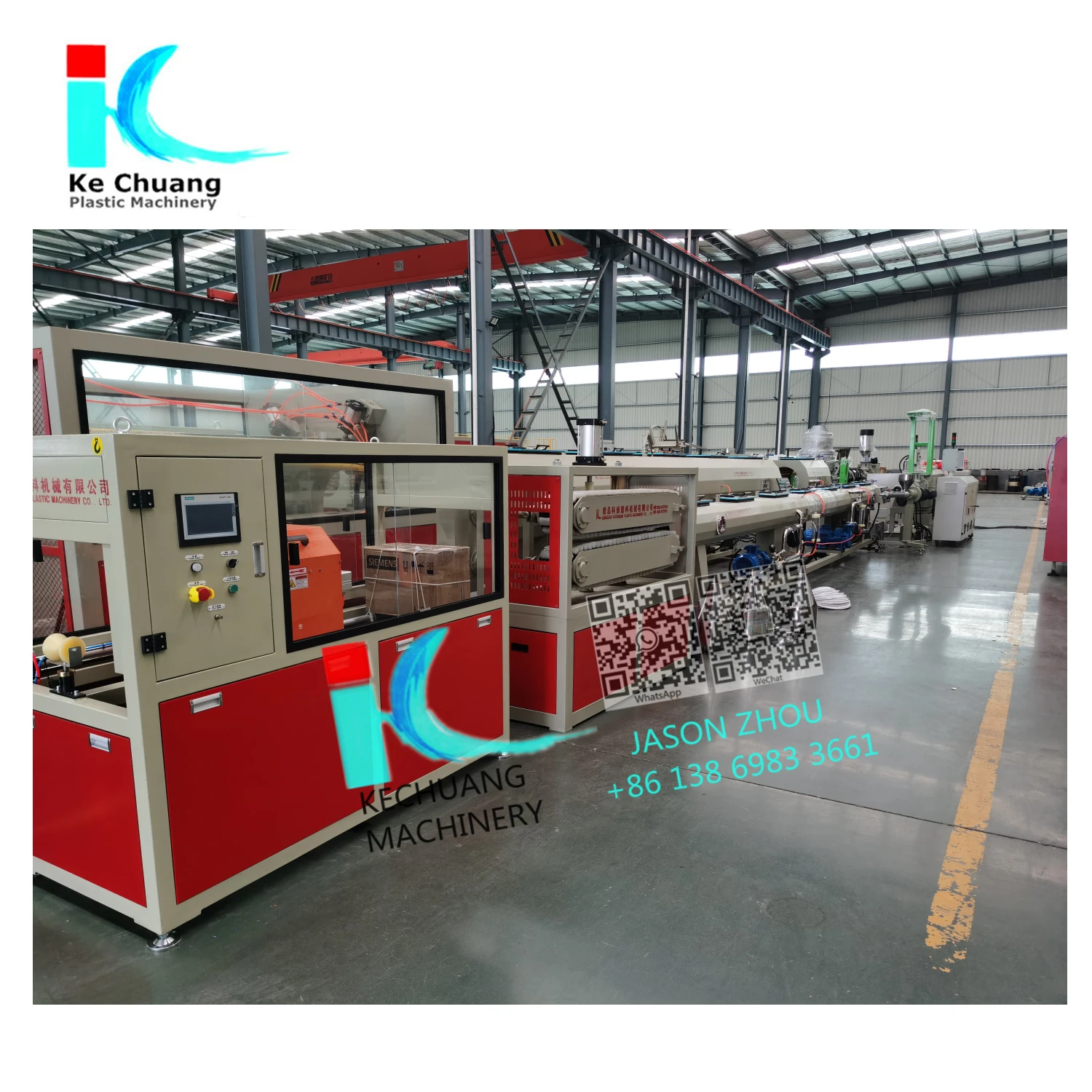

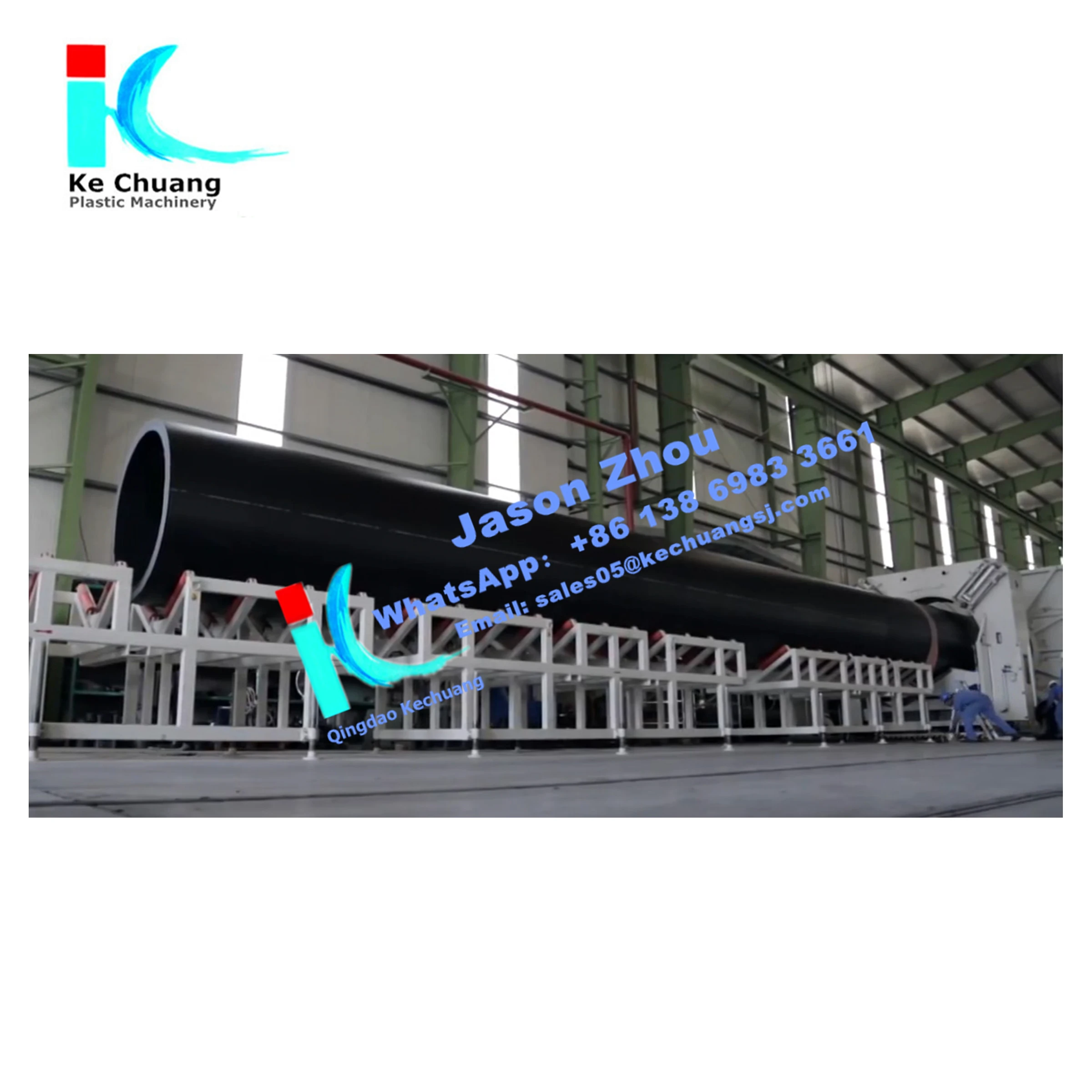

 V. MACHINE PICTURES:

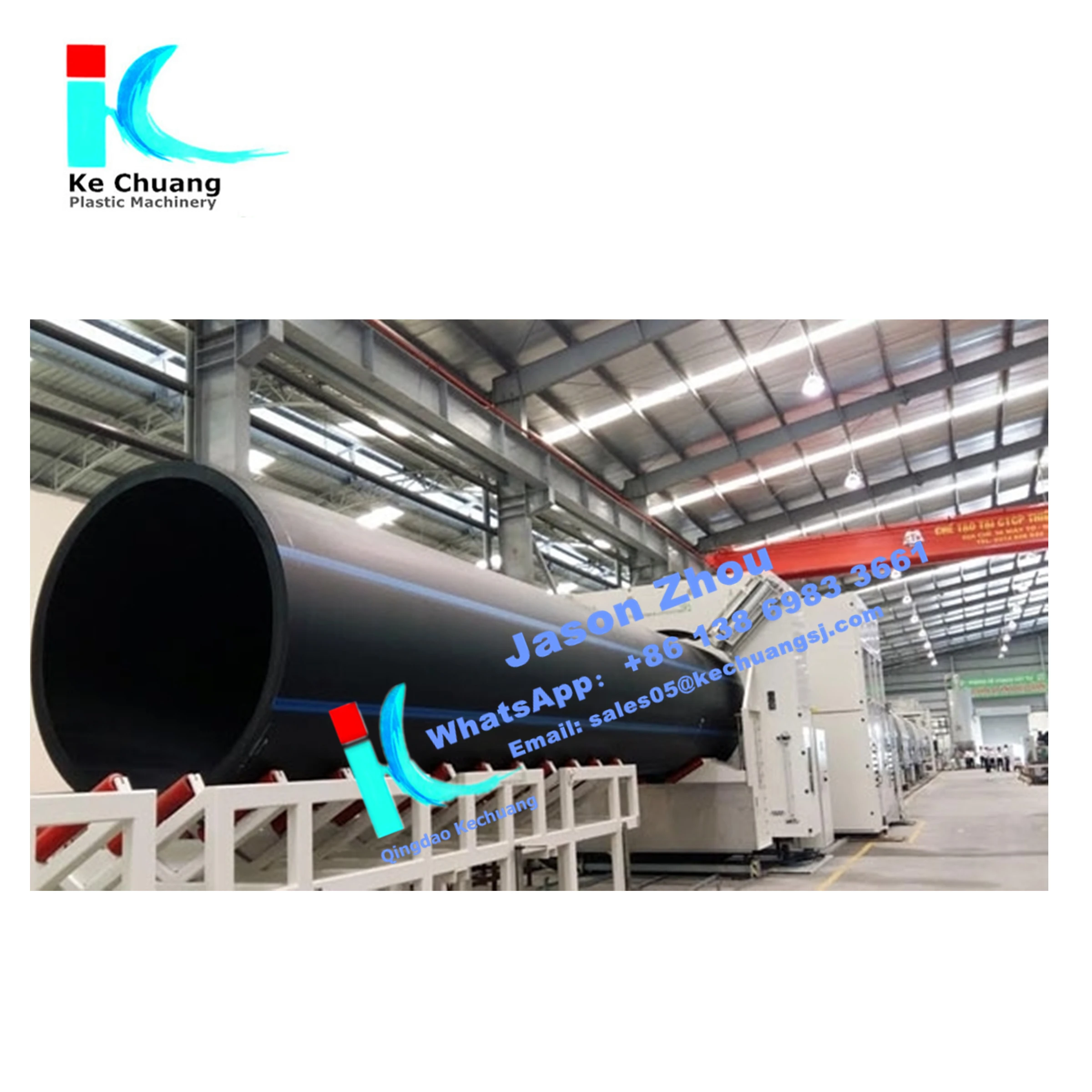

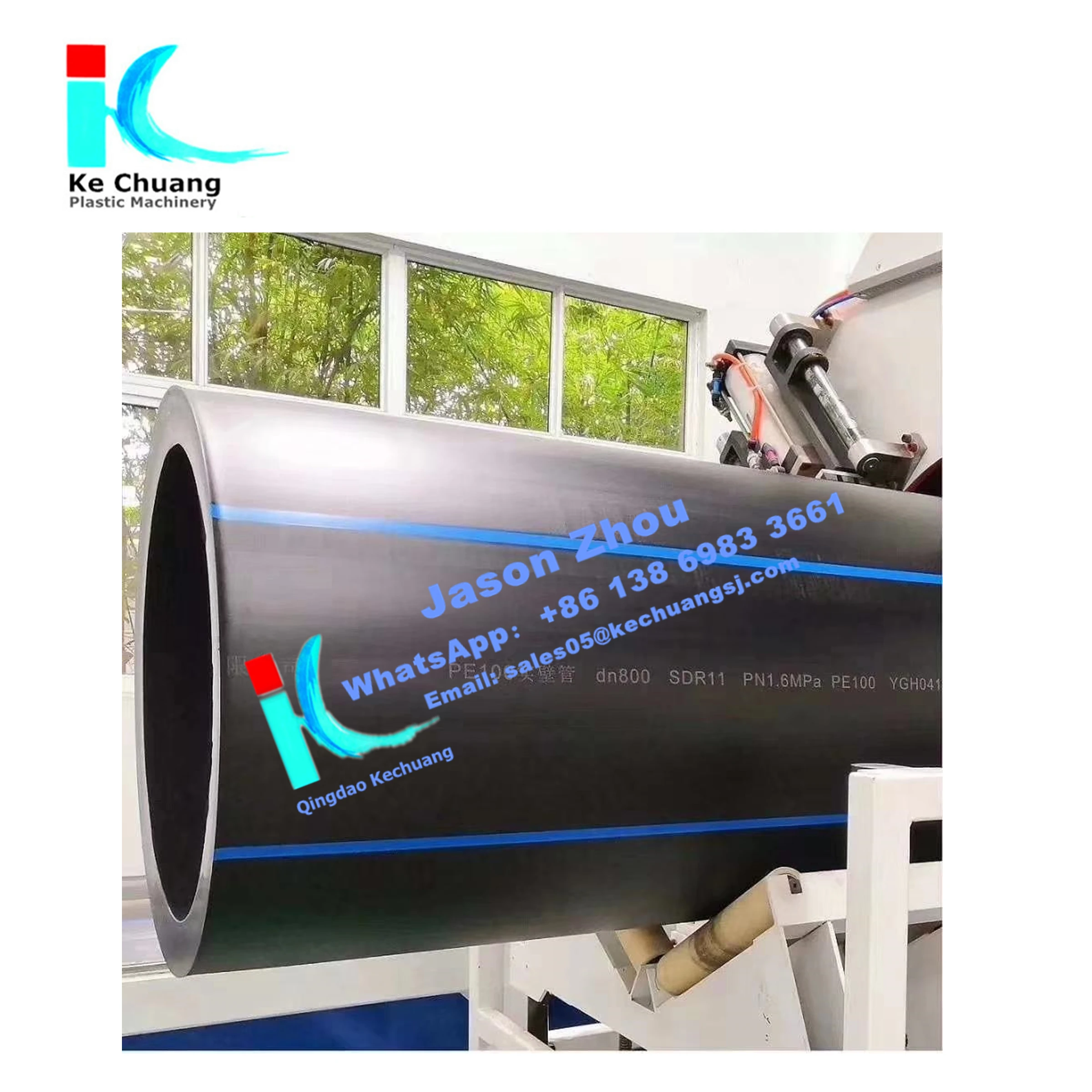

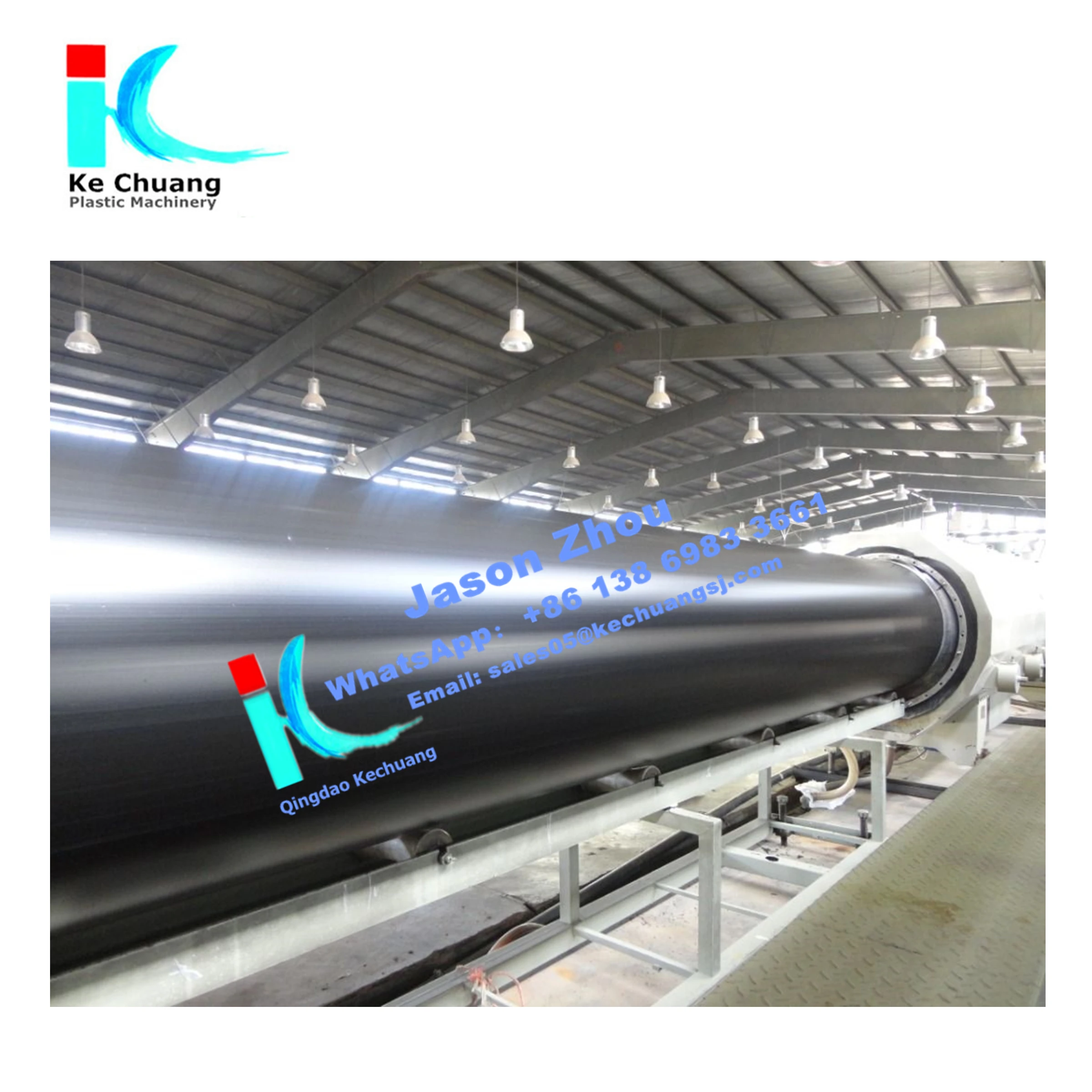

V. FINAL PRODUCTS:

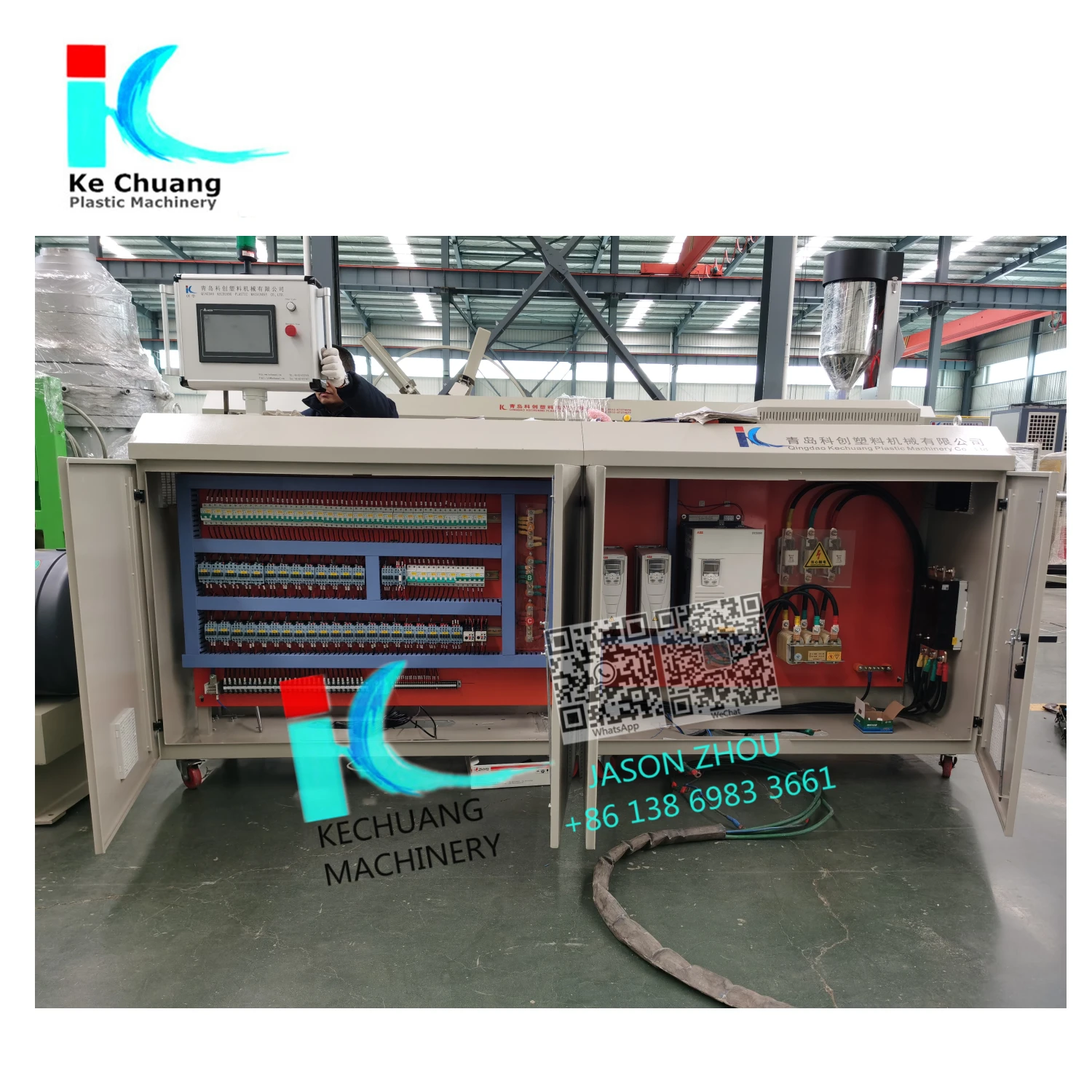

VI. Main electric components

V. About KECHUANG:

KECHUANG Is a high-technique joint-stock company,which is relevant to high-molecule material,and engaged in developing,designing and manufacturing all kinds of plastic and mechanic.
Base on the developing tactic of “quality and credit make foundation stable,meanwhile,speed and technique create difference”, the company scale extends more and more large,and its technique power is more and\\ more strong. The company has an independent studying & developing team,and cooperates with high education school during long time, the most competitive equipment is valued by all fields. Presently, the products of this company is popularly used all over the world,especialy export Russia, east-south Asian, middle-east and Africa, ect.
