SNR 4510 S liquid level control
- Category: >>>
- Supplier: Yueqing Sonor Imp. & Exp. Co. Ltd.
Share on (60356584266):
Product Overview
Description
14 years manufacture experience
Certificated:CE&RoHS
Paypal is OK.
Mini stainless float switch: oil ta
Data Scan: | 1A1 | 2A1 |
Max Contact Rating | 10W | 50W |
Max Switching Voltage | 100VDC | 220VDC |
Max Switching Current | 0.5A | 1.5A |
Mac Breakdown Voltage | 220VDC | 300VDC |
Max Carry Current | 1.0A | 3.0A |
Max Contact Resistance | 100mΩ | 100mΩ |
Temperature Rating | -30~+125℃ | -30~+125℃ |
Float Ball Material | SS304,SS316 | SS304,SS316 |
Float Body Material | SS304,SS316 | SS304,SS316 |

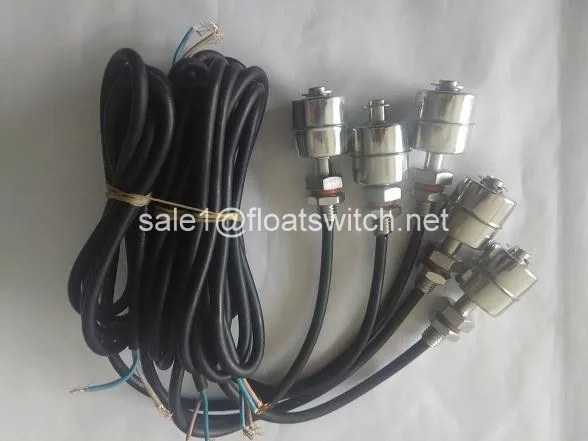

nk float switch/mini float switch
Our factory can provide below 450 ° C Liquid float controller , all kinds of non-standard flanges, different sizes
If the products is not your expecting,please tell me your detail requirements.
Customized Float Switches
Product Description
Working Systems
Mini float switch Working principle
When the float ball rises or falls with the liquid to the level of the switch, The magnetic force of magnet which inside of the float
ball will cause the reed switch to turn ON. When the float ball move away from the reed switch, the reed switch will turn OFF.
Mini float switch installation: oil tank float switch/mini float switch
Contact us
| Angela /Sales Manager |
| ******************************************* |
| YueQing Sonor Imp&Exp Co.,LTD |
| Add:Liushi-Beibaixiang Town,Yueqing City,Zhejiang,China,325603 |
Phone:0086 577 62873250 / Skype: happy2817 whatsapp:0086 18066287511  |
| //www.chinasonor.com //www.floatswitch.net |
oil tank float switch/mini float switch
