Product Overview

Description

Auto Continuous sponge foaming machine



 This Auto Continuous sponge foaming machine  is mainly used for producing polyurethane / flexible foam,which density is 9-50kgs/m3.

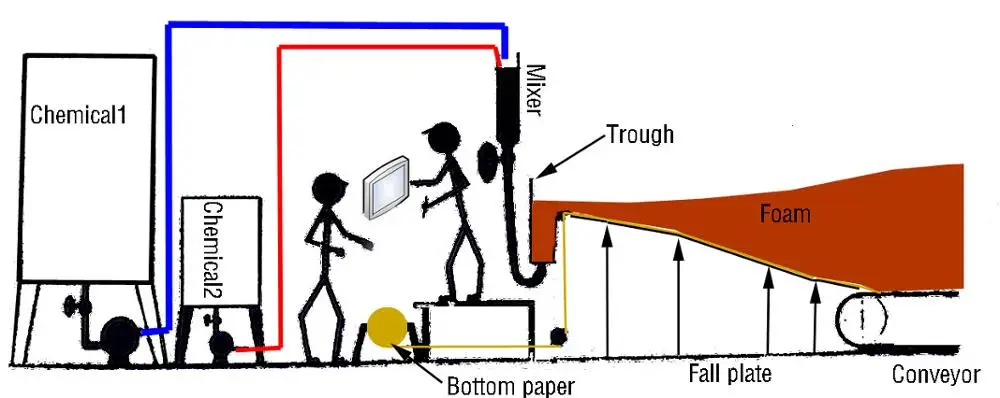

Benefits, features and functions of a  Maxfoam machine:



Operating platform



Functions



• Provides the operator with a correct position to operate the machine.



• Supports the Instrument Panel and the Mixer.



• Anti-skid surface.



Benefits



• Efficient working area for the operator.



• Provide easy access to the Trough.



•Easy access to all the controls and instruments.



• Enable bottom paper to be placed behind the platform.



Control Panel



Functions:



• Controls all process variables.



• Process variables are controlled using a computer friendly interface and the adjustments can be made using analog controllers, digital ones, or a combination of both.



• Start, stop, adjust.



Benefits



• Easy to adjust and monitor variables.



• Real-time information during foam production.



• Save and secure production environment.

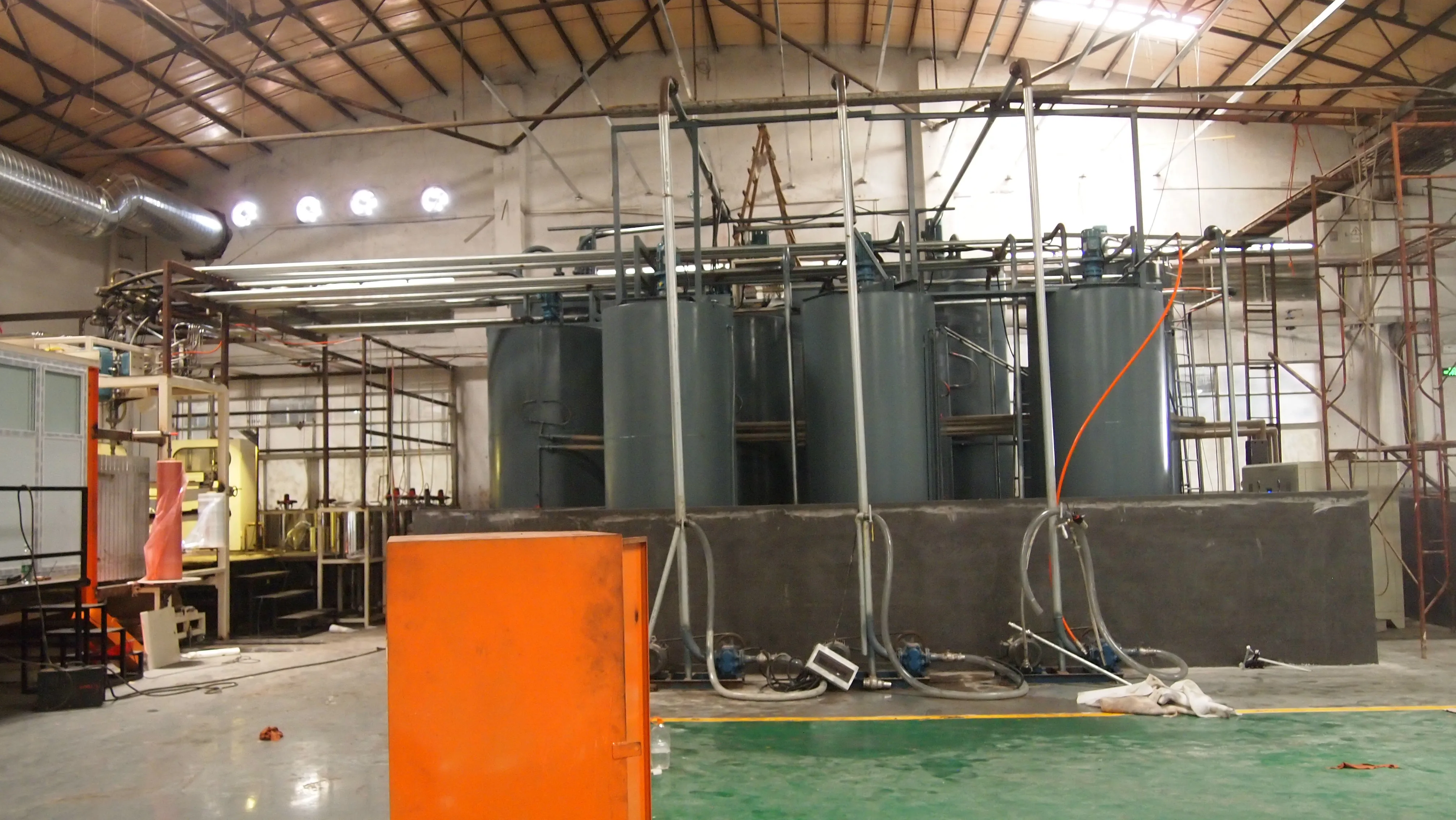

Additive tanks



Functions



• Volume specially designed for daily production.



• Individual tanks for each chemcial.



• Stainless steel.



Benefits



• No leakage.



• Easy to clean.



• No influence on chemicals.



• Age resistant promoting longlife.



• Easy refilling.



Chemical metering



Functions



• Meters the chemicals to required quantity.



• Recirculation back to tank via pressure control.



• Pumps and transducers adapted to chemical output.



Benefits



• Accurate metering.



• Required pressure level per stream.



• Easy to calibrate.



•Long lifetime.



Mixer



Functions



• Mix all chemicals.



• Adjustment of mixer pressure.



• Mixer speed adjustment.



Benefits



• Control cell size.



• Create fewer “pinholes”.



• Provide optimal mixing.



• Self cleaning.



• Volume designed to output.

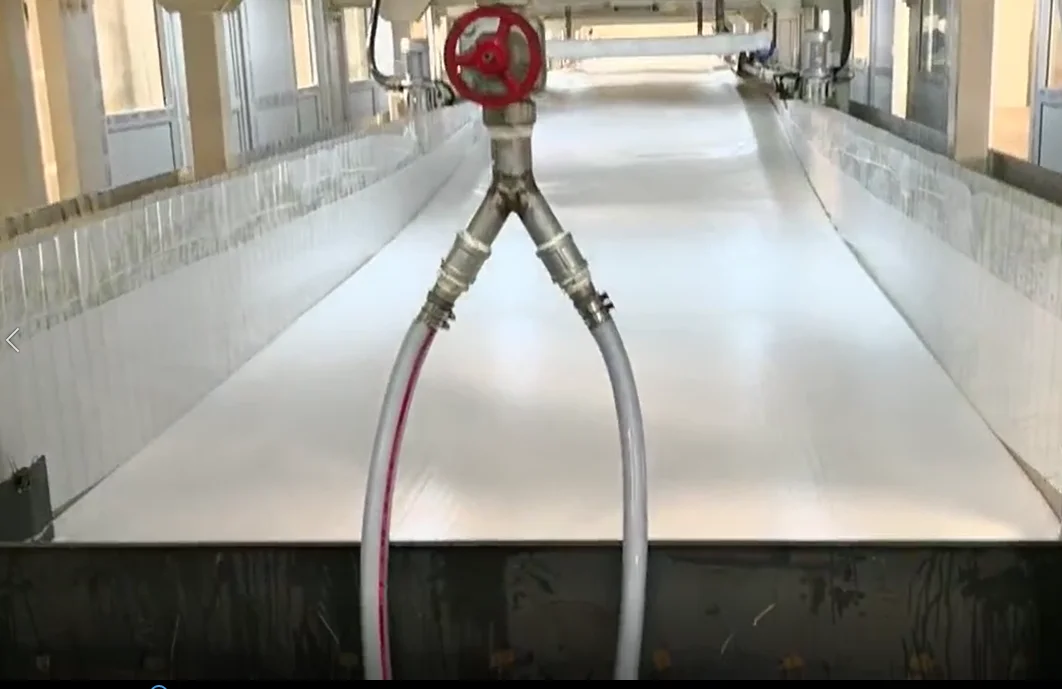

Trough



Functions



• Distribution chemicals on to the fall-plate.



• Starting point of creaming.



• Volume designed to a wide range of outputs and formulations.



Benefits



• Fewer pinholes.



• No cleaning.



• Give better block porfile on higher blocks.



• Easy to use.



Fall-plate



Functions



• Support the bottom paper from trough to conveyor.



• Adjustable width and angle.



• Adapted to the rise profile.



Benefits



• Make a flat top block.



• Give better density distribution.



• Using gravity force when expanding foam.



• Eliminate friction between side paper and foam rise.



Conveyor



Functions



• Moves the foam at requested speed.



• Transports the foam slab.



• Motor,gear and transducer adjusting speed and keep constant speed when set.



Benefits



• Constant speed.



• Constant block height.



• Uniform foam structure.

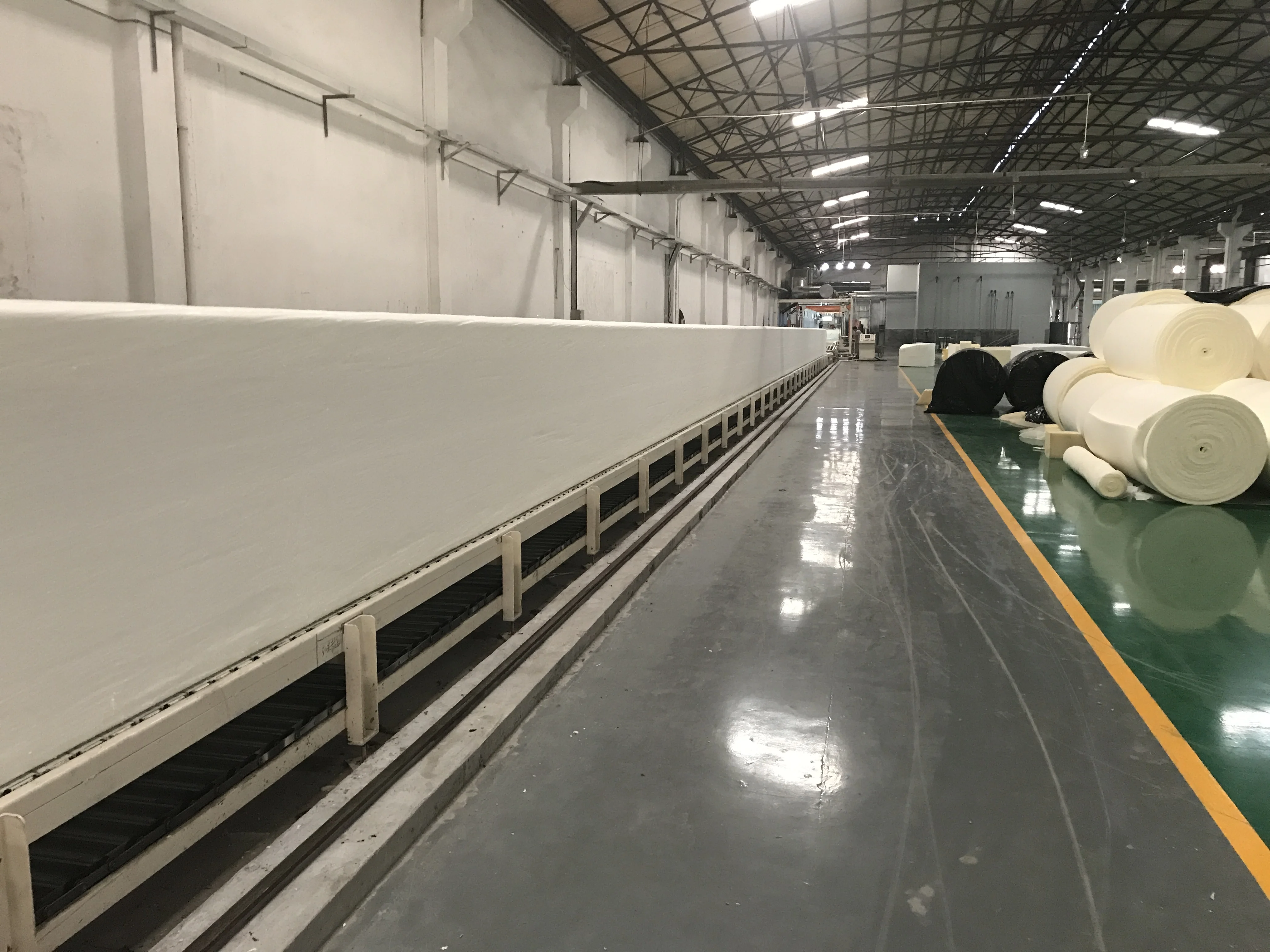

Foaming tunnel



Functions



• Transports the foam.



• Supports the foam until it’s self supporting.



• Closed tunnel.



Benefits



• Stable block quality.



• Smooth block sides.



• No side skin.



• Excellent working environment.



Ventilation



Functions



• Remove gasses from the foaming tunnel.



• Environmental friendly.



Benefits



• Minimum gass in working area.



• Operated from the control panel.



• No disturbance of foam block surface.



Walkways



Functions



•Provides access to inspection windows on both sides of the foaming tunnel.



• Anti-skid surface.



Benefits



• Creates safe working area.
• Easy access to inspect foam production.



Inspection windows



Function
• All windows slid able.
• Windows in full length of the tunnel on both sides.



Benefits
• Enable inspection of foaming in all phases of process and to take foam samples.
• Access to; Side paper.
• Windows keep the tunnel closed for better ventilation.



Paper feed side and bottom



Function
• Supports the paper rolls during unwinding.
• Paper tension device.
• Adjustment to keep the paper in line.



Benefits
• Keeps the paper in line.
• Keeps the paper tight, flat and without wrinkles or folds.



Paper rewind Bottom-paper



Function
• Rewinds the paper used during foaming.
• Adjusts the tension of paper.
• Self locking / Reusable steel cores.



Benefits
• Ensures correct tension due to torque control of electric motors.
• Easy to remove rewinded paper during foam production.
• No cardboard cores needed.



Paper rewind side-paper



Function
• Rewinds the paper used during foam production.
• Adjusts the tension of paper.
• Self locking reusable steel cores.



Benefits
• Ensures correct tension due to torque control of electric motors.
• Easy to remove rewinded paper during foam production.
• No cardboard cores needed.
