Conventional Gap Bed Metal Lathe Machine Price CM6241V
- Category: >>>
- Supplier: Tengzhou Wellon Machinery Co. Ltd.
Share on (60356836262):
Product Overview
Description
Product Description

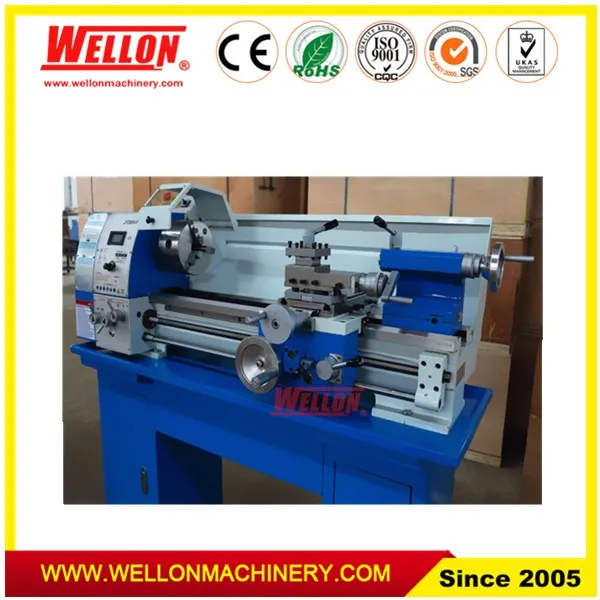

Conventional Gap Bed Metal Lathe Machine Price CM6241V
Variable spindle speed with High Low two steps, with speed display
Super voice frequency heated bed ways.
Hardened and grounded gears in the head stock.
With 2 precision D degree taper roller bearings on the spindle.
Integrated deluxe cast iron floor stand.
Tolerance test certificate, test flow chart included.
Model | CM6241V |
Max. swing over bed | 410mm |
Max. swing over cross slide | 255mm |
Max. swing over gap | 580mm |
Length of gap | 190mm |
Max. distance between center | 1000mm |
Bed width | 250mm |
Spindle nose | D1-6 |
Spindle bore | 52mm |
Spindle bore taper | MT6 |
Spindle speed steps | Variable |

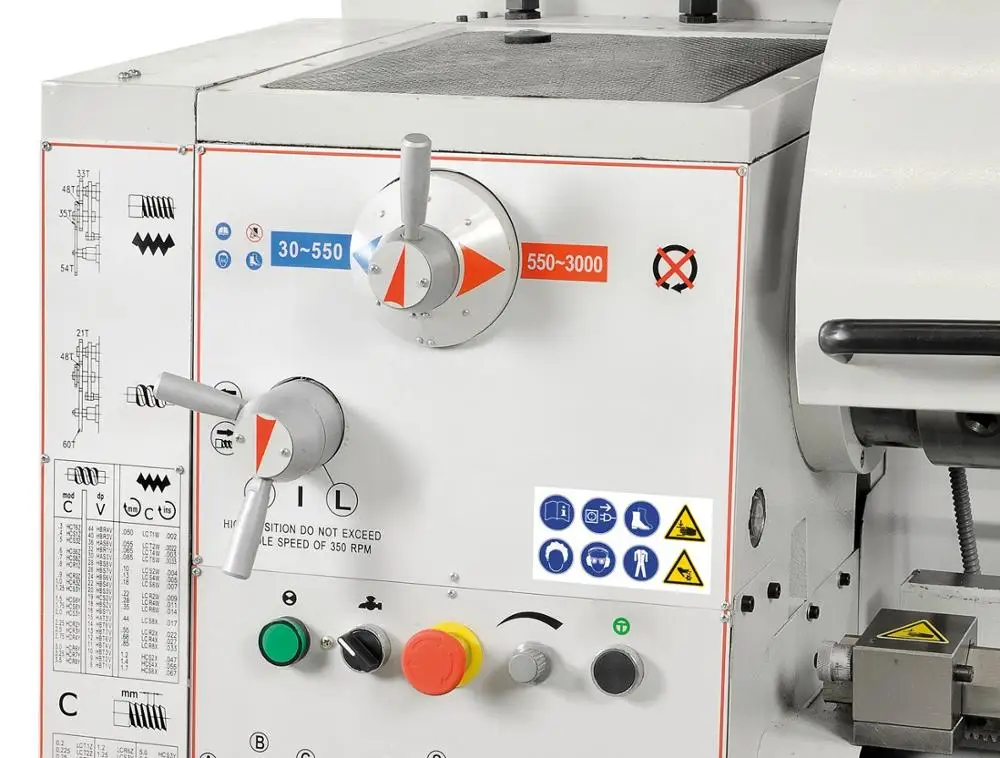

Range of spindle speed | 30-550 low 550-3000r/min high |
Compound rest travel | 140mm |
Cross slide travel | 210mm |
Tool size | 20mmx20mm |
Tailstock sleeve taper | MT4 |
Travel of tailstock sleeve | 120mm |
Dia. of tailstock sleeve | 50mm |
Range of metric thread | 39kinds 0.2-14mm |
Range of diametrical thread | 21kinds 8-44D.P |
Range of inch thread | 45kinds 2-72T.P.I |
Range of module thread | 18kinds 0.3-3.5M.P |
Longitudinal feed range in metric lead screw | 17kinds 0.05-1.7mm/rev |
Cross feed range in metric lead screw | 17kinds 0.025-0.85mm/rev |
Motor power | 5.5 kW |
Overall dimension | 2060x850x1640mm |
N.W/G.W | 1340/1565 kg |
With standard accessories:
3-jaw chuck
4-jaw chuck
Face plate

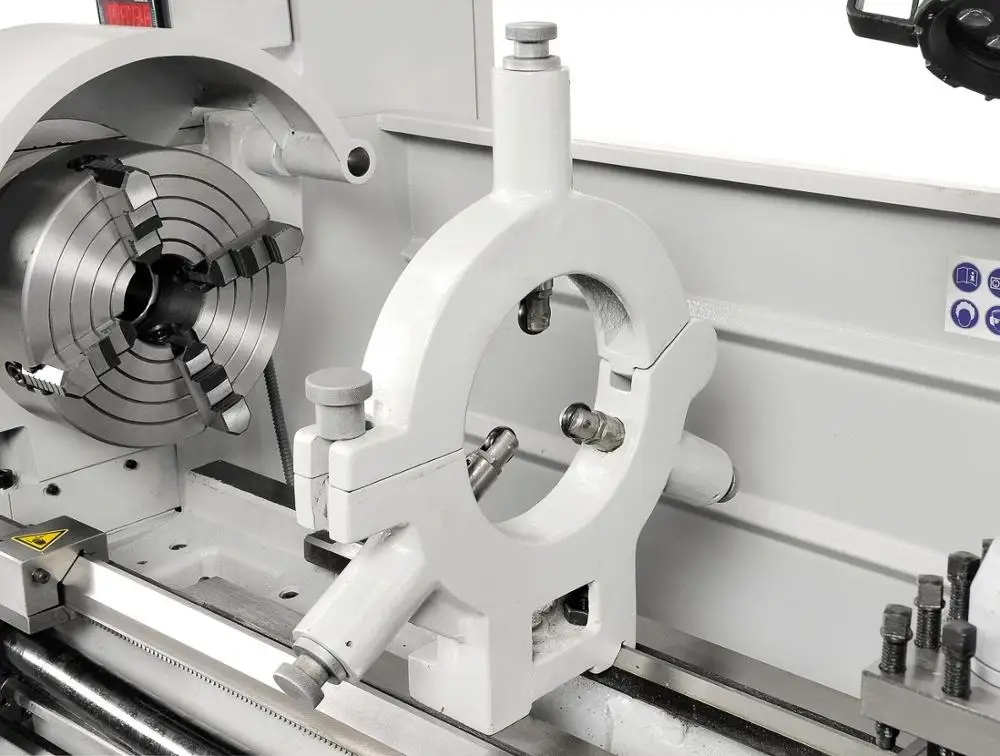

Steady rest
Follow rest
Drive plate
Dead centers
Sleeve
Live center
Splash guard
Oil tray
Thread chasing dial
Lead screw protection
Chuck protection
Longitudinal mechanical stop
Work lamp
Coolant system
Foot Brake
Some tools
Siemens electrical components
Optional accessories :
Quick change tool post -->USDUSD410
Digital readout 2 axis -->USD250
Tool holder protection -->USD150
Tapper turning attachment -->USD380
