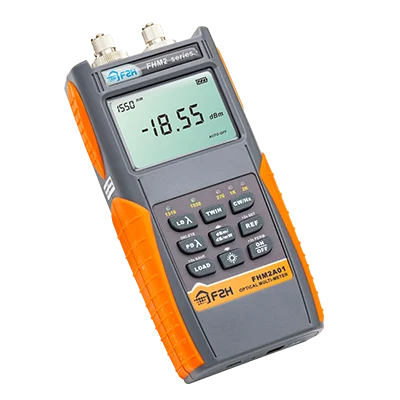

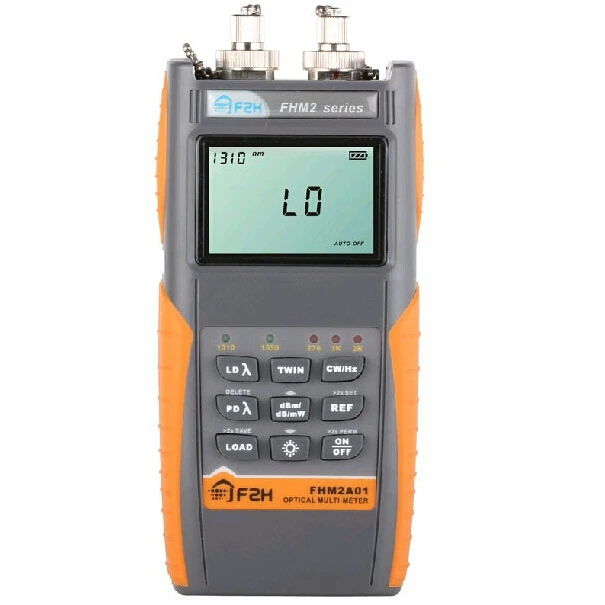

Optical multimeter FHM2A01/FHM2B01/FHM2A02/FHM2B02 stable light source optical power meter optical multimeter
- Category: >>>
- Supplier: Beijing W&f Technology Co. Ltd.
Share on (60356979096):
Product Overview
Description
Optical multimeter FHM2A01/FHM2B01/FHM2A02/FHM2B02 stable light source + optical power meter
The FHM Multimeter combines a power meter with a 2-wavelength laser source,for optical fiber network installation and maintenance. With the large capacity of data storage,it's very convenient for field testing and transfering the test results to PC through USB interface.
1.Auto wavelength recognition
2.Data storage up to 999 items
3.USB interface and PC associated software available
|
| FHM2A01 | FHM2B01 |
Power Meter | Calibration wavelength(nm) | 850/1300/1310/1490/1550/1625 | |

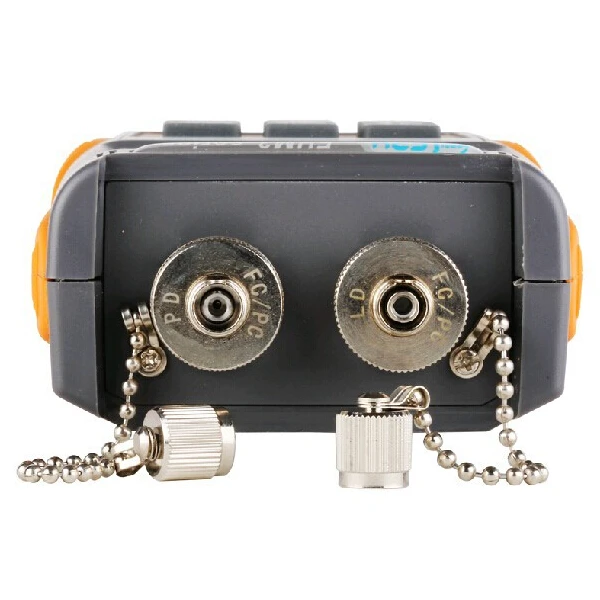

Connector | Interchangeable FC/SC/ST for PC/APC | ||
Data storage(items) | 999 | ||
Ref.Value | Yes | ||
Display units | dB/dBm/mW/uW | ||
Display precision(dB) | 0.01 | ||
Accuracy | ±5%±1nW | ||
Wavelength recognition | 1310/1490/1550/(input power≥-40dBm) | ||
Tone detection | 270Hz/1KHz/2KHz(input power≥-40dBm ) | ||
Measuring range(dBm) | -70 to +10 | -50 to +26 | |
Laser Source | Output wavelength(nm) | 1310/1490/1550 | |

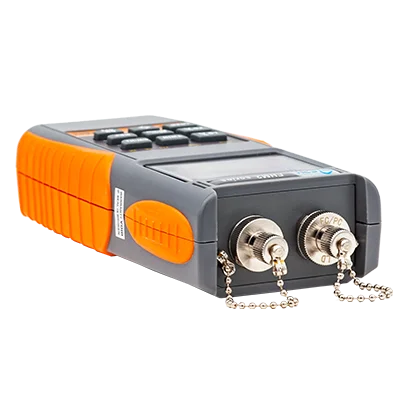

Connector | Interchangeable FC/SC/ST for PC | ||
Modulation frequencies | 270/1K/2K Hz | ||
Output power1 | -5dBm±0.5dB | ||
Stability long-term(8h)1 | ±0.1dB@1310/1550nm | ||
Stability short-term(15min)1 | ±0.05dB@1310/1550nm | ||
Wavelength recognizing code | Yes | ||
General Specification | Auto power off | √ | |
Power supply | 2pcs *NiHM 1.2V,2000mAh;AC/DC Adaptor | ||

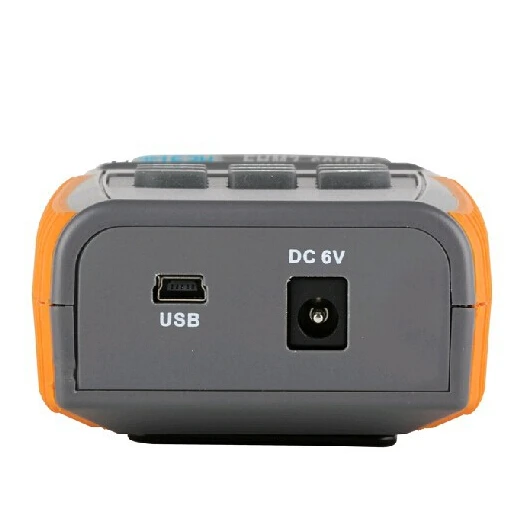

PC interface | USB | ||
Battery life | >100Hours(laser off) | ||
Storage temperature | -20°C~+70°C | ||
Operating temperature | -10°C~+50°C | ||
Relative humidity | <90%(Non-condensing) | ||
Dimension(mm) | 168L×76W×43H | ||
Weight(Gram) | 310 | ||
