Well pumps submersible bombas sumergibles for water supply deep well irrigation pumps
Borewell submersible pump is widely used in farm irrigation, sprinkler irrigation, getting water
getting water from well, water supply and drainage system for industrial and civil building,
water diversion project in hilly and mountain areas water drainage project in at low-lying areas.
Item
borewell submersible pump
Material
Cast iron and stainless steel
Motor
100%copper wire, full power
Color
Adjustable
Theory
Centrifugal Pump
Structure
Multistage Pump
Power
Electric
Pressure
Low Pressure
Impeller
Vortex impeller
Mechanical Seal
Alloy and silicon carbide
Capacity
10-500 m3/h
Head
10-600m
Applicable well diameter
175-400mm
Diameter scope
32-203mm
Temperature range
-15—100°C
Usage
deep well pump for irrigation
Componentsof 4 inch electric water pump for irrigation:
Shaft,jacket and hydraulics in stainless steel
Brass impeller
Built in non-return valve
Thermoplastic parts
oil-cooled motor with compensating diaphragm
Graphite mechanical seal protected by sand proof ring
4SKm series parts are non-toxic and non-polluting
Owing to the special construction features, both installation and maintenance of 4SKm series are fast and easy.
Motor:
Degree of protection: IP68
Inuslation class: B
Construction Materials
Casing both of pump and motor, pump shaft: stainless steel AISI304
Impeller and diffuser: stainless steel
Techinical Data:
Suitable fluids
Clear, free frp, solid or abrasive substances, chemically neutural and close to the characteristics of water
Performance:
Speed range: 2900rpm
Fluid temperature range: -10℃~40℃
Max. Working pressure: 25bar
Ambient temperature: permissible up to 40℃
Power
Single phase: 1~240V/50Hz,60Hz
Three phase: 380~415V/50Hz,60Hz
Features of 4 inch electric water pump for irrigation:
Good-looking appearance and all the fluid-passing components pf both of submerged pump and the submerged motor are made of stainless steel.
Low weight and convenient im movement and installation.
High effenciency, save electricity
Provided with non-return valve to avoid damage due to back-flow of water at shut of pump or water hammer affecting the pump.
The liquid inlet is fixed with a filter screen to prevent solid grain of a given size from entrance.
Application of 4 inch electric water pump for irrigation:
1. For water supply from wells or reservoirs
2. For dosmestic use, for civil and industrail applications
3. For garden use and irrigation
Packaging & Shipping

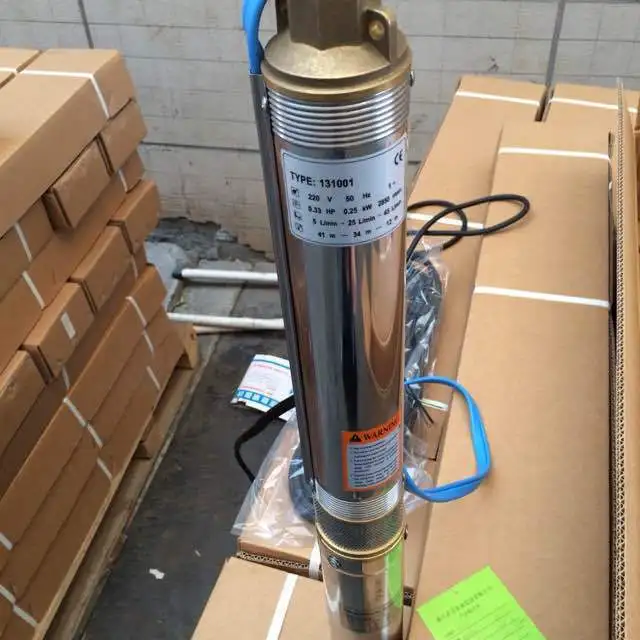

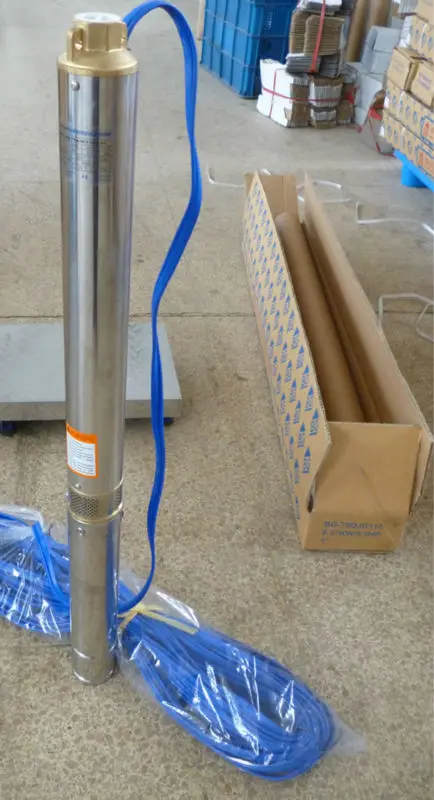

4 inch electric water pump for irrigation borewell submersible pump
Each pump is packed in standard wooden case.
Why Choose US?
1. Beijing Olympic believe Zhejiang Feili Pump
2. Fly out Asia, cover over 58 countries
3. 90% customers, no face to face, always get praise
4. Reply in time, solve in a day 5. Free accessories for worn parts
Company Information
In 2003, Mr Chenestablished his own factory named Taizhou Taipingyang Co., Ltd., with only one sales employee- our general manager Lily. After 2 years development, they are more familar with e-business and gain more experience in pumps' making. In 2005, Mr Chen established a new company named Zhejiang Feili Pump Co., Ltd., with 5 professional experienced engineers and a sales team in Taizhou. Mr Chen know there are so many good quality factories in China, but the world don't know Feili Pump. He want to use their own experience and team to finish this work. Unitil now, Feili Pump has 2 Sales departments, one is in Taizhou City, the other is in Hangzhou City. Two Young teams, will enlarge to more teams and do better in the furture!
Hot Sale

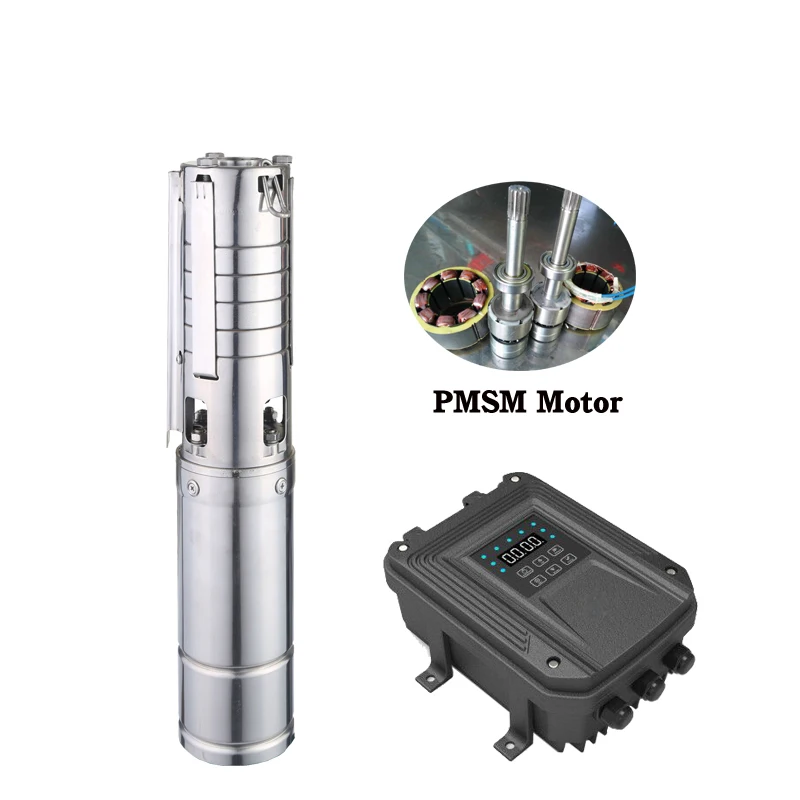

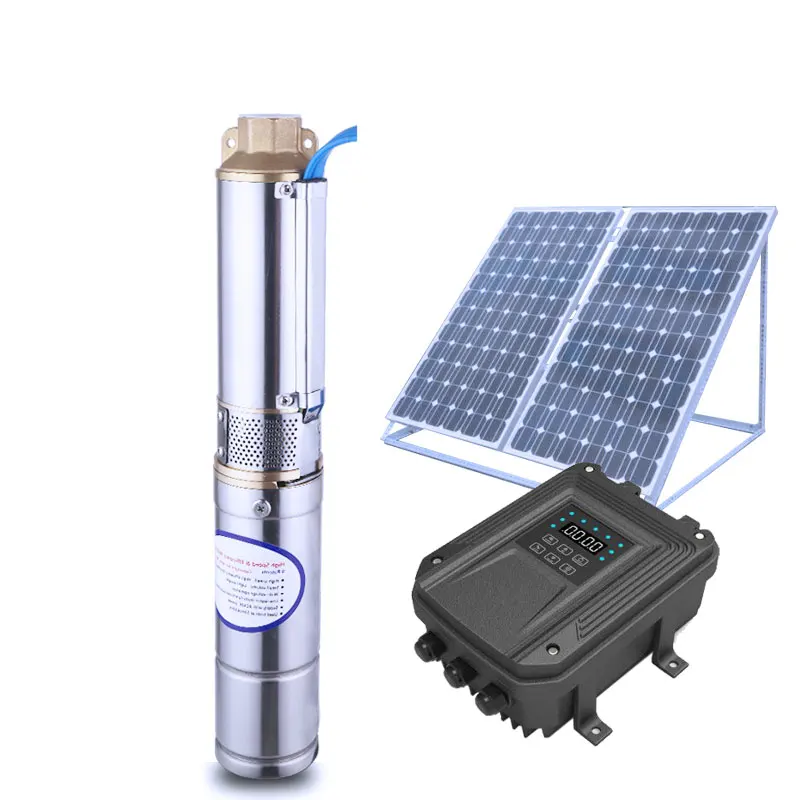

Our 3'' 4'' low voltage DC Solar Pumps, DC solar booster pumps, dc solar swimming pool pumps are sold out more thna 100 countries, if you're interested, click below for more details.
