factory bar bending machine, heavy duty flange bending rolling machine

Product Overview

Description

Product show

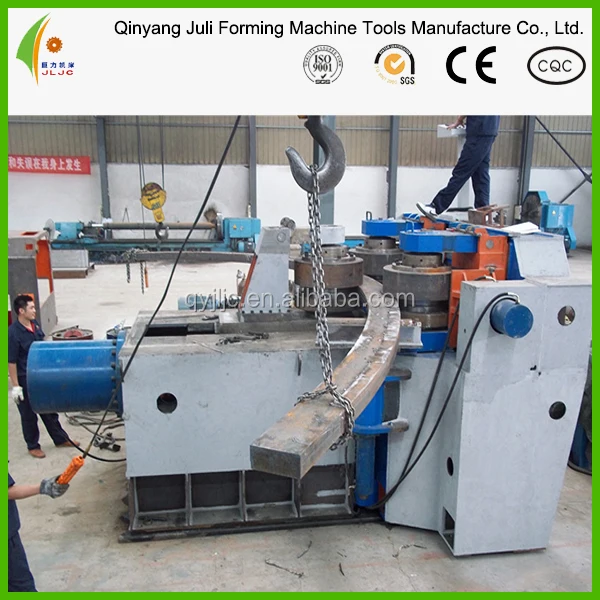

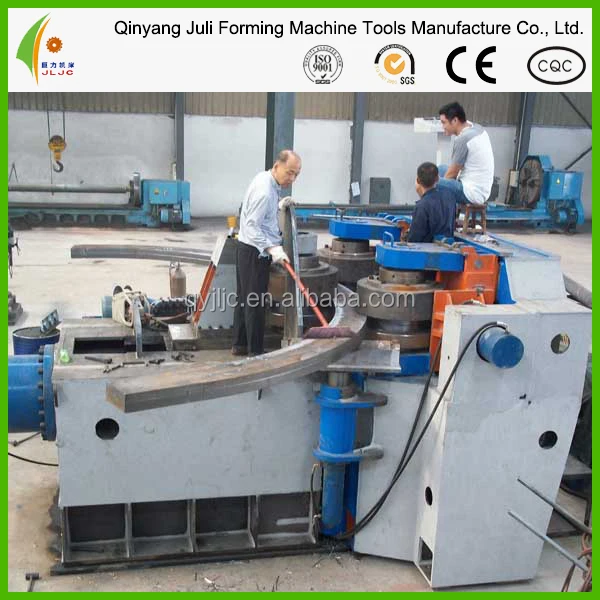

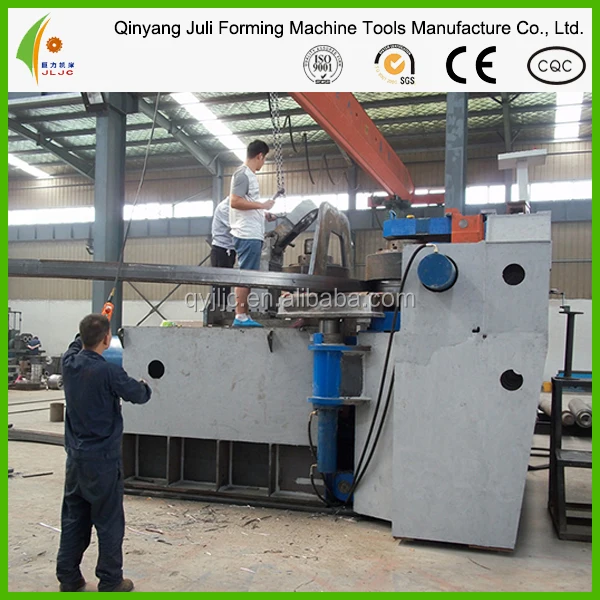

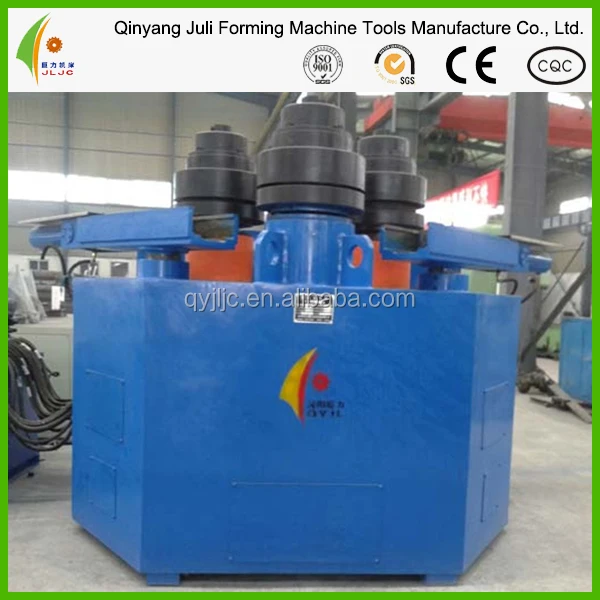

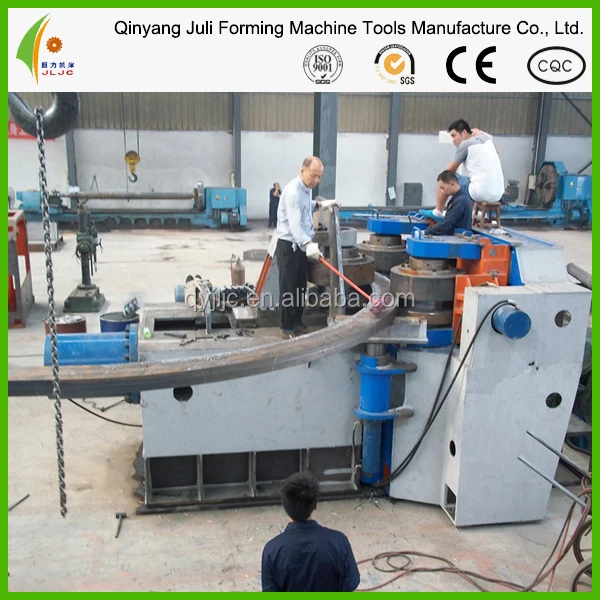

1. Pictures of Product  factory direct bar bending machine , flat bar bending machine. we have different models of this machine, from small model to big ones, besides, we can customize appropriate model according to the demensions of your profiles.



















2. Descriptions of Product

 The name of machine is bar bending machine



2.1. The usage of profiles bending machine



The profiles bending machine we manufactured is a high efficiency equipment for bending profiles with various specifications in once-forming, for example, channel steel, angle iron, H beam steel, I beam steel, flat steel, square tube, round and square pipe, can pre bend the end of profiles and bend to round, ring, arc, spiral work piece, widely used in aerospace, petrochemical, hydropower, shipbuilding, automobile manufacturing, machinery manufacturing, and steel structure and so on.

2.2  technicial information



3. Overview of machine structure and performance

3.1.1. Overview of structure

The profiles bending machine is a three roller arc downward structure. It composed of the machine body, side roller part, auxiliary device, main driving part, sensing device, mold parts, hydraulic parts, and electrical components etc. the machine body adopt plate steel structure, all mechanical parts are installed in the internal and external of machine body, constituting the main mechanical transmission part of machine. The main roller rotation is driven by hydraulic motor. Side rollers were driven by gear through hydraulic motor, to achieve the designed line speed and torque.

3. 1.2. Electric control system and hydraulic system are two independent parts, through pipes and electric wire connect with mechanical actuator, hydraulic system and electric control system can be put according to drawing, users can also move them to suitable position according to the workshop and technology operation.

3.1.3. The machine can be equipped with additional device (mold) according to the work piece precision requirement and different profiles.



4. The performance of the machine

The machine can pre bend the end of profile, remaining straight edge is less than or equal to two times of the profile width. All three working rollers are drive roller, and adopt the rolling friction; it is high efficiency, energy saving.

4.1 Main roller rotation is driven by the hydraulic motor through hydraulic system. Two side rollers(left roller and right roller) are driven by a hydraulic cylinders, rotating in arc line around the main roller, its function is profiles bending; moreover hydraulic system drive hydraulic motor, the hydraulic motor drive gear, the gear drive side rollers and chain, the chain drive main roller rotating with side rollers, its function is profiles bending and forming; the supporting roller can be lift up and down, moved forward and back, and rotated, all these movement were driven by hydraulic cylinder, supporting roller’s function is prevent profiles twisting during bending it, ensuring the accuracy of the work piece.

4.2 All movements of machine are driven by the hydraulic system, controlled by centralized electric control system, user operate machine through the button on the electric control cabinet.
4.3 Note: during the process of rolling, the user should not rotate three rollers and lift the supporting rollers at the same time, in order to avoid machine failure. After three rollers are installed with molds, supporting rollers can be lift up and down.



5. Bending range

 The profiles bending machine can bend various profiles by replacing or adjusting mold.

Please refer to the basic parameters regarding various profiles bending size and range.



6.Profiles bending mold and mold combination
Profiles bending mold and mold combination is designed as per customer’s profiles; the type and specification of the bending section is different, the mold are different.

The numbers on mold diagram are same as the numbers on the mold, installing the mold as per number on mold diagram.



7. Major reference standard of the bending machine design and manufacturing

7.1.JB/T8777-1998     profiles rolling machine technology condition

7.2.JB/T6103-92   profiles rolling machine basic parameters

7.3.JB/T1829-1997   Forging Machinery General technical conditions



8. Technical Data supplied free

8.1. Manual 1 set (including mechanical, electrical use)

8.2. Electrical schematics 1 set

8.3. Factory inventory, schedule a consumable parts

8.4. Base map, packing lists, product certification



9. Different Models to choose









10. How to order our Product



1.Customers offer the bending materials’ type and parameters of machine.



2.Our designers will make accurate calculation and professional design according to your information.



3.After your confimation, we will do quote of our machine.



4.Note: you can have your own idea about machines’ color, so different colors are avaliable.



11. Trade Items of Product



Trade   Items of Product
MOQ	1   set
Package	According   to clients' demand
Delivery   Terms	FOB,   CIF
Delivery   Time	30   days after confirmation
Payment   Type	T/T,   L/C, Western Union
Supply   Ability	20   sets/Month
Ports	Qingdao, Lianyungang, Tianjin



12. After-sales service

12.10 After-sale service content

12.11 Product quality warranty period is12 months.
12.12 After the product is completed, we are in charge of training the mechanical, hydraulic, electrical and operational 2 staff for free in our factory
12.13 Life-long service, and provide timely spare parts not free.

12.20 quality promise

Strictly implement quality commitment

8.21 machine qualities must be excellent and reliable before delivery, eliminate early failures of machine at our factory.

12.22 User found quality problem in the using process of machine, we response within 24 hours after receiving user’s notification, if necessary send engineer to user site. Repair personnel do not leave user site if do not eliminate failure.

8.23 Our company should provide spare part for repairing machines, and repair machine as per customer’s requirement.

13. Acceptance and installation
13.1. After equipment is completed, we will promptly notify the buyer come to our factory check it before acceptance. After buyer check and accept machine, and carry out terms of contract requirements, seller should delivery equipment.

13.2 Seller should run and test machine in no-loading and loading condition, ensuring machine could work when supply power at buyer site.
