Tobee Effluent Handling
$12,600
Diesel water pump 4 inch high pressure 50 hp
- Category: >>>
- Supplier: Baoding Milestone Import And Export Co. Ltd.
Share on (60357631040):
Product Overview
Description

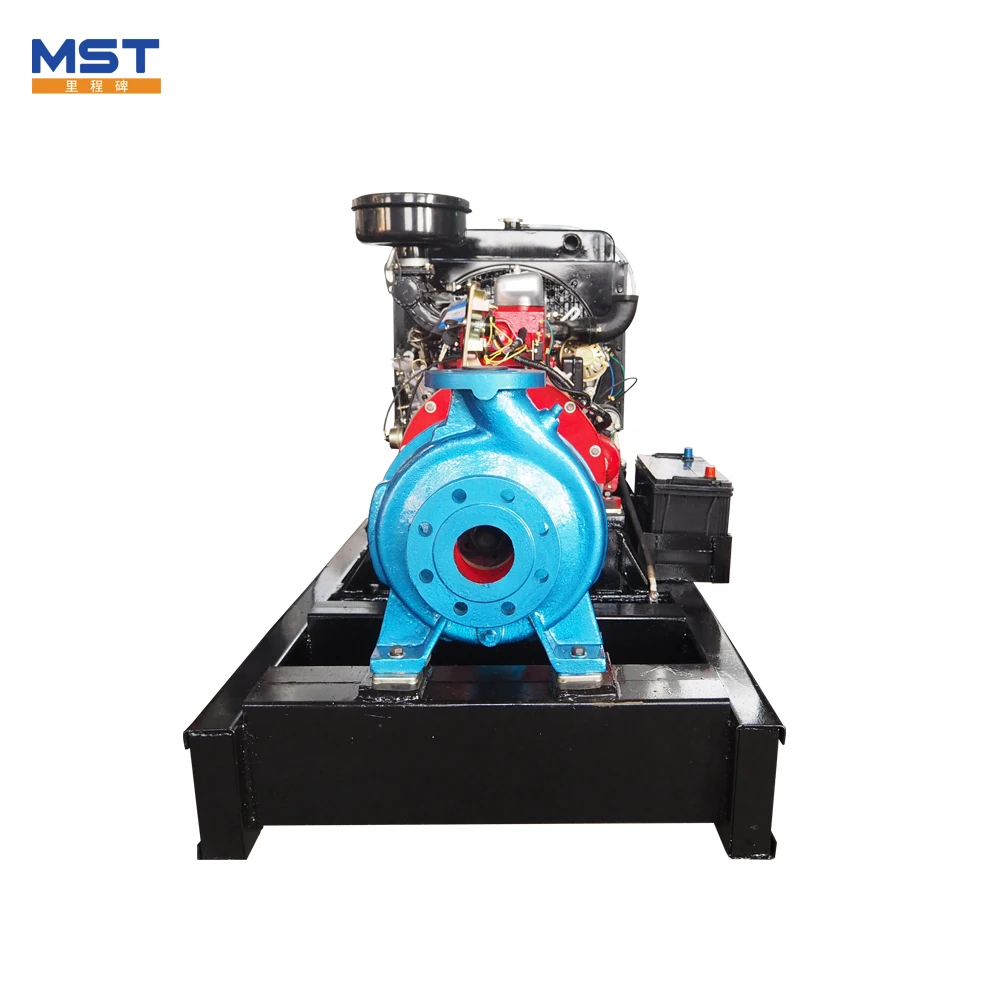

Diesel water pump 4 inch high pressure 50 hp
Pump specifications
Diesel water pump 4 inch high pressure 50 hp
| Model: | MIS |
| Inlet/outlet: | 50~200mm(2inch~8inch) |
| Pump connection: | Coupling |
| Flow: | 6.3~400m³/h |
| Head: | 5~125m |
| Rated speed: | 2900rpm and 1450rpm |
| Pump type: | Horizontal centrifugal pump |
| Shaft seal: | Gland packing and mechanical seal |
| Impeller type: | Closed |
| Pump color: | As customer required |
| Material: | Cast iron or as customer required |
Pump Features
Diesel water pump 4 inch high pressure 50 hp
1.Choice of piston ring style labyrinth
2.Fully interchangeeable with the common brand reducing inventory hold requirements
3.A full range of mechanical seal adaptations available upon request
4.Oil lubrications or packed grease
5.Painted to customer specifications upon request
Performance curves
Diesel engine
Dimension drawing
Pump onsite
Our company
Milestone on Exhibitions
