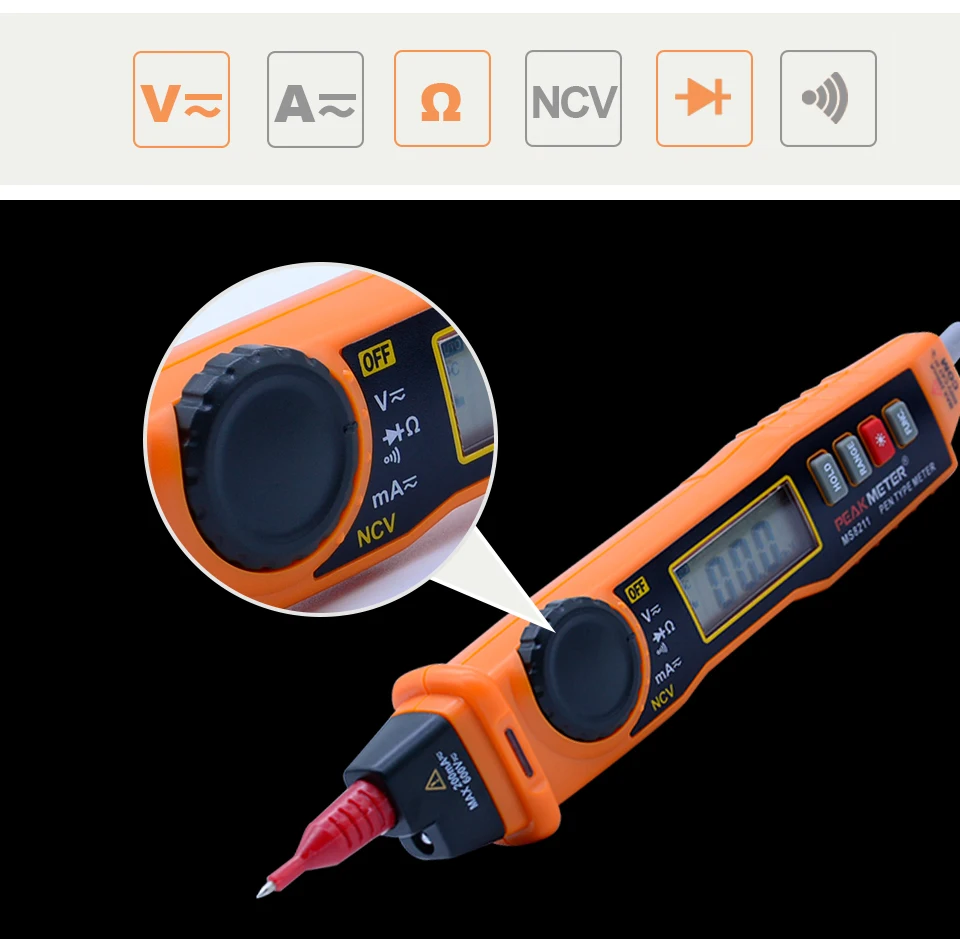

Pen Type Digital Multimeter AC/DC Volt AC/DC Amp Resistance Measure with NCV Detection PM8211
- Category: >>>
- Supplier: Shenzhen Habotest Instrument Technology Company Limited
Share on (60357749817):
Product Overview
Description
PM8211 Pen Type Digital Multimeter AC/DC Volt AC/DC Amp Resistance Measure with NCV Detection
Product Description
Features | ||
2000 counts display | ||
Auto Power Off | ||

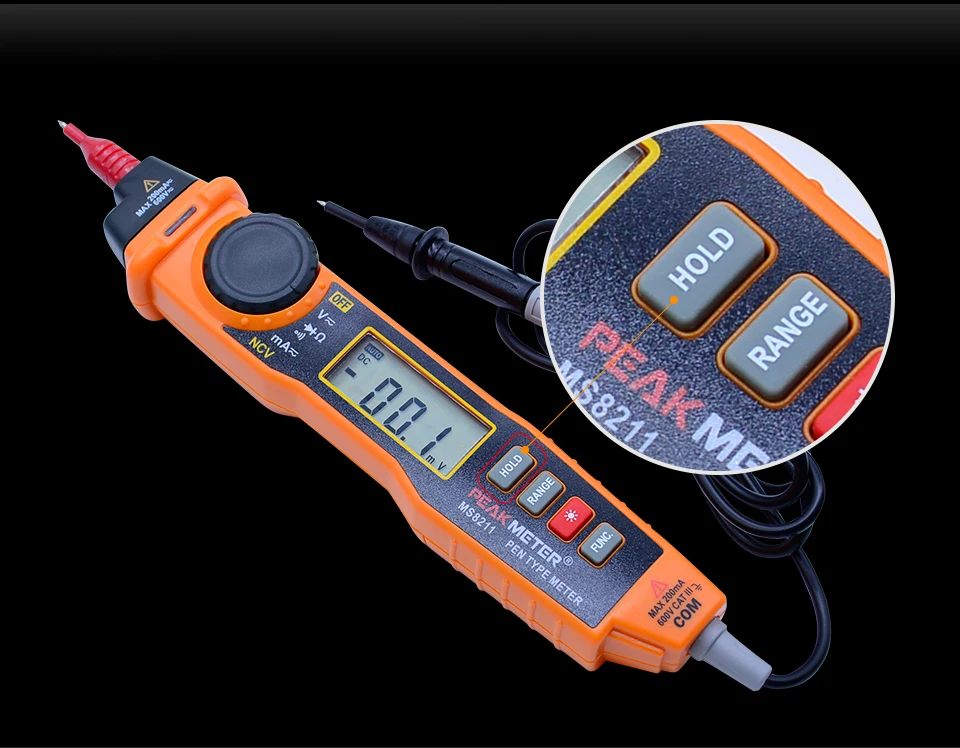

Data Hold | ||

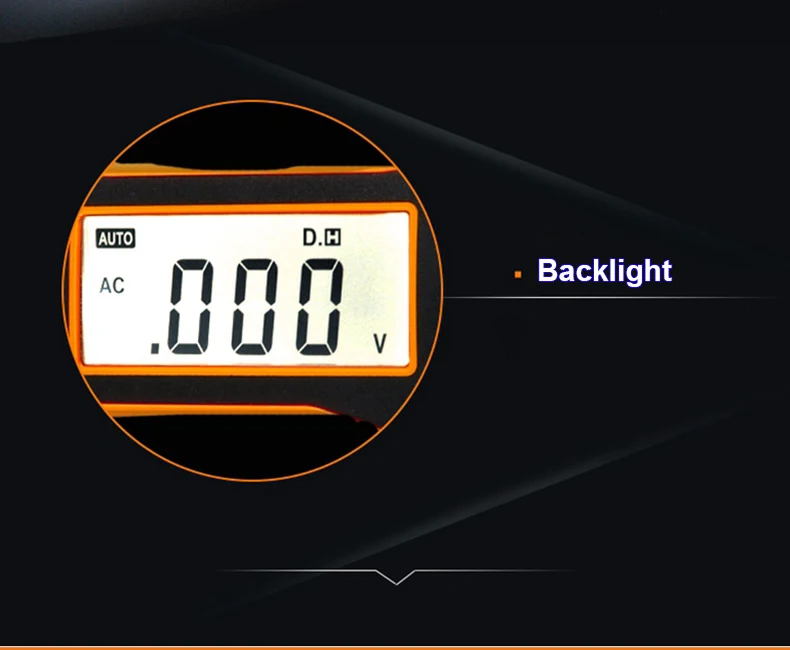

Display Backlight | ||

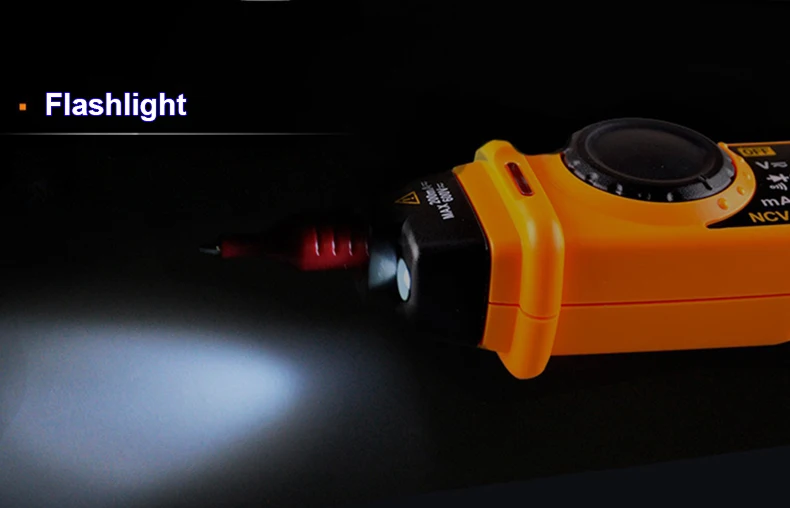

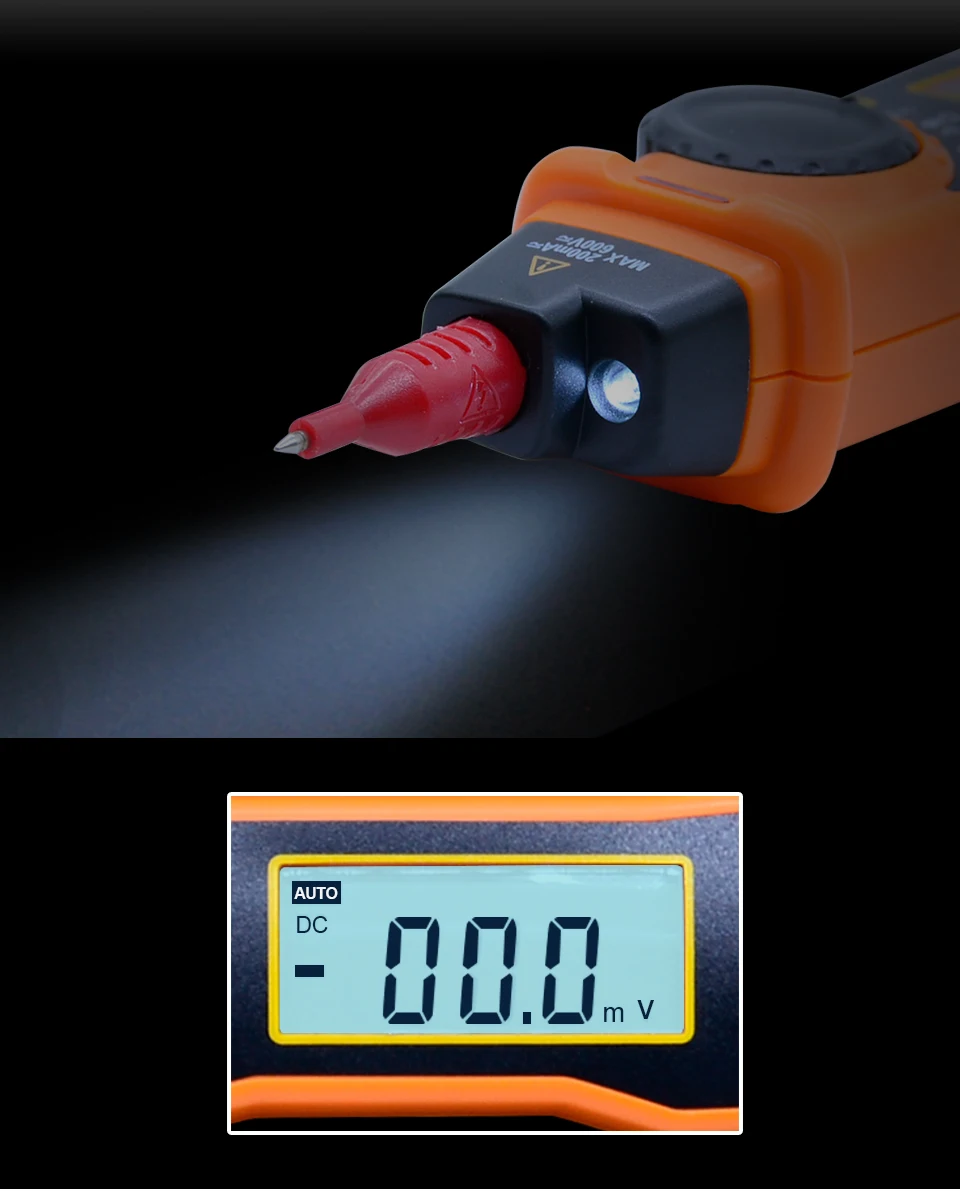

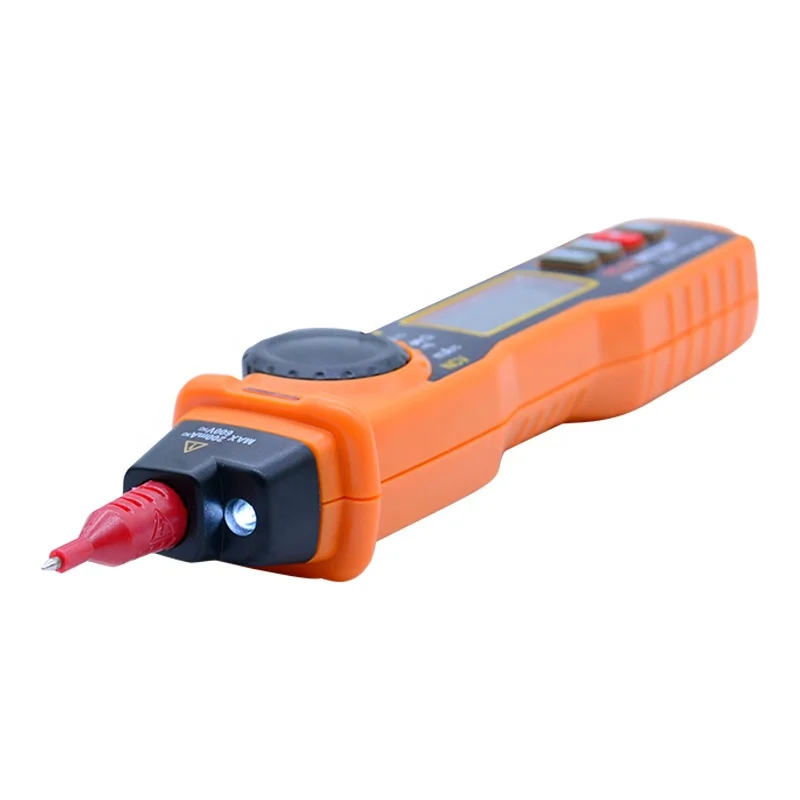

Work light | ||
Diode | 2.7V | |
Continuity Buzzer | <50Ω | |

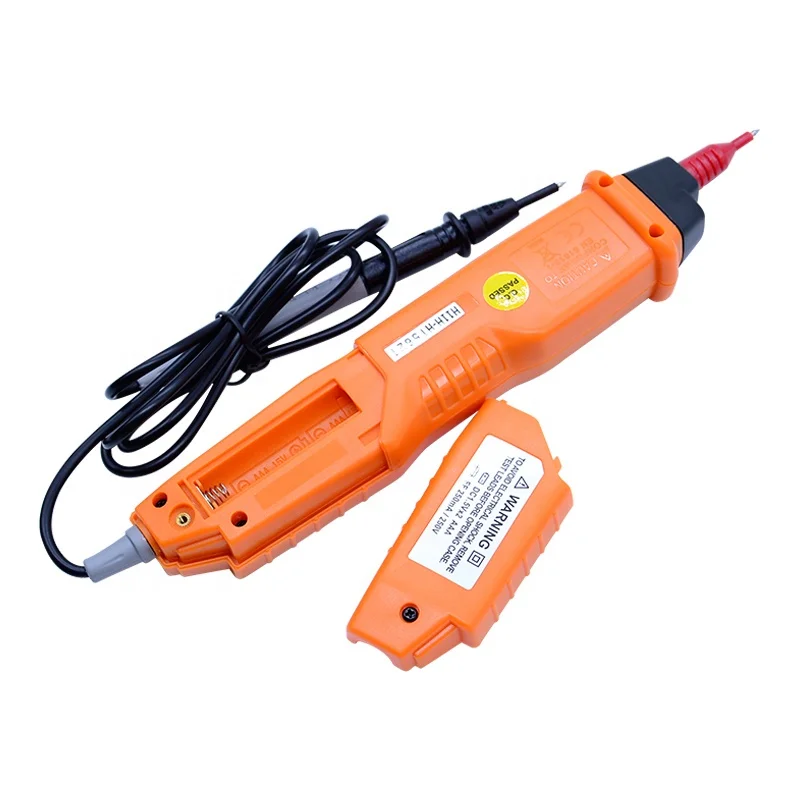

Power supply | 1.5V(AAA)x2 Batteries | |
Weight | Approx 110g | |

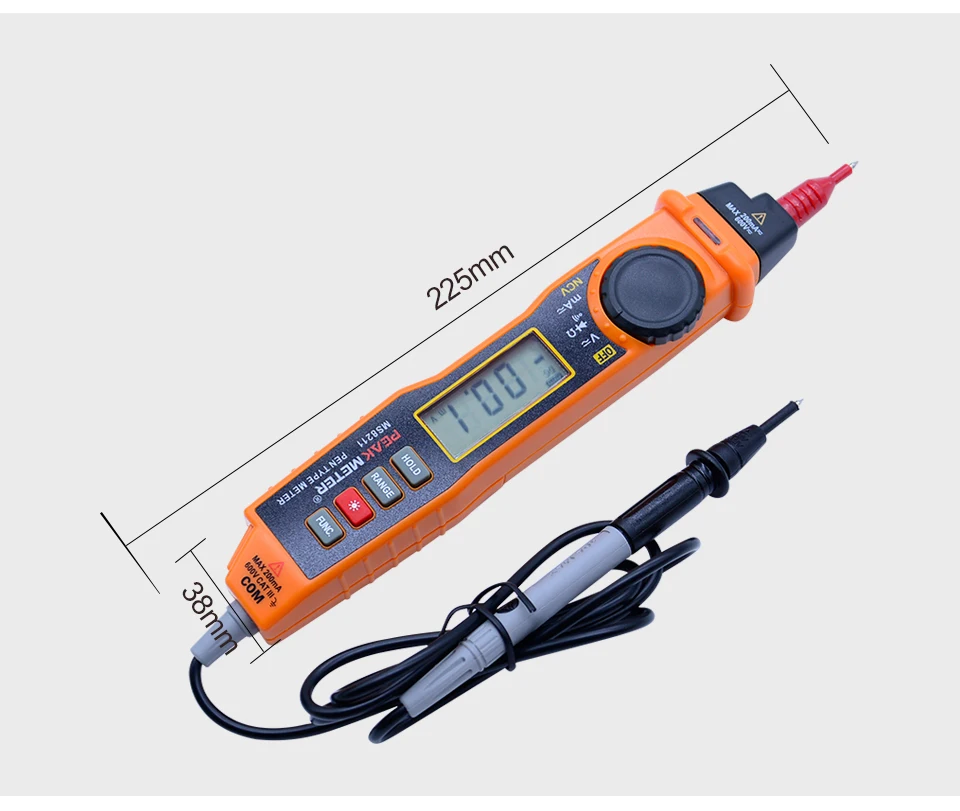

Size | 205*38*29mm | |
Safety Rating | EN61010-1, -2-030, EN61010-2-033, EN61326-1, CAT.III 600V | |
Specifications | ||
Function | Range | Accuracy |
DC voltage | 200mV/ 2V/ 20V/ 200V/ 600V | ±(0.7%+2) |
AC voltage | 200mV/ 2V/ 20V/ 200V | ±(0.8%+3) |
600V | ±(1.0%+3) | |
DC current | 20mA/ 200mA | ±(1.5%+3) |
AC current | 20mA/ 200mA | ±(2.0%+3) |
Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ | ±(1.0%+3) |
20MΩ | ±(1.0%+5) | |

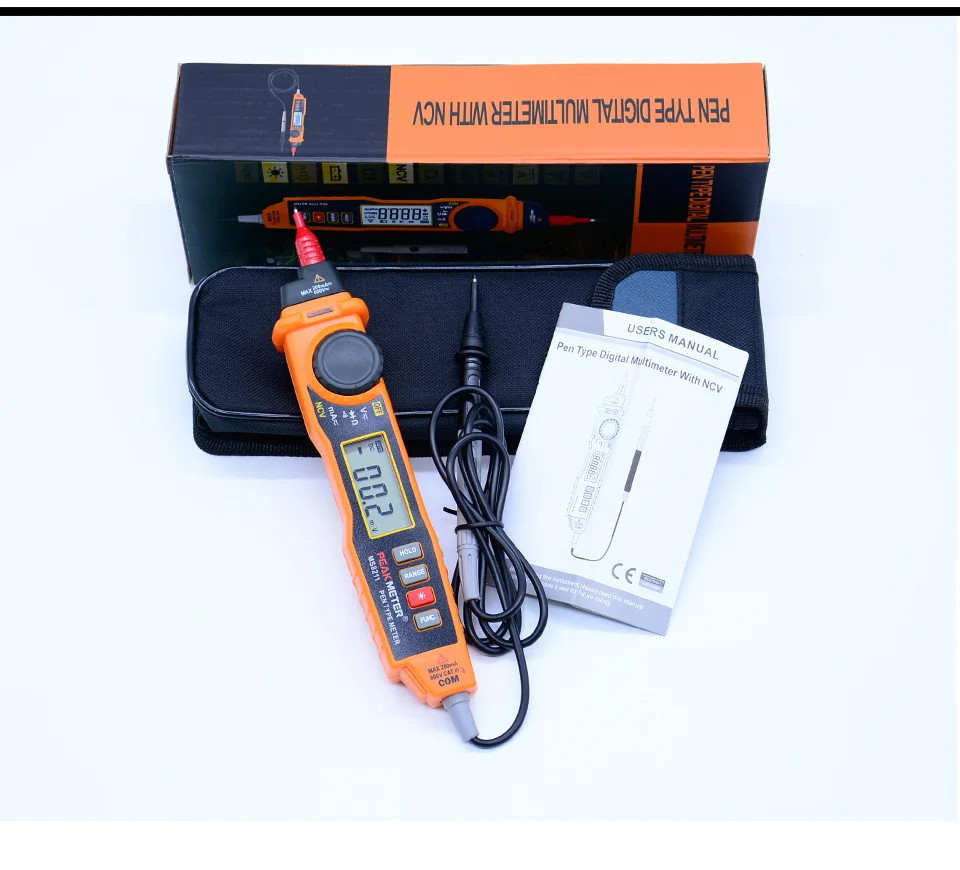

Accessories
User’s manual | One piece |
Carry case | One piece |
Gift box | One piece |
AAA battery | Two pieces |

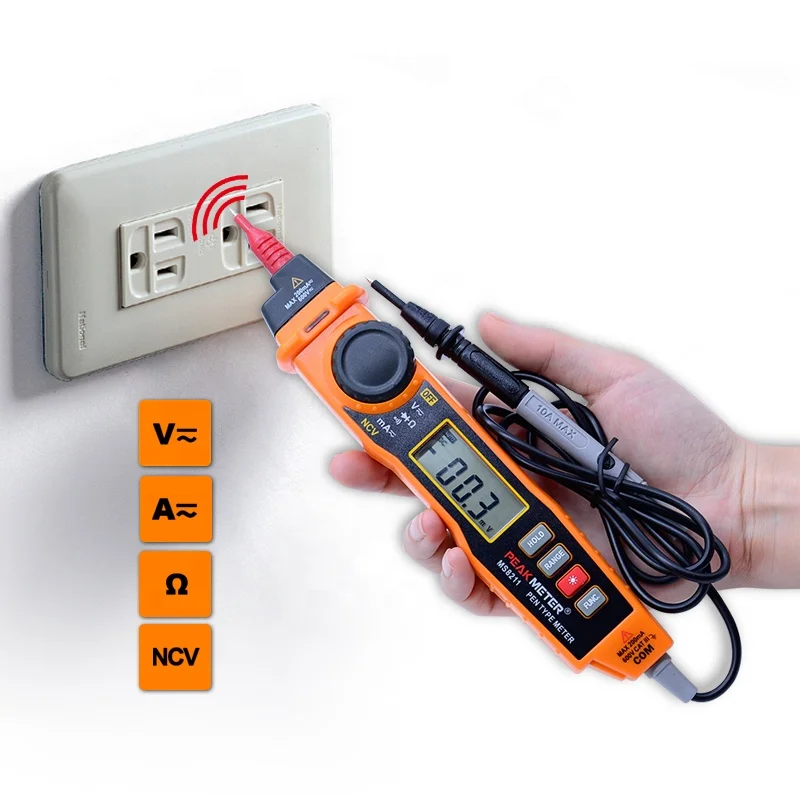

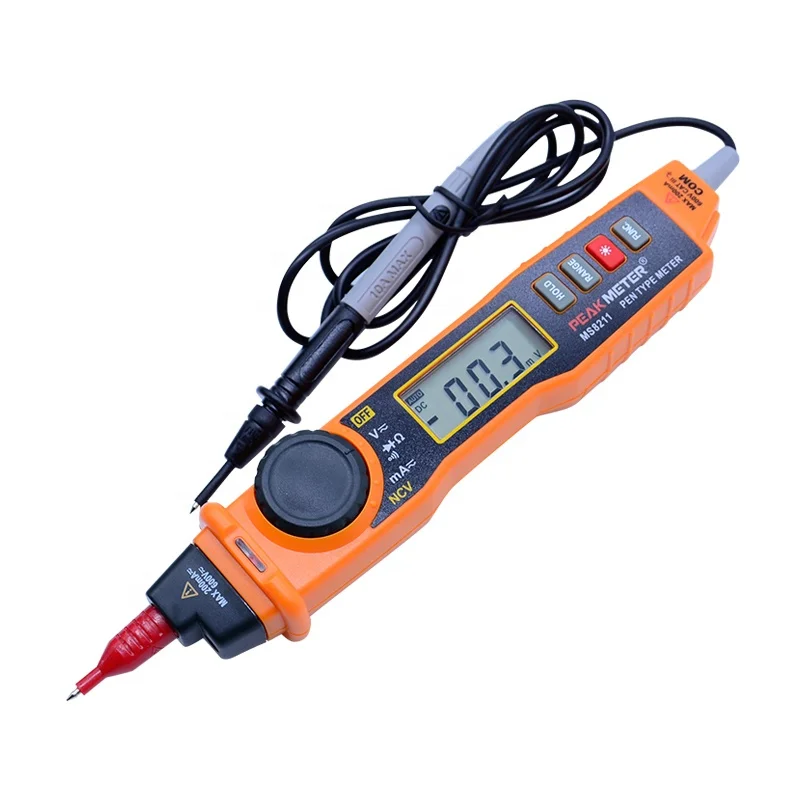

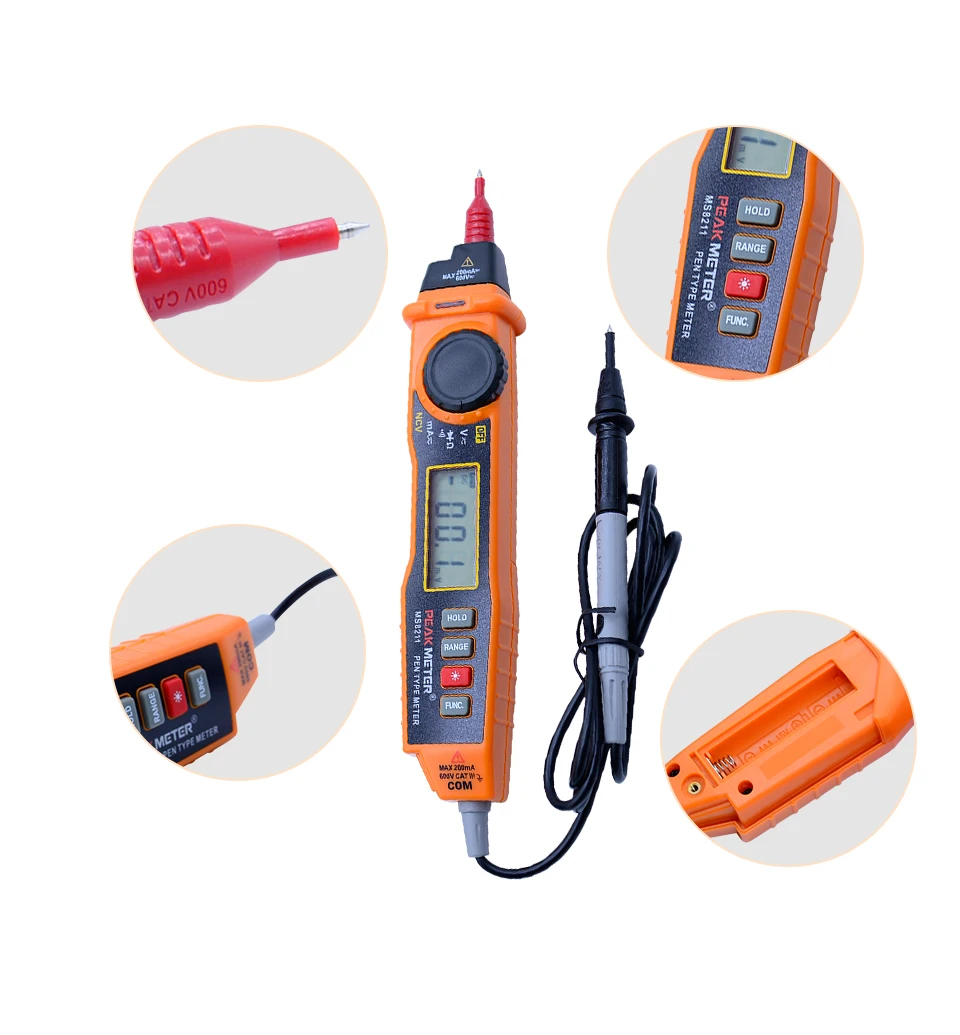

Detailed Images
