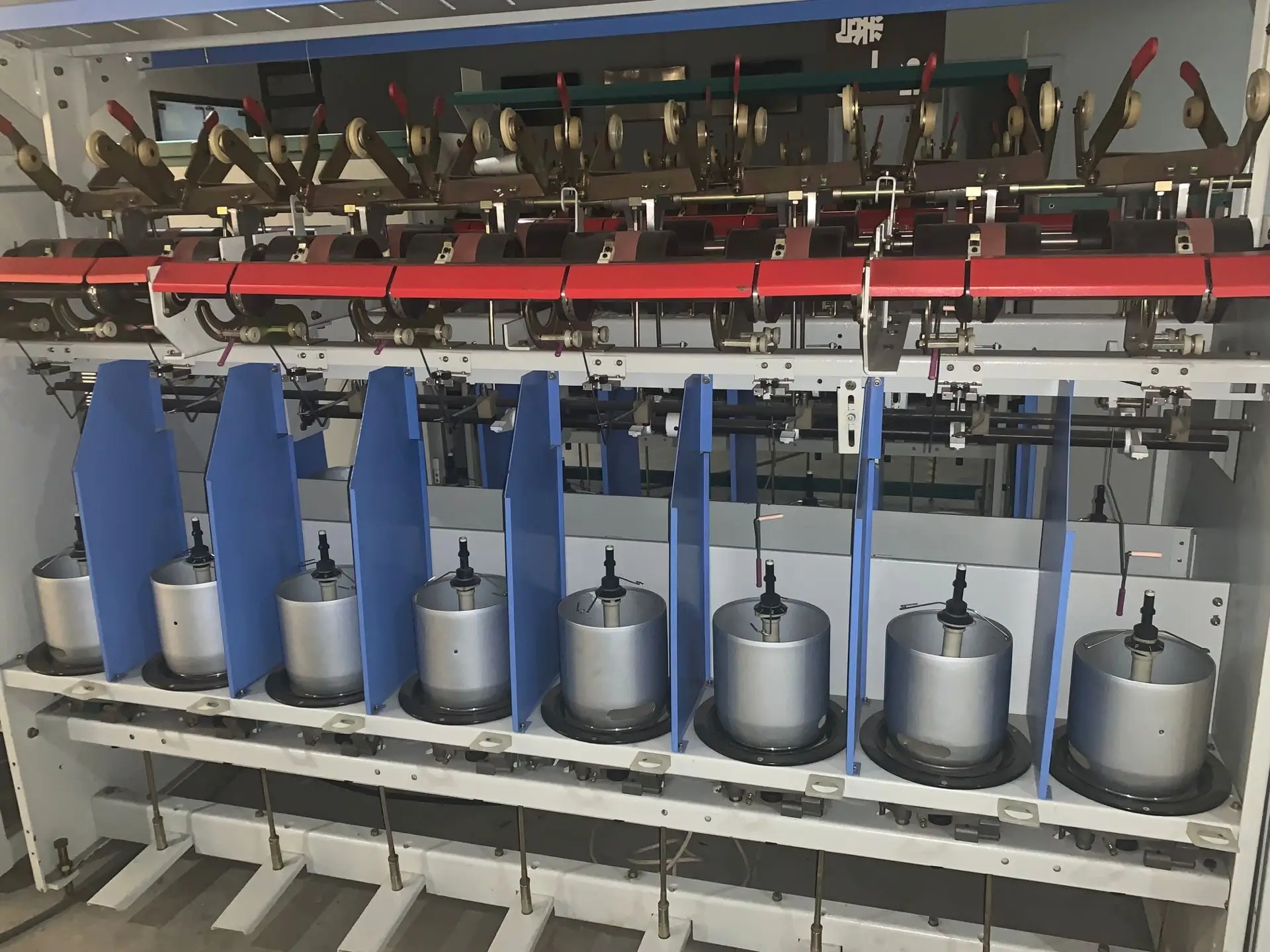

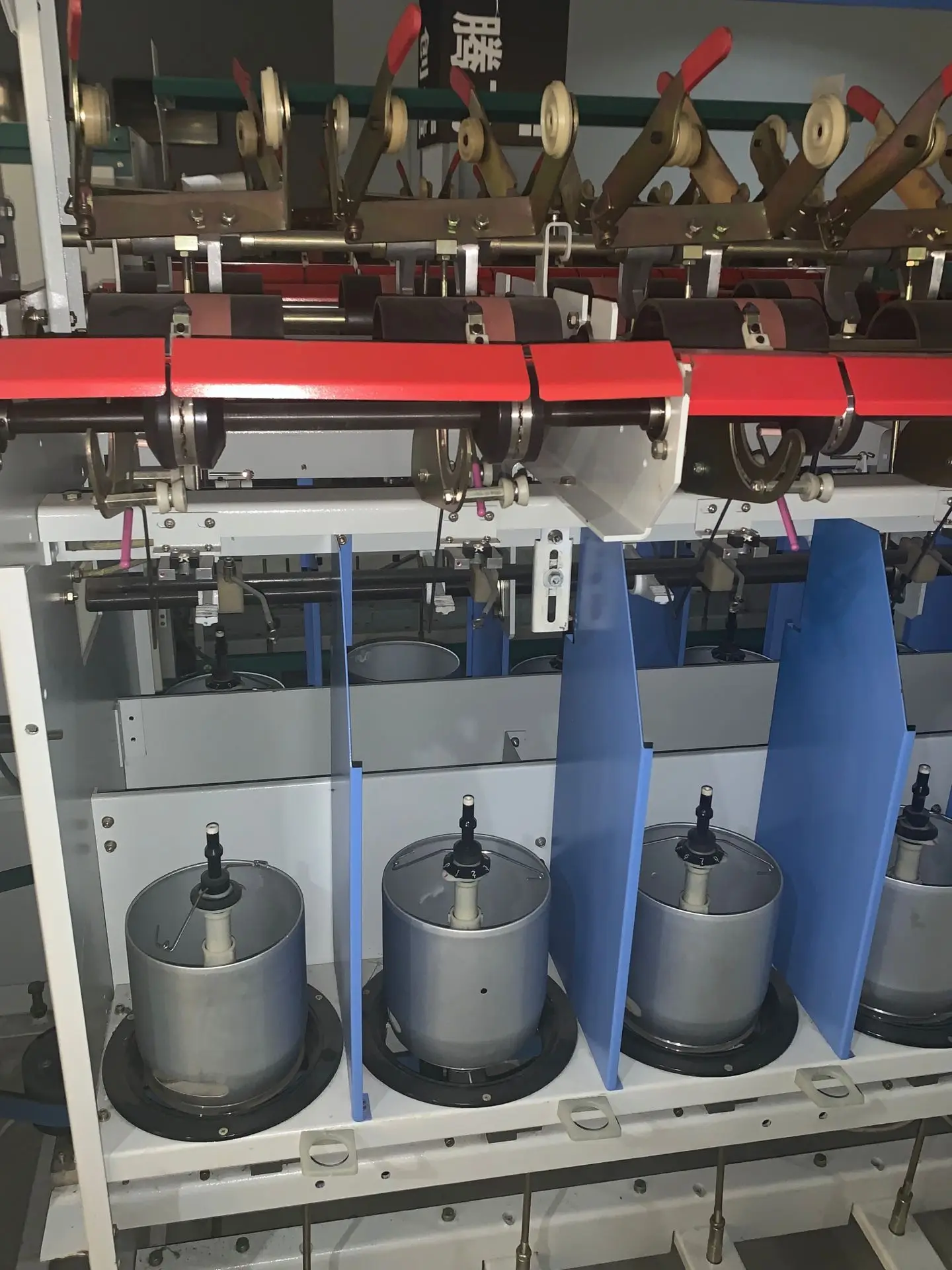

TFO Twisting Machine for viscose yarn/ yarn twisting machine

Product Overview

Description

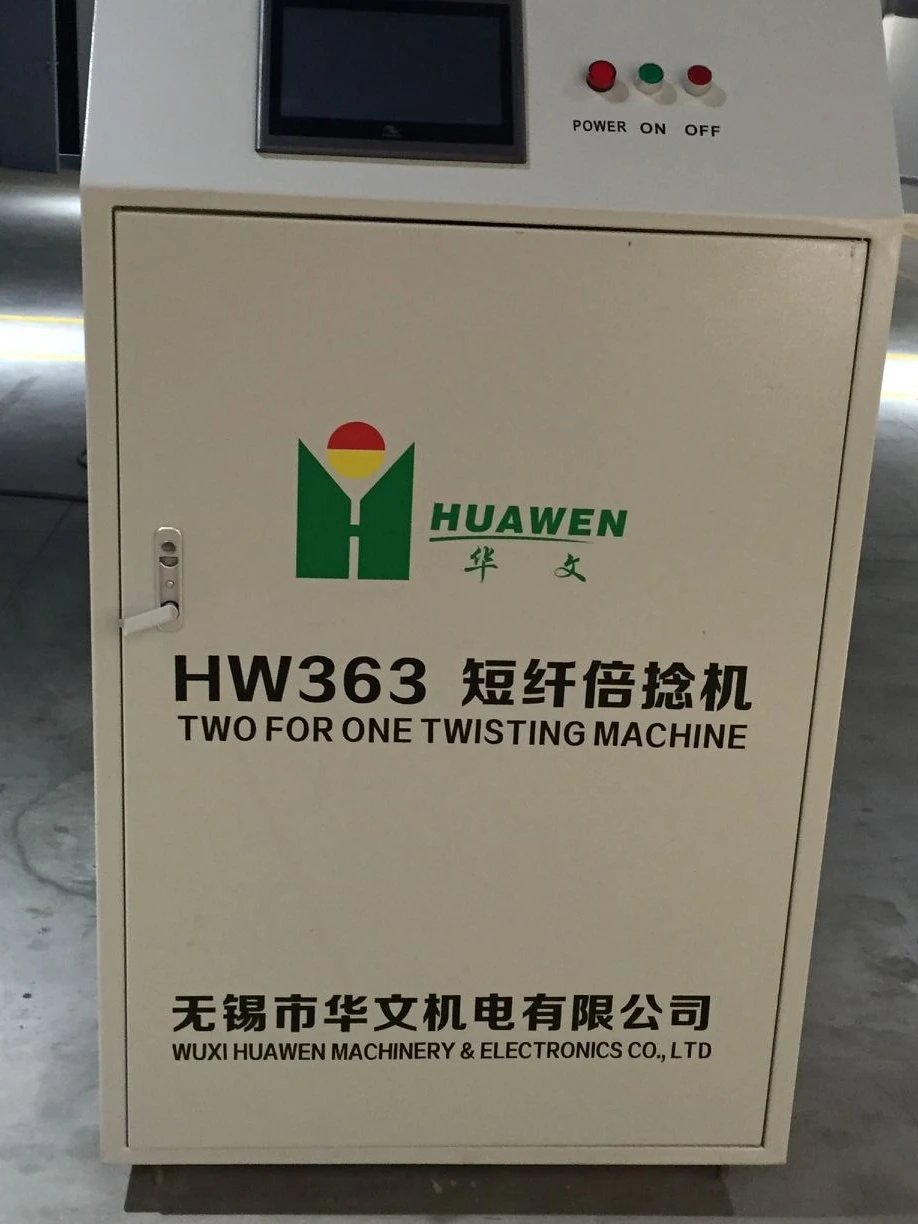

HW363 TFO Twisting Machine for viscose yarn/ yarn twisting machine





1. Double sides, single layer, beautiful aspect, logic structure, easy operation;



2. High quality spindles perform a long-lasting stability under high speed running.



3. At the same time a capsule-type tension regulator is applied, accepting more extensive twisting conditions;



4. Winding tension is regularly on the overfeed roller at will, so applicable to a loose and soft winding for dyeing purpose;



5. Foot pedal barking to remove tangential belt from spindles, constant spindle speed, easy operation, also extending service life both of tangential belt and spindles;



6. Logic end remaining yarn structure makes latter operation job easy and handy;



7. Easily removable waxing device of air loop housing, bringing more adaptability to extensive yarn variety.





1	Machine Form	Double sides, single layer
2	Spindle Number	128 Spindles (16 spindles/section )
3	Spindle gauge	254 mm
4	Spindle Speed	5000-12000 r/min
5	Twist	165-2020 t/m
6	Twisting Direction	S/Z
7	Winding stroke	152mm
8	Motor Power	22Kw
9	Spindle dia.	166mm
10	Range of twisting count (tex)	4.9-58.3
11	Range of twisting count	Cotton 16/2-120/2Ne
		Wool 2/17-2/76Nm
		Blended 20/2-45/2Ne
12	Reversing bobbin	Φ43.5 x Φ37.5 x 170mm
		Φ51 x Φ45x 170mm
13	Loading amount	about 2500g
14	Shape of the take-up package	Cylinder bobbin, cone bobbin
15	Angle of taper	14°47' -21°07'
16	Winding bobbin angle	3°43', 4°20', 5°57'
17	Start mode	Y-star slow start
18	Spindle Transmission	Tangential belt tangential-wise transmission
19	Starting method	Star triangular frequency conversion slow starting
20	Tensioner	Capsule Type
21	Packing	Nude cargo, separated whole machine into sections and put then into a 40GP container for shipping
22	Payment	30% T/T deposit, 70% balance paid before shipment.
23	Delivery time	30 working days after received 30% T/T deposit .





Are you the manufacturer or the trading company?

We are the experienced manufacturer of textile machines, especially for the two-for-one twisting machines, doubling winder machines, yarn covering machines and etc. We have got the self-support imports and exports right.



What is your advantage compared with other textile manufacturers?

We are expert at making yarn machines for almost 20 years and we have a professional technical team who can provide special customer requirements, so that we are able to make machines with high quality and reasonable price.



What kind of service can you offer?

Design with your requirements by professional team.

ISO 9001:2008 certificates and letters patent

Engineers go overseas for training.



How to check my order at last?

We warmly welcome you to visit our company in Wuxi, which is close to Shanghai, for checking your machines. If you don’t come here, we can also take photos and videos for your conformation.
