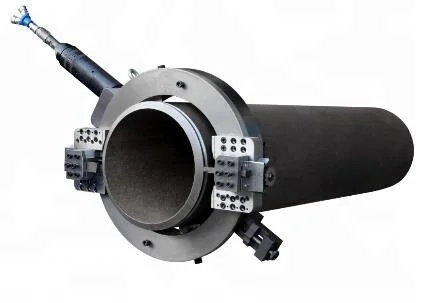

Automatic Feed OCE OCP Pipe cold Cutting And Beveling Machine
- Category: >>>
- Supplier: Zhejiang Wellnit Mechanical Technology Co. Ltd.
Share on (60358261834):
Product Overview
Description
pneumatic Pipe cold cutting machine

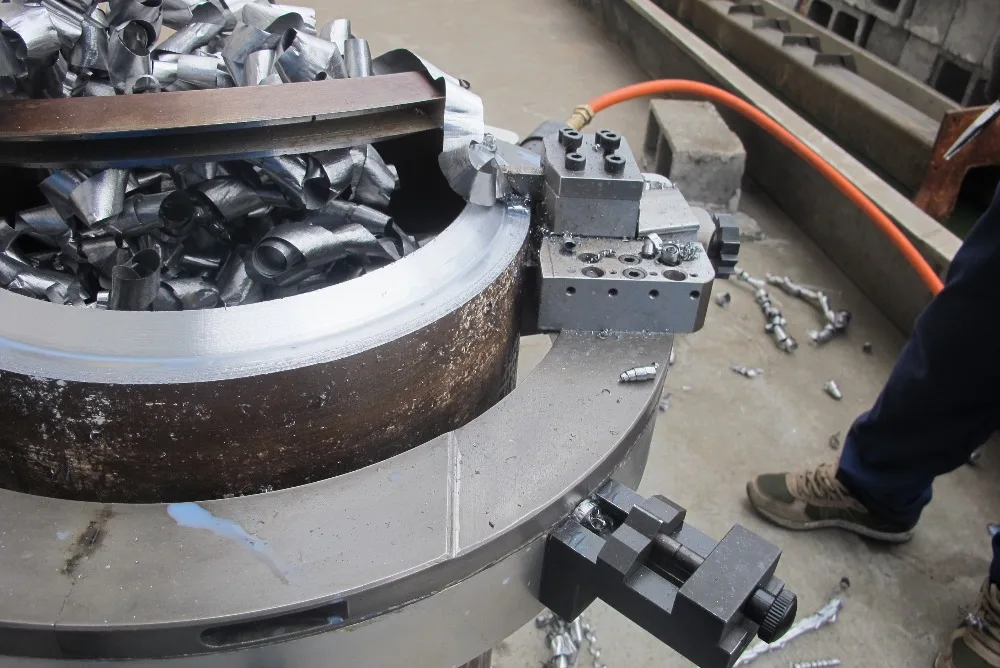

Product Show
Production Description
pneumatic Pipe cold cutting machine
The series machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56 inches O.D.(DN20-1400), on most wall thicknesses and material.
Features:
- Cold Cutting and Beveling improves safety
- Cutting and Beveling simultaneous
- Split Frame: easy mounted on pipeline
- Tools feed automatically
- Fast, Precision, On-site Beveling
- Minimal Axial and Radial clearance
- Light weight and compact design
- Easy set-up & Operation
Spcification:
Model
Working Range(ID-OD)
Wall Thickness
Rotation Speed
Air Pressure
Air Consumption
OCP-89
Φ25-89
3/4”-3”
≤30mm
50r/min
0.6Mpa
1500L/min
OCP-159
Φ50-159
2”-5”
21r/min
0.6Mpa
1500L/min
OCP-168
Φ50-168
2”-6”
21r/min
0.6Mpa
1500L/min
OCP-230
Φ80-230
3”-8’
20r/min
0.6Mpa
1500L/min
OCP-275
Φ125-275
5”-10”
20r/min
0.6Mpa
1500L/min
OCP-305
Φ150-305
6”-10”
18r/min
0.6Mpa
1500L/min
OCP-325
Φ168-325
6”-12”
16r/min
0.6Mpa
1500L/min
OCP-377
Φ219-377
8”-14”
13r/min
0.6Mpa
1500L/min
OCP-426
Φ273-426
10”-16”
12r/min
0.7Mpa
1800L/min
OCP-457
Φ300-457
12”-18”
12r/min
0.7Mpa
1800L/min
OCP-508
Φ355-508
14”-20”
12r/min
0.7Mpa
1800L/min
OCP-560
Φ400-560
16”-22”
12r/min
0.7Mpa
1800L/min
OCP-610
Φ457-610
18”-24”
11r/min
0.7Mpa
1800L/min
OCP-630
Φ480-630
20”-24”
11r/min
0.7Mpa
1800L/min
OCP-660
Φ508-660
20”-26”
11r/min
0.7Mpa
1800L/min
OCP-715
Φ560-715
22”-28”
11r/min
0.7Mpa
1800L/min
OCP-762
Φ600-762
24”-30”
11r/min
0.8Mpa
2000L/min
OCP-830
Φ660-813
26”-32”
10r/min
0.8Mpa
2000L/min
OCP-914
Φ762-914
30”-36”
10r/min
0.8Mpa
2000L/min
OCP-1066
Φ914-1066
36”-42”
9r/min
0.8Mpa
2000L/min
OCP-1230
Φ1066-1230
42”-48”
8r/min
0.8Mpa
2000L/min
Order Guide
Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed
If the pipe wall thickness more than 30mm, inform us in advance (Important)
