LM2577 DC to DC boost converter module voltage adjustable constant voltage car power regulator DIY Power bank MP3MP4 PSP phone

Product Overview

Description



Bigger qty,better price.



Please contact with me!!!









We produce MODULE ! CUSTOM-MADE module is OK! Our company produce your own board!



  LM2577 DC to DC boost converter module voltage adjustable constant voltage car power regulator DIY Power bank MP3MP4 PSP phone

-----------------------------------------------------------------------------------------------------------------

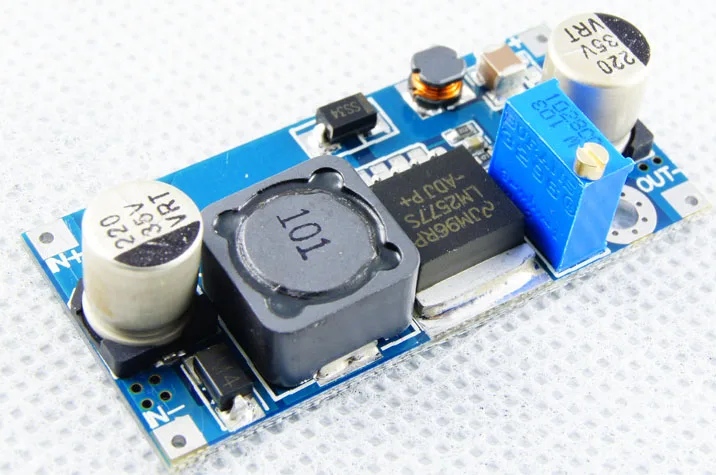

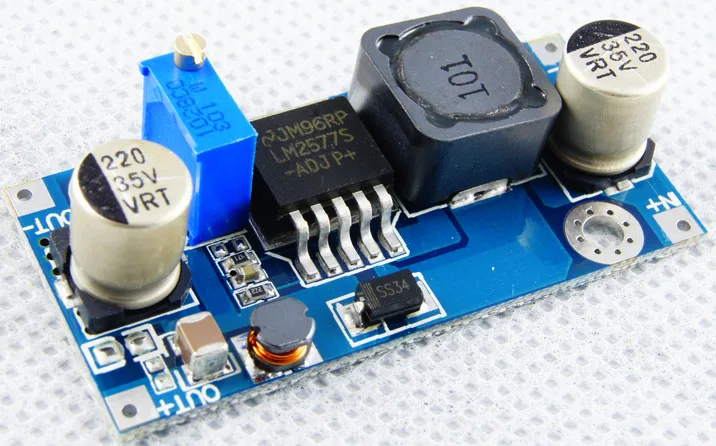

PRODUCT PICTURE





------------------------------------------------------------------------------------------------------------------
PRODUCT FEATURES





LM2577 basic properties

Module Properties: non-isolated step-up (BO0ST)
Rectification: Non-Synchronous Rectification
Input voltage: 3V-35V
Output voltage: 4-35V
Output Current: 3A (max)
Conversion efficiency: 92% (maximum)
Switching Frequency: 50KHz
Output ripple: 50mV (max)
Load regulation: ± 0.5%
Voltage regulation: ± 0.5%

Product size: 48 * 23 * 14 (L * W * H) (mm)

Features:

*After the  LM2577 chip module uses high-quality, high efficiency (up to 92%), while little heat, no increase in the case of the radiator can go to 15W, plus a radiator can go to 25W of output power
*This module uses low-ESR Sanyo original filter capacitor ripple voltage allows low 50mV, can be applied to most applications.

* This module uses machine placement, reflow soldering, and each module shipments have been two hours before the aging tests to ensure high reliability.

Applications

* DIY a mobile power supply, only need to take a battery-powered input, you can output 4-35V voltage for your cell phone, MP3, MP4, PSP and many other devices powered charging, very easy oh.
* boost charger, you can charge your device with 4-35V 2 AA batteries or lithium batteries.
* power supply for your electronic devices when your device needs 4-35V power supply when, but you are now the hands of only lithium battery-powered, can boost our module directly to 4-35V, solve your problems.
* pre-supply system, when you do a project when you need to input supply voltage drops below a voltage (4-35V) when, then you choose this module we will be your best choice, no debugging directly on the machine can work, easy to do and efficient high-power boost.









If the output power greater than 15W, please add fins

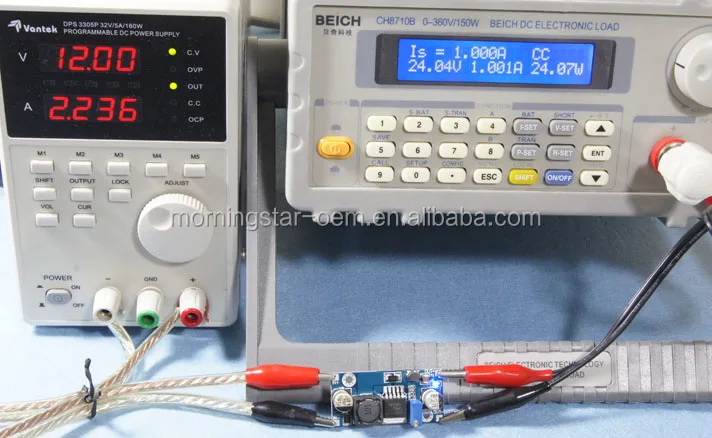

Typical efficiency measurements: (24.04V * 1.001A) / (12V * 2.236A) * 100% = 89.6% (not considered line consumption, the actual better)

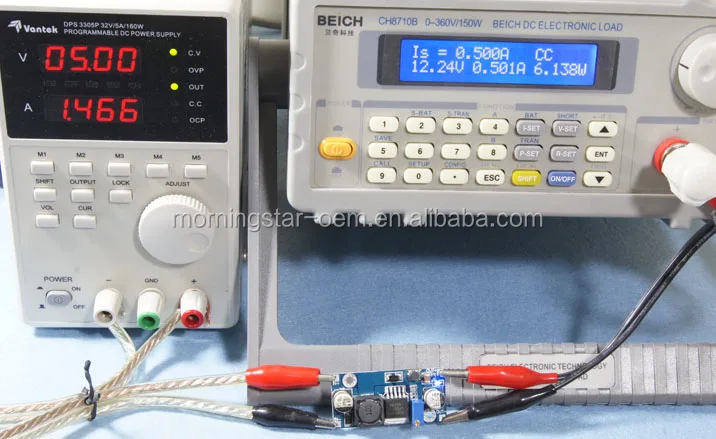

Typical efficiency measurements: (12.24V * 0.501A) / (5V * 1.466A) * 100% = 83.6% (not considered line consumption, the actual better)

-----------------------------------------------------------------------------------------------------------------
