Product Overview
Description

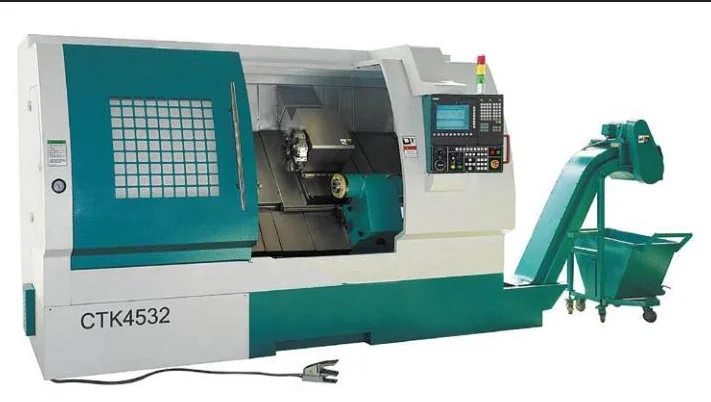

CTK 45 Series cheap inclined cnc bench lathe machine mini lathe CTK4532
Technical parameter:

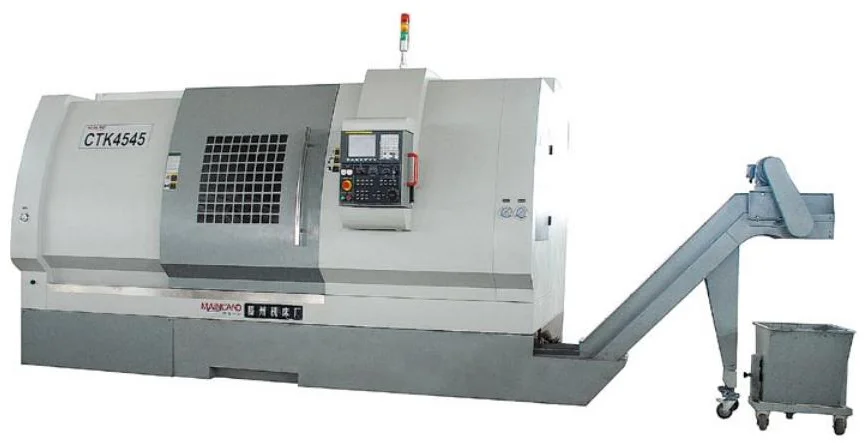

Specifications | CTK4508 | CTK4516 | CTK4525 | CTK4532 |
CTK4545
|
Bed incline | 45 | 45 | 45 | 45 | 45 |
Cutting length | 250mm | 300mm | 400mm | 580mm | 1000mm |
Cutting capacity over bed | Φ300mm | Φ160mm | Φ250mm | Φ320mm | Φ450mm |
Cutting capacity over support | Φ320mm | Φ200mm | Φ280mm | Φ390mm | Φ500mm |
Chuck size | A2-4 | A2-5 | A2-6 | A2-8 | A2-8 |
Spindle power | 5.5kw | 5.5kw | 5.5kw(7.5w) | 7.5kw | 11kw |
Spindle speeds | 4500rmp | 4500rmp | 4500rmp | 2000rmp | 2000rmp |
Spindle bore | Φ50mm | Φ50mm | Φ50mm | Φ82mm | Φ82mm |
Through-spindle draw tube bore | Φ40mm | Φ40mm | Φ40mm | Φ72mm | Φ72mm |
Rapid feed | 18m/min | 18m/min | 18m/min | 18m/min | 18m/min |
X travel | 250mm | 110mm | 150mm | 200mm | 320mm |
Z travel | 250mm | 300mm | 400mm | 580mm | 1000mm |
Tailstock quill travel |
| Φ65mm | Φ65mm | Φ100mm | Φ100mm |
Tailstock quill travel | —— | 80mm | 80mm | 120mm | 120mm |
Tailstock travel | —— | 300mm | 500mm | 580mm | 1000mm |
Tailstock taper | —— | MT4 | MT5 | ||
Positioning accuracy | 0.01mm | 0.01mm | 0.01mm | 0.01mm | 0.01mm |
Repeatability accuracy | 0.008mm | 0.008mm | 0.008mm | 0.008mm | 0.008mm |
Overall dimensions | 2.2×0.89×1.46m | 2.2×0.89×1.46m | 2.32×1×1.53m | 2.58x1.04x1.64m | 3.17x1.18x1.7m |
Weight | 3000kg | 4000kg | 5100kg | 5600kg | 7100kg |
Note: Manufacturer reserves the right to improve & modify without prior notice.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
