Product Overview

Description


High Quality Double Acting Hydraulic Cylinder for water well drilling rig

1. ISO 9001 MANUFACTURER

2. 16 YEARS HYDRAULIC PRODUCTS EXPERIENCE

3. SHORT DELIERY TIME

4. PROFESSIONAL DESIGNER

5. WE ARE FACTORY, WE CAN CONTROL THE BEST QUALITY, WE ALSO HAVE BEST PRICE, AND BEST SERVICE









Description

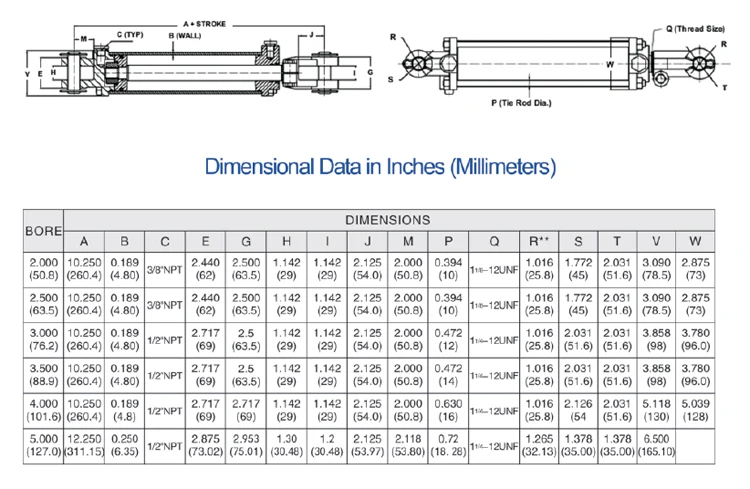

The Parameters



1. Bore Diameter

4"

2. Rod Diameter

1.5"

3. Stroke

12"

4. Work Pressure

210 bar

5. Mounting

both end clevis

6. Application

for industry/farm machine

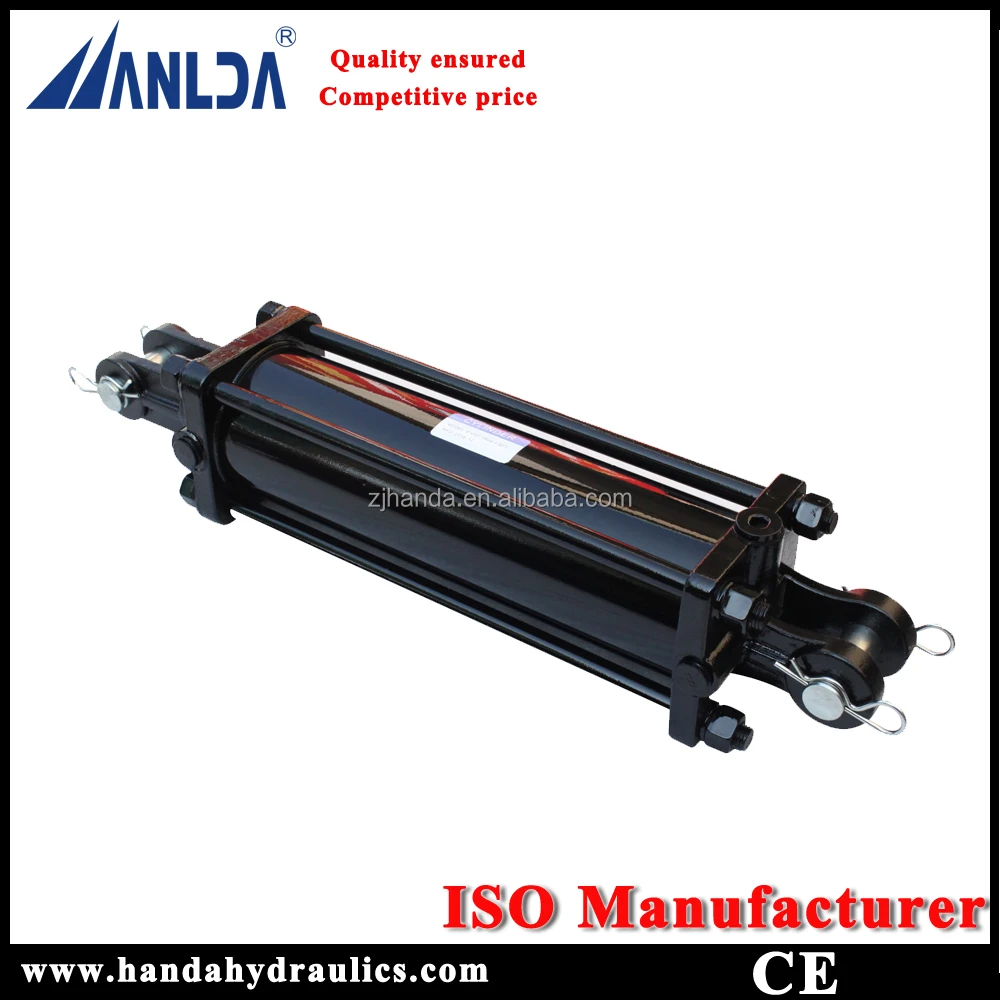

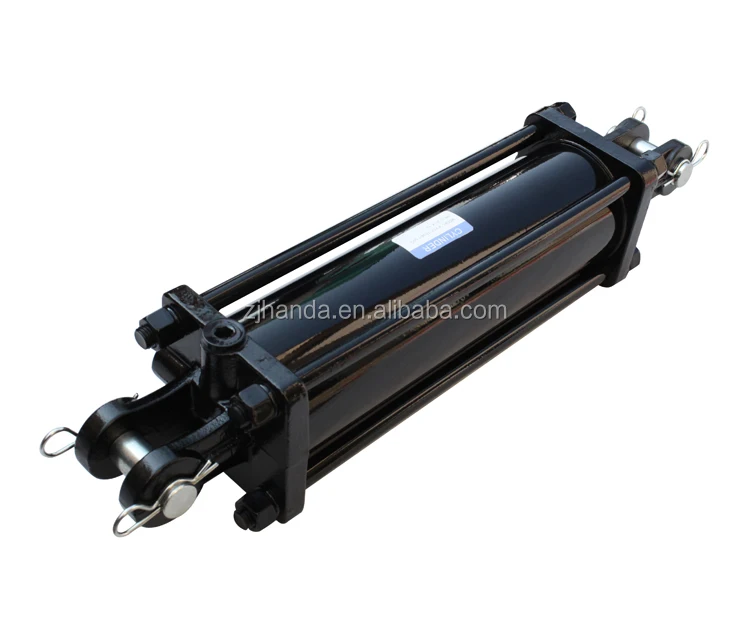

Handa 3000 PSItie rod cylinder is clevis mounted, and exceeds the highest standards. These cylinders are designed for demanding applications and are built to ensure maximum reliability and performance. Painted black, red, yellow, green,gray, blue, Orange, etc.(Black is standard)





Intended Use: Double-acting applications

Piston: Ductile iron

Gland: Ductile iron

Tube: High tensile cold drawn tube, precision honed for extended seal life

Rod: High tensile ground & polished hard chrome plated rod

Wiper: Polyurethane

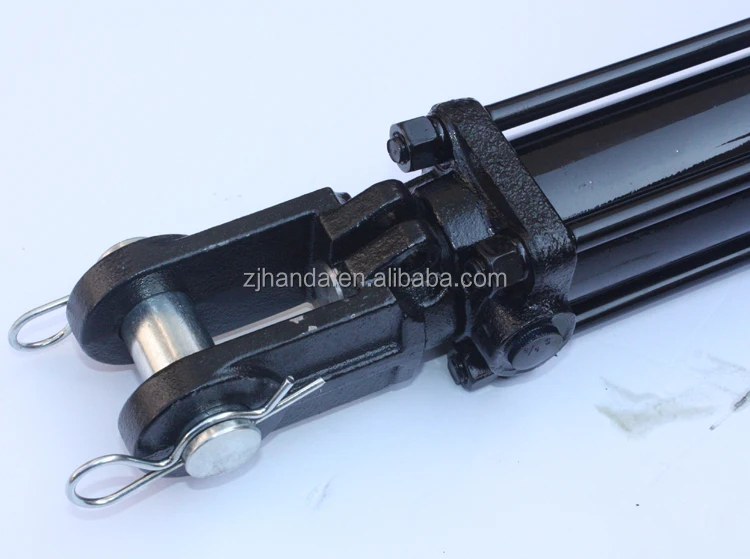

End Mounts: Cast female clevises with pins and clips included

Pin and Pin clip: High tensile zinc-plated steel

Piston ID Seal: O-ring

Piston OD seal: Hallite seals

Ports: SAE O-rings



Click the picture to get the page

Agricultural Hydraulic Cylinders made in HANDA

Model

63(Bore) x30(Rod)x204(Stroke)

Series

Weld series  (3045 PSI)

Mounting

Both end clevis

Field of use

Agricultural machinery



Model

2"(Bore)x1.25"(Rod)x8"(Stroke)

Series

Tie rod series  (3045 PSI)

Mounting

Both end clevis

Field of use

Agricultural machinery



Model

2"(Bore)x1.25"(Rod)x12"(Stroke)

Series

Weld series (3045 PSI)

Mounting

Both end cross tube

Field of use

Agricultural machinery





Model

80(Bore) x40(Rod)x200(Stroke)

Series

Weld series  (3045 PSI)

Mounting

Both end clevis and a connect pipe

Field of use

Agricultural machinery



Model

40(Bore) x20(Rod)x250(Stroke)

Series

Weld series  (3045 PSI)

Mounting

Both end spherical bearing

Field of use

Agricultural machinery

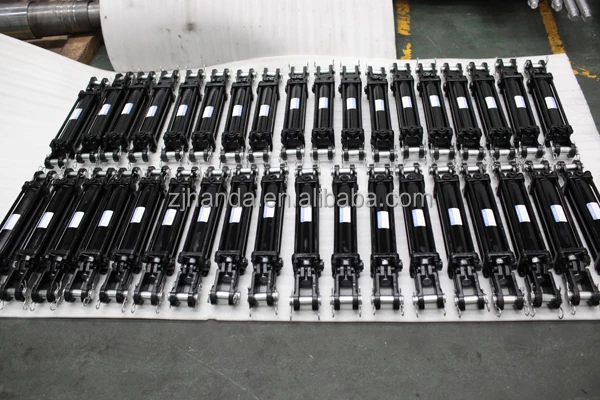

Packing




How to choose Cylinder Mounting



hydraulic cylinders mounting








Production

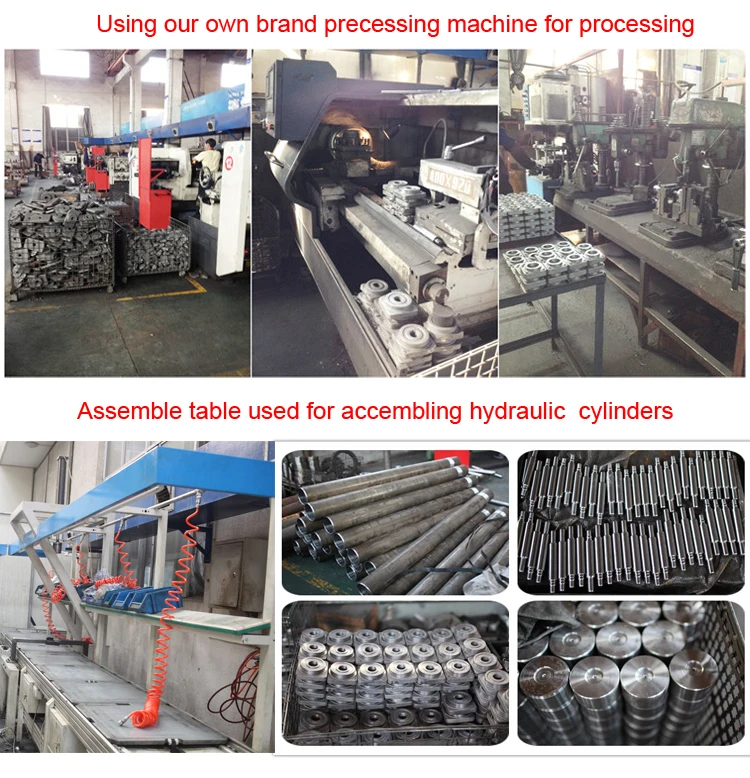

How to produce the hydraulic cylinder?



processing and assembling.jpg

company information

Why choose HANLDA hydraulic cylinder?



DELIVERY

1. ISO9000 CERTIFICATED MANUFACTUER

certificates information.jpg



2. MUTIPLE PAYMENT TERMS

T/T, L/C, West Union, MoneyGram

3. FAST PRODUCTION TIME

For standard hydraulic cylinder, only 1-7 days can be fished!



FAQ



1. Q: How to know know more about the Hydraulic cylinder?

    A: Just view the quick details, all the information is correct.

2. Q: If I want to have a catalog, how should I do?

    A: Contact with me in TraderManager, or just send me a mail, or add my Skype: handa886.

3. Q: If I want to do my own size hydraulic cylinder, how should I do?

    A: Contact with me in TraderManager, or just send me a mail, or add my Skype: handa886. We will offer you quickly.

4. Q: How should I do, If I want to place an order?

    A: Send me an inquiry, then I will check with you for all things. After all things cearly, we will make a PI for you, details see order process.

5. Q: Is there any warranty about the cylinder?

     A: Yes, all our hydraulic parts, we have 1 year warranty.

Order Process



Ordering processDescriptionResponsible
InquiryWhen you are interested in our products, send us an inquiryBuyer
QuotationAfter geting your inquiry, we will make you a quotationSeller
CommunicationWe will communicate and confirm all details for the quotationBuyer & Seller
Send PISend you PISeller
Pay the moneyyou can check the PI and confirm, then Pay the paymentBuyer
ProductionSend us bank slip, we check, and production nowSeller
prodcution progressesAny progresses, we willshow you to let you know your products clearlySeller
InspectionAfter production, inspection the productsBuyer & Seller
PackingPack the productsSeller
DeliveryDelivery them by ship or expressSeller
ReceiveNow! You can get them now!Buyer



If possible, when contact with us, please apply information as below



Bore

Rod

Stroke

Work Pressure

Mounting

Work invironment















Or you can offer us your sketch diagram or photos, so that we could understand your exactly meaning,

help us avoid mistakes.

And if you have samples, we can manufacture according your samples after sending to us.
