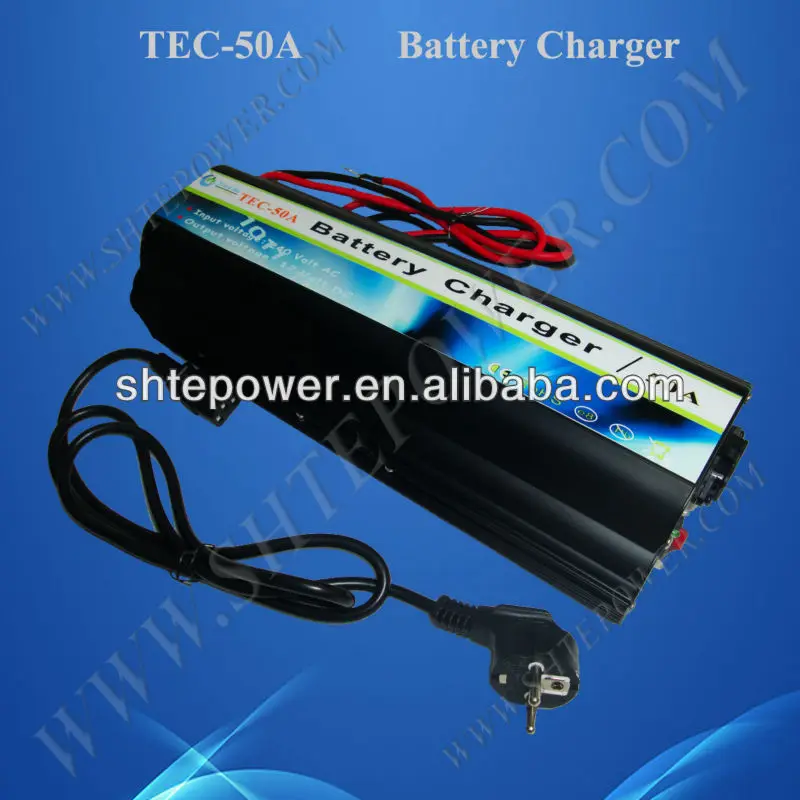

High frequency ac 230v to dc 12v gel battery charger circuit 50a
- Category: >>>
- Supplier: Shanghai Tingen Electric Co. Ltd.
Share on (60358452882):
Product Overview
Description
High frequency ac 230v to dc 12v gel battery charger circuit 50a
Specification for Battery Charger
Feature of 12v battery charger circuit :
Three stage trickle charging mode, battery protection, high freqency charger for GEL or LEAD ACID battery
| SPECIFICATION: | TEC-10A | TEC-20A | TEC-30A | TEC-50A | TEC-10A-24V | TEC-15A-24V | TEC-20A-24V |
| AC input voltage: | 220-240V/90-130A | ||||||
| DC output voltage: | 14.4V-14.8V | 28.8-29.6v | |||||
| Max output current: | 10A | 20A | 30A | 50A | 10A | 15A | 20A |
| Frequency | 58-62Hz/48-52Hz | ||||||
| Floating Charger Voltage | 13.6V-13.8V | 27.2V-27.6V | |||||
| Convert Efficiency: | 85%-95% | ||||||

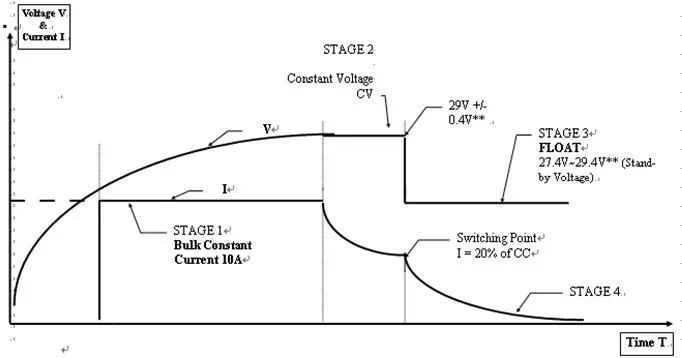

| Three Stage Charging Model | CC,CV,FC | ||||||
| Over Current Protection | YES | ||||||
| Over Voltage Protection | YES | ||||||
| Short Circuit Protection | YES | ||||||
| Polarity Error Protection | YES | ||||||
| Over charge protection | YES | ||||||
| Thermal Shutdown Protection | 50-65 DEGREE CENTIGRADE | ||||||
| Working Temperature: | (-5)~50C | ||||||
| Housing Color: | Black | ||||||

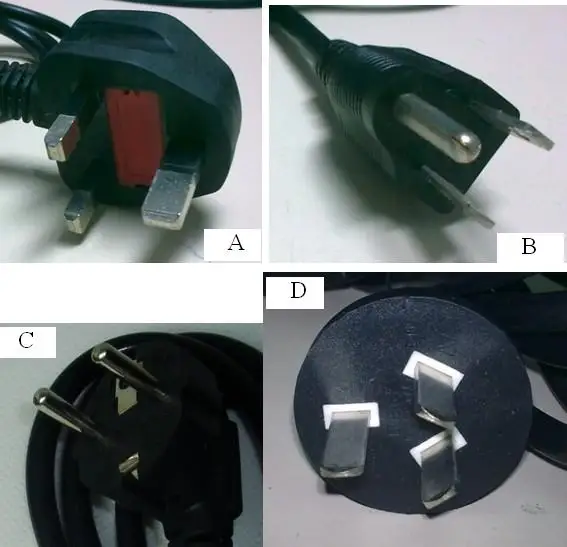

| AC Plug: | GM / UK / USA / AU… | ||||||
| Product Dimension(cm) | 13*8*4.5 | 20*13*8 | 20*13*8 | 41*13*8 | 13*8*4.5 | 18*10.8*5.6 | 21*13*8 |
| Gross Weight(kg): | 0.55 | 1.7 | 2.15 | 4 | 0.6 | 0.89 | 2.2 |
Certificate of 12v gel battery charger circuit
Package of 12v gel battery charger circuit 50a
Welcome to our High frequency ac 230v to dc 12v gel battery charger circuit 50a
