42mm 2phase gear stepper motor with gearbox

Share on (60358465270):


Price:RUB 1,253.53

Quantity:


Product Overview

Description

Product Description

42mm 2phase gear stepper motor with gearbox:42BYGH34-36JX



CE,RoHS,ISO9001

Applications:Tap control,Industrial automation,Count-money machine
Ambient Temperature:     -10℃—+55℃
Insulation Resistance:  500V DC 100MΩMIN

Specifications:

Model


Step Angle
(Deg)

Gear Ratio

Resistanmce

(Ω)

Detent Torque

(Kg.cm)


Current
(mA)


No.Phase


Current
(mA)


Holding Torque
(Kg.cm)


Length

(mm)

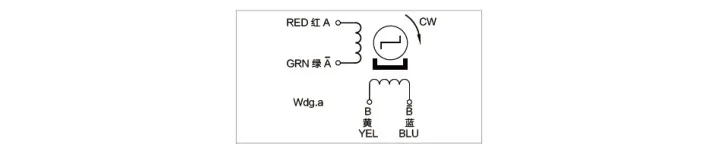

Wdg

Weight

(g)

42BYGH34-36JX3.71

1.8/3.71

1:3.71

1

0.6

0.8

2

≤650

14

28.5

a

500

42BYGH34-36JX5.18

1.8/5.18

1:5.18

1

0.9

0.8

2

≤600

19.7

28.5

a

500

42BYGH34-36JX14

1.8/14

1:14

1

2.3

0.8

2

≤600

49.5

34.9

a

500

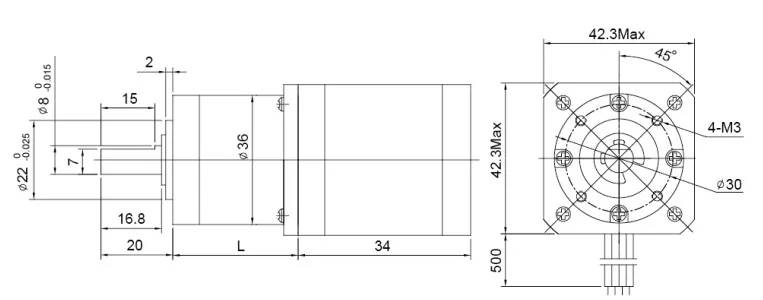

Figure Dimensions (unit =mm):







Packaging & Shipping

DC motor with gearbox electric motor scrap window actuator:

Packaging Details: Standard Packaging

                             Please tell us if you have special requirements

Delivery Details: 3~5 days, large volume orders, please notify in advance
