Product Overview
Description
Product Introduction
Photoelectric eye adopts coaxial optical reflection principle, emission light source adopts imported special shaped LED, and there are a variety of light sources to choose, to adapt to different applications, the receiving part adopts imported high sensitive receiving tube, internal uses precision electronic components, quick response.
Used for: all kinds of vertical. Horizontal packaging machine, all kinds of bag making machine, slitting machine, slitting machine, such as printing machinery. As a color mark identification, precise control of the length of the package, automatic deviation correction and other fields.
Detection mode: coaxial reflection type
Power supply voltage: 10-30V DC wave less than 10% (P-P)
Consumption current: ≤30mA
Power supply voltage: 10-30V DC wave less than 10% (P-P)
Consumption current: ≤30mA
Product Specification
Model:KS-C2B
Light:Blue
Detection Distance:12mm
Light:Blue
Detection Distance:12mm
Model:KS-C2G
Light:Green
Detection Distance:12mm

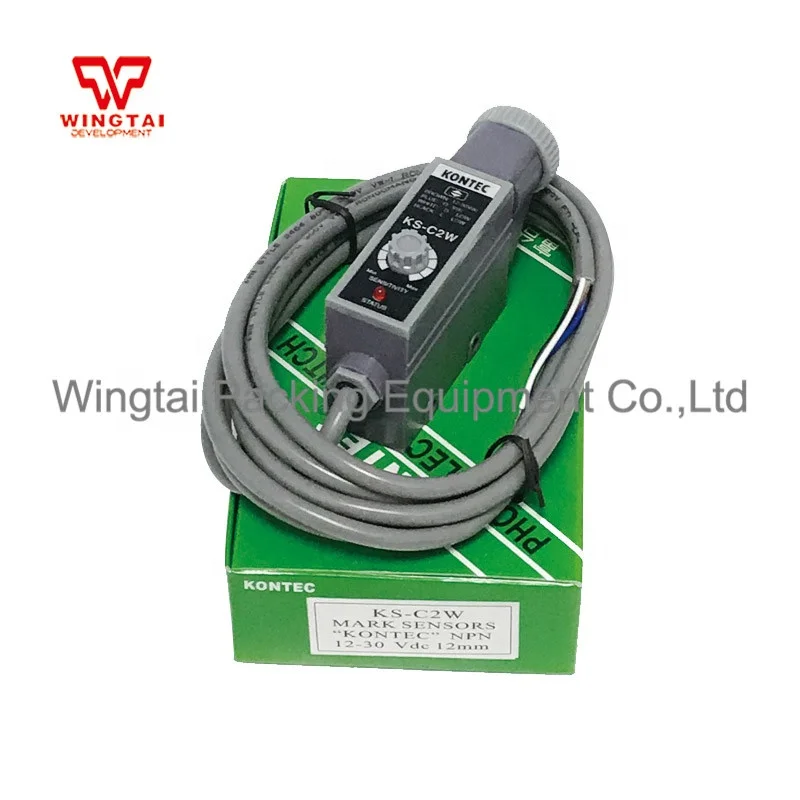

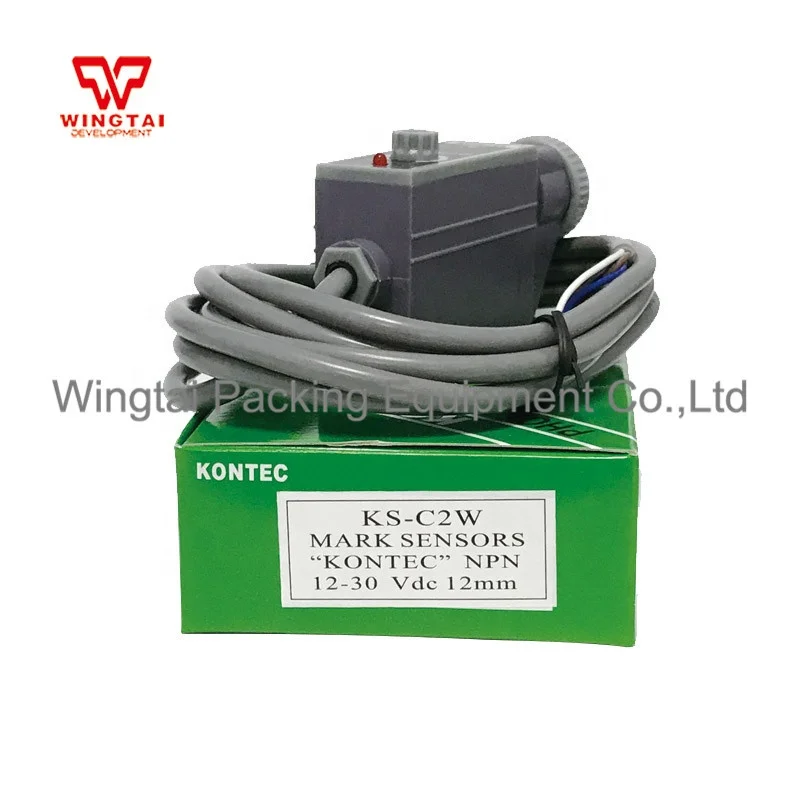

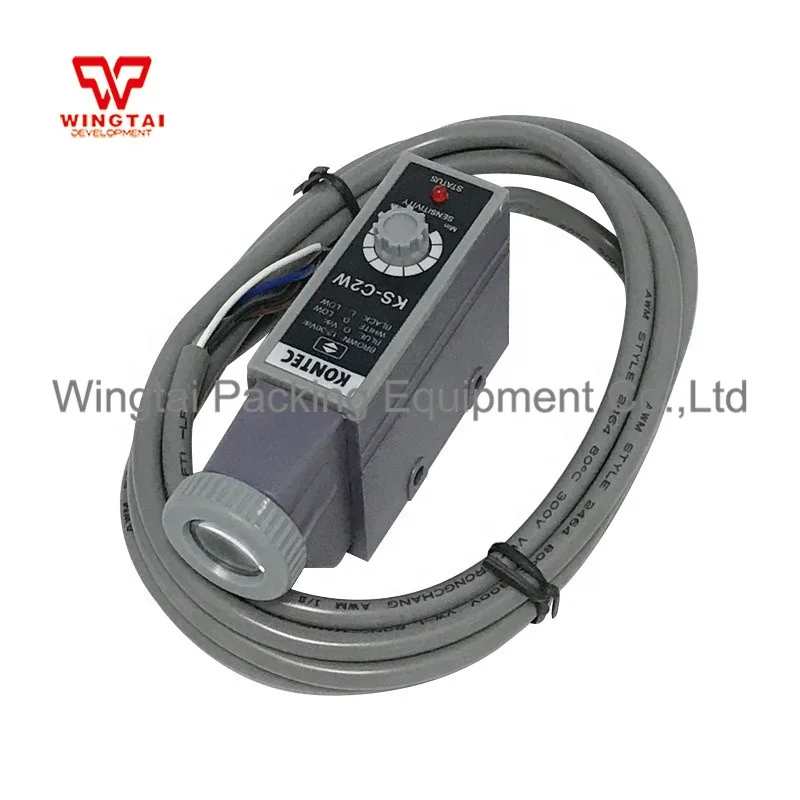

Model:KS-C2W
Light:White
Detection Distance:12mm

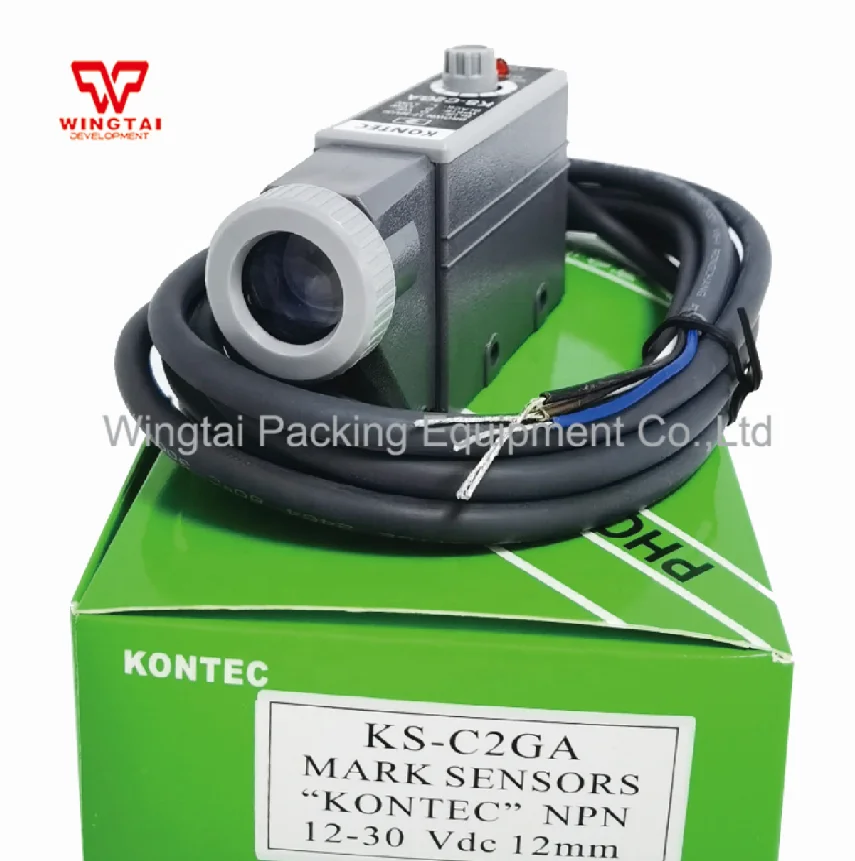

Model:KS-C2GA
Light:High frequency green light
Detection Distance:12mm
Light: Red and green double light
Detection Distance:12mm
Technical Parameters
Model | KS-C2W | KS-C2G | KS-C2R | KS-C2R/G | KS-C2W/G | KS-C2GA | KS-C2WA | ||||||
Light Source | White | Green | Red | Red/Green | White/Green | High frequencyGreen | High frequencyWhite | ||||||
Detection | Coaxial reflective type | ||||||||||||
Detection Distance | 10mm±2mm | ||||||||||||
Cast Bare Point | 1.0mm | ||||||||||||
Supply Voltage | DC10-30V | ||||||||||||
Power Consumption | 40mA or less | ||||||||||||
Response Time | 1mS following | ||||||||||||
Output Form | NPN type lights moving / dark dynamic dual output | ||||||||||||
Protection Function | Supply voltage reverse polarity protection, short-circuit protection | ||||||||||||
Operation Instruction | Red LED, bright Activity directions | ||||||||||||
Operating Ambient | Temperature: -5 ° C -50 ° C sunshine <10000Lux incandescent <30000Lux | ||||||||||||
Lead | Four-core cable (brown, yellow, white, blue) standard length 2m | ||||||||||||
Dimensions | 90(L)×45(H)×22(W) | ||||||||||||
