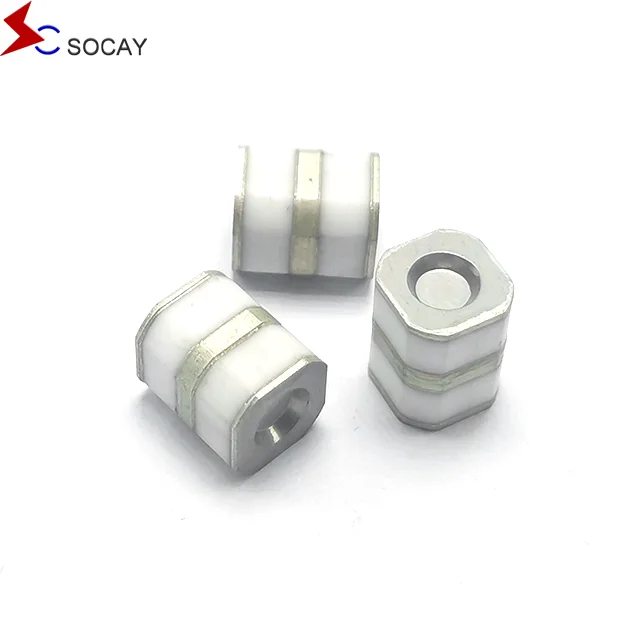

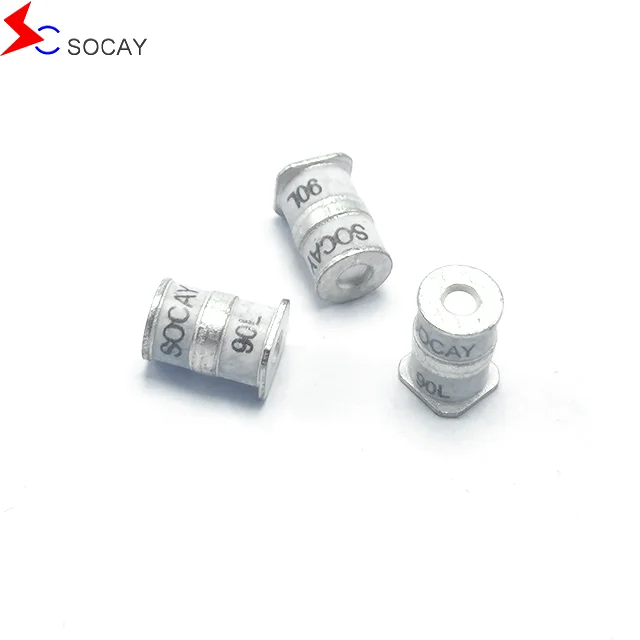

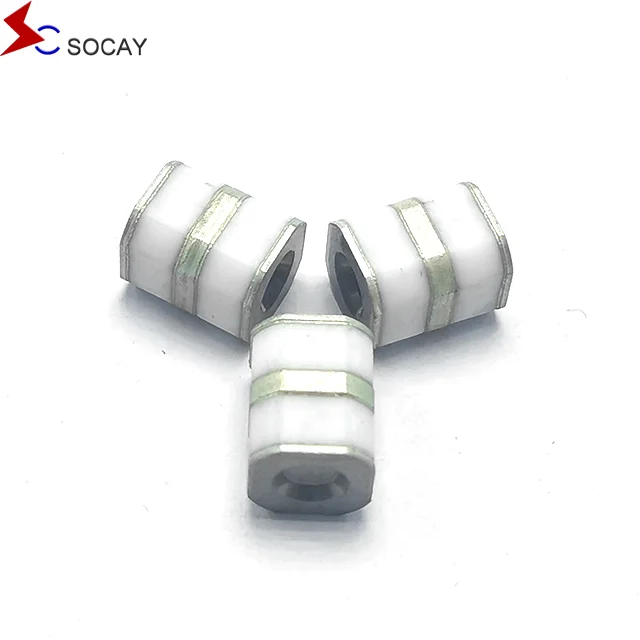

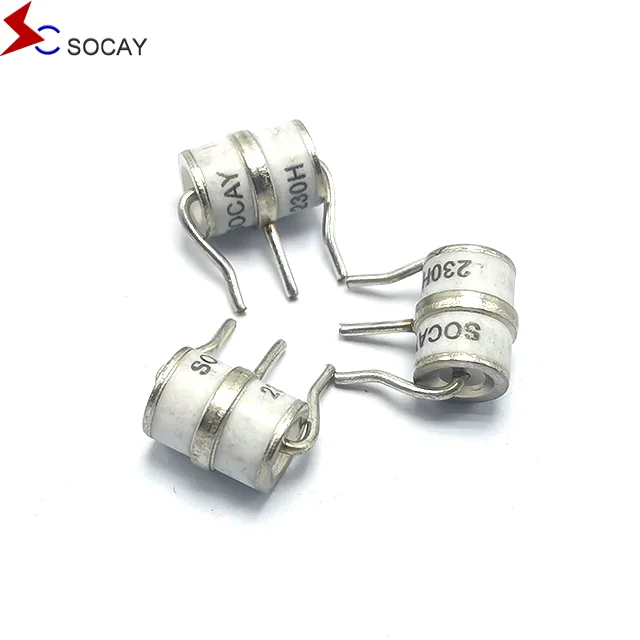

3 electrode Gas Discharge Tube/ Arrester UN3E8 350HM
3-electrode Gas Discharge Tube/ Arrester UN3E8-350HM
3-electrode Gas Discharge Tube/ Arrester UN3E8-350HM
3-electrode Gas Discharge Tube/ Arrester UN3E8-350HM
3-electrode Gas Discharge Tube/ Arrester UN3E8-350HM
3-electrode Gas Discharge Tube/ Arrester UN3E8-350HM

3 electrode Gas Discharge Tube/ Arrester UN3E8 350HM

Share on (60358607947):


Price:$0.28

Quantity:


Product Overview

Description



Product Description















  Feature



*  RoHS compliant



*  High insulation resistance


*  Excellent response to fast rising transients


*  Non-radioactive


*  Ultra low capacitance


*  10-20KA surge capability tested with 8/20us pulse as defined by IEC61000-4-5










































Materials


Nickel-plated with Tinplated wires


Product Marking


SOCAY
XXXH
XXX -Nominal voltage
     H -20KA


Glow to Arc Transition Current


~1 Amps


Glow Voltage


~70 Volts


Storage and Operational Temperature


-40 to +90°C


Weight


SC3E8-XXXHM ~2.0g
SC3E8-XXXHMF ~2.3g
SC3E8-XXXHP ~2.1g
SC3E8-XXXH ~1.8g


Climatic category (IEC 60068-1)


40/ 90/ 21


Features


-Non-Radioactive
-RoHS compliant
-Low insertion loss
-Excellent response to fast rising transients
-Ultra low capacitance
-20KA surge capability tested with 8/20μs
-pulse as defifined by IEC 61000-4-5
-Available with thermal failsafe option (add ‘F’ suffifix to part number)


Applications


-Communication equipment
-CATV equipment
-Test equipment
-Data lines
-Power supplies
-Telecom SLIC protection
-Broadband equipment
-ADSL equipment, including ADSL2+
-XDSL equipment
-Satellite and CATV equipment
-Consumer electronics

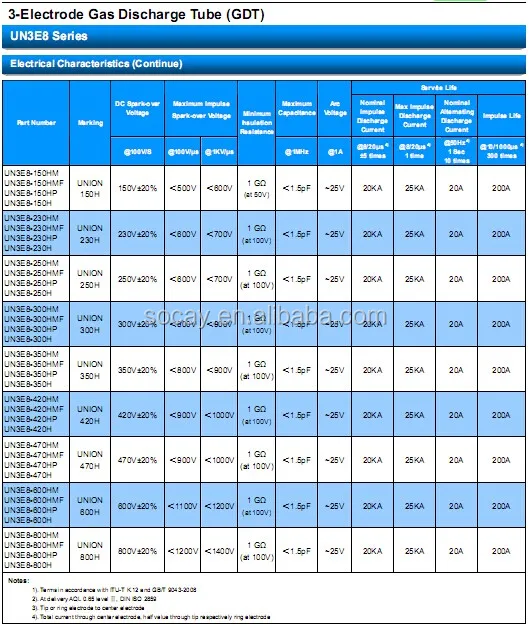

   product Spec Details:

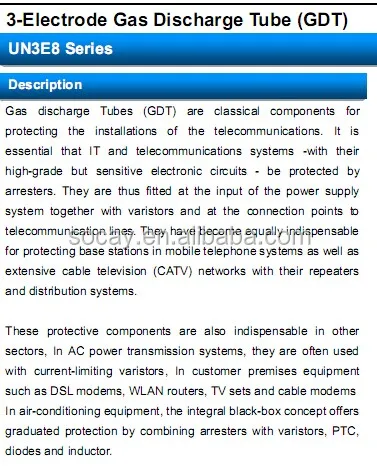

3E83.jpg3E8.jpg3E82.jpgharacteristics:














Packaging & Shipping






Packaging & Delivery


Packing: 100pcs /bag


Delivery: 7 days
