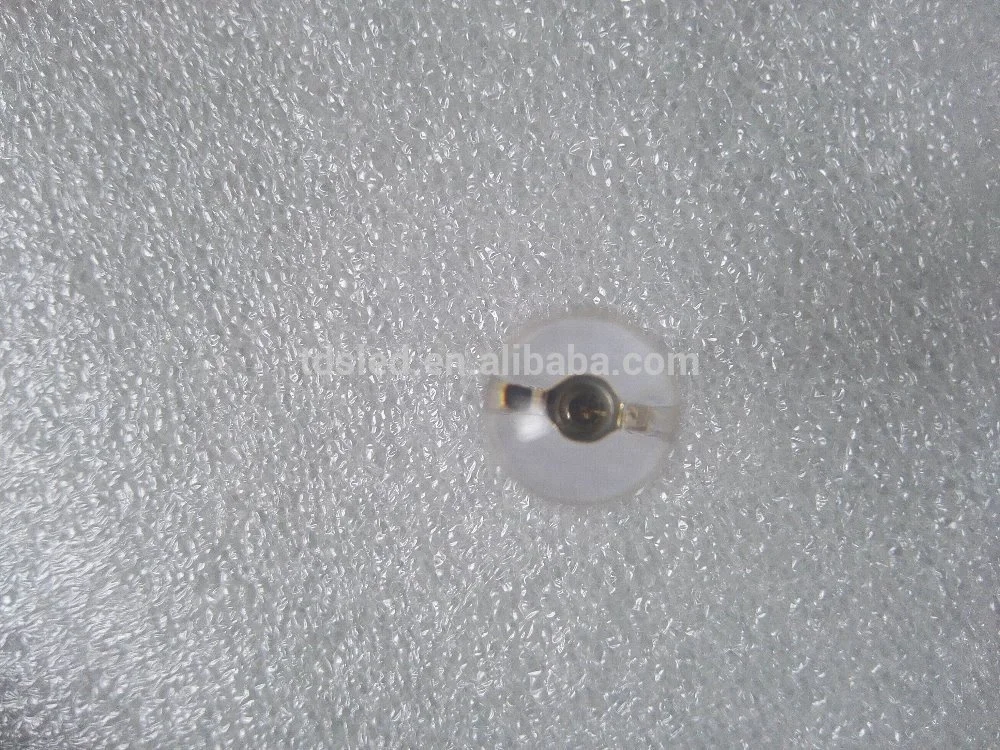

wholesale Lens Diffused green Color 10mm round led lamp
- Category: Lamp LED >>>
- Supplier: Wuxi Tds Lighting Co. Ltd.
Share on (60358727182):
Product Overview
Description
TDS Recommend you to How to Select / Order The 10mm LED ?
1. Long pin / short pin
2.Lens Color: water clear / diffused / foggy milky
3.Viewing angle: 10D 20-30D
3.Color: Red / Green / Blue / Yellow Green / White / Pink
| Part Number | Chip Material | Emitted Color | λD(nm) CCT Typ. | Lens Color | V(mcd)@IF=20mA | VF(V)@IF=20mA | Viewing Angle 2θ½ | |||
| Min. | Max. | Min. | Max. | |||||||
| TDS-1012LR3CN | AlGaInP | Red | 625-630 | Water Clear | 8000 | 9000 | 1.9 | 2.3 | 20-30 | |
| TDS-1012LY2CN | AlGaInP | Yellow | 585-595 | Water Clear | 8000 | 9000 | 1.9 | 2.3 | 20-30 | |
| TDS-1012KB4CN | InGaN | Blue | 460-470 | Water Clear | 8000 | 9000 | 3.0 | 3.4 | 20-30 | |
| TDS-1012QG4CN | InGaN | Green | 520-530 | Water Clear | 8000 | 9000 | 3.0 | 3.4 | 20-30 | |
| TDS-1012KW4CN | InGaN | W White | 2900-4000K | Water Clear | 8000 | 9000 | 3.0 | 3.4 | 20-30 | |
| TDS-1012KW2CN | InGaN | White | 5000-25000K | Water Clear | 8000 | 9000 | 3.0 | 3.4 | 20-30 | |

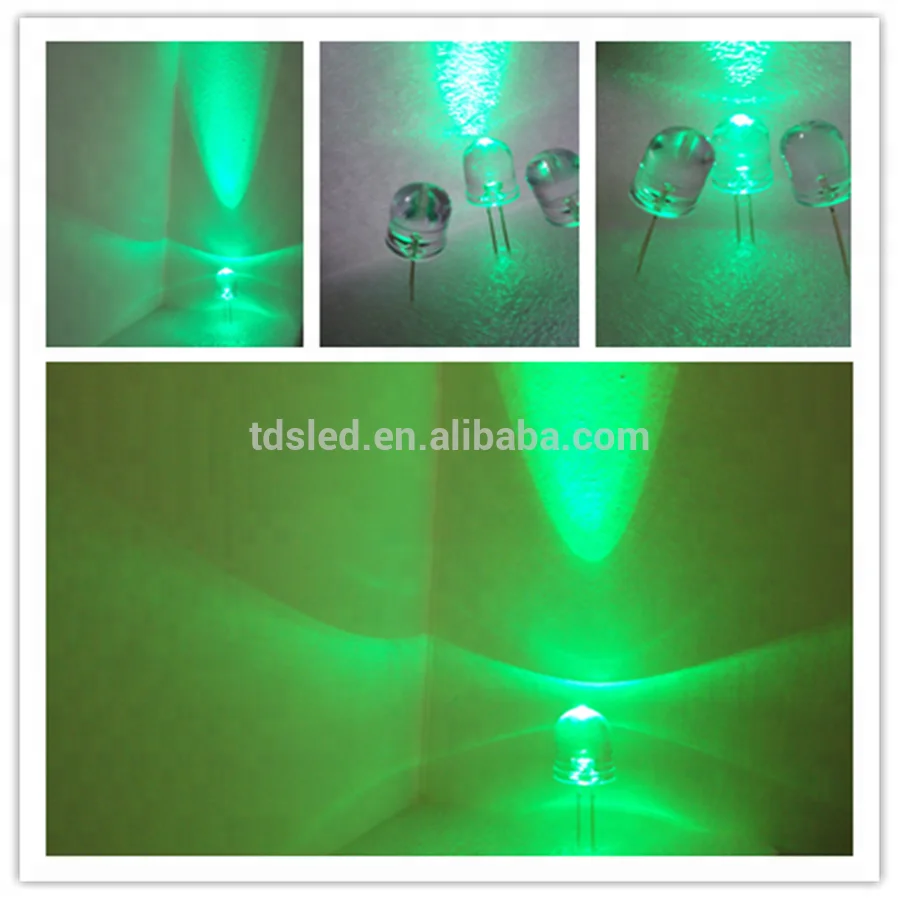

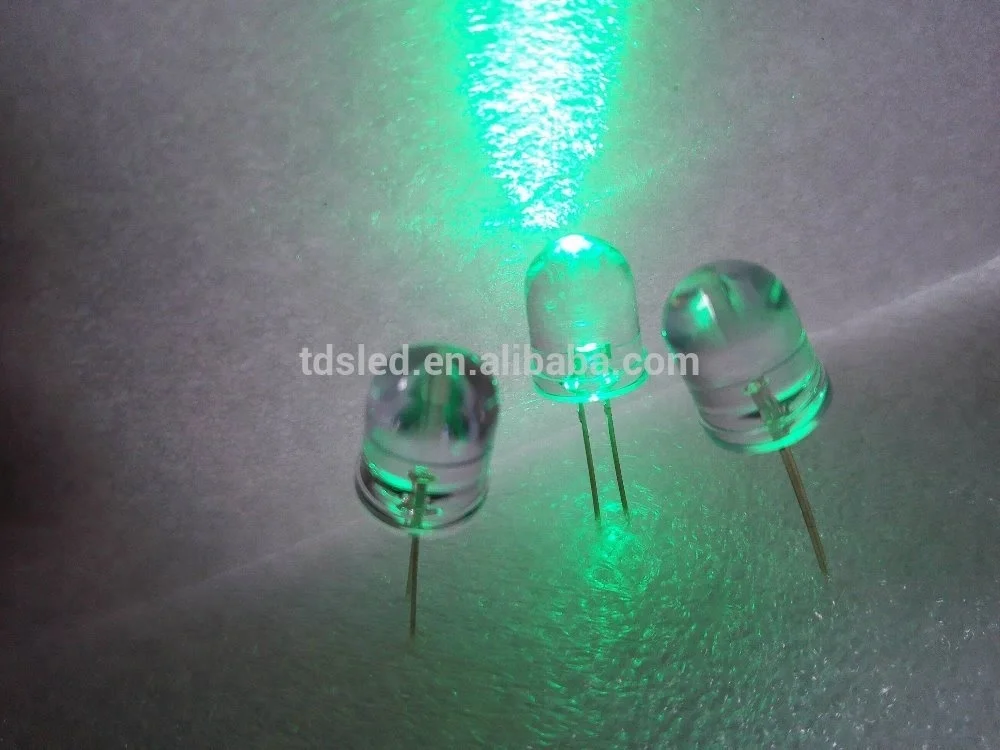

Test Photo

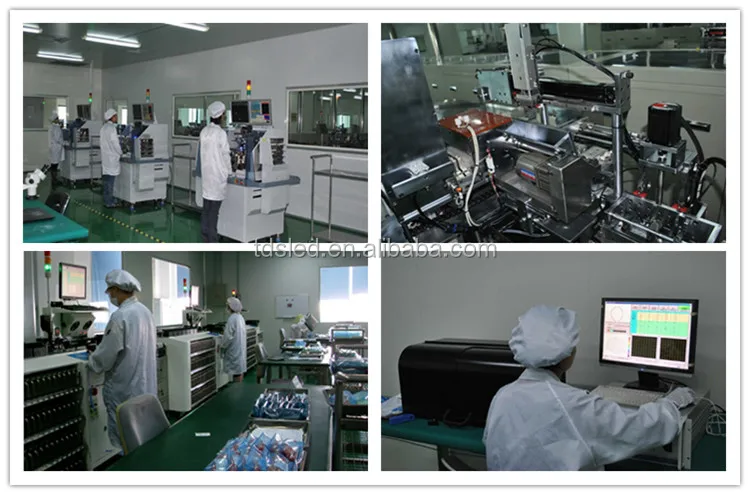

Company View

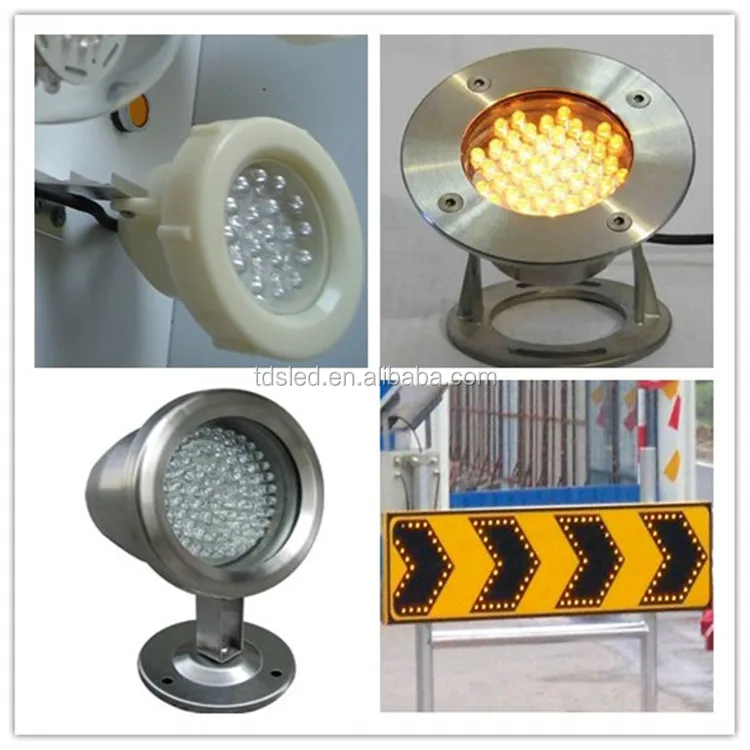

Application
