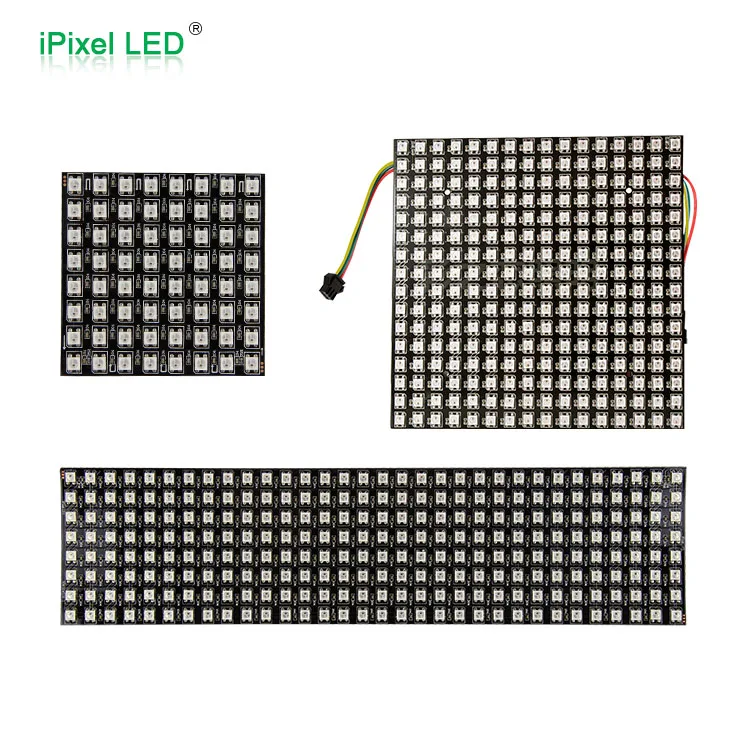

8x8 rgb led matrix,16X 16rgb led matrix,8x32 rgb led matrix available
- Category: >>>
- Supplier: Shenzhen Ipixel Led Light Co. Ltd.
Share on (60358872444):
Product Overview
Description
16x16 rgb led matrix,64x64 rgb led matrix,16x16 rgb led matrix available
Product parameter
| Product Name | 8x8 pixels flexible led matrix display |
| Model Number | S0808APA102 |
| Size | 80*80mm |
| Led Qty | 64pcs (8x8 pixels) |
| Voltage(V) | DC5V |
| Power | 19W/M |
| IC Chip | APA102C |
| IP Rate | IP20 (Non-waterproof) |
| PCB Color | Black |
| PCB Width | 10mm |
| LED Singal | SPI |
| View Angle | 140° |
| Connector | 4 Pin JST famale and male connectors |
| Warranty | 2 years |
Product Description
- Individually addressable RGB LEDs (8*8 LEDs)
- 24-bit color control (8-bit PWM per channel); 16.8 million colors per pixel
- Additional color-independent brightness control (5-bit PWM); 32 brightness steps per pixel
- SPI control interface
- 5 V operating voltage
- Each LED Matrix draws approximately 8A at full brightness
- 80 mm width (8 LEDs) or 80 mm width (8LEDs) Pitch : P10
- Flexible,bendable IP20 rating
- Black strip color

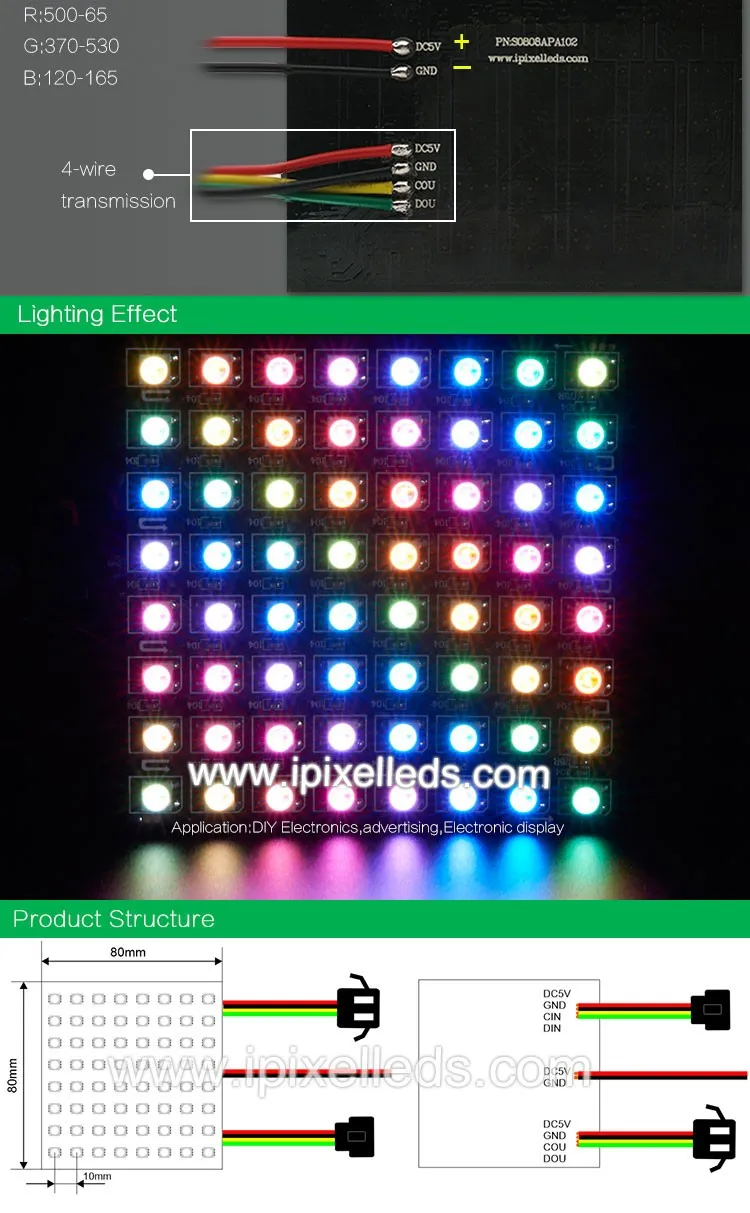

- Power/data connectors on both strip ends for easy chaining
Product Details
There's a new square design LED matrix in iPixel LED!

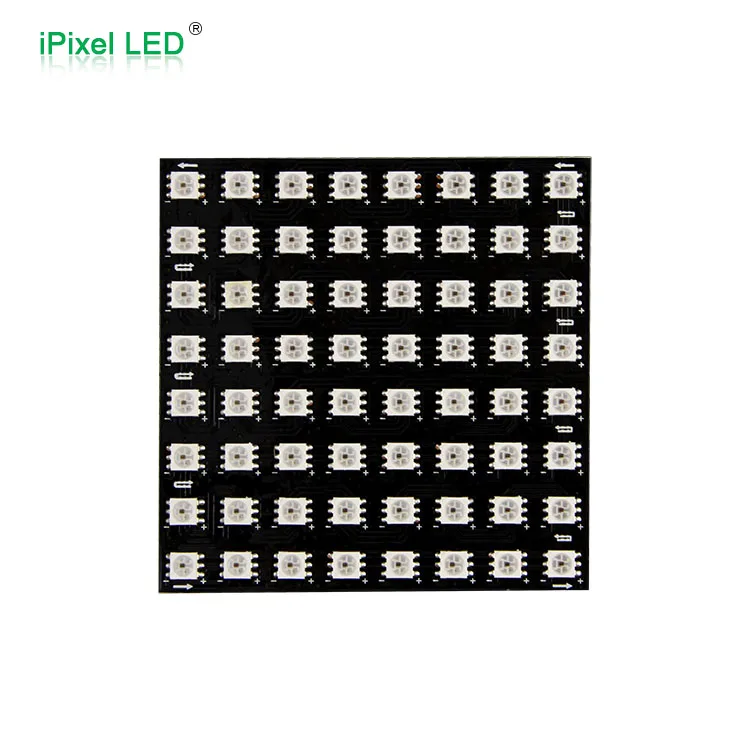

8*8 Pixel APA102C LEDs
use a 2-wire SPI,it can push data much faster than with the WS2812B 800 KHz protocol and there's
no specific timing required. it's also have much higher PWM refresh rates.
This SMD 5050 LEDs is GRB color sequence ,not RGB sequence !!!
with an embedded microcontroller inside the LED. You can set the color/brightness of each LED to
24-bit color (8 bits each red green and blue). Each LED acts like a shift register, reading incoming
color data on the input pins, and then shifting the previous color data out on the output pin. By sending
a long string of data, you can control an unlimited LEDs
These LEDs have 2 wires (input and output) for clock and one data pin.
Because the clock and data is seperated, you can use any microcontroller or microprocessor, including
Arduino, Raspberry Pi, BeagleBone, Propeller to control it
PWM rate. You only have to set the 24-bit color data for each pixel LED once, and then the LED+built-in
-chip will handle the PWMing of the red, green and blue.
On our WS2812B Matrix, this PWM rate happens 400 Hz, which works well but is noticably at lower
brightnessesand if the strip is moving in any way.

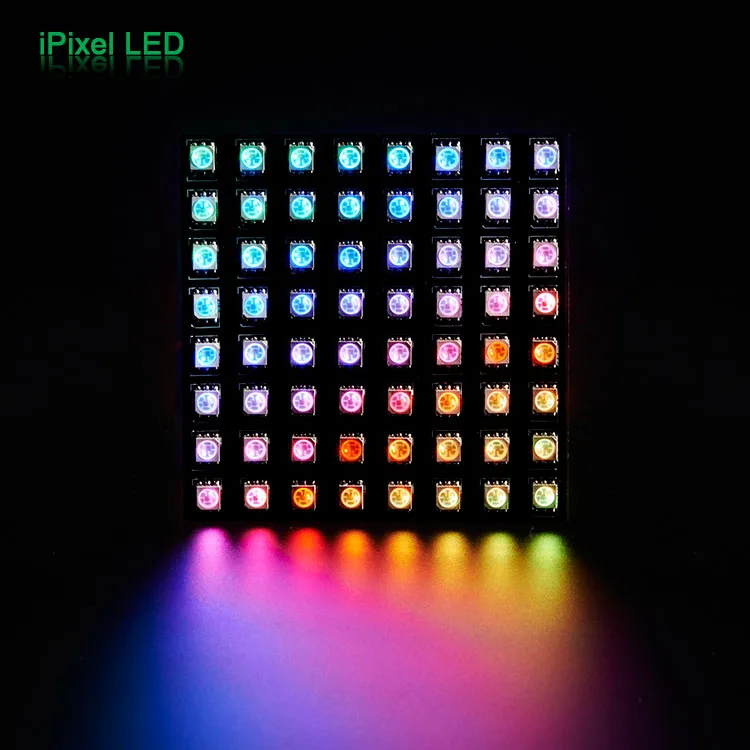

have a 20 KHz PWM rate, even if you set any color or animation, there is no pixelation
The Matrix is made of flexible PCB material,Non-waterproof ,for indoor use only, 1 Ounce copper PCB
and black color you can also connect each matrix to together to make them as large as a
P10 LED screen, makesure gave them enough Power , each matrix 64 pcs LEDs request
about 2A.

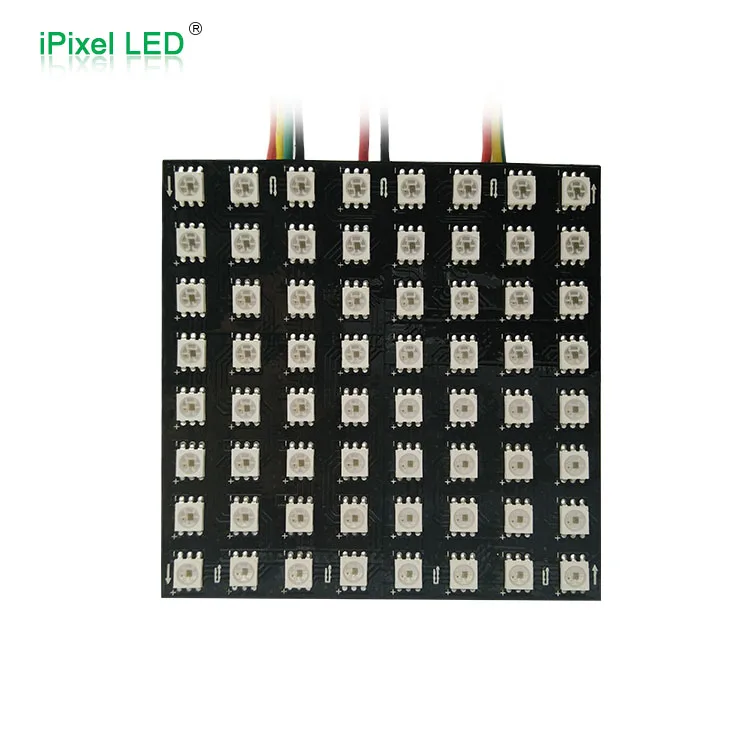

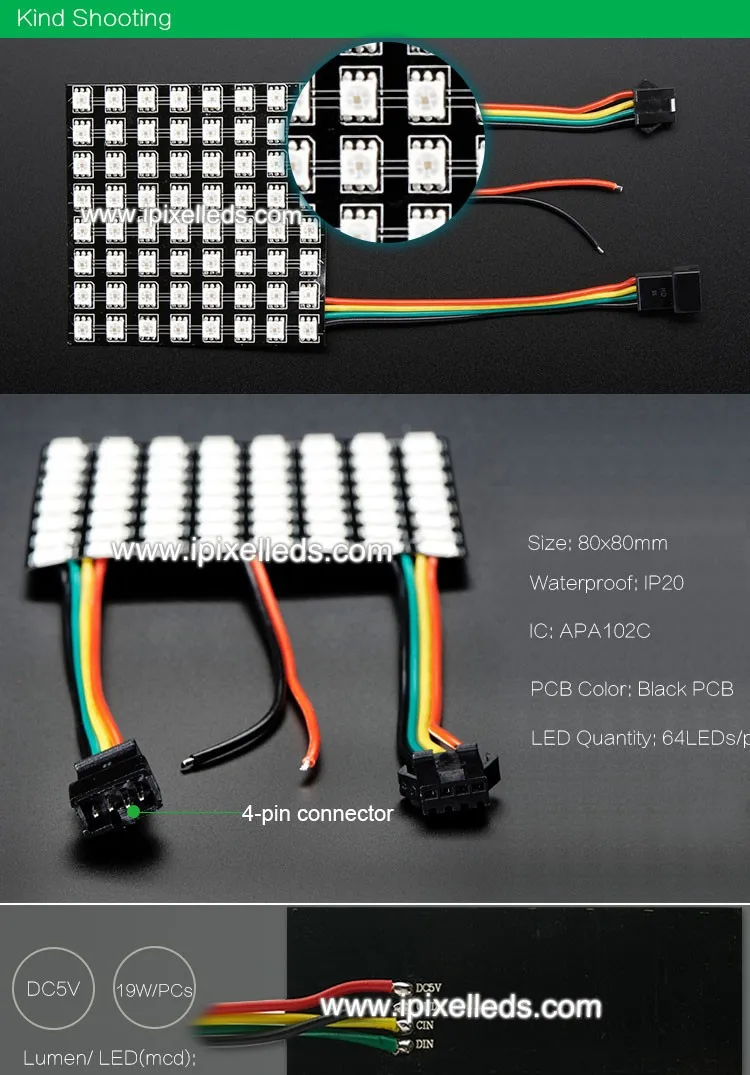

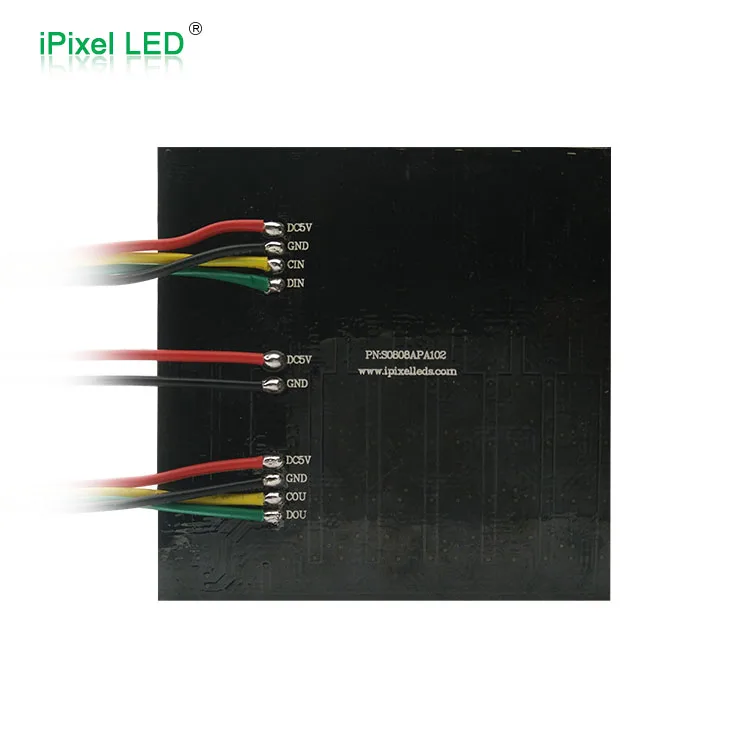

These matrix comes in 1pcs per bag, on the back side, soldered a pair of 4-pin JST SM connector, it's
makeseasy to link to next matrix.
