Product Overview
Description
Hot Sale fixed slewing jib crane 1ton jib crane design calculation
Advanced technique and complete quality supervision system slewing jib crane 1ton

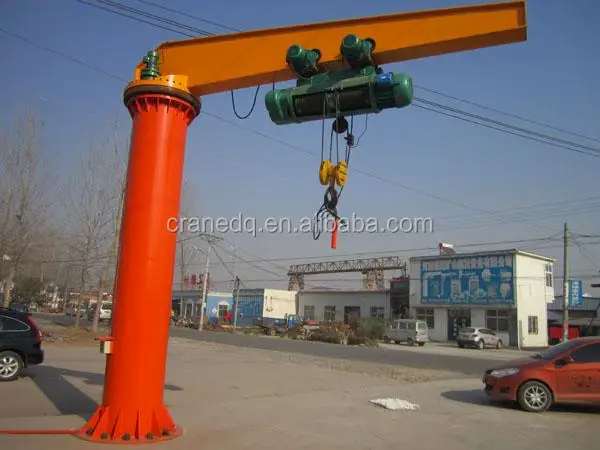

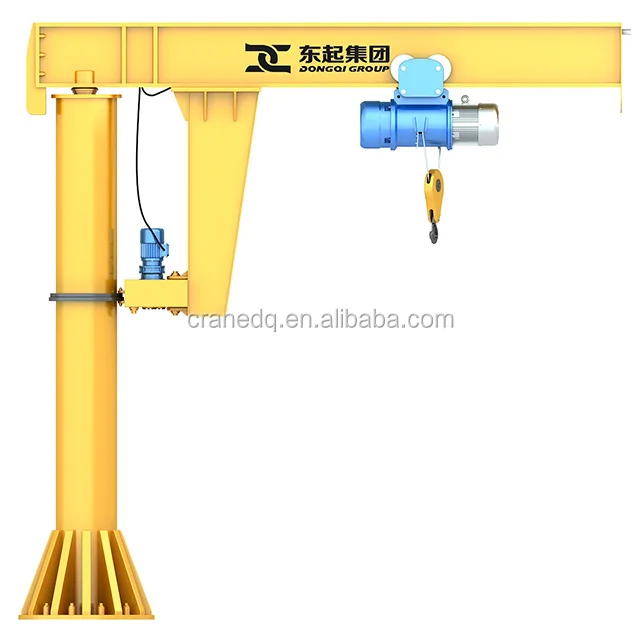

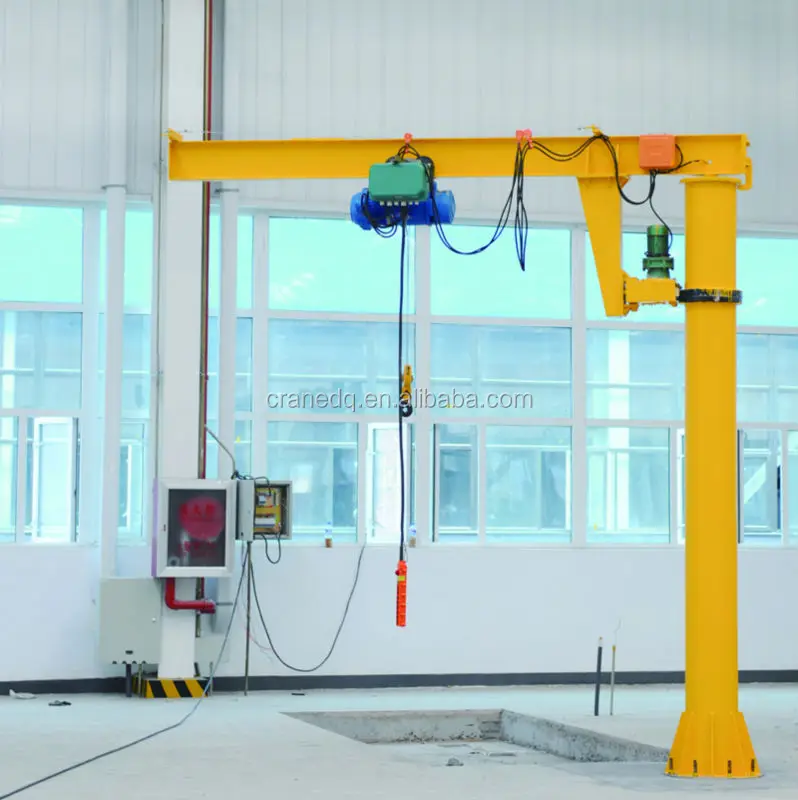

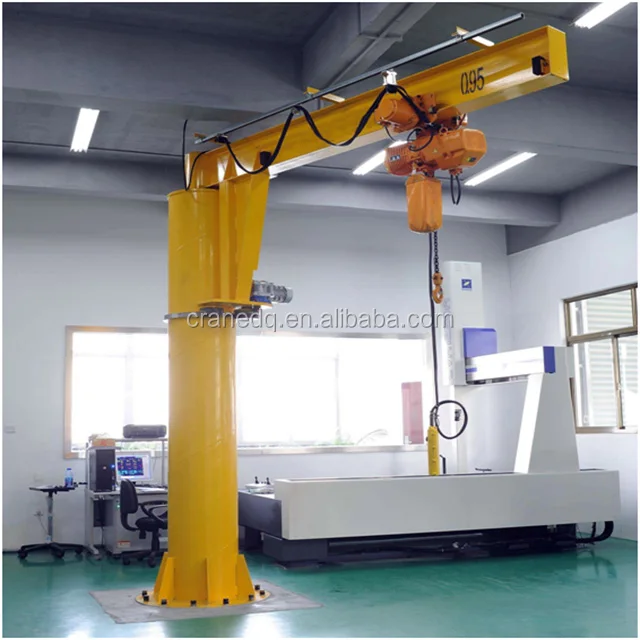

| Pictures of Motorized Jib Crane | Henan Dongqi Machinery Co., Ltd. |
| Pictures of Motorized Jib Crane | Henan Dongqi Machinery Co., Ltd. |
| Pictures of Motorized Jib Crane | Henan Dongqi Machinery Co., Ltd. |
Product Description
| Introduction of Motorized Jib Crane | Henan Dongqi Machinery Co., Ltd. |
Jib Crane is widely used to control or position a load in areas that are generally inaccessible to other material handling equipment. They are designed to provide reliable long-life performance with minimum maintenance. This jib crane provides 360-degree rotation.The flexible move mechanism make you handle lifting tasks at ease.
Motorized Jib Cranes are directly fixed on the floor without any support to keep it upright. To maintain it’s stability and not topple over it you fix it to a foundation of 3 to 5 feet deep and up to 4 to 10 feet square foundation base. The foundation depends on the load and reach. Advantage of this type of crane is it doesn’t need a support column or structure and provides optimal range of span and control compare to wall mounted cranes and other types of Jib cranes.
Motorized Jib Cranes are directly fixed on the floor without any support to keep it upright. To maintain it’s stability and not topple over it you fix it to a foundation of 3 to 5 feet deep and up to 4 to 10 feet square foundation base. The foundation depends on the load and reach. Advantage of this type of crane is it doesn’t need a support column or structure and provides optimal range of span and control compare to wall mounted cranes and other types of Jib cranes.
| Application of Motorized Jib Crane | Henan Dongqi Machinery Co., Ltd. |
1.The most common applications for jibs are individual workstations; machine tools, welding/fabrication stations, and some small assembly stations.
2.They are also often used in simple loading / unloading operations where it is not necessary to spot a load precisely.
3.Jib cranes most often handle lighter loads at lower duty cycles than their bridge and gantry crane counterparts.
4.If there is a need for precise locating of heavy loads, a large area of hook coverage, or frequent use for heavy loads, the jib crane may not be the best solution.
| Features of Motorized Jib Crane | Henan Dongqi Machinery Co., Ltd. |
1.Reasonable design, strong rigidity
2.Good in usability, make convenient, strong commonality
3.Safe and reliable operation
4.Overload warning and limiter
5.Low cost maintenance, long working life
6.Four telescopic supporting legs in buttom.which can keep machine stable.
| Parameters of Motorized Jib Crane | Henan Dongqi Machinery Co., Ltd. |
| Technical Parameters of BZ Series jib crane | |||||||||
| Model | BZ0.25t | BZ0.5t | BZ1t | BZ2t | BZ3t | BZ5t | BZ10t | ||
| Lifting Capacity(t) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 | ||
| Lifting Height(m) | 2m, 2.5m, 3m, 3.5m, 4m, 4.5m, 5m, 5.5m | ||||||||
| Valid Radius(m) | 2, 3, 4, 5, 6 | ||||||||
| Working Duty | A3-A5 | ||||||||
| Speed | Hoisting | Normal Speed(m/min) | 2.6 - 8 | ||||||
| Slow Speed(m/min) | 0.7 - 2 | ||||||||
| Slewing Spped(r/min) | 0.8 | ||||||||
| Circulate Spped(m/min) | 14 - 20 | ||||||||
| Slewing Angle | 180, 270, 360 or any degree | ||||||||

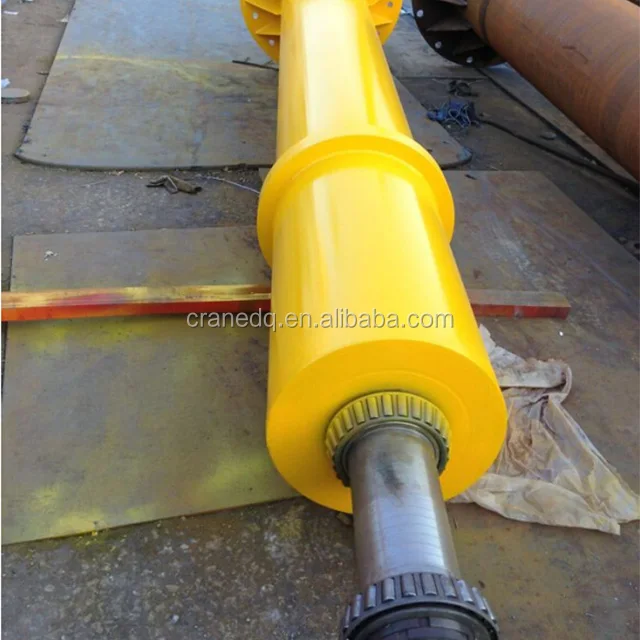

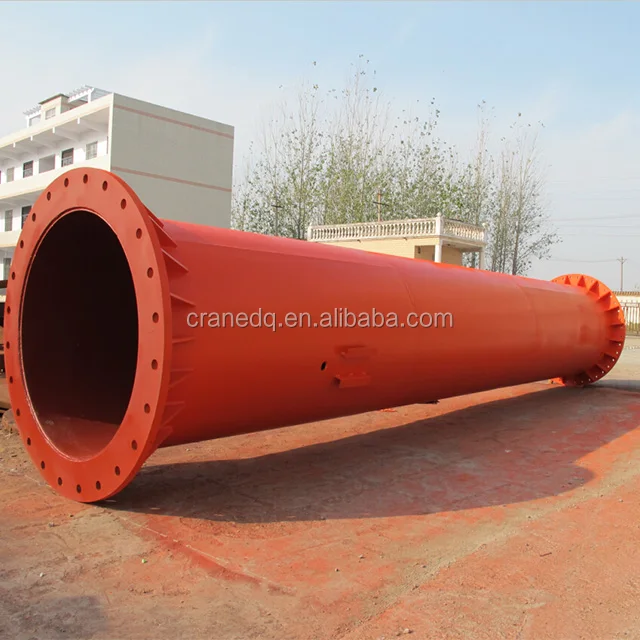

| Detail Images Motorized Jib Crane | Henan Dongqi Machinery Co., Ltd. |
| Detail Images Motorized Jib Crane | Henan Dongqi Machinery Co., Ltd. |
| Detail Images Motorized Jib Crane | Henan Dongqi Machinery Co., Ltd. |
| Detail Images Motorized Jib Crane | Henan Dongqi Machinery Co., Ltd. |

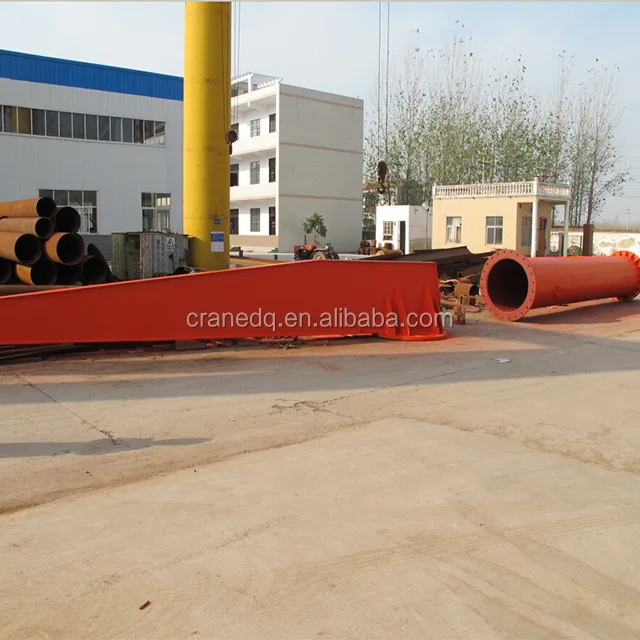

| The production process | Henan Dongqi Machinery Co., Ltd. |
Packaging & Shipping
| The packing and shipping | Henan Dongqi Machinery Co., |
Company Information
| About | Henan Dongqi Machinery Co., Ltd. |
HENAN DONGQI MACHINERY CO., LTD is a Sino-New Zealand joint venture; covers an area of 240,000 square meters; total investment is 240 million RMB, and registered capital 108 million RMB. There are over 3600 employees, among them 500 technicians,and over 70 senior engineers at present. All kinds of manufacturing and detection devices total 2000 sets. Annual comprehensive crane production capacity reaches more than 10.000 sets, and output values climbs 1.5 billion RMB. The company has the technological cooperation with many famous European machinery manufacturers such as Britain SZW, German NORD and SIEMENS and French Schneider, etc. The company is committed to technological innovation and development, and makes great efforts in building DONGQI crane into international and domestic famous brand.
| Certificate | Henan Dongqi Machinery Co., Ltd. |
| Customers to visit the company | Henan Dongqi Machinery Co., Ltd. |
| Order process | Henan Dongqi Machinery Co., Ltd. |
| Contact Us | Henan Dongqi Machinery Co., Ltd. |
Notice:
As this kind of crane is customized, in order to offer you most suitable design and best solution, please confirm following information when you send inquiry.
1. lifting capacity.
2. Valid radius.
3. lifting height.(hook center to ground)
4. Power supply: Voltage.
For detailed product information, please contact me!
