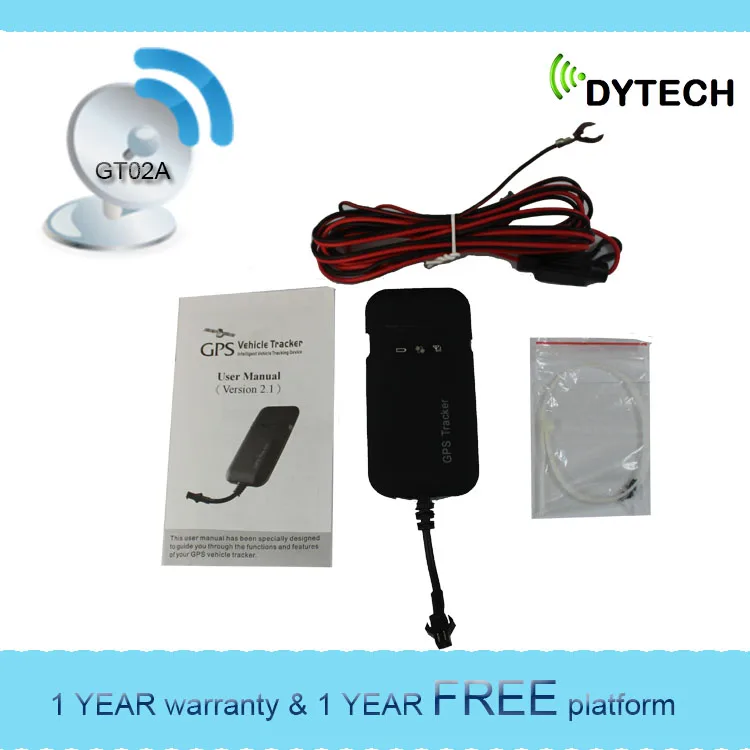

Car GPS Tracker Locator GT02A Google Link 4 Band GSM / GPRS / GPS Vehicle Auto Car Real Time Tracking Device

Product Overview

Description

Specification

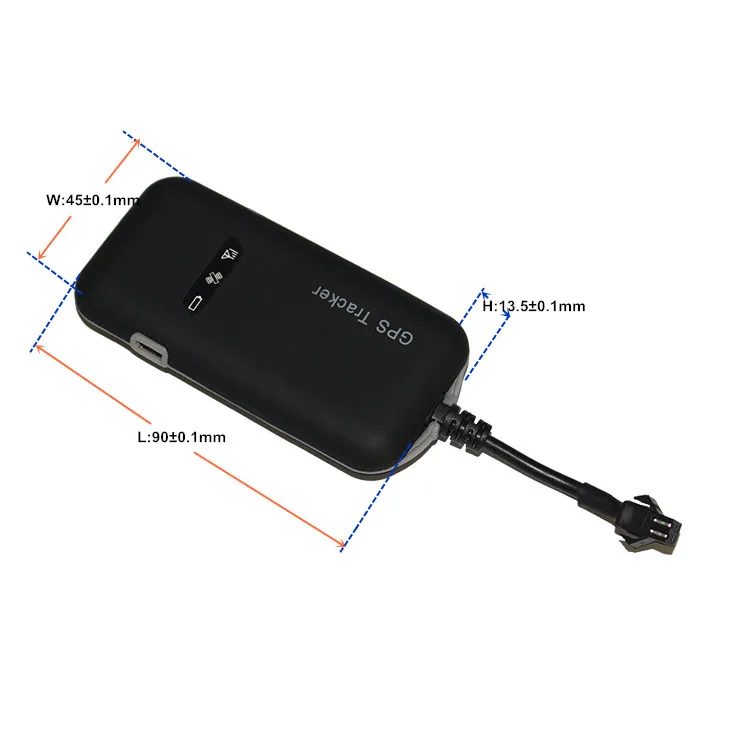

Dimension	90(L) x 45(W) x 13.5(H) mm
Weight	45g
Operation Temperature	-30℃ - 70℃
Operation Voltage	9-36vDC
Humidity	20% - 80%
GSM Frequencies	850/900/1800/1900 MHz
GPRS	Class 12
GPS Sensitivity	-159dBm
Acquisition Sensitivity	-144dBm
Position Accuracy	10m
TTFF (Open Sky)	Cold Start: <38s
	Warm Start: <32s
	Hot Start: <2s
GSM/GPS Antenna	Built-in design
LED Indicator	GSM-green, GPS-blue, Power-red
Data Transmit	TCP, SMS
Non-movement Detection	Movement alarm based on built-in 3D motion sensor
Mileage Report	Track by time/distance interval

Feature
1.For car
2.Work voltage:9V-36V
3.LED instructions
4.Side key function
5.GPS Blind memory to 1000points
6.Auto poweron
7.Platform free use for 1 year
8.APP for Android and Apple portable device

Picture of Tracker



Picture of details

Remarks

1.GPS\\GSM antennas are built-in design,it can be artistic but unaffected.

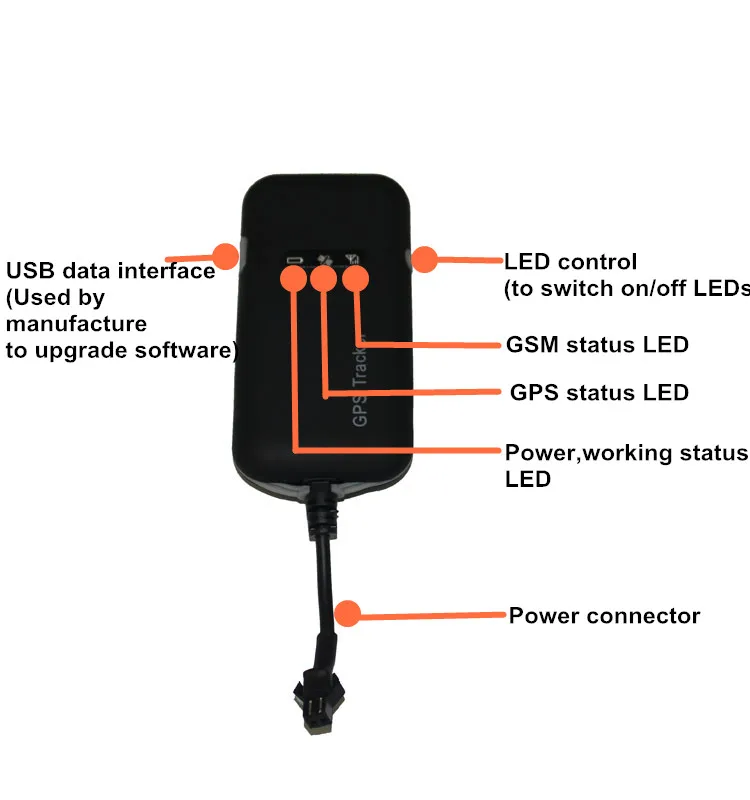

2.3 colours status indicator lamp,are uesd to show the GSM status,GPS status and power working status.

3.Power onnector,it works as a line to connect the engine and the tracker,offering orginal supply to tracker.

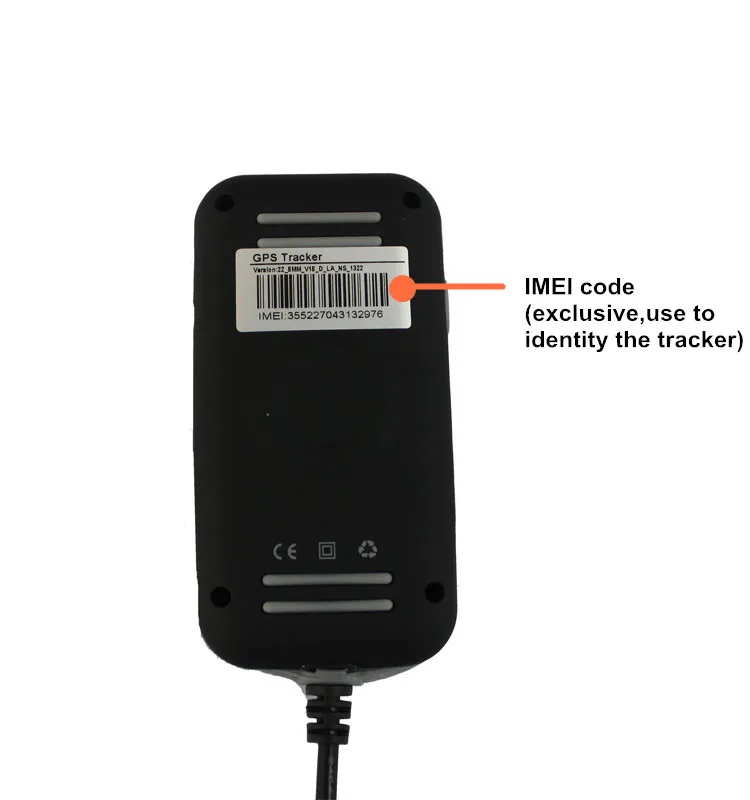

4.IMEI code is exclusive and applied to identity the tracker.

5.GPS mode is adapted to u-blox  7020 chip, its position accuracy reaches to 5m.

6.GSM mode is adapted to MTK MT6260D chip,has dual core, can transmit data by TCP and SMS.

7.DC-DC circuit can convert the voltage 9~36V of engine to 5V for tracker to work normally.

8.GSM chip can support SIM card of worldwide bands of 850/900/1800/1900MHZ.

Places for installation



Application of platform
1.Platform
//www.19gps.net
2.GPRS Setting
For use platform,please set the GT02A as follow:
Example:
server,666666,0, 118.193.48.237,7018,0#; set platform IP, port apn,666666,cmnet# set APN
If in the country need APN user Name,APN user password,the setting as follow:
Example:
server,666666,0, 118.193.48.237,7018,0#; set platform IP, port APN,666666,internet.fido.ca,fido,fido#
set APN Example for use our platform:
3.Login

Remarks:
You can use your cellphone to scan the QR Codes to download the APP as below:

Choose language

Choose login ways

Choose login ways

Login as:
0+IMEI last 11bit numbers
Example:
IMEI:355227042128041 Login as:027042128041 The default Password: 123456

Remarks:
1.The platform free use for 1 year.
2.Another platform is //www.20gps.net , the way is same to //www.19gps.net.
