New type Full automatic PVC PE pipe socketting machine

Product Overview

Description

New type high efficiency PE/PVC pipe belling machine with high output and low consumption



The plastic pipe belling machine is widely use to plastic pipe with different diameters and different materials.



Features of PE/PVC pipe belling machine



1. Collocated with material-receiving pulling device as well as related process interfaces

that are matched with the pipe extrusion line.



2. The machine can work together with the pipe extrusion line, or work alone.



3. Horizontally moves pipes, stable and accurate actions, and does not easily to

damage pipes.

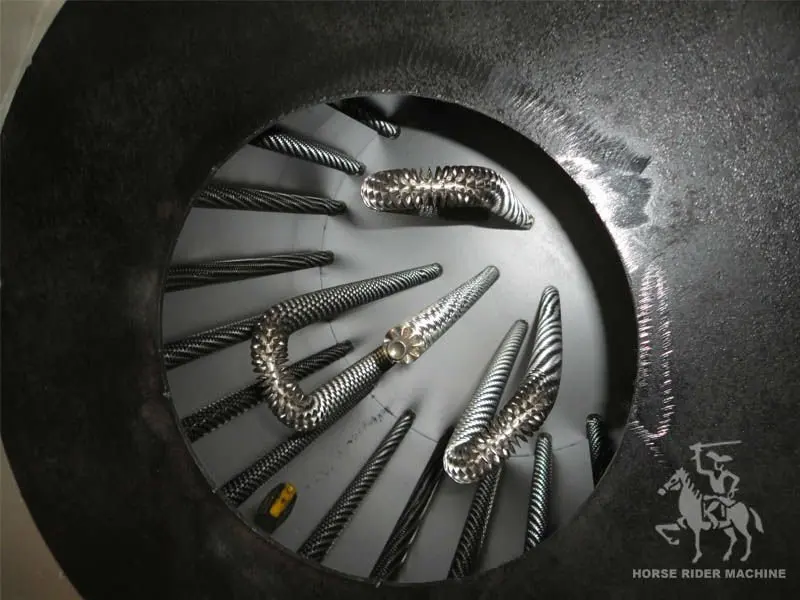

4. Adopts infrared ray heating way  and each heating furnace is located within the central

heating furnace core.



5. Adopts expansion tube head shaping method, with accurate dimension of nozzle.



6. Has conversion switches of expansion solvent plug (direct type) and expansion

flexibility sealing washer type plug (R type) in control panel, so it is very convenient

to choose the way of tube expansion, with strong craft adaptability.



7. Main electric control components adopt imported famous brand, with stable and reliable

system performance.



8.Suitable for PVC PE PPR pipe etc.



We are specialize in plastic processing machinery for many years.Our machines

exported to many countries.If you are interested in our machines,please contact us at any

time.We will provide professional proposal for you.

Welcome to visit our factory!



Technical parameter of PE/pvc pipe belling machine



Model number	DS250	DS400	DS630	DS800
Pipe diameter range	90-250mm	160-400mm	315-630mm	630-800mm
Pipe length	3-6m	3-6m	3-6m	3-6m
Total power	30kW	65.5kW	110kW	122.5kW
Dimension(L*W*H)	7.6*1.7*2.1m	7.9*2.2*2m	8.6*3*2.3m	9*3.2*2.3m

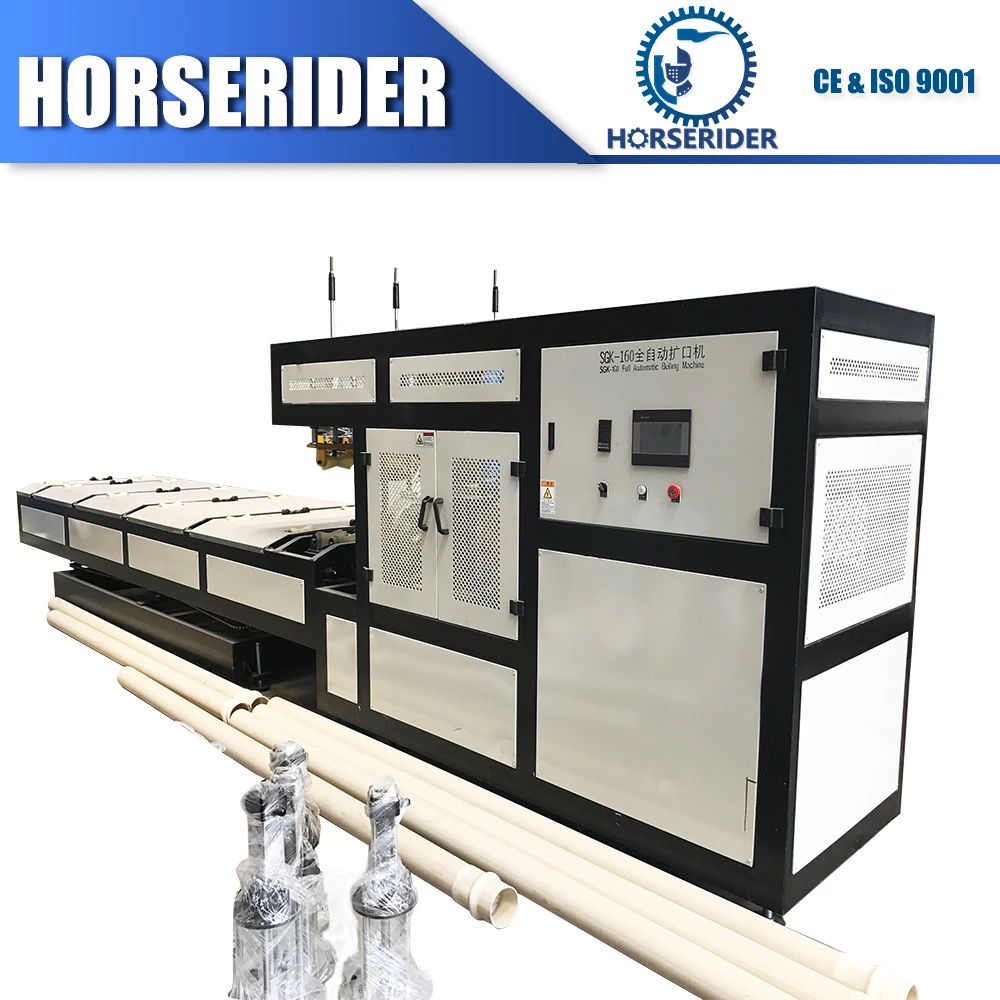

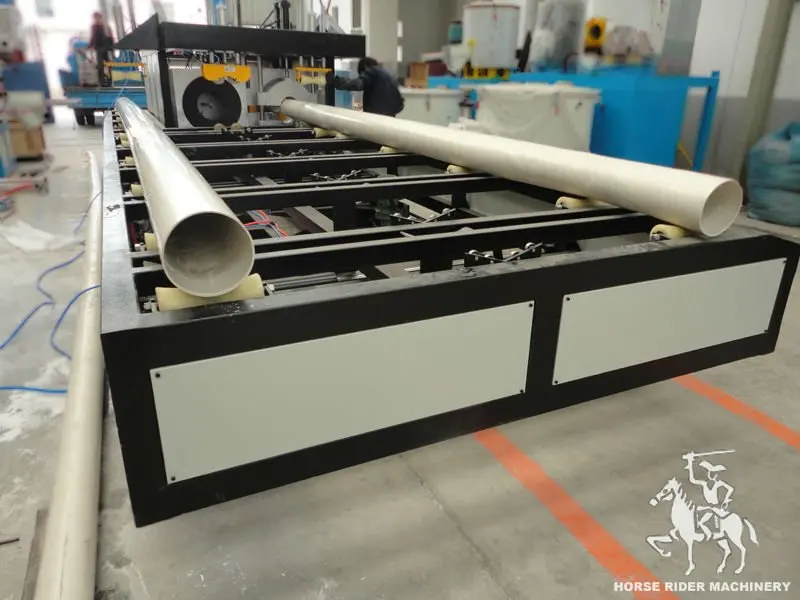

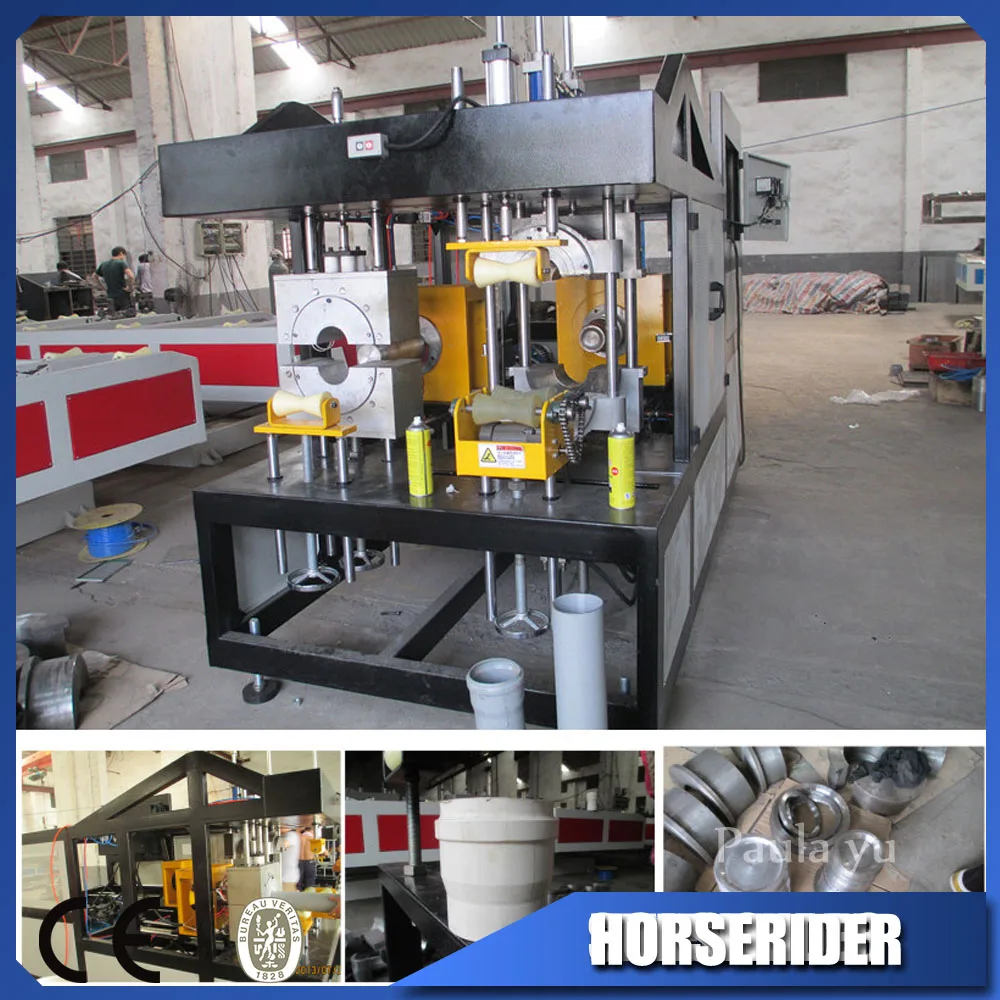

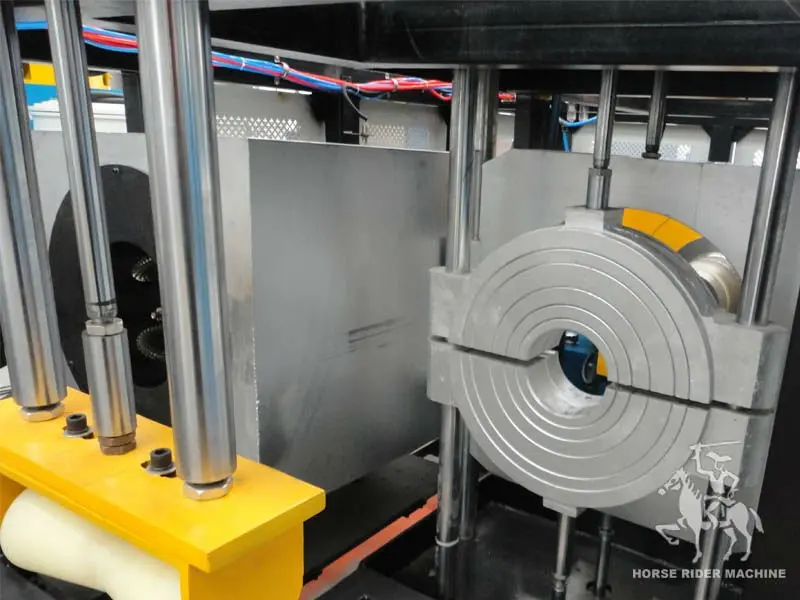

Reference pictures of PE pipe belling machine









(all pictures of PE pipe belling machine only for reference)
