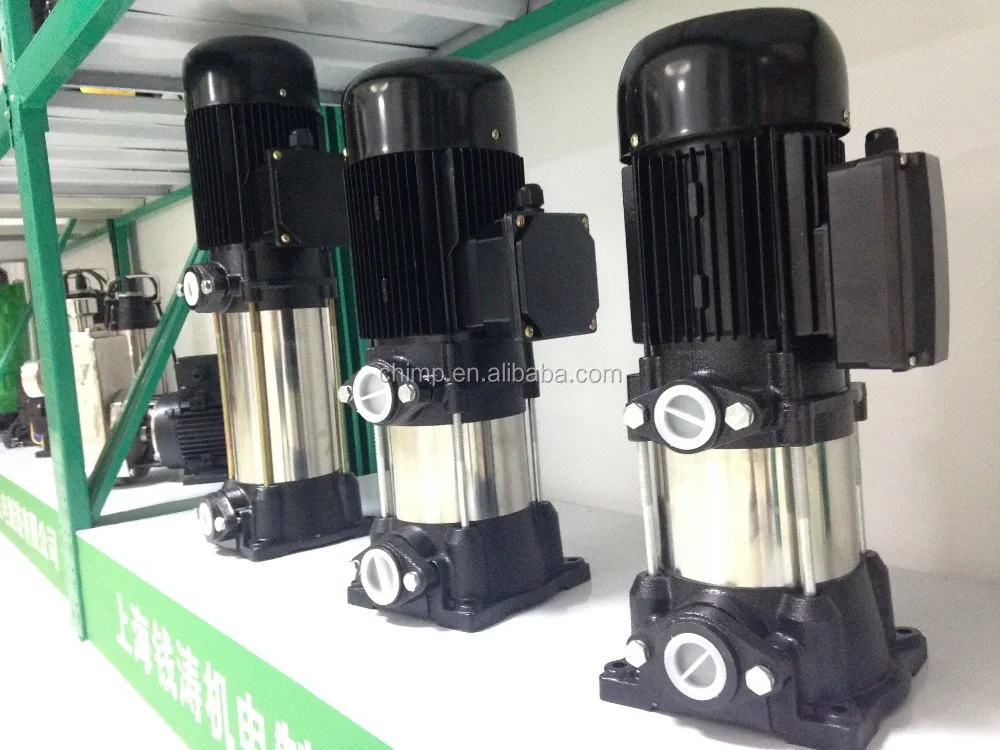

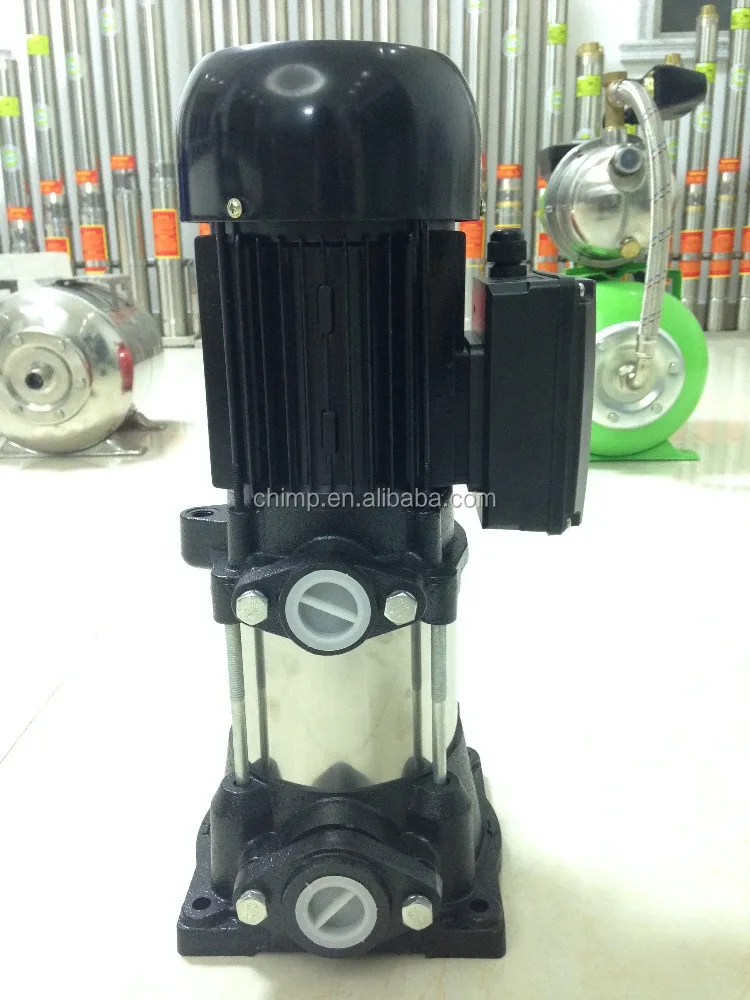

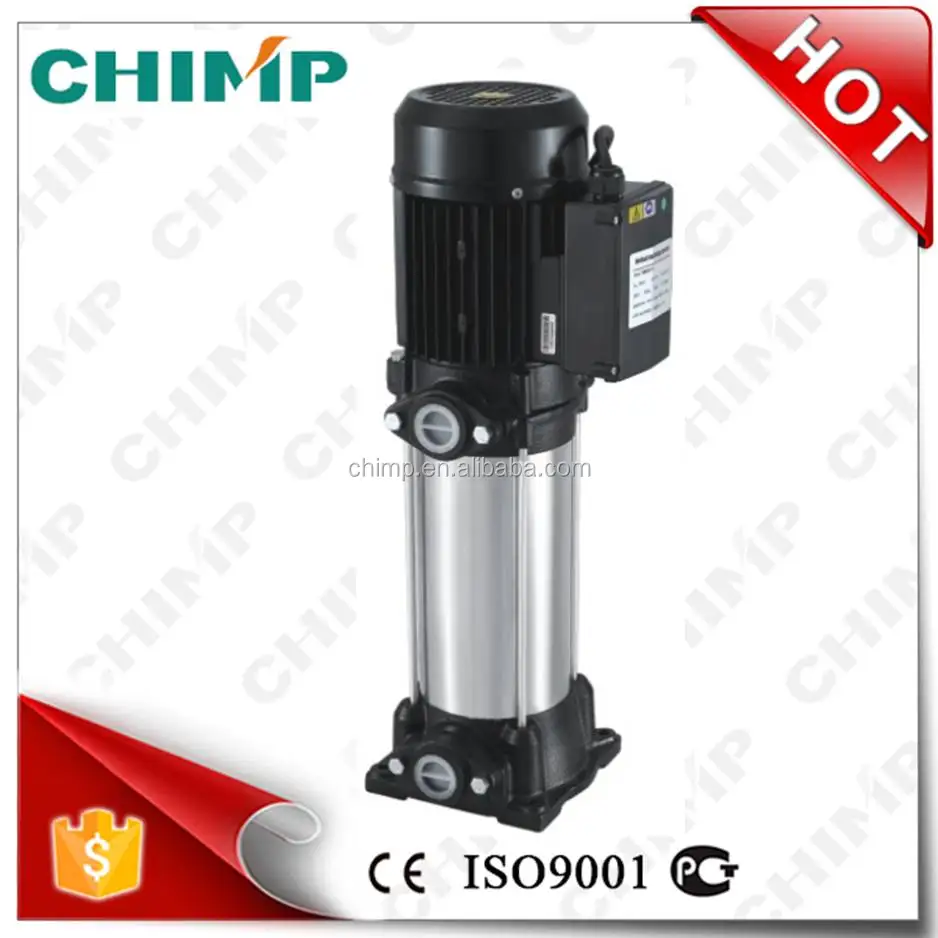

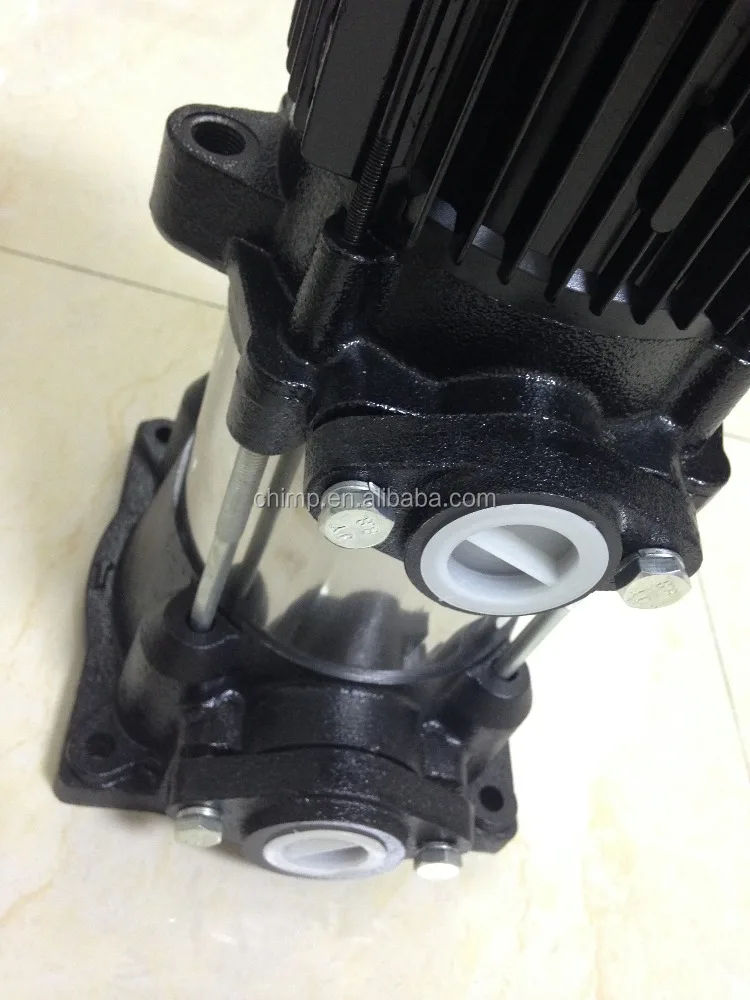

CHIMP Small Volume High Head VM2 9X3(T) Vertical Multistage Stainless Steel Centrifugal Pump

Product Overview

Description

CHIMP Small Volume High Head VM2-9X3(T) Vertical Multistage Stainless Steel Centrifugal Pump





TRANSMISSION MEDIUM

Thin, clean, non-flammable and non-explosive medium without soild particle or fiber

Such as mineral water, softened water, pure water, cleanup oil and other chemical medium

The main material of pump is stainless steel and engineering plastics which can be pumped slight  corrosive medium



CHARACTERISTIC

The material of pump housing is stainless steel and that of impeller and middlepiece is high-intensitive engineering plastic, which is corrosion resistant and long-lived.

Electric pump adopts low noise national standard motor and high quality mechanical seal which owns stable property.

 Attractive appearance and energy-efficient.

Small volume, high head and widely-used.



APPLICATIONS

Water supply: filtration and delivery,  regional delivery in water plant; pressurizing of pipeline; pressuring of high buildins.

Industrial boosting: process water system, cleaning system, high pressure washing system,  fire system.

Industrial liquid conveying: cooling and air conditioning system, boiler feed and condensate systems, machine matching, acid and alkali.

Water treatment: ultrafiltration systems, reverse osmosis systems, distillation system, separators, swimming pool.



MODEL CODING



TECHNICAL PARAMETERS

MODEL	POWER KW		RATED FLOW m³ / h	RATED HEAD m	Synchronous Speed r/min	POWER SUPPLY V/Hz	INLET/OUTLET mm
VM2-9x2(T)	0.37		2	18	3000	220/50   380/50	25x25
VM2-9x3(T)	0.55		2	27	3000	220/50   380/50	25x25
VM2-9x4(T)	0.75		2	36	3000	220/50   380/50	25x25
VM2-9x5(T)	1.0		2	45	3000	220/50   380/50	25x25
VM2-9x6(T)	1.0		2	54	3000	220/50   380/50	25x25
VM2-9x7(T)	1.1		2	63	3000	220/50   380/50	25x25
VM2-9x8(T)	1.5		2	72	3000	220/50   380/50	25x25
VM2-9x9(T)	1.5		2	81	3000	220/50   380/50	25x25
VM4-9x2(T)	0.55		2	18	3000	220/50   380/50	25x25
VM4-9x3(T)	0.75		4	27	3000	220/50   380/50	25x25
VM4-9x4(T)	1.0		4	36	3000	220/50   380/50	25x25
VM4-9x5(T)	1.5		4	45	3000	220/50   380/50	25x25
VM4-9x6(T)	1.5		4	54	3000	220/50   380/50	25x25
VM4-9x7(T)	2.2		4	63	3000	220/50   380/50	25x25
VM4-9x8(T)	2.2		4	72	3000	220/50   380/50	25x25
VM6-8.5x3(T)	1.1		6	25	3000	220/50   380/50	32x32
VM6-8.5x4(T)	1.5		6	34	3000	220/50   380/50	32x32
VM6-8.5x5(T)	2.2		6	42	3000	220/50   380/50	32x32
VM6-8.5x6(T)	2.2		6	51	3000	220/50   380/50	32x32
VM6-8.5x7T	3.0		6	60	3000	380/50	32x32
VM6-8.5x8T	3.0		6	68	3000	380/50	32x32
VM8-9x2(T)	1.1		8	18	3000	220/50   380/50	40x32
VM8-9x3(T)	1.1		8	27	3000	220/50   380/50	40x32
VM8-9x4(T)	1.5		8	36	3000	220/50   380/50	40x32
VM8-9x5(T)	2.2		8	45	3000	220/50   380/50	40x32
VM8-9x6T	3.0		8	54	3000	380/50	40x32
VM12-8.5x2(T)	1.1		12	17	3000	220/50   380/50	40x32
VM12-8.5x3(T)	1.5		12	25	3000	220/50   380/50	40x32
VM12-8.5x4(T)	2.2		12	34	3000	220/50   380/50	40x32
VM12-8.5x5T	3.0		12	42	3000	380/50	40x32
VM12-8.5x6T	3.0		12	51	3000	380/50	40x32

Taizhou Qiantao Pumps Co., Ltd. is a modern enterprise with a combination of development, production, service. It is specialized in producing electric pump and motor with more than 50 series and 1000 specifications.
Our company centers on people, equipped with a large technology team and management talent, forming significant human resource and powerful technology advantagement.

We own advanced electric pumps and assembly line for motors as well as online automatic testing systems. All these equipments supply favorable managing condition and reliable detecting methods. Our company has passed the ISO9001:2000 international quality system certification and "3C" electrician product certification. The products have won the producing licence granted by the national technical supervision bureau and "Agricultural Machinery popularization licence" granted by the national agriculture ministry.

Customers' satisfaction is the everlasting pursuit of “Qiantao” staff. Quality and credit standing is the forever main topic of Qiantao. We sincerely wish to cooperate and develop together with all partners. At the same time, we warmly welcome the new and old customers from home and abroad to do business with us and direct us.

At all times, Qiantao Pump Company is appling ourselves to normalized technology development and quality management construction. We constantly solidify, perfect and improve the company's total quality management standard. We also popularize ISO9000 quality management system. These not only uprise the management standard, promise the product quality, strengthen the running belief of "Customers' satisfaction is Qiantao people's persistent pursuit. Quality and credit standing is the forever main topic of Qiantao.", but also win the customers' trust.
