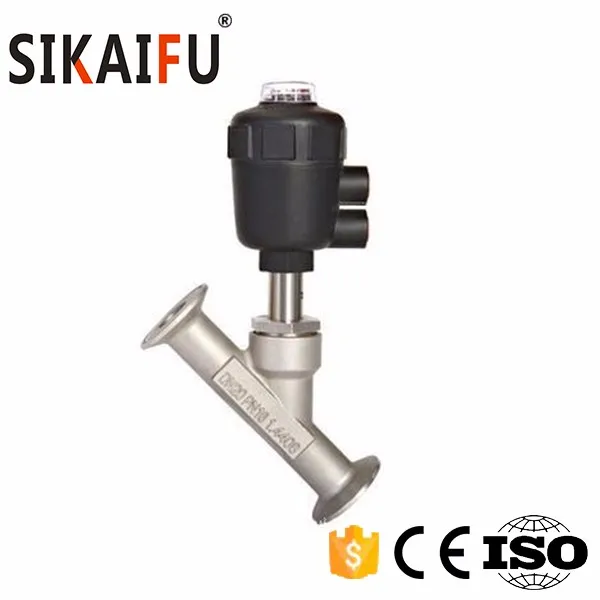

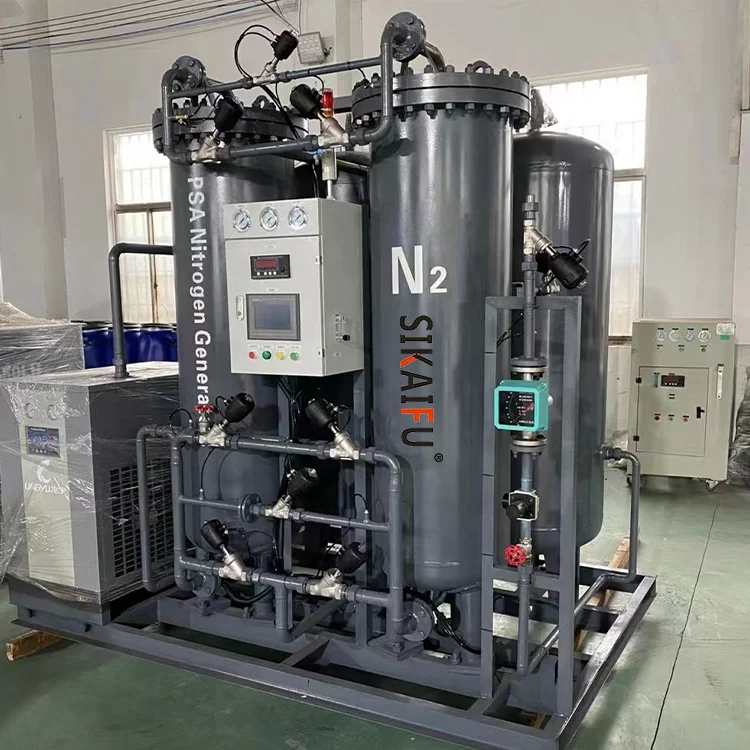

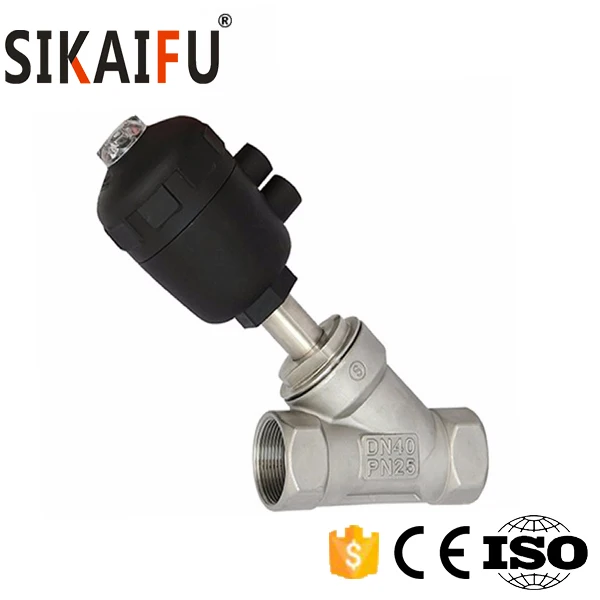

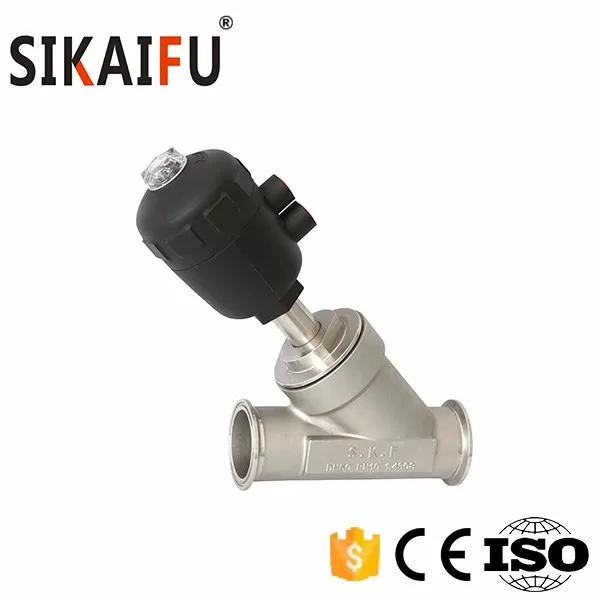

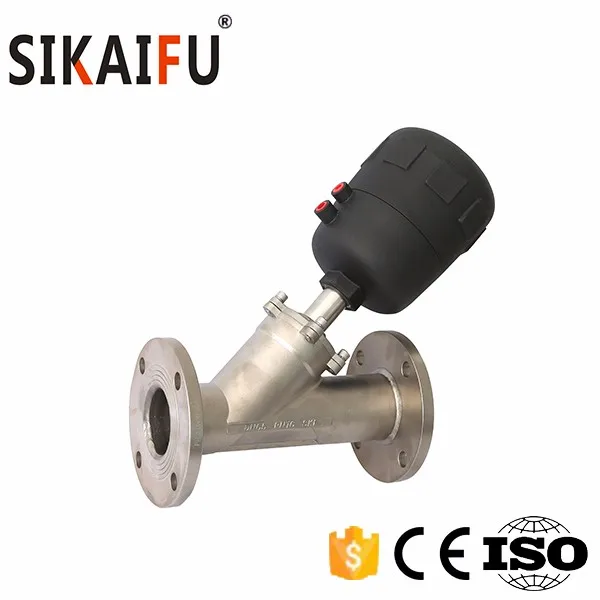

2/2 way pneumatic angle seat valve for Nitrogen generator

Technical Data:

Fluid Pressure: Max×1.6MPa(232psi)

Control Pressure: 0.3-0.8MPa(43.5-116psi)

Control Fluid: Neutral gas, Air

Actuator Size: 50mm, 63mm, 80mm, 100mm, 125mm

Applicable Fluid: Water, Alcohol, Oil, Dye, Steam, Neutral gas or liquid, Organic solvent, Acid and lye

Fluid temperature: -10℃~180℃,25℃~220℃

Ambient temperature:-10℃~80℃

Control Type:Normally closed, Normally open, Double acting

Connection: Threaded, Welded, Flanged, Tri-Clamp

Main Materials:

Body Material:  CF8(SS304) or CF8M(SS316)

Seals Material: PTFE

Actuator Material: PA

Applications:

Beer& Drink Filling Machinery

Textile printing & Dyeing
Gas industry

Pharmacy & Medical Equipment

Chemical industry
Disinfection
Frothing  Equipment
Water sewage Disposal

Advantages:

1.Large Flux, low Resistance, No Water-hammer Y-type Shape Enlarged The Flowing Section, which Could Raise The Flux By 30% And Make Flow More Smooth.
2.Super Long Life.
3.Which Help The Stem Adjust And Lubricate Itself Automatically.

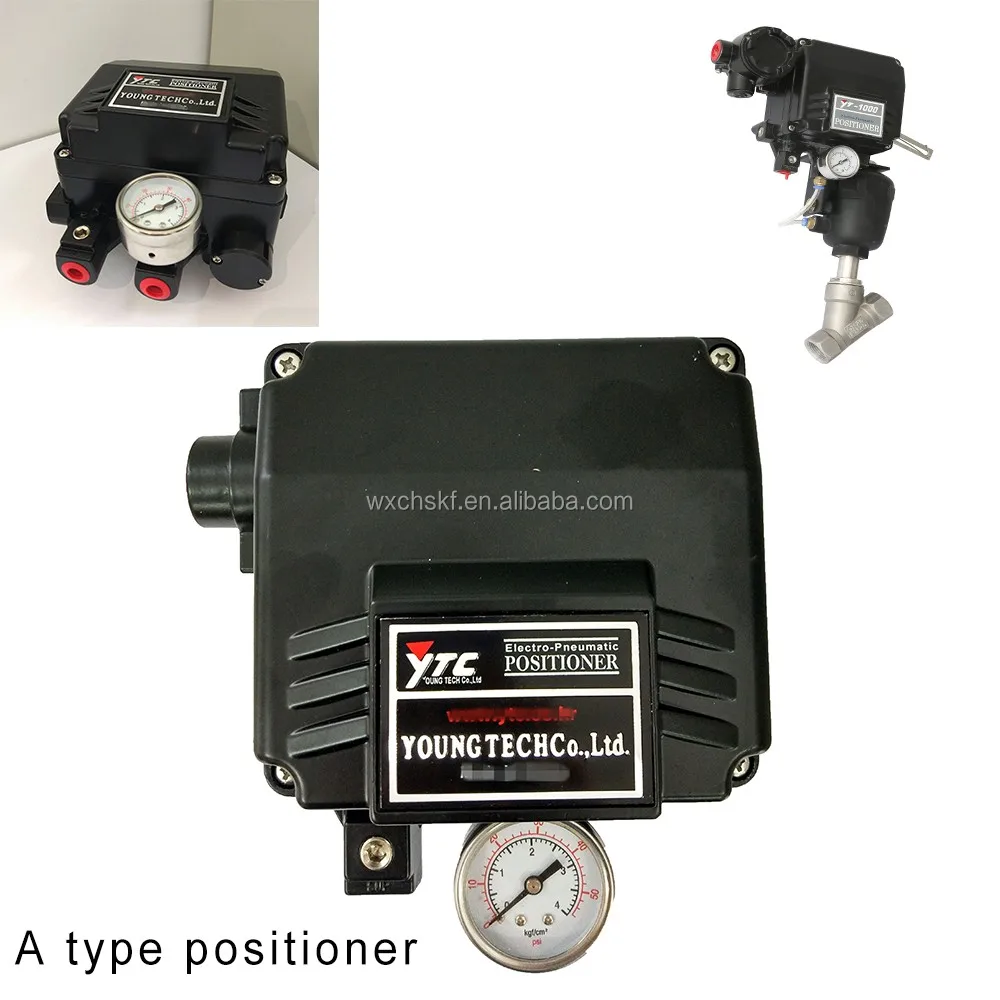

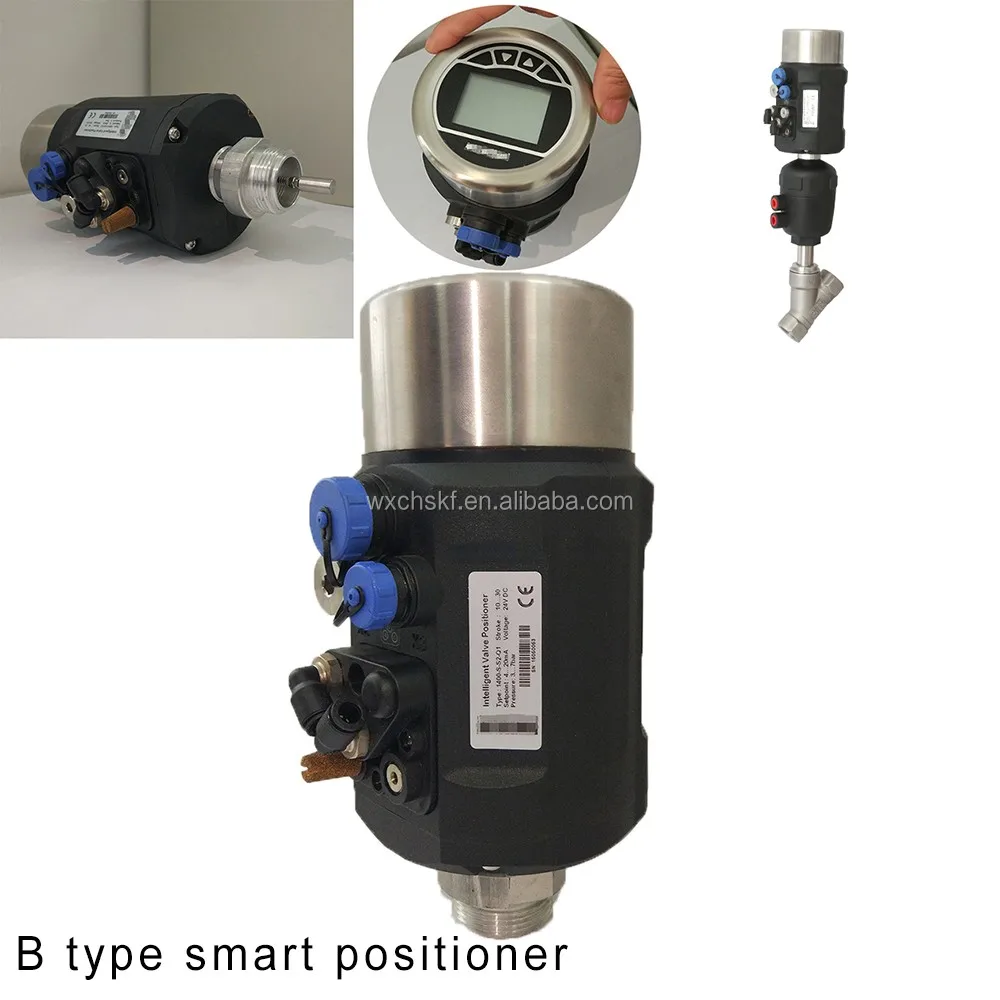

Two types of positioner can be chosen:

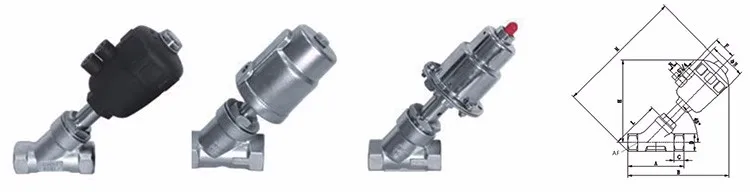

Female Thread Angle Seat Valve Outline Dimension

Female Thread Angle Seat Valve Technical Parameters

Wuxi Sikaifu Machinery Manufacturing Co.,LTD specialized in various types valves and actuators, such as Angle seat valve, Ball valve, Butterfly valve, Knife Gate valve, Control Valve and Globe valve as a professional manufacturer and seller.

SIKAIFU VALVE pholds breakthrough and innovative concepts for users with complete technical support and product services. Products are widely used in petrochemical, textile, industrial, beer and beverage, environmental protection water treatment, food processing and other fields. Products are closely monitored from design until loading for export.

1. Inner Packing: opp bag, then small carton box for each product.

2. Outside Packing: sta ndard exporting carton box or wooden box or as you required,

    Foam outside protecting the valves against damage

3. Usually we ship your order by sea or by express

4. Sample deliver: 3-7days after receiving payment by express;

    100~500pcs: 10~15 working days by ship.

    Above 500pcs: 30~45 working days by ship.

5. We accept T/T Bank transfer, Western Union, Moneygram, Paypal, Alipay
