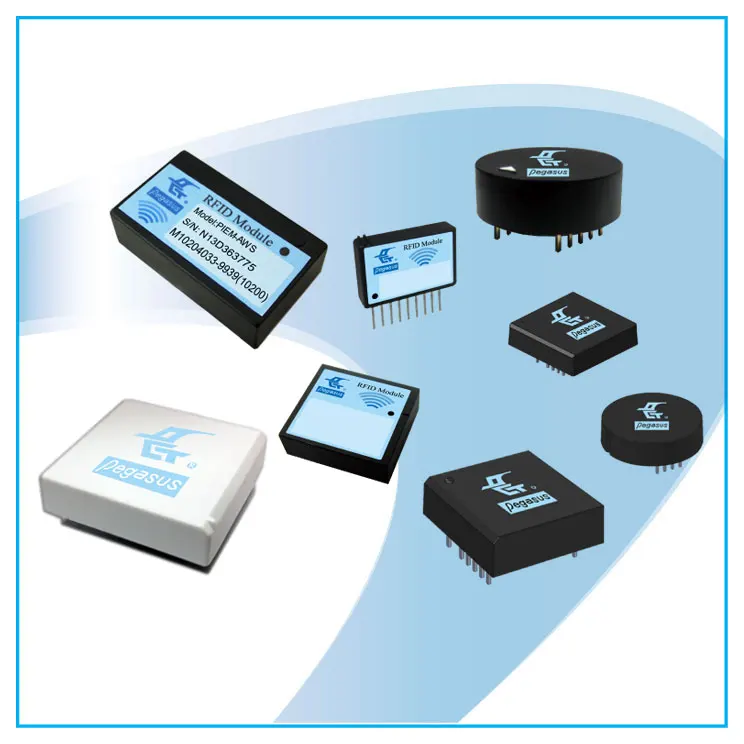

Wiegand 26 or ASCII LF 125KHz RFID EM ASK card read module with antenna

Product Overview

Description

125KHz RFID EM card read module with antenna

Features
•AM 125KHz contactless proximity reading RFID module specially for EM cards.
•Either Wiegand 26 or ASCII output determined by pin assignment
•Read only for EM cards, and the data are sent by Data 0 and Data 1.
•Lower cost with effective performance
•Compact size
•Including antenna

Specifications
•Dimensions: 26(Diameter) x 9 (H) mm
•Transmitting frequency: AM 125 KHz
•Power consumption: +3.3V ~ +5.4V, 12V(Optional)
•Read range: 5~6cm
•I/O: 25mA sink/source
•Operating temperature: -10℃ ~ 75℃
•Storage temperature: 20℃ ~ 85℃
•Storage humidity: 5~95% RH
•Net weight: 9.2g±5%



Dimension: Unit:mm[inch]

Application field










We reserve the right to change the specification without prior notice or obligation!
