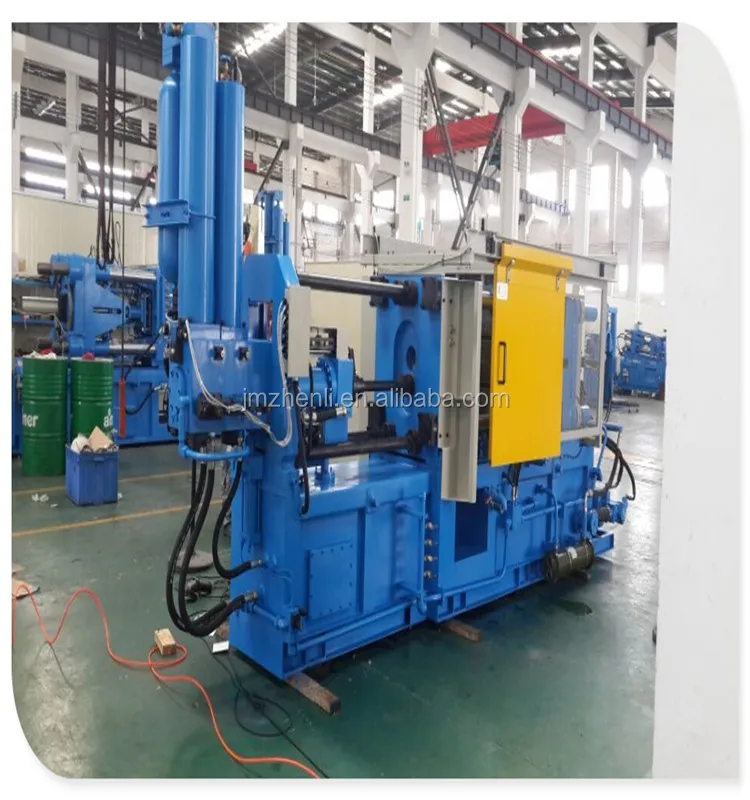

Машина для литья под давлением холодной камеры 220T для алюминиевых ручек

Product Overview

Description



 Jiangmen Zhenli Machinery Company

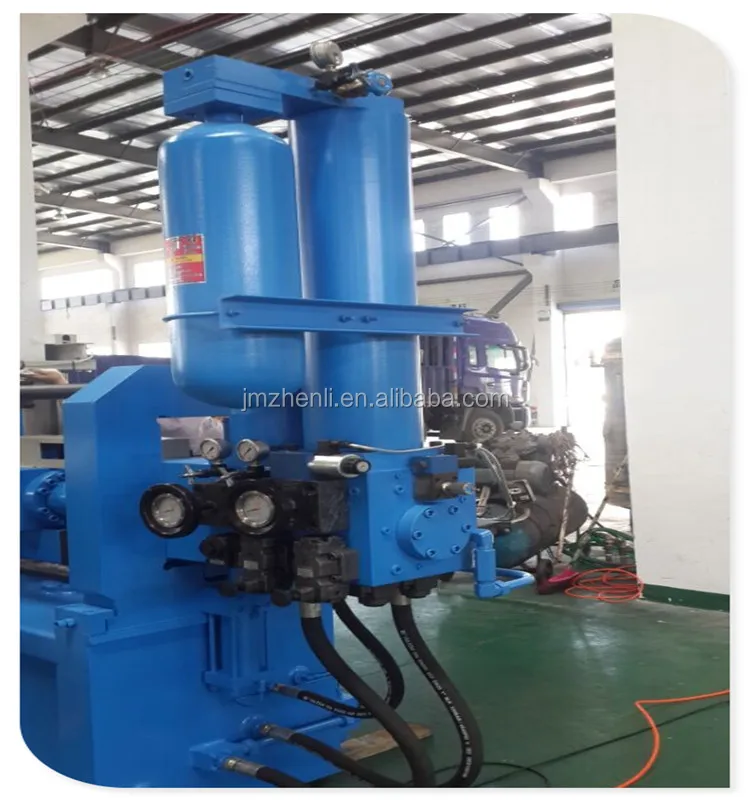

The injection system is equipped with large diameter logic valves and precise flow control valves,improves injection response,decreases oil pressure vibration and provides precise 4-stage shot adjustment.

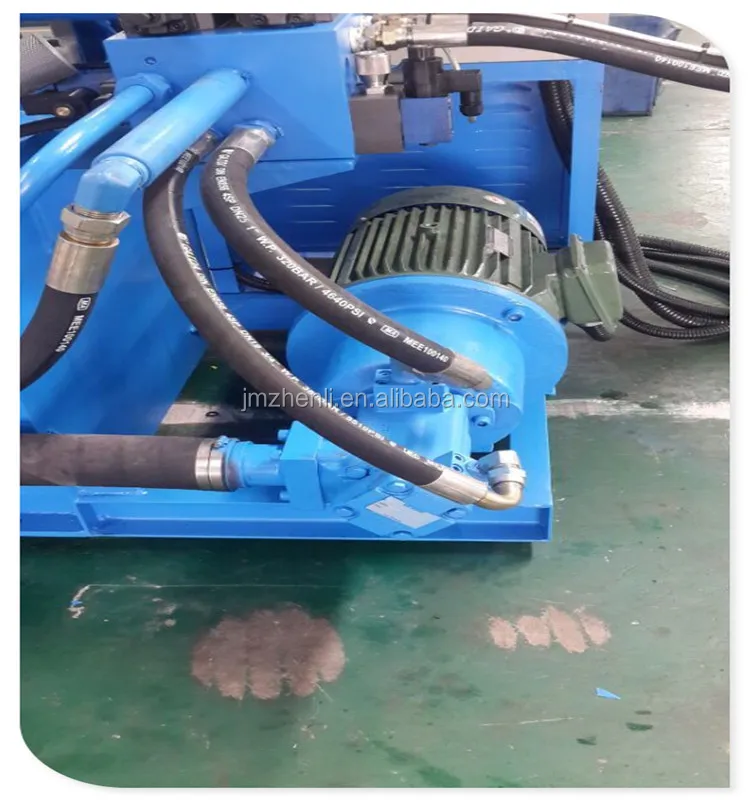

Adopts high and low pressure twin pump with high performance and low noise,saves energy consumption and improves production efficiency .


Adopts automatic concentrated lubrication system ,directly sets lubrication for times of machine operation and improves service life of the machine and decrease repair .



The planetary wheel system adopts oil motor to drive the gear mould adjusting machine structure which is easy to operate ;owns intelligent automatic mould adjusting program ,precisely calculates the mould locations ,which is convenient for mould replacing and improves efficiency .


The hydraulic ejector is convenient for control with adjustable ejecting speed .

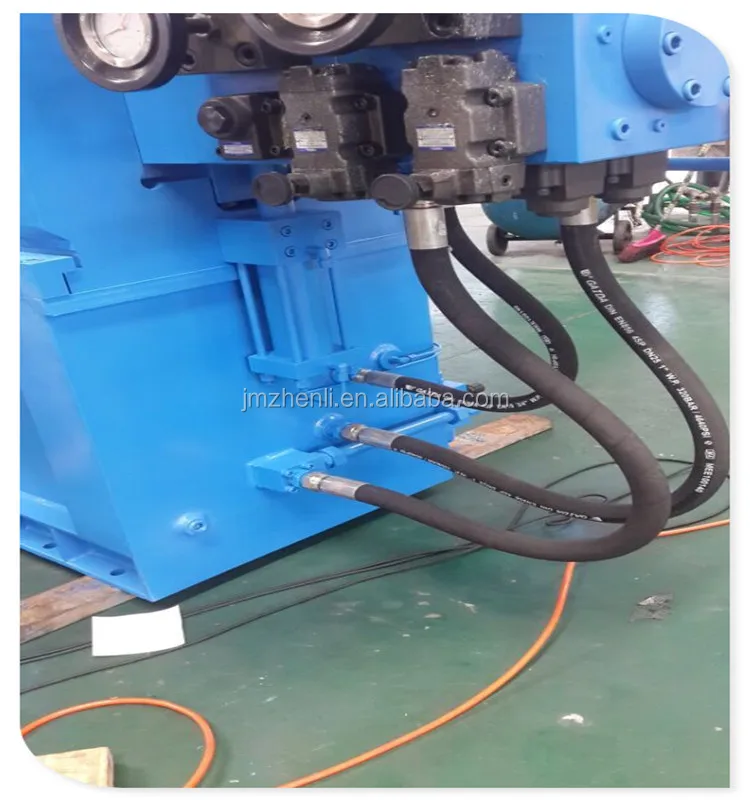

The hydraulic main system adopts double proportional control ,which is convenient for adjusting the pressure and speed of every movement in the operation .The outlay precise suction filter ensures the hydraulic system of cleanness and decreases weariness of the hydraulic components .





Appliances control:
1.Adopts precise artificial intelligent computer control,can control and supervise the data
and  status of every movement,which is convenient for operation and maintenace .
2.The large screen LCD monitor can realize conversion between Chinese and English.
3.Its powerful memory can store 100 sets of moulding data ,such as the time,times,speed,pressure,traveling distance,mould thickness,options,etc
4.Has self-check and alarm functions to failures of computer hardware,and display function of mechanical failures,which is convenient for mechanical failure removal .
5.Mould closing adopts high precision E-ruler positioning test,which can control the precise distance to 0.1mm.













Standard Configuration



Doubletoggle lock mould structure, high strength spheroidal graphite iron  casting plate.

Low pressure mold closing protection.

Mould adjustment device for gear train oil motor.

Concentrated automatic lubrication system.

Fast hydraulic ejector device and core pulling device.

4th level injection control system.

Independent piston 2-speed and pressure charging energy accumulator.

Hydraulic elevator sprue platform.

E-ruler control on mould opening and closing

Power saving high and low pressure twin pump hydraulic system.





Machine Configuration



Siemens 200 control system with LCD monitor (Germany).

Imported components are used for hydraulic units including YUKen (Janpan), Rexroth (Germany) and Vickers (USA)to ensure the stability of hydraulic system

Sealing members are bought from Sealtech of Hong Kong or Veco of France.

Sealing members are bought from Sealtech of Hong Kong or Veco of France

Posts and columns are purchased from Zhen Jiang HUA DING.

Electric parts are purchased from France Schneider.







 After-sales Service

When machine arrives at the Buyer’s factory, the seller will appoint engineer to your factory for

machine  commissioning and installation and training workers.







Warranty

We provide one year warranty for machine and three months for easy-broken Parts.





Technological Date



Item	Unit	ZLC-220
Clamping Force	KN	2200
Die Stroke	MM	380
Die Thickness(Min-Max)	MM	200-250
Platen Size(HXV)	MM	675-685
Space Between Tie Bars	MM	460X460
Tie bar Diameter	MM	80
Intensification Injection Force	KN	250
Injection Force	KN	110
Injection Stroke	MM	340
Plunger Diameter	MM	50, 60,70
Shot Weight	kg	1.3,1.8,2.1
Casting Pressure	Kgf/cm²	1477.1026.874
Casting area	cm²	135,194,228
Max Casting Area Under 40Mpa	cm²	604
Shot Injection Position	MM	0-125
Plunger Penetration	MM	145
Ejector Force	KN	121
Ejector Stroke	MM	85
Hydraulic Working Pressure	Kgf/cm²	140
Driving Motor	HP/KW	15
Hydraulic Oil Tank Capacity	L	460
Machine Weight	KG	7700
Machine Dimensions(L x W x H)	MM	5700X1450X2600







Package











Company Introduction

Established in 2002 and with more than ten years of development,ZHENLI machinery CO.,LTD,

has owned 20000square meters production bases. ZHENLI is a high-tech company specializing

in the R&D, production,sales and services. the main product of the company include "ZL" hot

chamber die casting machine, ZLC cold chamber die casting machines and the peripheral devices.



Adhering to the business philosophy of "keep improving and cast performance" and the spirit of

"Exploration,innovation,pioneering and integrity",zhenli is dedicated to the development of precision

computerized cold /hot chamber die casting machines which are widely applied in sectors of toys,

home supplies,building hardware,industrail  parts,telecommunication,auto parts and electronics

and satisfy the technical requirements for production of castings.
