Blend Polyol / ISOCYANATE

Product Overview

Description



Polyurethane Systems for Air Filter

DLQ-A / DLQ-B

Product introduction

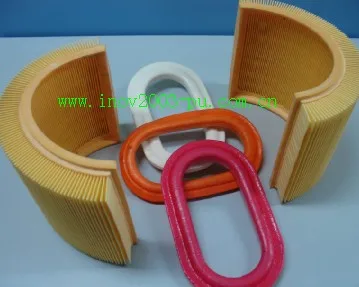

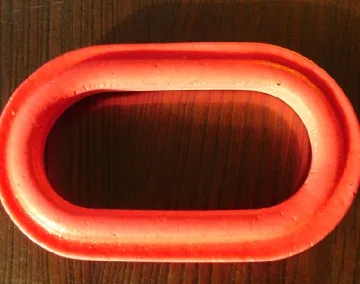

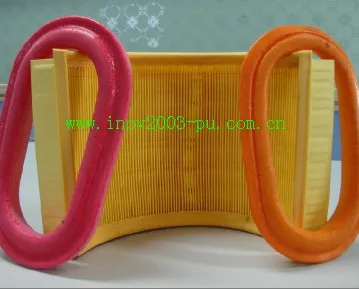

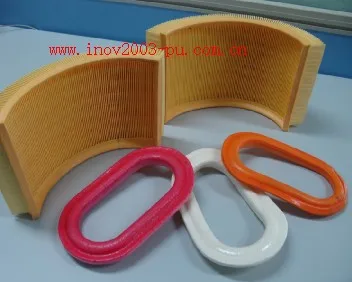

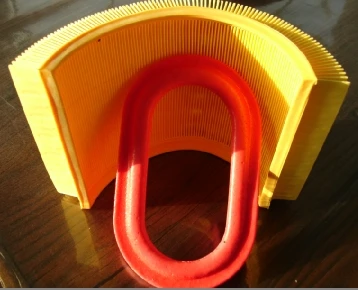

A component of Polyurethane systems of air filter (DLQ-A)is composed of hyperactive polyether polyols, cross linking agent, compound catalyst and so on.  B component (DLQ-B)is modified isocyanate, and it is micro-pore elastomer which adopts cold molding.  It has excellent mechanical and anti-fatigue property.  Also,with short production cycle, high efficiency and low energy consumption.  So it is widely used for manufacturing cars, ships, construction machinery, generator set and other internal combustion machinery's air filter cores etc.

Typical properties

	DLQ-A	DLQ-B
Appearance  Hydroxyl value  mgKOH/g -NCO% content     % Viscosity(25℃) mPa.S Specific gravity(20℃)   g/ml storage temperature ℃ Storage stability   Month	Pale yellow viscous liquid 70-90 -- 1000-2000     1.02±0.02 ≤25 6	Brown liquid — 26-30 150-350     1.20±0.05 ≤25 >12

    Store in original barrel in a dry place in recommending temperature

Recommended formula   DLQ-A / DLQ-B   100 / 30-50

Reaction characteristics (Material temperature is 20℃) actual value varies depending on processing conditions

	Manual mixing	High pressure machine
Cream time          S Gel   time          S Tack-free time        S Mold temperature    ℃ Demould time       min	15-30 40-60 90-120 40-50 4-6	8-15 30-45 60-100 40-50 4-6

Typical foaming characteristics

Hardness Density Tensile strength Tear strength Elongation at break 40%compression ratio(70℃,22h)

Shore A Kg/m3 MPa N/mm %              %

20-50 300-1000 ≥0.9 ≥1.0 ≥90 ≤10

The values above are typical which are measured by our company. To our products, the data included in the legal field has no constraints.
