DC 12V/24V Fail Secured Type Electric Strike(Pair with latch bolt mechanical lock)

Product Overview

Description

 Product Description

•Fail secured type.(Released as energized).

•Operation pair with latch bolt mechanical lock.

•Could be continuously energized.

•For light duty door.

•With decoration cover.

•PGS-706NS/SW with door monitoring switch.

•Application for aluminum or wooden door.


Specifications

•Lock size (mm): 150(L) x 30(W) x 30(H)

•Approx. weight: 360g±1%

•Nominal voltage: DC12V / DC24V

•Standby current: 0mA

•Working current: 200mA(12V) / 100mA(24V)

•Power consumption: 2.4W

•Depth of lock slot: 8mm

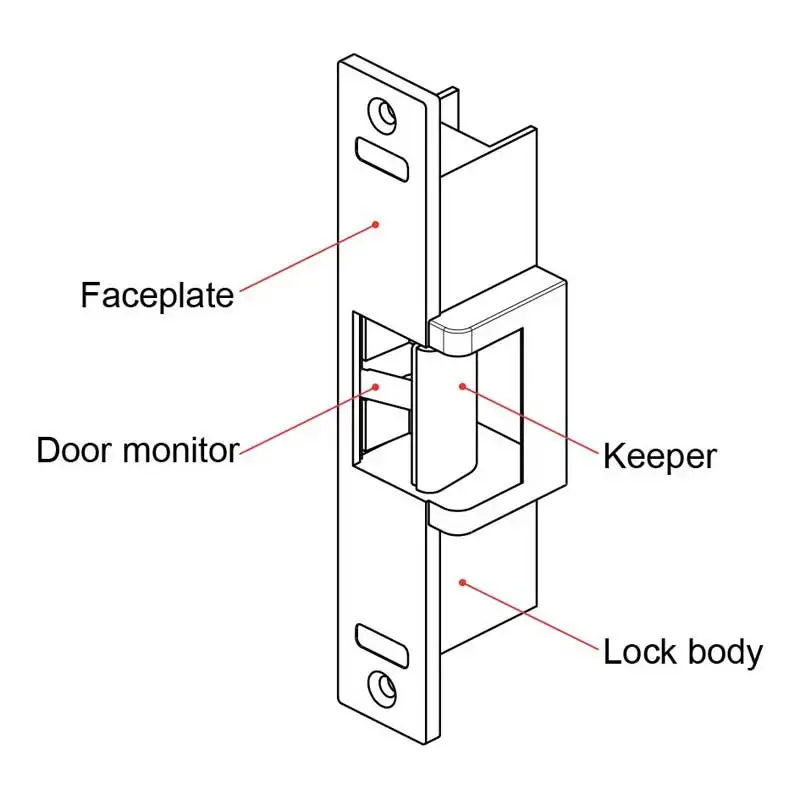

•Material:Zinc alloy(Faceplate/Lock body /Keeper)

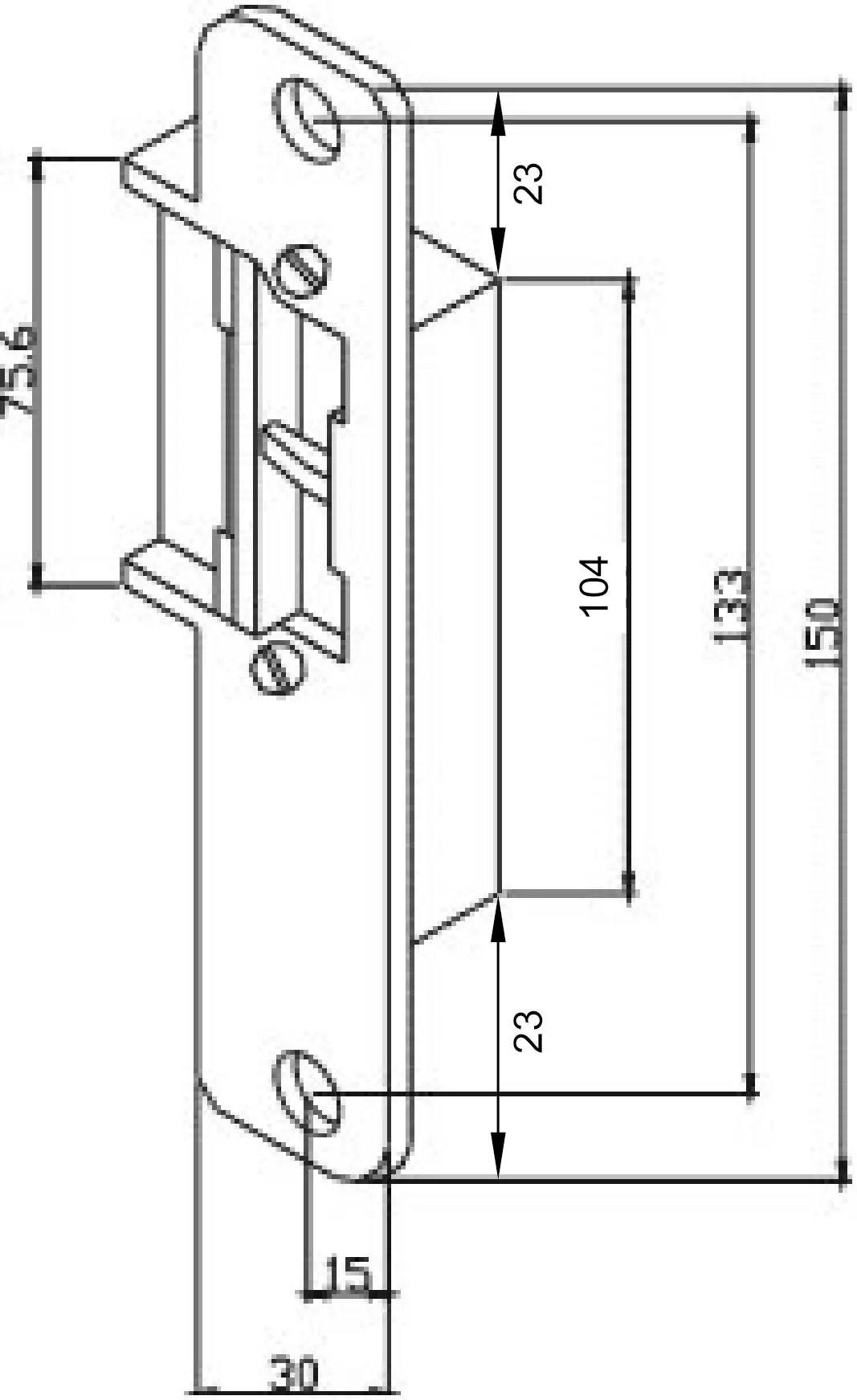

Dimension:
Unit: mm





Ordering information

PGS-706NS:  Fail Secured Type Electric Strike, 12V

PGS-706NS/SW:  Fail Secured Type Electric Strike, with door monitoring switch, 12V

PGS-706NS/SW-24V:  Fail Secured Type Electric Strike, with door monitoring switch, 24V













We reserve the right to change the specification without prior notice or obligation!
