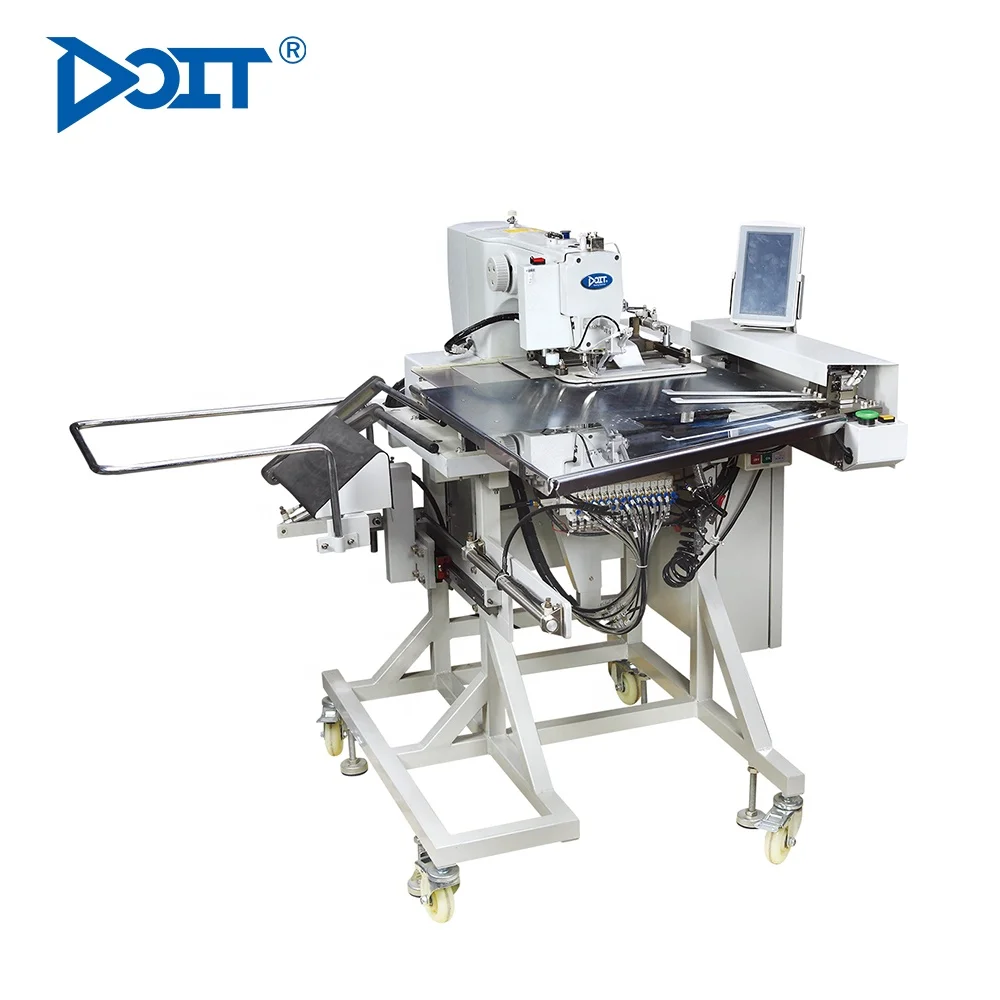

DT 2210MJ ASN/ADN Double needle automatic sewing placket line machine
- Category: >>>
- Supplier: Taizhou Do-It Imp. & Exp. Co. Ltd.
Share on (60359767475):
Product Overview
Description
Product Description
Specification
Specification:
1. DT-2210G-01MJ "J" stitch sewing machine : is for J stitch sewing on jeans, leisure trousers,uniforms,etc. The J stitch pattern can be programmed by specific programming soft which can maximized meet the needs for different trousers. And also be used on the dotted sewing,pocket pattern sewing.
2. It can sew by the use of lines with two colors, so as to avoid the positioning errors generated by secondary stitch position of the sewing machine. At the same time of completion of flat stitching, tacking and decorative lines and other special stitches can be synchronized to complete.
3. The machine can realize functions of automatic positioning, automatic feeding, automatic sewing, and automatic rewinding. One operator can operate two machines at one time.
4. Touch screen to operate system, facilitates pattern editing and data management. It has good compatibility, which is compatible with 210D/210E and BA tricks. At the same time, it has functions of dual patterns making and modification.
5. This machine is exclusively designed, which can sew by the use of lines with two colors, so as to avoid the positioning and sewing area errors generated by secondary stitch position of the sewing machine. At the same time, effect of sewing with two colors lines is beautiful and precise, which helps your factory to win more special orders.
1. DT-2210G-01MJ "J" stitch sewing machine : is for J stitch sewing on jeans, leisure trousers,uniforms,etc. The J stitch pattern can be programmed by specific programming soft which can maximized meet the needs for different trousers. And also be used on the dotted sewing,pocket pattern sewing.
2. It can sew by the use of lines with two colors, so as to avoid the positioning errors generated by secondary stitch position of the sewing machine. At the same time of completion of flat stitching, tacking and decorative lines and other special stitches can be synchronized to complete.
3. The machine can realize functions of automatic positioning, automatic feeding, automatic sewing, and automatic rewinding. One operator can operate two machines at one time.
4. Touch screen to operate system, facilitates pattern editing and data management. It has good compatibility, which is compatible with 210D/210E and BA tricks. At the same time, it has functions of dual patterns making and modification.
5. This machine is exclusively designed, which can sew by the use of lines with two colors, so as to avoid the positioning and sewing area errors generated by secondary stitch position of the sewing machine. At the same time, effect of sewing with two colors lines is beautiful and precise, which helps your factory to win more special orders.
MODEL | DT 2210MJ-ASN |
LINE | Single-needle flat seam |
Highest sewing speed | 2700rpm |
Sewing area device | 220x100mm |
Feed way | intermittent feeding(driven by plus motor) |
Needle pich | 0.05-12.7mm |
Maz. needle number | 20000 needles/1 pattern |
Stitch no. can be stored | 500000 stitch can be stored in build-inmemomery |
Presser foot drive | Pulse motor drive |
Work clamp height | Max. 30mm |
2-step presser foot | divided presser foot |
Paising amount by intermittemt presser foot | 22mm |
Stroke by intermittemt presser foot | 0 or 2-10mm(factory defaults:3mm) |
Scavenging device | Starndard facility |
Tangent device | Starndard facility |
Customer porgramme No. | 50 |
Recyle programme No. | 9 |
Motor | AC servomotor 550W |
The Weight | Head: about 108kg |
Power supply | Single phase100-120V,200V-240V,3-phase 200-240V,380-415V.350V |
Air Pressure | 0.5Mpa, 1.7L/min |
