High Quality Bourdon Tube Price Of Hydraulic Water Pressure Gauge

Product Overview

Description

Name:   High Quality Bourdon Tube Price Of Hydraulic Water Pressure Gauge





Types of Hydraulic Pressure Gauge



♦ Normal Pressure Gauge



♦ Pressure Vacuum Gauge



♦ Stainless Steel Pressure Gauge



♦ Vibration-resisting Pressure Gauge



♦ Diaphragm Pressure Gauge



♦ Gauges with Capsule Elements



♦ Stainless Steel capsule gauge



♦ Sanitary Pressure Gauge



Application of   Hydraulic Pressure Gauge



YN series have good vibration-resisting performance,suitable for the working circumstance with mechanical vibration and medium pulse.They can be used to measure the liquid,gas and steam mediums without explosion danger and crystallization.



Advantages of    Hydraulic Pressure Gauge



1) The main parts,sheath,connection header,core,spring elements ect.are made up of stainless steel material. So they are not only handsome,but cauterization-resisting.



2) By using bayonet to connect the cover and the case,the YN series have reliable seal performance.



3) Yn series have reasonable design and reliable production process,so have ascendant vibration-resisting performance.



Main technic Indicator    Hydraulic Pressure Gauge



Model#		YN-60	YN-100	YN-150	YN-200
Norminal Diameter		Φ60	Φ100	Φ150	Φ200
Connection Thread		M14*1.5	M20*1.5
Accuracy Class		2.5	1.6	1.0;1.6
Measuring Range Mpa		0~0.1;0~0.16;0~0.25;0~0.4;0~0.6; 0~1;0~1.6;0~2.5;0~4;0~6; 0~10;0~16;0~25;0~40;0~60;
Vibration-resisting Class		V.H.4
Operation Circumstance		Temperature:-40~70°C,Relative Humidity:85% or smaaler

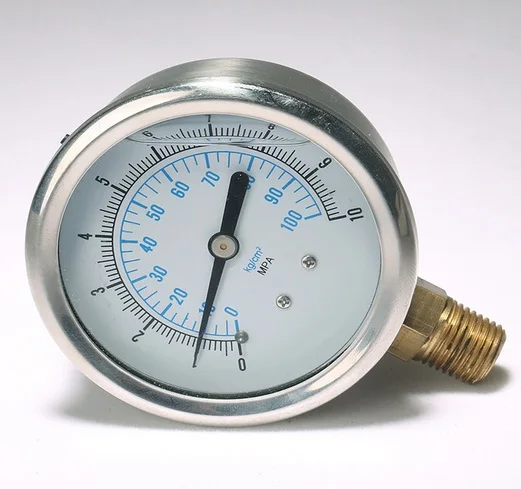

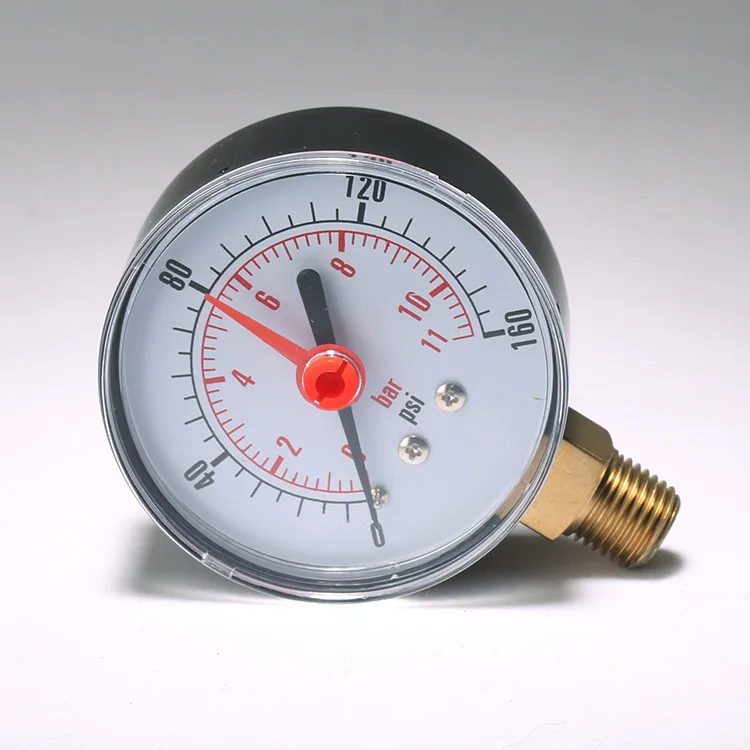

Picture of    Hydraulic Pressure Gauge









.
