Half size ISA CPU Onboard STPC133MHz 32M Ram half size motherboard half size mini card
Half-size ISA CPU Onboard STPC133MHz 32M Ram half-size motherboard half-size mini card
Half-size ISA CPU Onboard STPC133MHz 32M Ram half-size motherboard half-size mini card

Half size ISA CPU Onboard STPC133MHz 32M Ram half size motherboard half size mini card

Share on (60360010295):


Price:RUB 12,853.72

Quantity:


Product Overview

Description

        Half-size ISA CPU Onboard STPC133MHz 32M Ram half-size mini card

Product Description

 Model No:PT-H4861

 Main feature :

.Onboard STPC 133MHz CPU

·Onboard 32M RAM

·2 x RS232

.40pin IDE and CF(Optional)

.Supports LAN/PC104(Optional)

.Supports DiskOnChip2000 SSD



Specification :

CPU

Onboard STPC133MHz

Chipset

STPC Consumer II 133

Memory

Onboard 32M RAM

Storage

1*40pin IDE, DiskOnChip2000 ,1*CF (Optional)

Expansion Slots

PC/104(Optional)

Back Panel

I/O Port

1 x VGA

1 x RJ45 10/100M LAN(Optional)

1 x RS232

1 x PS/2 KB&MS

Internal

 I/O Port

1 x RS232 header

1 x LPT header

1 x 40pin IDE

1 x CF(Optional)

Watchdog Timer

Software programmable

Bus Standard

Half-size ISA

Power supply

DC5V  AT/ATX

Dimension

185 x 122mm

OS

Linux/DOS

Operating Temperature

0°C ~ 60°C

Storage Temperature

-20°C ~ 80°C

Storage Humidity

5~90%@40°C(non-condensing)



Ordering information:

PT-H4861

Half-size ISA  CPU Card, W/STPC133MHz/32M Ram/1*VGA/1*COM/1*PS2 KB/MS/LPT/IDE





Product Pictures:

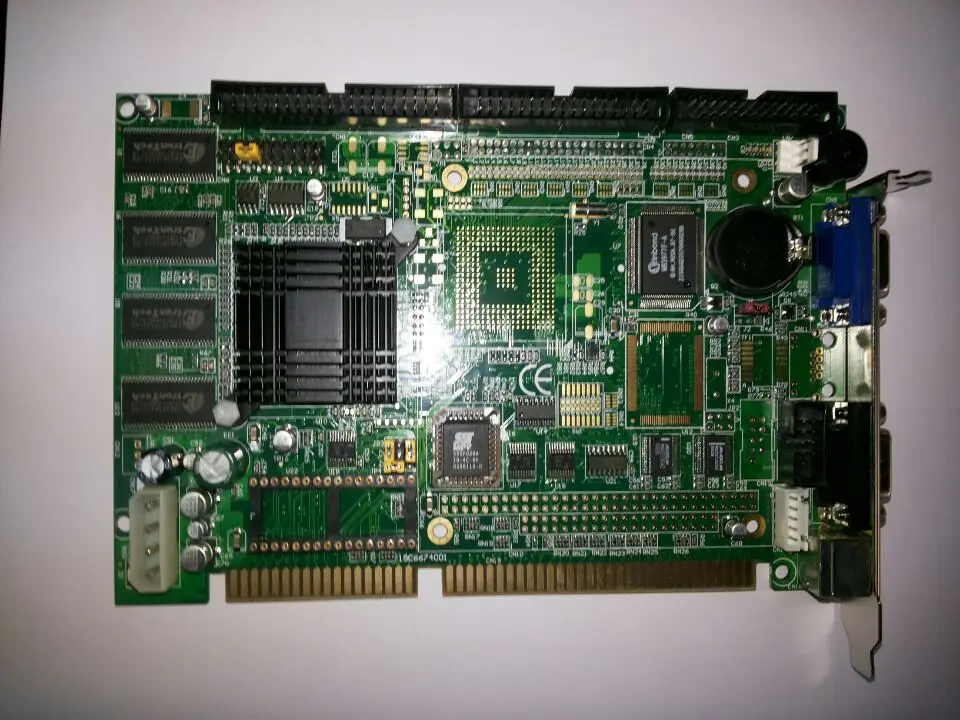

4861 1
