GT02 GPS tracker for car/elctric bicycle/motorcycle/ vehicle 4 band GPS tracker GT02A Google with platform real time anti theft
- Category: >>>
- Supplier: Shenzhen Deyun Technology Limited
Share on (60360242287):
Product Overview
Description
Product Description
GT02 GPS tracker for car/elctric bicycle/motorcycle/ vehicle 4 band GPS tracker GT02A Google with platform real time anti-theft
Specification

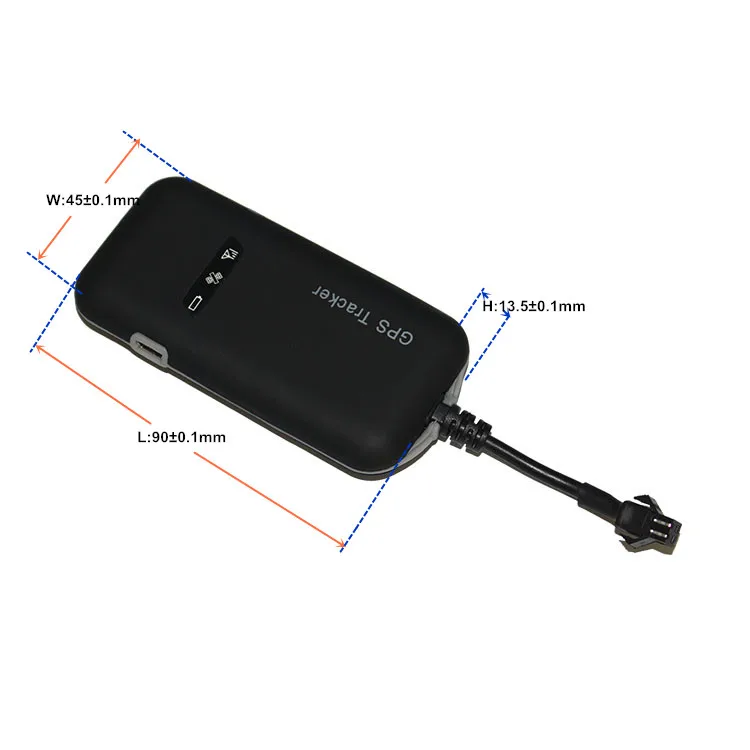

| Dimension | 90(L) x 45(W) x 13.5(H) mm |
| Weight | 45g |
| Operation Temperature | -30℃ - 70℃ |
| Operation Voltage | 9-36vDC |
| Humidity | 20% - 80% |
| GSM Frequencies | 850/900/1800/1900 MHz |
| GPRS | Class 12 |
| GPS Sensitivity | -159dBm |
| Acquisition Sensitivity | -144dBm |
| Position Accuracy | 10m |
| TTFF (Open Sky) | Cold Start: <38s |
| Warm Start: <32s | |
| Hot Start: <2s | |
| GSM/GPS Antenna | Built-in design |
| LED Indicator | GSM-green, GPS-blue, Power-red |
| Data Transmit | TCP, SMS |
| Non-movement Detection | Movement alarm based on built-in 3D motion sensor |
| Mileage Report | Track by time/distance interval |
Feature
1.For car
2.Work voltage:9V-36V
3.LED instructions
4.Side key function
6.Auto poweron
7.Platform free use for 1 year
8.APP for Android and Apple portable device

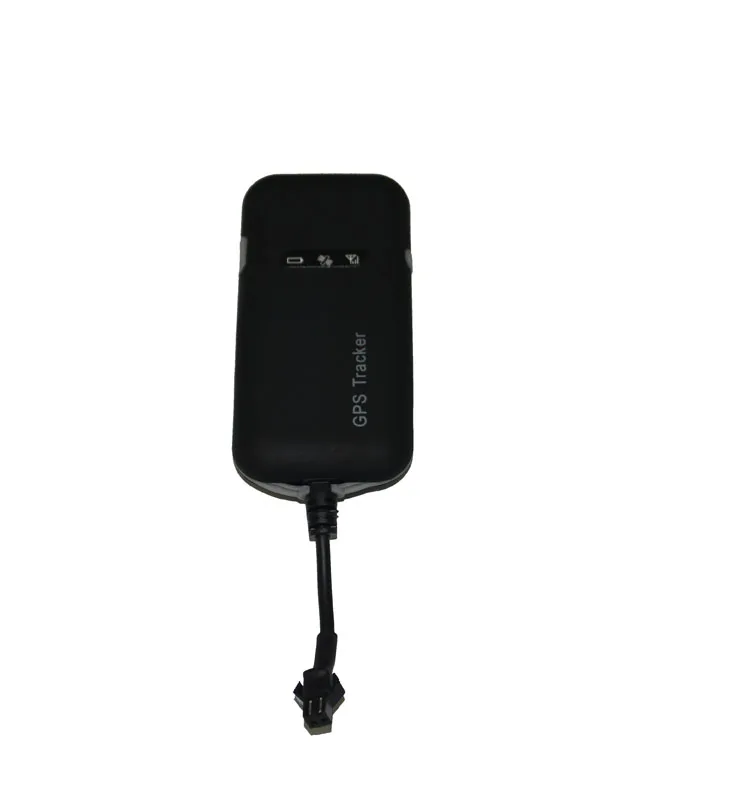

Picture of Tracker
Picture of details
Remarks

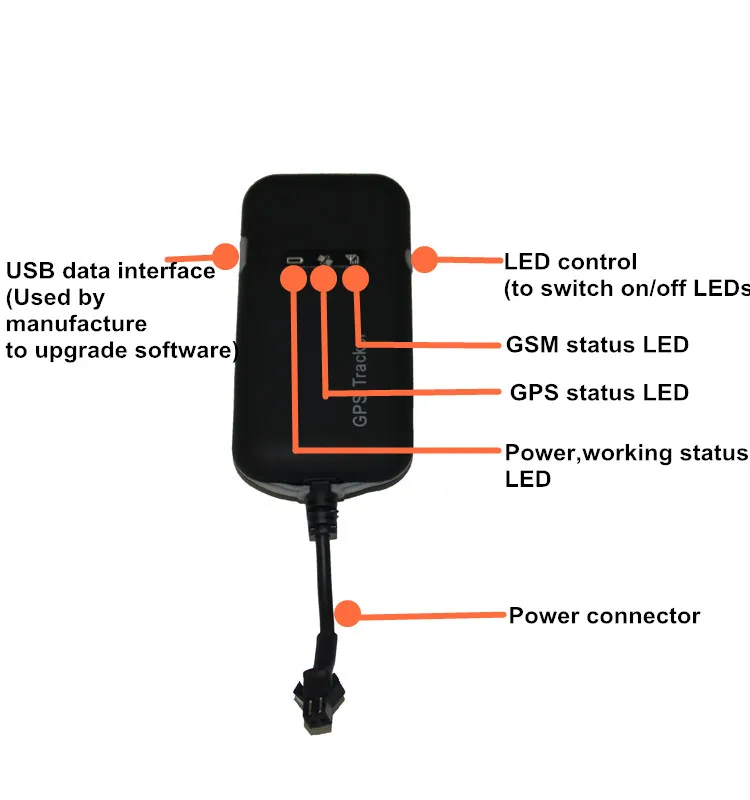

1.GPS\\GSM antennas are built-in design,it can be artistic but unaffected.
2.3 colours status indicator lamp,are uesd to show the GSM status,GPS status and power working status.
3.Power onnector,it works as a line to connect the engine and the tracker,offering orginal supply to tracker.

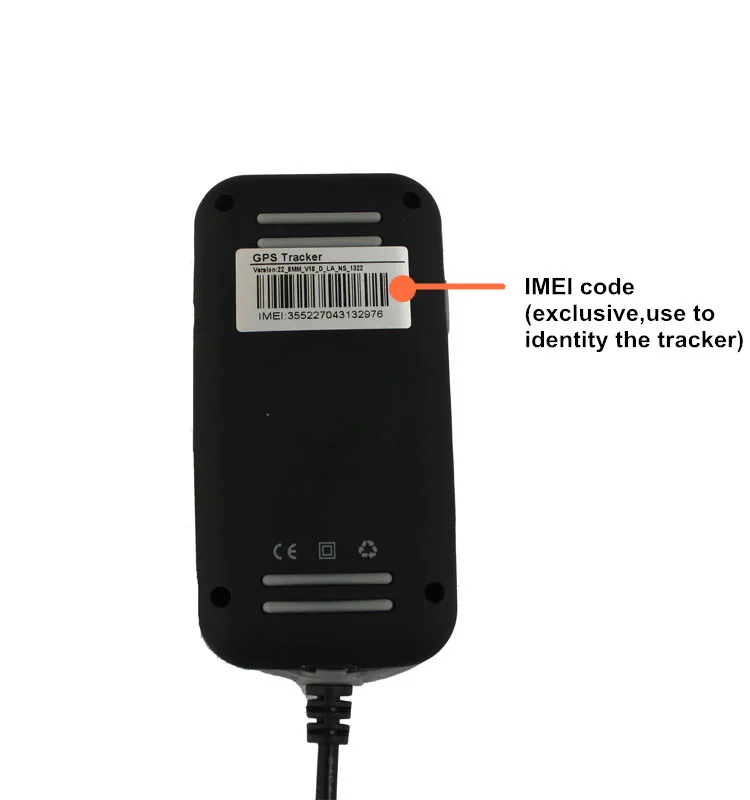

4.IMEI code is exclusive and applied to identity the tracker.
5.GPS mode is adapted to u-blox 7020 chip, its position accuracy reaches to 5m.
6.GSM mode is adapted to MTK MT6260D chip,has dual core, can transmit data by TCP and SMS.
7.DC-DC circuit can convert the voltage 9~36V of engine to 5V for tracker to work normally.
8.GSM chip can support SIM card of worldwide bands of 850/900/1800/1900MHZ.
Places for installation
platform
1.Platform
Demo account:demo2018
Password: 123456
2.APP ISO & Andriod ( Multiple languages can be choosed)
1. Download way 1:
Google/Apple store search: GNSS
2. Download way 2:
//www.18gps.net/app/chewukong/mobiledownload_en.html
choose: 19GPSGROUP->19GPS
Remarks:
1.The platform free use for 1 year.
2.Another platform is //www.20gps.net , the way is same to //www.19gps.net.

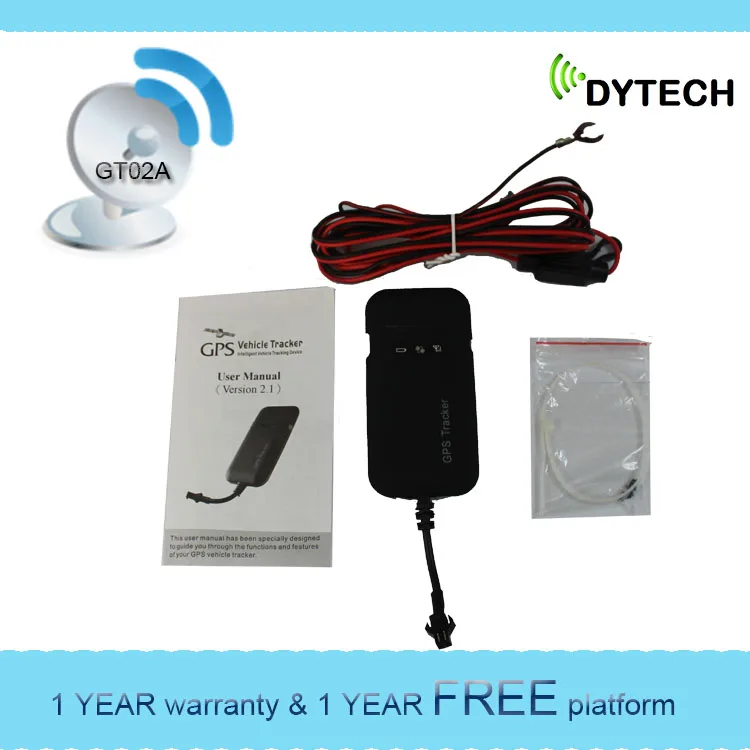

Packaging & Shipping
giftbox
canton box
