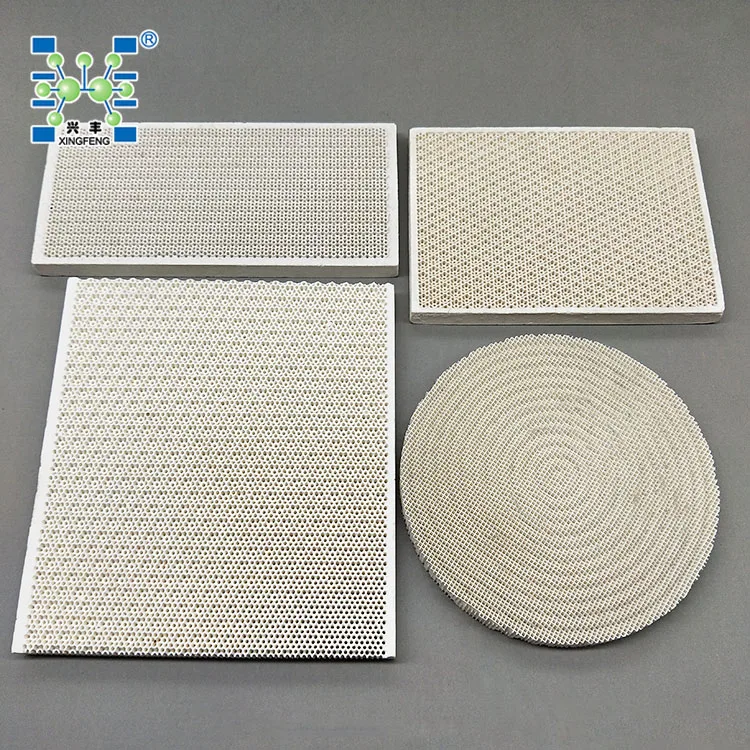

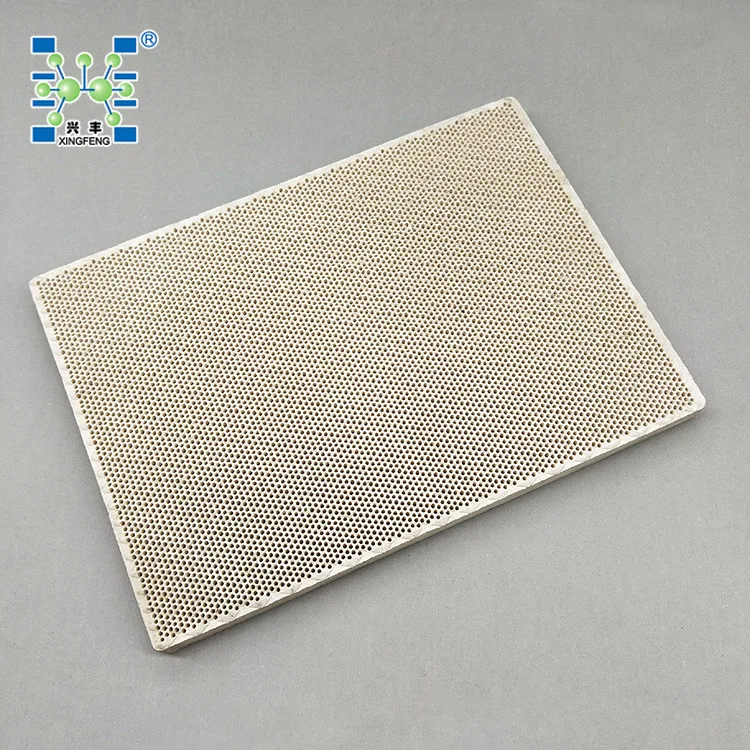

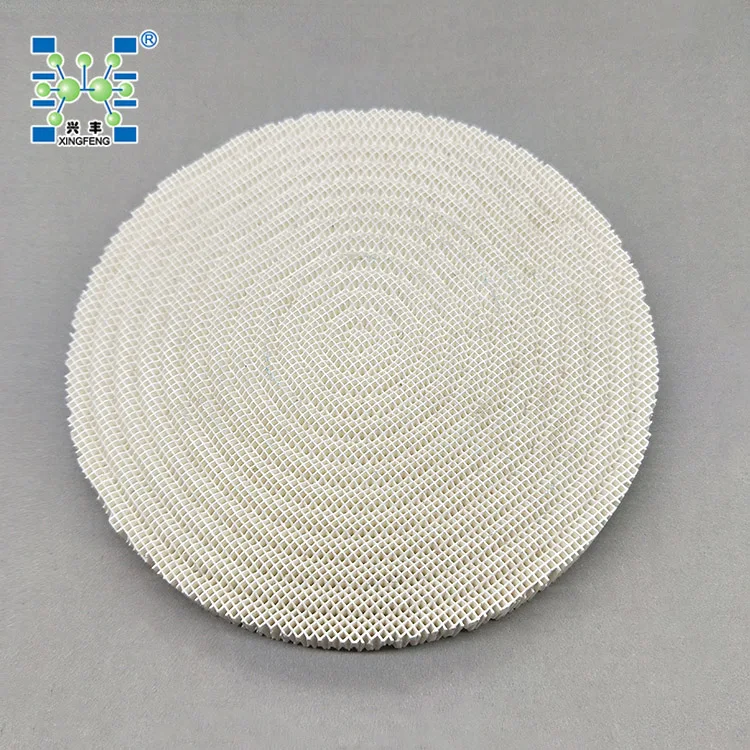

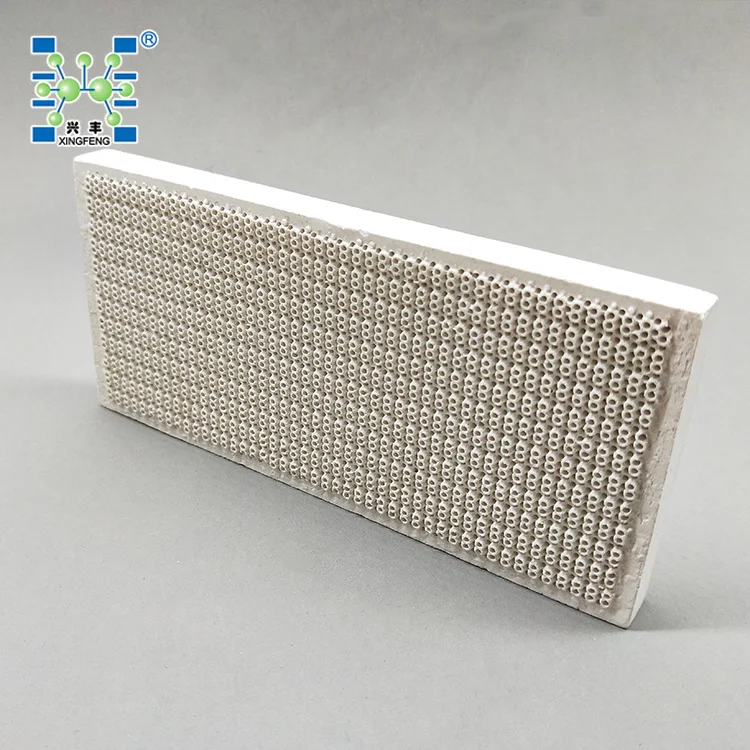

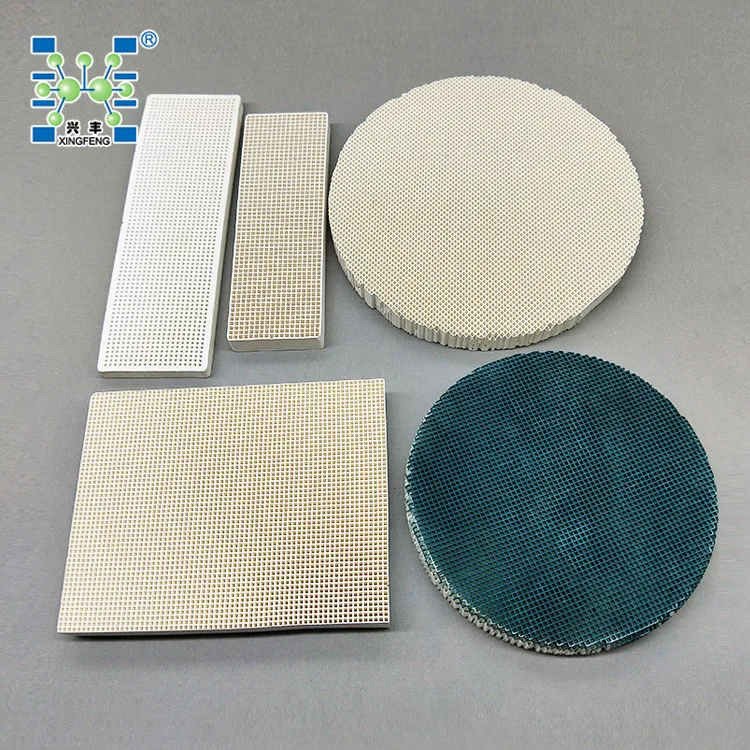

Honeycomb Ceramic Heater Plate
- Category: >>>
- Supplier: Pingxiang Xingfeng Chemical Packing Co. Ltd.
Share on (60360419854):
Product Overview
Description
Honeycomb Ceramic Heater Plate
Product Description
Infrared honeycomb ceramic combustion plate is the key component of infrared radiation burner. The performance is good or bad, will directly influence and determine the infrared burner energy-saving, environmental protection, health and economic performance.
The products are mainly applied to combustion infrared burner, infrared gas stove, infrared heater.
Applications
Barbecues | Gyro Cookers | Evaporators | Ranges |
Broilers | Pizza Ovens | Gas Ovens | Rotisserie Ovens |
Convection Ovens | Pressure Fryers | Griddles | Space Heaters |
Deep Fat Fryers | Process | Greenhouse CO2 | Sear Cookers |
Characteristics:
- High mechanical Strength;
- Large specific surface area;
- Geometric size regular;
- Uniform radiant burning;
- Excellent thermal shock resistance;
- Save up to 30~50% energy cost;
- Burn without flame, high burning efficiency, low noise;
- Has no carbon combustion channel non clogging;
- Reduce the harmful gas such as CO, NOx, etc more than 90%.
Performance index:
Item | Date | Notes |
Materials | Cordierite | We can provide you the product by you desire. |
Water Absorption | 50.4% | |
Open Porosity | 61% | |
Specific Gravity | 0.6-0.9g/cm3 | |
Thermal Expansion Coefficient | 1.5-3(×10-6K-1) | |
Temperature Softening | >1280℃ | |
Cooking Surface Temperature | 1000-1200℃ | |
CO Release | ≤0.006% | |
NOx Release | ≤5ppm |
Dimension
Dimension (mm) | Shape | Square (Length * Width) | <200×140 |
Round (Diameter) | 50-200 | ||
Thickness | 13 | ||
Hole Diameter | 1.1 | ||
Holes Interval | 2-2.1 | ||
