industrial electric vacuum furnace / oven for vacuum brazing of magnetic
Brief introduction:
Vacuum furnace / oven is a professional heat treatment furnace with high purity Sic as heating element, which is used in low vacuum environment. In the metal shiled or ceramic fiber furnace chamber equips with high vacuum pump systems. Vacuum degree can up to 10/7*10-3 Pa. The furnace chamber is alumina refractory fiber or metal shiled for excellent thermal insulation, vacuum reservoir wither cooling system. The Vacuum furnace / oven has the advantages of novel structure and convenient operation.
Features:
1. Working temperature:1200oC/1400 oC/1700 oC
2. Completely eliminates the oxidation and decarburization during the process of heating, clean surface without metamorphic layer can be obtained.
3. environment pollution-free, "three wastes" treatment is not required
4. Obviously improve the temperature measurement and monitoring precision
5. Stainless Steel structure with water chiller. Lower temperature in outside case.
6. 30 segment intelligent PID temperature controller system.
7. Maximum energy efficiency is achieved by thermal-efficient alumina fiber ceramic insulation.
Technical parameter :
Our company can produce the following three temperature Vacuum furnace / oven:1200oc Vacuum furnace / oven, 1400oc Vacuum furnace / oven, 1700oc Vacuum furnace / oven. The customers can order suitable furnace according to their special requirements.
Model | PT-1200VF | PT-T1400VF | PT-T1700VF | |||
Max.temp | 1200oC | 1400oC | 1700oC | |||
Work temp | 1100oC | 1300oC | 1600oC | |||
Heating rate | 0-20oC/min | 0-20oC/min | 0-15oC/min | |||
Heating element | Resistance wire with Mo | SiC | MOSi2 | |||
Thermal couple | K type | S type | B type | |||
Chamber material | Ceramic fiber/Metal shield | Ceramic fiber/Metal shield | Ceramic fiber/Metal shield | |||
Working control | Power control with 30 segments programmable/touch screen | |||||
Temperature accuracy | ±1℃ | |||||
Power supply | 110-415V, 50/60Hz | |||||
Furnace cooling | Nature air cooling/Water cooling | |||||
Max. Vacuum | 10/7*10-3Pa | |||||
Accessories
| 1 X protective glove 1 X Crucible tong 1 X Furnace Door Block | |||||
Standard stocks | ||||||
Chammber size(mm) | Effective volume(L) | Chammber siz(mm) | Effective volume | |||
150*150*150 | 3.4 | 300*300*400 | 36 | |||
150*150*200 | 4.5 | 400*400*400 | 64 | |||
200*200*200 | 8 | 500*500*500 | 125 | |||
200*200*300 | 12 | 600*600*600 | 216 | |||
300*300*300 | 27 | 800*800*800 | 512 | |||
Note: Customized vacuum furnace chamcer is accepted.
Applications :
This Vacuum furnace / oven is widely used for heat treatment of metal materials in vacuum, recurdive, protective atmosphere, and used for hear treatment of apecial materials, such as carbonation process of crbon products development. Also our vacuum furnaces can be used in the fields of science & research and so on.

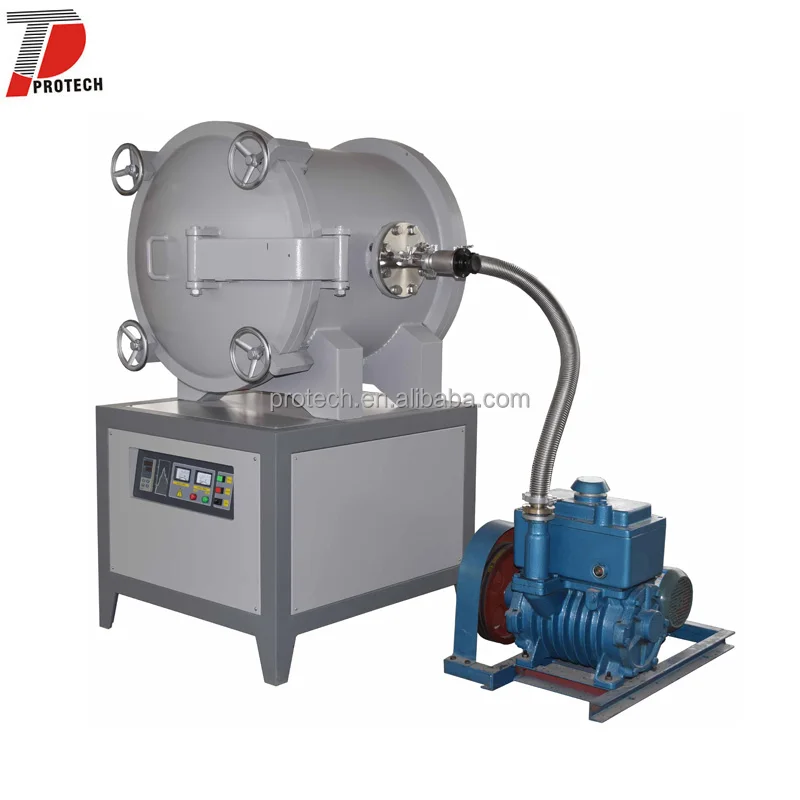

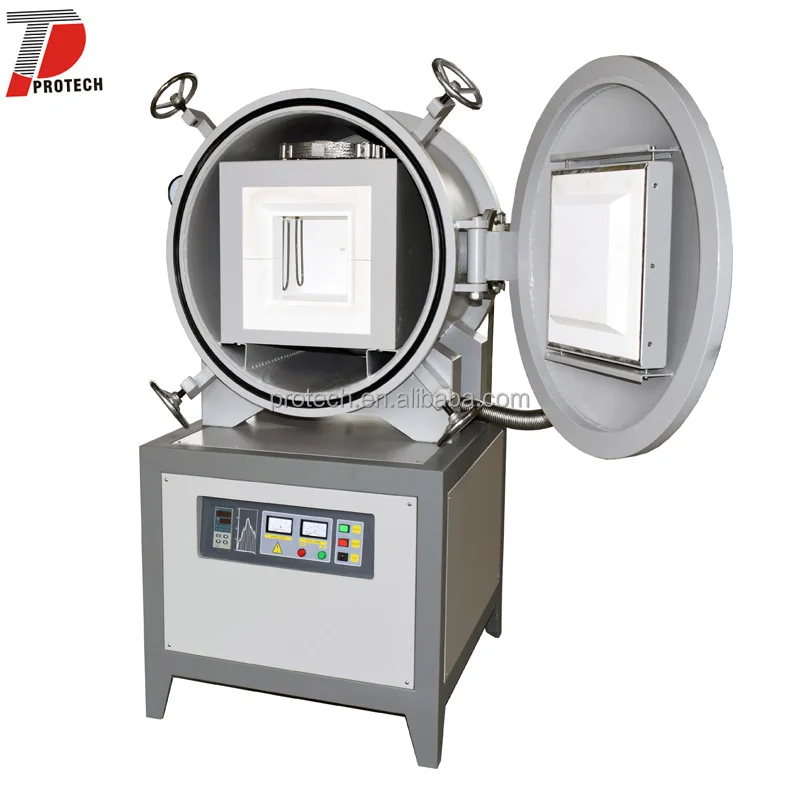

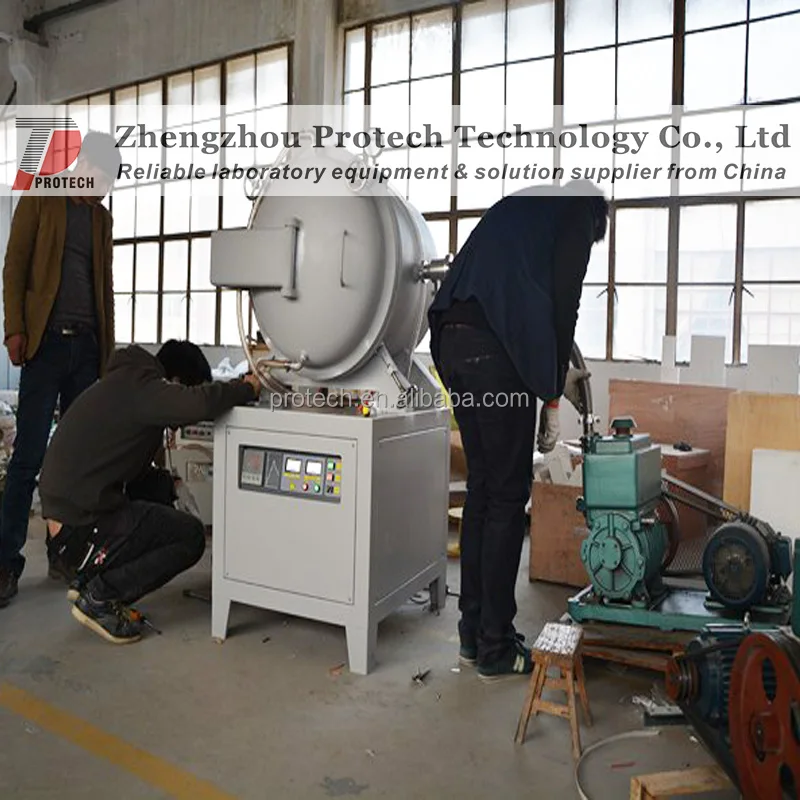

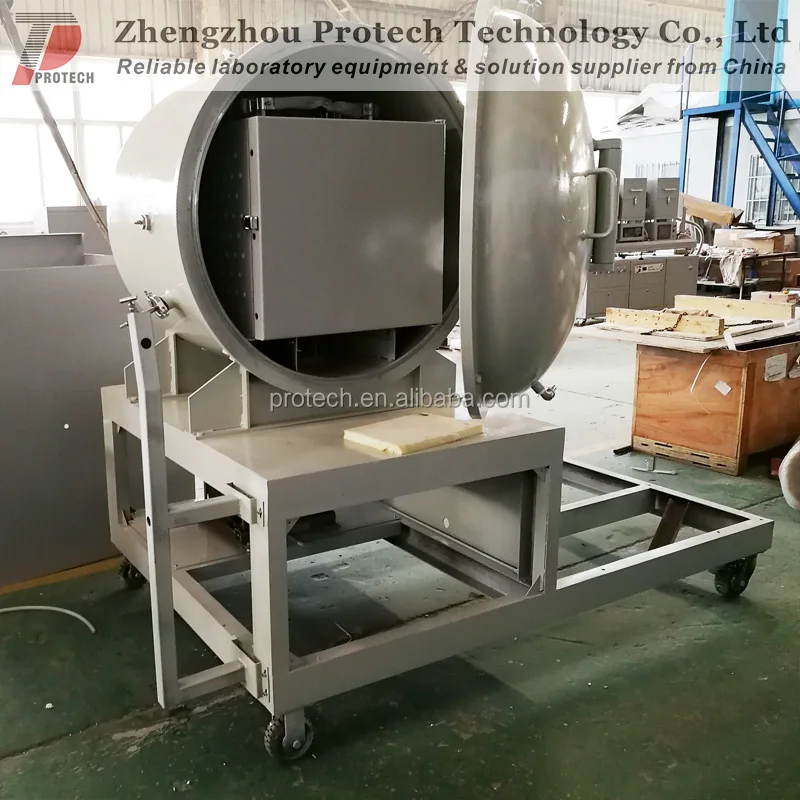

Detailed pictures:
All type vacuum furnace in our company:
Packaging & Shipping
Package: Plastic paper inside, Polyfoam filled, Wooden box outside.
Payment: L/C T/T, West union,etc.
Shipping and Delivery: by air/ship , in 15 days after receiving the payment.
