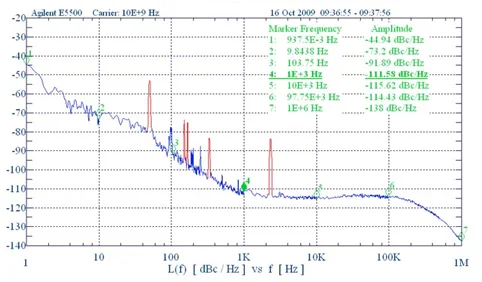

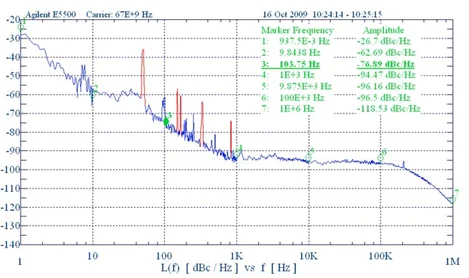

AV1464 Series, the high performance synthesized signal generators enjoy world-class sideband phase noise within the frequency range of 250kHz~67GHz. Your strict testing requirements on signal generators can be satisfied by the excellent spectrum purity, extra-wide frequency coverage, high-precision analog, frequency sweep, and high-precision power output in a large dynamic range. The standard dual-channel internal modulation signal generator and complex pulse generator provide wonderful AM, FM, ØM modulation and pulse modulation capabilities and avoid the annoyance of selecting from numerous options. AV1464 Series have four models to meet various demands of customers, they are AV1464A 250kHz~20GHz, AV1464B 250kHz~40GHz, AV1464C 250kHz~50GHz and AV1464 250kHz~67GHz.Chinese and English operation menus and large TFT LCD can better fulfill the demands of users. These products are ideal LO sources, clock sources and high-performance synthesized sweep sources, and also generate high quality analog signals.  They are mainly used in the comprehensive assessment of electronic system performances, testing on high-performance receiver and parameters of components and parts. They can be applied to many fields, such as aviation, spaceflight, radar, and communication and navigation equipment.

Main Features:



 Extra-wide frequency coverage

 Super pure signals

 Large dynamic range high-precision power output within the bandwidth of 67GHz

 High-precision analog sweep frequency output

Standard inter-modulation signal generator and pulse generator

Excellent wideband DCFM,DCØM

High-precision linearity AM and exponential AM

High-performance pulse modulation

110GHz frequency-multiplication source module frequency extension

Automatic scalar network analysis system can be established

 Chinese/English operation menus, large TFT LCD display

Step, list and power sweep

Automatic software update with U Disk



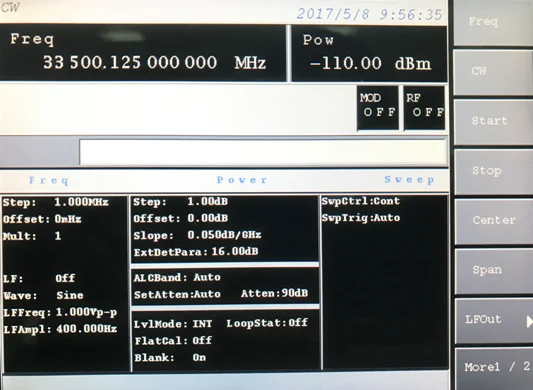

High Accuracy Power Output in -120∼+11 dBm Large Dynamic Range

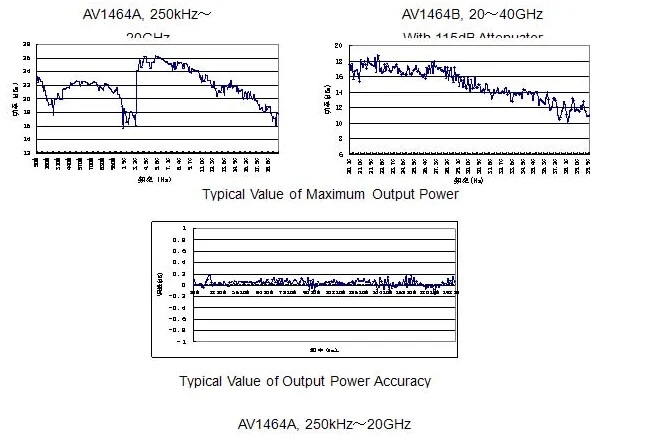

enerator AV1464 Series Synthesized Signal can provide -120dBm signal output within 40GHz frequency span with the built-in programmable step attenuator and the typical maximum output power is greater than +10dBm to meet your test requirements.



High-precision analog sweep frequency

Whole frequency high-precision analog frequency sweep can satisfy your demands on fast sweep during wideband testing.



Internal modulation signal generator and pulse generator (standard)

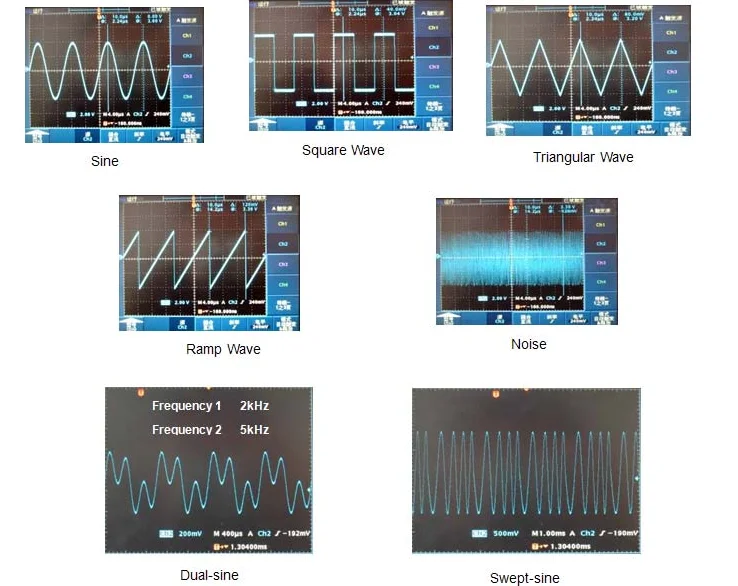

 Configuring standard dual-channel internal modulation signal generators, AV1464 Series Synthesized Signal Generators generate high-quality modulation signals by the synthesis technology of direct digital waveform. The frequency range is DC-1MHz and resolution is 0.1Hz. Modulated waveforms can have as many as 7 kinds to provide comprehensive signal analog.

Configure standard internal pulse generators and 6 options of pulse modes totally for your choice. The pulse width can be set randomly between 40ns and 42s at a step of 10ns and pulse ON/OFF ratio is larger than 80dB, to meet your testing requirements for high-performance pulse source.

Excellent Analog Modulation (standard)

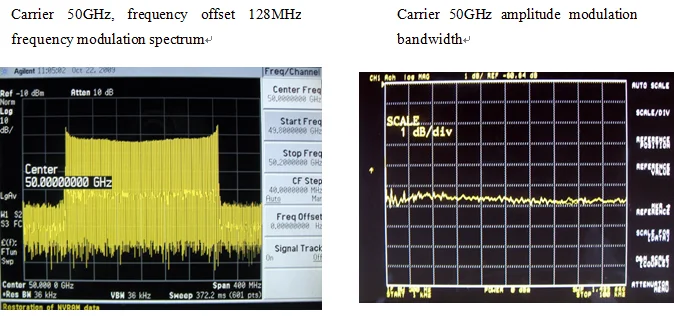

 The AV1464 Series Synthesized Signal Generators come standard with excellent analog modulation capability as well as AM, FM, ØM functions and support the inputs of internal and external modulation sources. They have wonderful DCFM capability with modulation rate up to DC~10MHz. They have two kinds of work modes: linear AM and exponential AM. The depth of the linear AM is greater than 90%. They offer you comprehensive solutions to generate high quality analog signals.



High-performance Pulse Modulation

The AV1464 Series Synthesized Signal Generators come standard with high-performance pulse modulation function. When the output frequency is greater than 500MHz, its modulation depth is greater than 80dB, its modulation rate is smaller than 20ns and its minimum pulse width is 100ns. They support many trigger modes like gate, external, etc. Double-pulse output is available and provides flexible and convenient solutions for radar pulse signal analog.

Frequency Multiplication Source Module Spectrum extension (Standard)

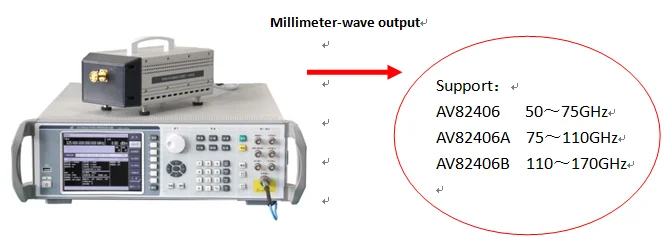

 The AV1464 Series Synthesized Signal Generators come standard with a frequency multiplication source module interface to which the waveguide series frequency multiplication source modules of the 41^stinstitute can be connected to extend frequency to millimeter-wave, which provide a simple, quick, low-cost solution for high quality millimeter-wave signal generation.



The AV1464 Series Synthesized Signal Generator as an independently designed software uses large screen and Chinese/English operation interfaces and has a panoramic view of the current state. The operation interface can be set in English according to the different uses and occasions for your convenience.


Auto Software Update with a U Disk

The AV1464 Series Synthesized Signal Generator provides a USB interface available for smart software update and data backup. You can easily use a U disk for simple and quick software update and maintenance.


Typical Applications:

Comprehensive Performance Evaluation on Electronic System

As a microwave synthesized signal generator product with top-level performance in such field, AV1464 Series can generate high quality analog signals in a wide dynamic range within the frequency range of 250kHz~67GHz. It is used in the comprehensive performance evaluation on radar, electronic warfare and communication equipment, etc. electronic systems to resolve the problems in system specification tests on bandwidth, sensitivity, dynamic range, intermodulation distortion and so on.

Test on High-performance Receiver

With dynamic output range up to146dB, extremely high frequency stability and frequency resolution of 0.001Hz, the AV1464 Series Synthesized Signal Generator can output high accurate standard test signals in performance tests on the high-performance receivers of radar, electronic warfare and communication equipment to resolve the problems in specification tests on sensitivity, dynamic range, and channel selectivity and so on.

Local Oscillator Substitution

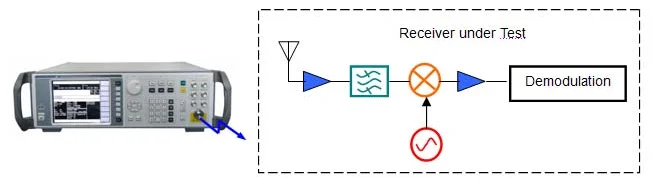

With high pure signal quality, the AV1464 Series Synthesized Signal Generator can be used as an ideal local oscillator to substitute those in the equipment under test, such as transmitter and receiver. It will effectively avoid negative affect on test due to bad quality of local oscillator so as to ensure the accuracy and creditability of your test
