Industrial NDT RT Testing Panoramic X ray Flaw Detector

Product Overview

Description

X-ray Flaw Detector





Introduction



The X-ray Flaw Detector can be widely used in shipbuilding, machinery manufacturing, aviation, pressure vessels, boilers, oil pipe, chemical, defense industry and other departments for non-destructive testing. X-ray Flaw Detector is suitable to construction site operation and factory lab operation.

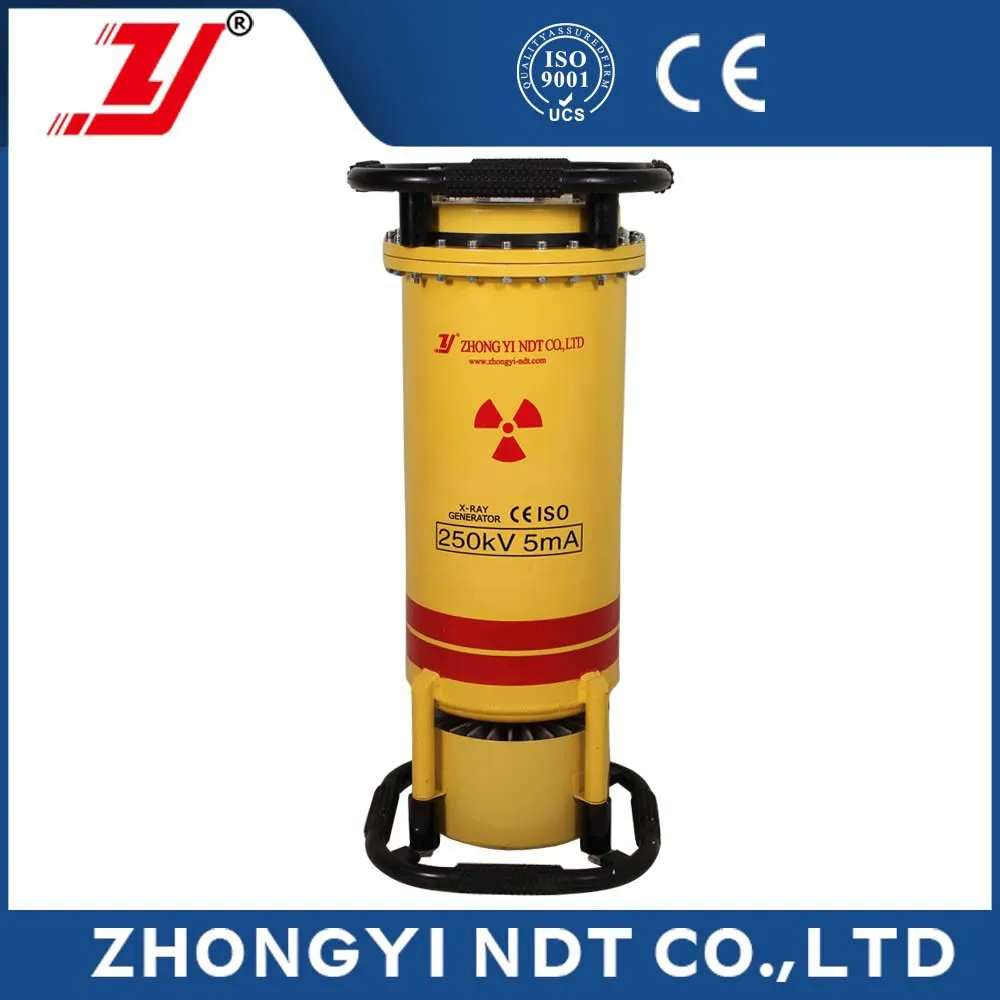

x-ray generator



X-ray Flaw Detector



1.Adopt high temperature installation technology to improve 30% heat radiation. The aluminium radiator has features as high stretch, high density and high purity.

2.Small volume, light weight ,easy to take and simplicity of operation.

3.More safe and reliable design of SF6 gas insulator, grounded-anode.

4.Strictly followed with 1:1 working/ resting radio, eliminating the disoperation.

5.The HV coils made by imported enamel wire are applied in the x-ray generator, so as to make the quality of the complete equipment improved a great deal.



controller



X-ray Flaw Detector



1.It can still work by applying special design of high frequency technology what can avoid the interference by power grid change.

2.All the signal wires in the controller are imported from South Korea to make sure the controller’s quality.

3.We are using highpower electronic components,such as capacitance and power module with wide capability to greatly ensure the quality of the products.

4.Apply the isolation technology of low voltage and high voltage to ensure the controller working stablely.

5.Posses the reliable “time-delayed” function, suitable to operate in the open field.

6.It has functions of troubleshooting automatically and pressure indication to guarantee the stability of working.



Parameters



Product Name : Industrial NDT RT Testing Panoramic X-ray Flaw Detector



X-ray Flaw Detector



X-ray Generator	X-ray Flaw Detector XXHA-2505
Max.Penetrate	35mm
Min.Diameter	457mm
Generator Dimension	Φ290mm x 970mm
Generator Weight	33kg
Generator Voltage	150-250kv
Focus Size	1.0 x 5.0mm
Radiation Angle	360° x 40°
Exposure Time	0-5min
Anode Target	Cone Target
Operate Temp.	-20°C~+75°C
Insulation Material	SF6 Gases
Available Humidity	≤90%



Zhongyi NDT Testing X-ray Flaw Detector/X-ray Generator
Model	Tube Voltage (KV)	Capacity (KW)	Focus Size (mm)	Max. Penetrate (mm)
XXQ-1005	40-100	>1.0	1.0*1.0	8
XXQ-1605	60-160	>1.5	1.5*1.5	20
XXQ-2005	80-200	>2.0	1.5*1.5	29
XXQ-2505	130-250	>2.5	2.0*2.0	39
XXQ-3005	150-300	>3.0	2.5*2.5	49
XXQ-3505	250-350	>3.5	2.5*2.5	59
XXH-1605	60-160	>1.5	1.0*2.0	18
XXH-2005	80-200	>2.0	1.0*2.4	26
XXH-2505	130-250	>2.5	1.0*2.4	36
XXH-3005	150-300	>3.0	1.0*3.4	46
XXH-3505	250-350	>3.5	1.0*3.4	56
XXHA-1005	40-100	>1.0	1.0*2.0	4
XXHA-1605	60-160	>1.5	1.0*2.5	15
XXHA-2005	80-200	>2.0	1.0*2.5	24
XXHA-2505	130-250	>2.5	1.0*2.5	34
XXHA-3005	150-300	>3.0	1.0*3.5	40
XXHA-3505	250-350	>3.5	1.0*3.5	50
XXG-1605	60-160	>1.5	1.5*1.5	20
XXG-2005	80-200	>2.0	1.5*1.5	29
XXG-2505	130-250	>2.5	2.0*2.0	39
XXG-3005	150-300	>3.0	2.5*2.5	49
XXG-3505	250-350	>3.5	2.5*2.5	70







X-ray Flaw Detector















X-ray Flaw Detector



FAQ:



Q 1:Is your Company the Manufacturer or a Trading Company?

A 1 : We are a manufacturer of NDT x ray equipment in China with experience engineer working over 20 years.



Q 2 : What are the payment options?

A 2 : We accept the following payment methods: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance .



Q 3 : Do you have any products that approved by ISO or CE?

A 3 : Yes, all of our products were strictly approved by ISO and CE, and our Zhongyi products can be imported to the overseas market.
