Micro Hydro Tubrine 100kW Turgo Turbine / mini hydro turbine
- Category: >>>
- Supplier: Fuchun Industry Development Company Ltd. Shenzhen
Share on (60360819346):
Product Overview
Description
Micro Hydro Tubrine 100kW Turgo Turbine / mini hydro turbine
Item | Parameter |
Capacity | 100kW |
Rated Head | 58.1m |
Rated Flow | 0.175 m3/s |
Water Turbine | |
Turbine Type | Horizontal Turgo Turbine |
Turbine Modle | XJA-W-40/1×9 |
Rotation Speed | 500r/min |
No. of Nozzle | 1 |
| Jet Diameter | 9cm |
Runner Diameter | 40cm |
Runner Material | Stainless Steel (06Cr13Ni4Mo) |
100kW Water Turbine Generator | |
Generator Type | Synchronize, Horizontal |
Generator Modle | SFW100-8/590 |
Rated Voltage | 400V |
Rated Power Factor | 0.8 (Lagging) |
Frequency | 50 Hz |
Insulation Class | F/F |
Excitation system | brushless |
Auxiliary equipment | main inlet valve, governor, general control panel and so on |
The meaning of the type XJA-W-40/1×9
XJ - Turgo or inclined-jet type
A - the sign of runner
W - horizontal shaft
40 - nominal diameter of runner(cm)
1 - number of nozzle (single here)
9 - diameter of jet (cm)
A half-coupling on the shaft of turbine is also a flywheel and connected directly with another half-coupling on the shaft of generator. Rotating direction of the runner is clockwise when see from the generator.
This turbine uses a long nozzle of 62°/45°in good performance, an intake pipe of 90° and a conduit elbow.
Number of vanes Z | 22 |
Nozzle orifice diameter dn(mm) | 110 |
Stroke S (mm) | 99 |
Intake pipe Dn(mm) | 300 |
Inlet valve diameter Dn(mm) | 300 |
Type of regulating | PLC-based automatic governor |
Type of the gate valve | D941H-1.0-DN300 |
Model of bearing | single direction bearing 46322 cylindrid roller bearing 322 |
Maximum dimension (L×H×W) (mm) | 3150×1400×1200 |

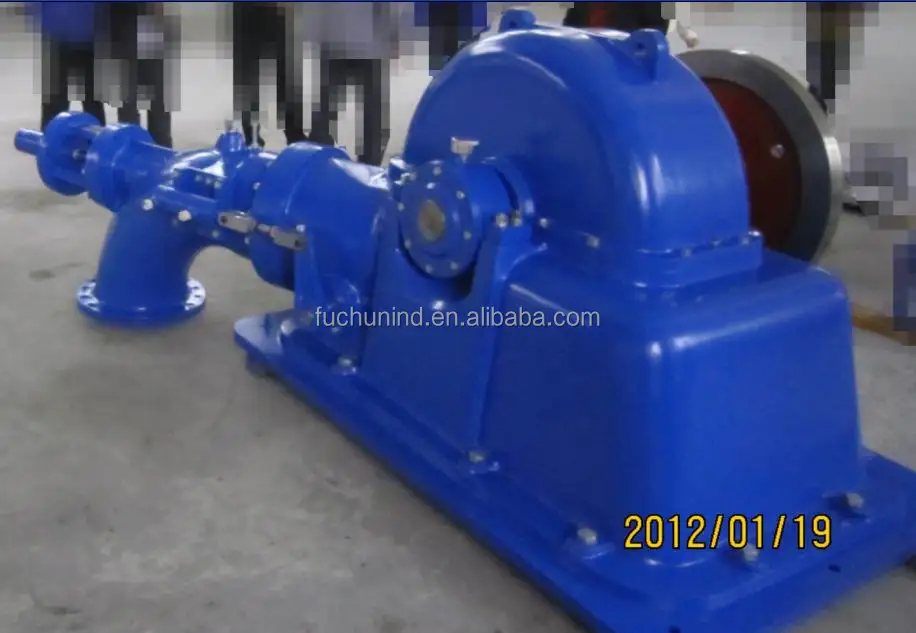

Turgo Turbine Photos

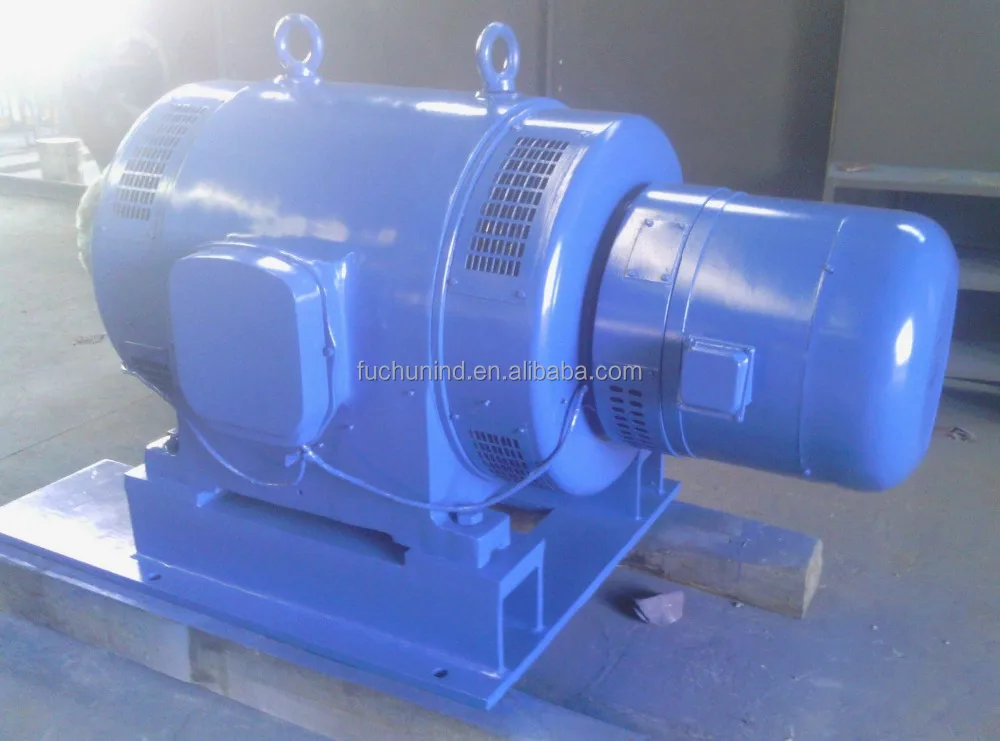

Generator Photos
