GPH212T5 GPH287T5 GPH303T5 GPH357T5 UV lamp ballast PH12 350 15A

Product Overview

Description

GPH212T5 GPH287T5 GPH303T5 GPH357T5 UV lamp ballast PH12-350-15A

198-264V PW12-350-15 UV ballast for TUV11W TUV16W

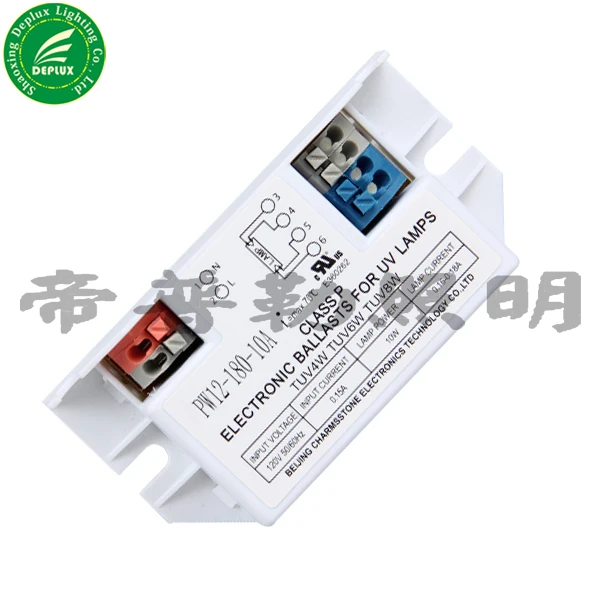

99-132V PW12-180-10A UV ballast for TUV4W TUV6W TUV8W LTC4T5 LTC6T5 LTC8T5

Preheating UV Electronic ballasts 4W to 18W

TUV4W TUV6W TUV8W LTC4T5 LTC6T5 LTC8T5 UV lamp ballast

UV lamp Electronic ballast 4-18W TUV4W TUV6W TUV8W LTC4T5 LTC6T5 LTC8T5

TUV15WT8 Ballast



1.Suitable for UV lamps

PH12-180-10

PH12-180-10A

Lamp types: TUV4W TUV6W TUV8W LTC4T5 LTC6T5 LTC8T5



PH12-350-15

PH12-350-15A

Lamp types: TUV15WT8



PH12-425-18

PH12-425-18A

Lamp types: GPH212T5 GPH287T5 GPH303T5 GPH357T5 TUV11W TUV16W



2.Technical specifications

Mains Voltage:110-240VAC±10%

Mains Frequency:50/60Hz

Power Factor: >0.55

Efficiency: >80%

Operating Frequency: 40-60KHz

Dimensions: 80*40*22mm



3.Lamp status forwarding

Potential free relay contacts for lamp on/lamp fault..

4.Installation requirement

Wire Gauge:0.5-1.0mm2

5.Mounting restrictions

Disconnect Input Power Before Installing or Servicing.

Ballast Case Must Be Grounded.

Don’t short any two wires of the four outputs.

6.Features

Starting:Preheat

7.Applications

All areas of applications includes UV lamps

Air purification

Industrial water treatment

Municipal water treatment
