High output UV lamp GPH1554T5 GHO64T5 Electronic ballast PH2 series 99V to 264V
- Category: >>>
- Supplier: Shaoxing Deplux Lighting Co. Ltd.
Share on (60360924272):
Product Overview
Description
Electronic Ballast (EB)
The electronic ballast is an inverter which can convert AC power supply into a high frequency AC power supply.
Two types of input voltage. One is low DC input power from DC12V to DC110V; another is AC input power from 24VAC to 277VAC.
Frequency 50/60Hz.
Two types of installation mode. One is all Built-in type and another is independent and built-in.
Three starting modes, Pre-heat, Instant and Rapid start
Suggest that the lead between electronic ballast and lamp tube is less than 5m.
Electronic ballast is a power component. Metal enclosure can be operated when the highest temperature is below 70 degree and
plastics enclosure can be below 60 degree. The lower temperature of ballast’s enclosure, the longer life of ballast.
Ballast case must be grounded and don’t short any two wires of the outputs.
Professional good match with UVC lamps for air purification, industrial water treatment, drinking water, etc..
Warning: The radiation of those lamps is harmful to eyes and skin, Protect your eyes and your skin against the Ultraviolet rays
Two types of input voltage. One is low DC input power from DC12V to DC110V; another is AC input power from 24VAC to 277VAC.
Frequency 50/60Hz.
Two types of installation mode. One is all Built-in type and another is independent and built-in.
Three starting modes, Pre-heat, Instant and Rapid start
Suggest that the lead between electronic ballast and lamp tube is less than 5m.
Electronic ballast is a power component. Metal enclosure can be operated when the highest temperature is below 70 degree and
plastics enclosure can be below 60 degree. The lower temperature of ballast’s enclosure, the longer life of ballast.
Ballast case must be grounded and don’t short any two wires of the outputs.
Professional good match with UVC lamps for air purification, industrial water treatment, drinking water, etc..
Warning: The radiation of those lamps is harmful to eyes and skin, Protect your eyes and your skin against the Ultraviolet rays
Type | Input Voltage(V) | Input Power(W) | Input Current(A) | PF | Lamp Current(A) | Startup mode | Net Weight(KG) | Gross Weight(KG) |
PL2-800-155U | 99-264 | 165 | 0.73 | >0.98 | 0.75-0.85 | Instant | 0.42 | 11.5 |

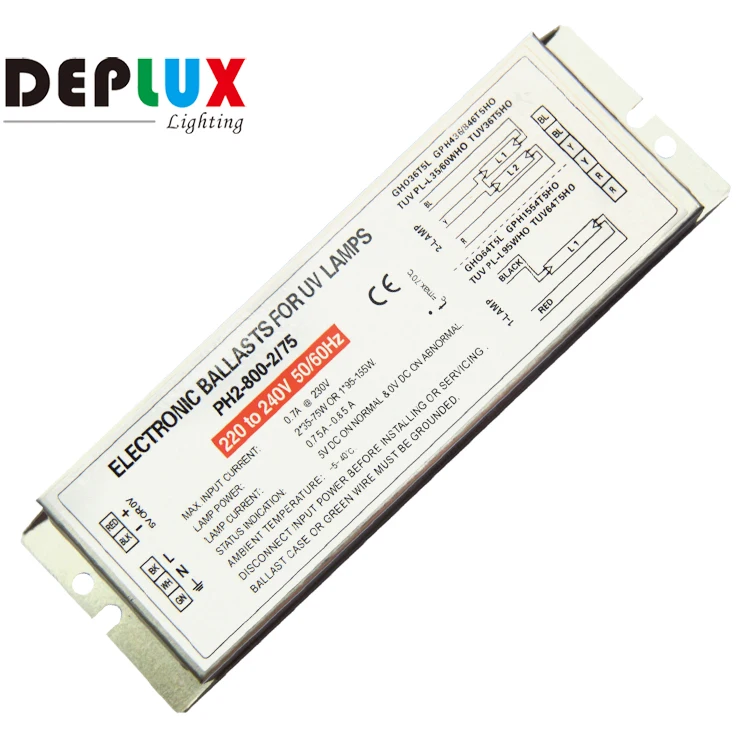

PH2-800-2/75 | 198-264 | 165 | 0.73 | >0.98 | 0.75-0.85 | Pre-heat | 0.42 | 11.5 |
PH2-800-2/75U | 99-264 | 165 | 0.73 | >0.98 | 0.75-0.85 | Pre-heat | 0.42 | 11.5 |

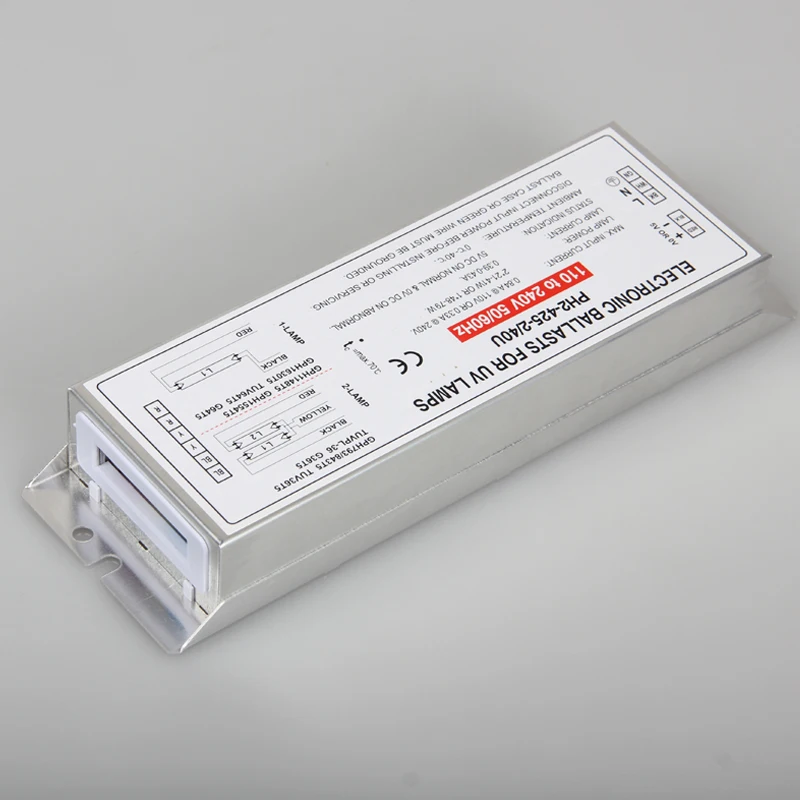

PH2-425-2/40U | 99-264 | 90 | 0.4 | >0.98 | 0.38-0.43 | Pre-heat | 0.42 | 11.5 |
